NSN 5306-01-230-5188 LD11100200413, LD111-0020-0413, 01-230-5188
Product Details | SHEAR BOLT
5306-01-230-5188 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: LD11100200413, LD111-0020-0413, 5306-01-230-5188, 01-230-5188, 5306012305188, 012305188
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1986 | 01-230-5188 | 15903 ( BOLT, SHEAR ) |

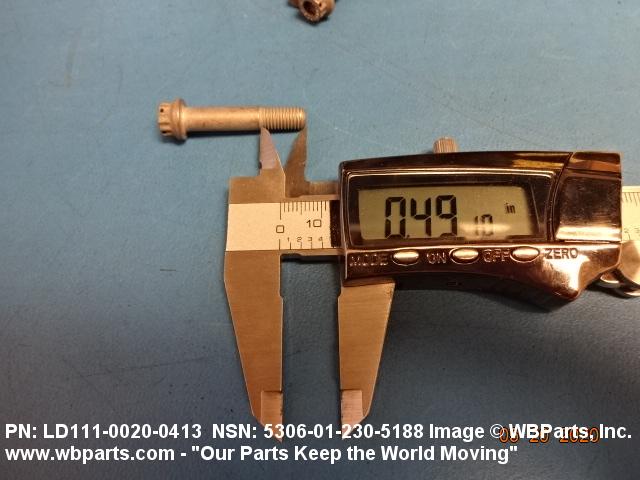

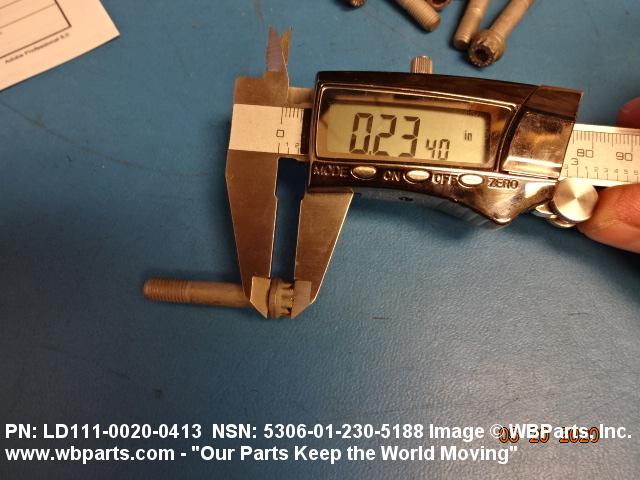

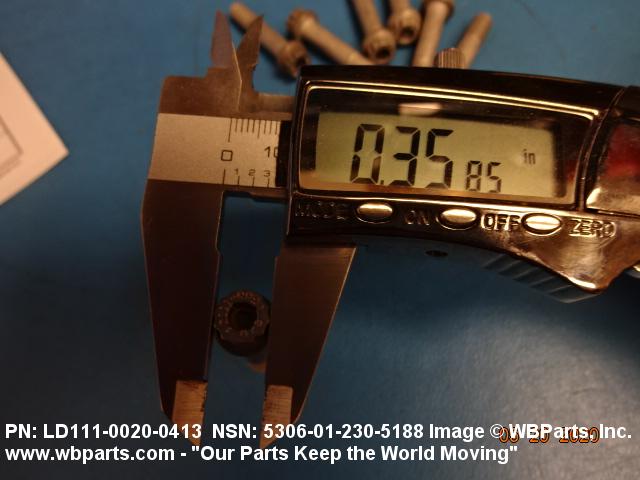

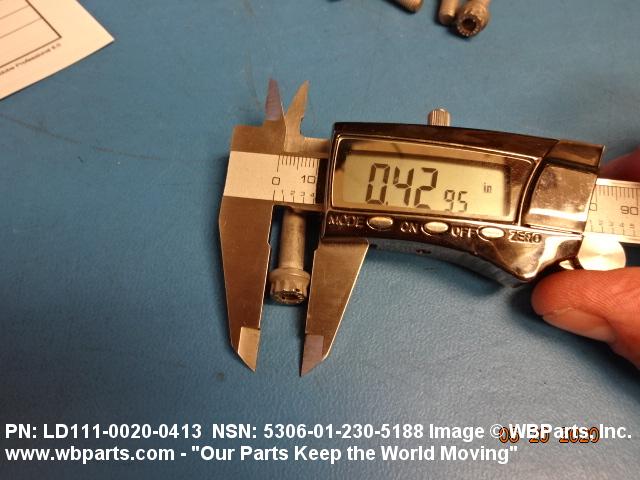

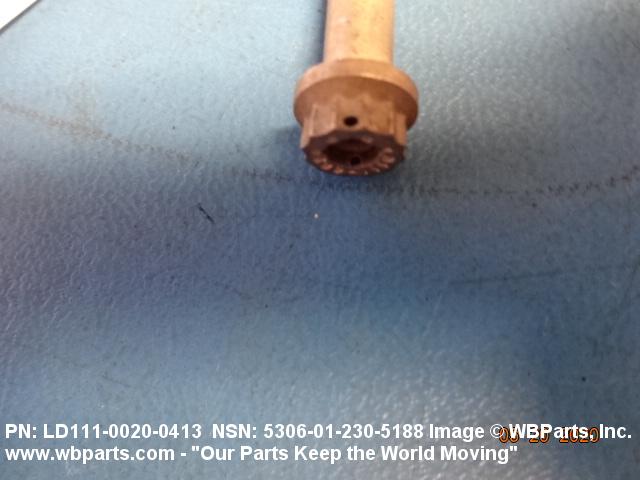

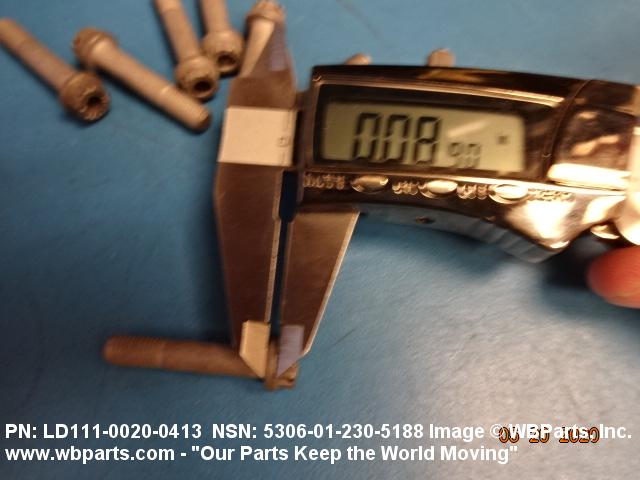

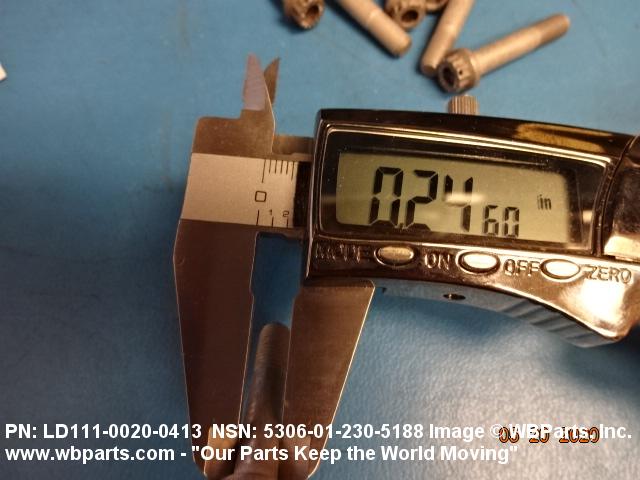

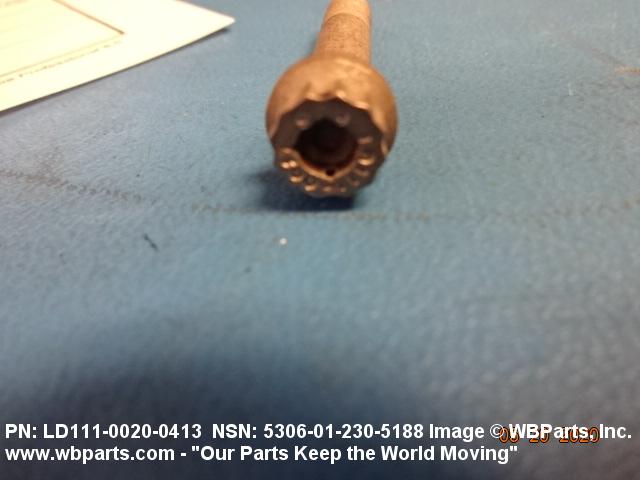

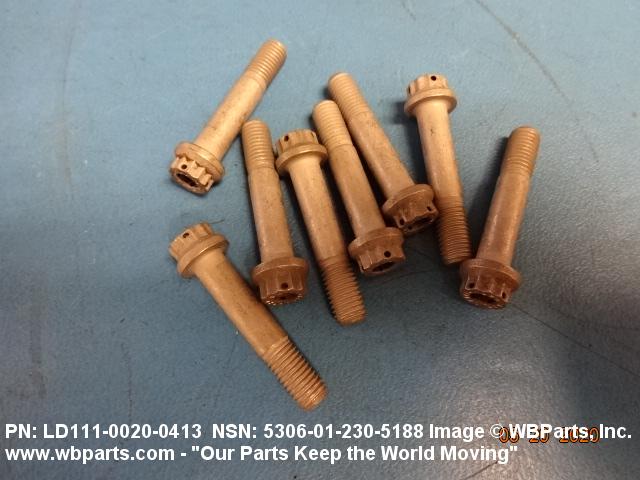

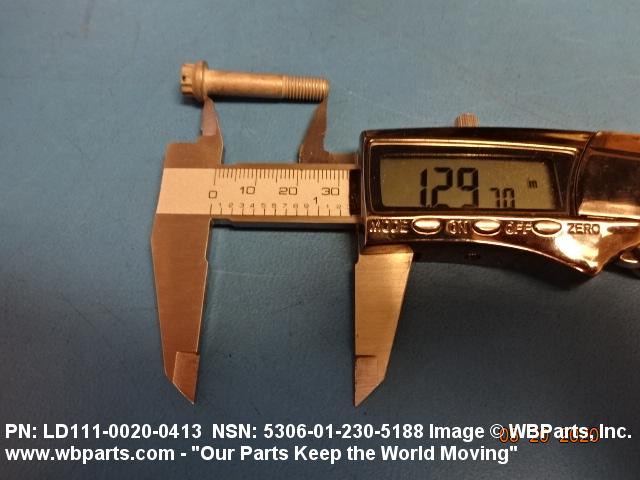

Drawings & Photos | NSN 5306-01-230-5188
Demand History | NSN 5306-01-230-5188
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LD111-0020-0413 | 2021-01-27 | 1074 | DIBBS |
| LD111-0020-0413 | 2021-01-12 | 1074 | DIBBS |
| 5306-01-230-5188 | 2020-05-136 | 208 | United States |
| LD111-0020-0413 | 2020-05-126 | 1200 | DIBBS |
| LD111-0020-0413 | 2020-04-100 | 837 | DIBBS |
| LD111-0020-0413 | 2020-04-98 | 774 | DIBBS |
| 5306-01-230-5188 | 2015-11-329 | 520 | DIBBS |
| 5306-01-230-5188 | 2015-01-20 | 413 | DIBBS |
| 5306-01-230-5188 | 2011-05-129 | 185 | DIBBS |
| 5306-01-230-5188 | 2011-01-31 | 93 | DIBBS |
| 5306-01-230-5188 | 2009-10-279 | 74 | DIBBS |
Cross Reference | NSN 5306-01-230-5188
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LD111-0020-0413 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-230-5188
Technical Data | NSN 5306-01-230-5188
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| HOLE CONFIGURATION STYLE | DOUBLE HEXAGON LONGITUDINAL HOLE |
| GRIP DIAMETER | 0.2490 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| HOLE DIAMETER | 0.034 INCHES MINIMUM AND 0.042 INCHES MAXIMUM |
| FASTENER LENGTH | 1.297 INCHES MINIMUM AND 1.327 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.069 INCHES NOMINAL |
| HOLE QUANTITY | 4 |
| THREAD QUANTITY PER INCH | 28 |
| WIDTH BETWEEN FLATS | 0.304 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.428 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| HEAD HEIGHT | 0.234 INCHES NOMINAL |
| MATERIAL | STEEL COMP XM-13 OVERALL |
| THREAD SERIES DESIGNATOR | UNJF |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| GRIP LENGTH | 0.812 INCHES NOMINAL |
| HOLE TYPE | DRILLED |
| MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAD STYLE | DOUBLE HEXAGON W/HOLE |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD LENGTH | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5306-01-230-5188
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-230-5188
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
