Product Details | SHEAR BOLT

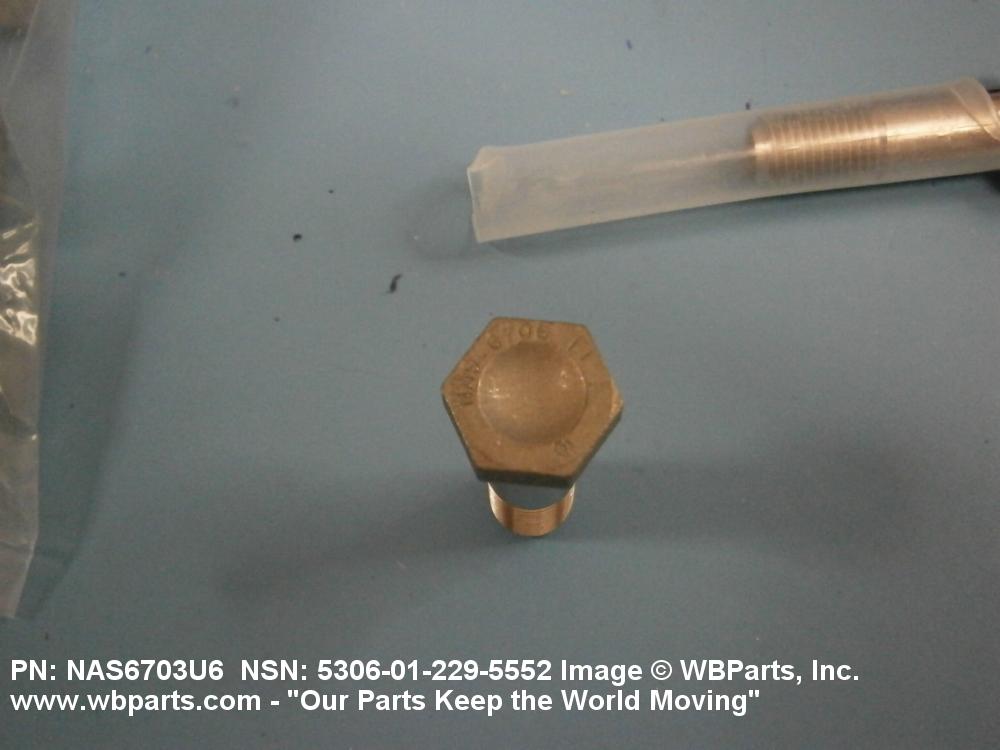

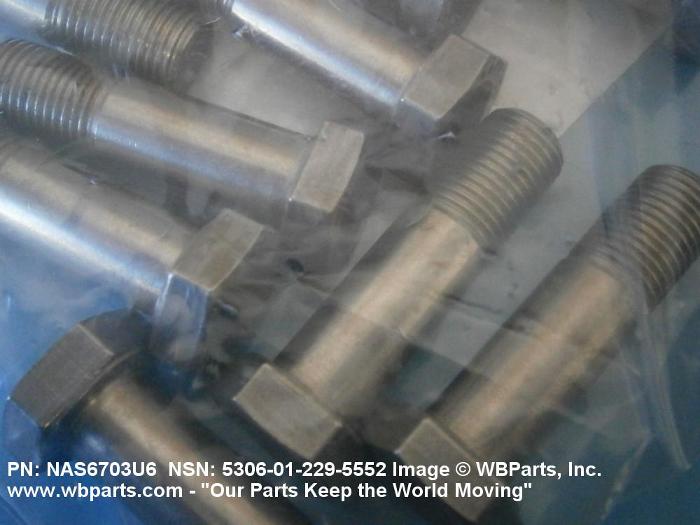

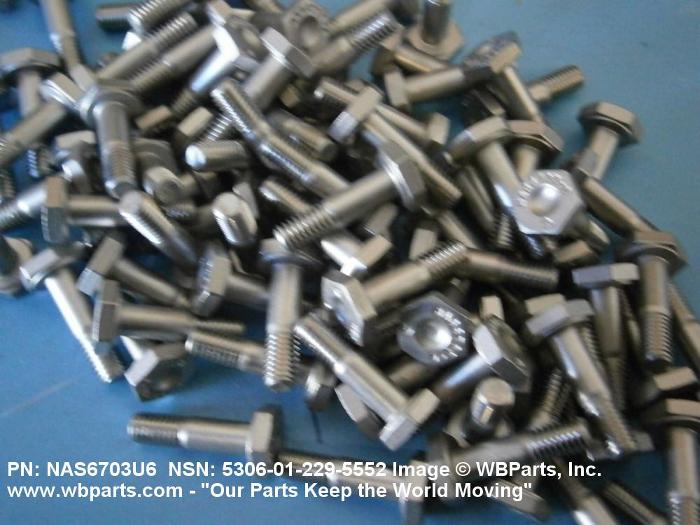

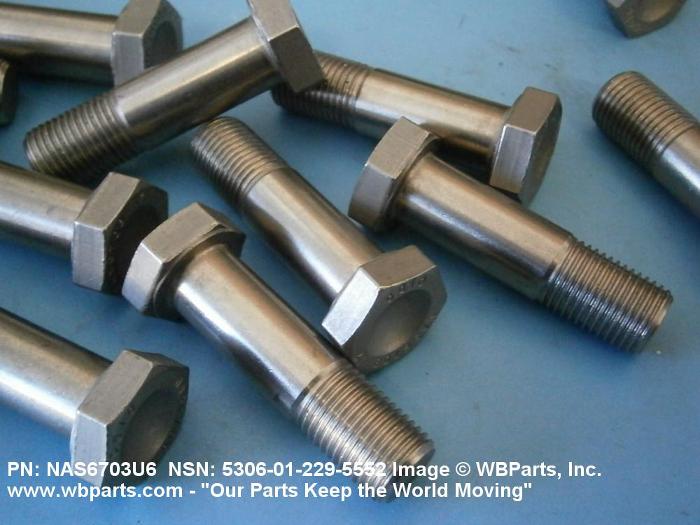

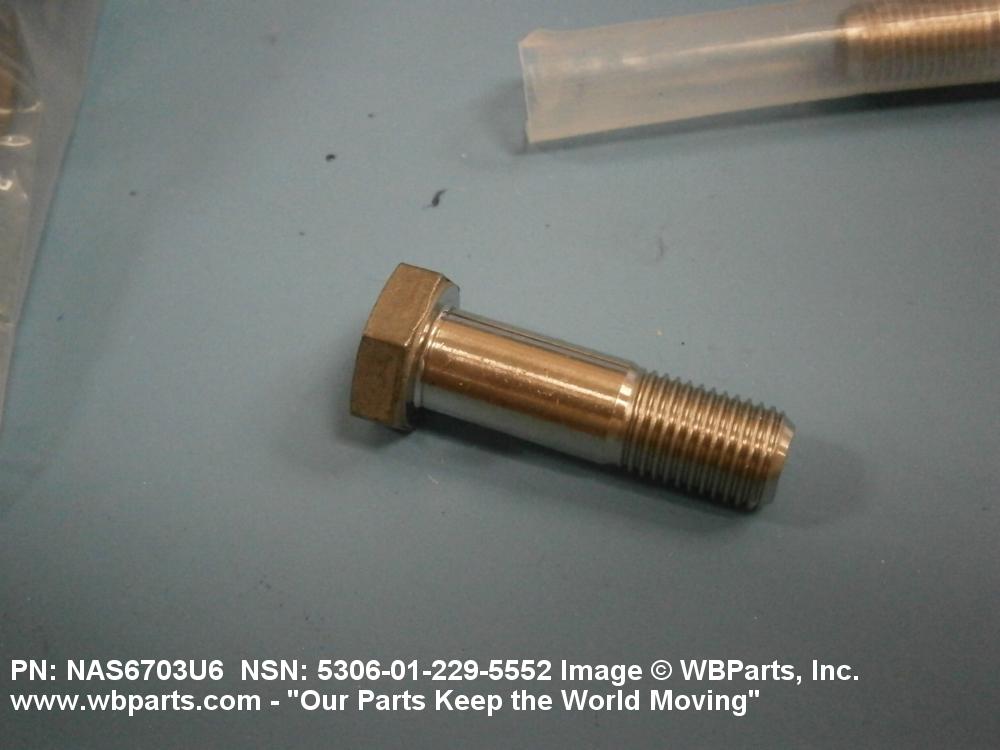

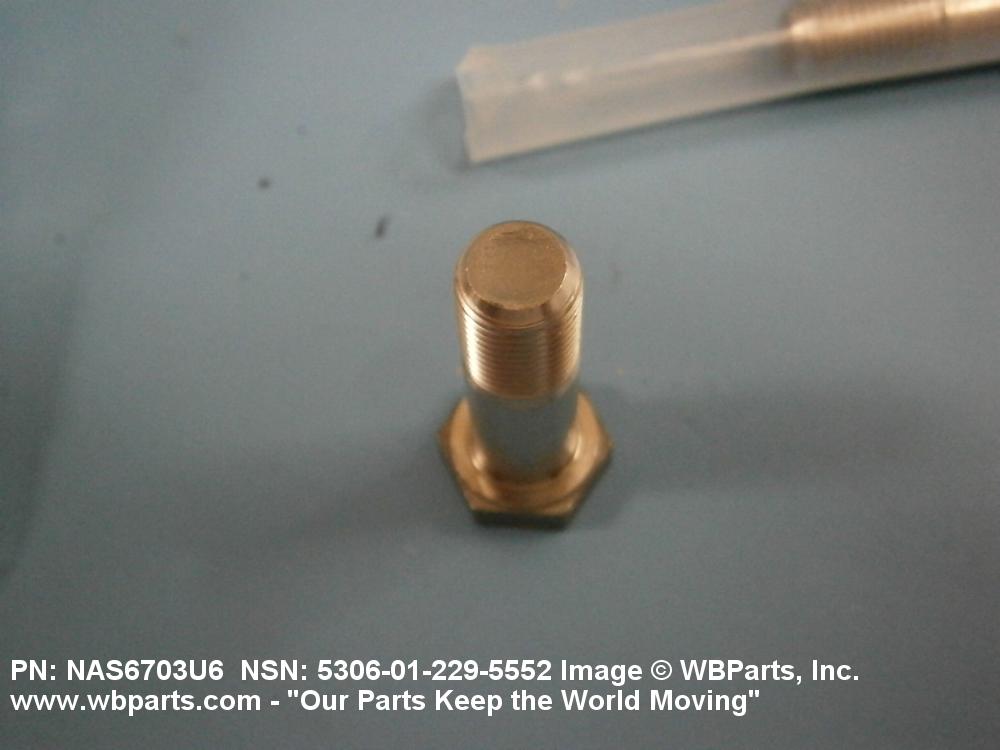

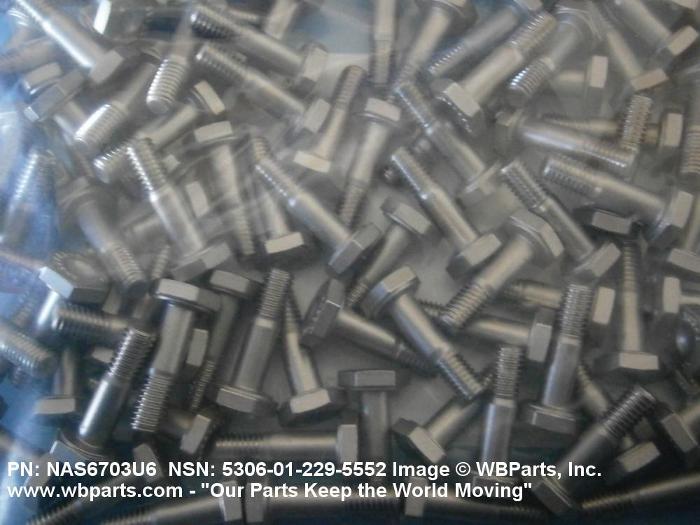

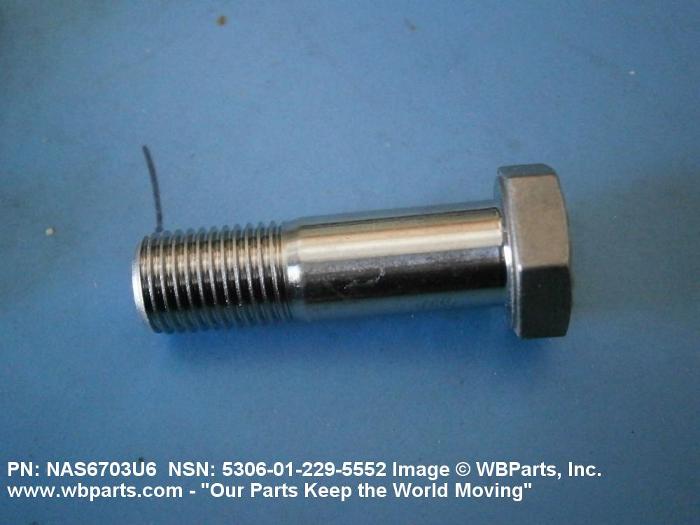

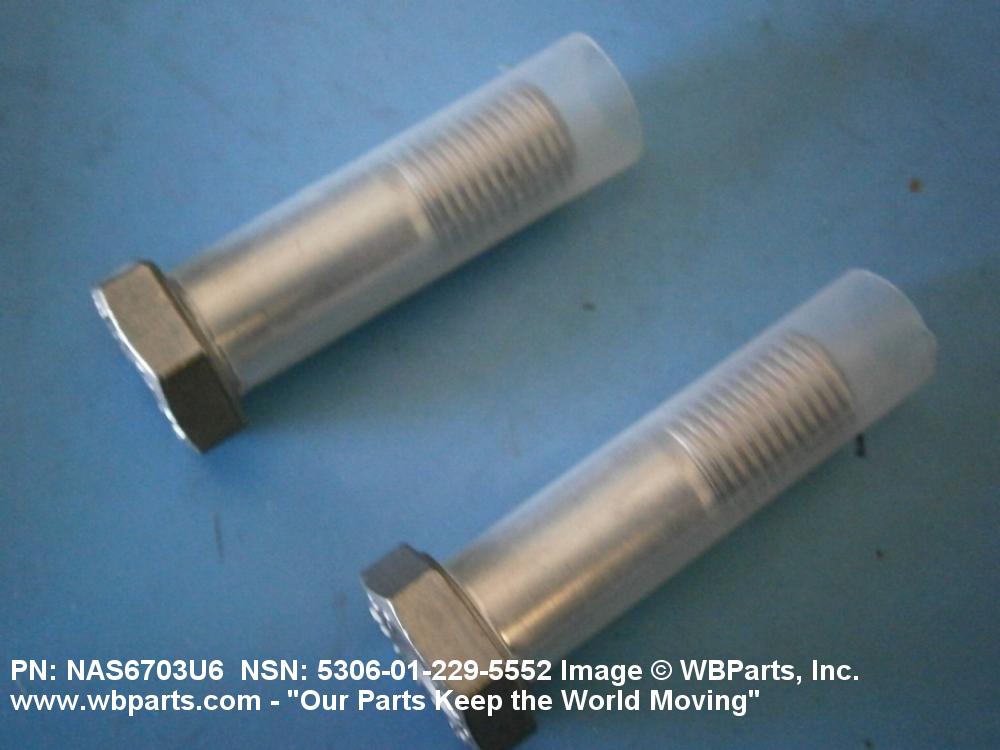

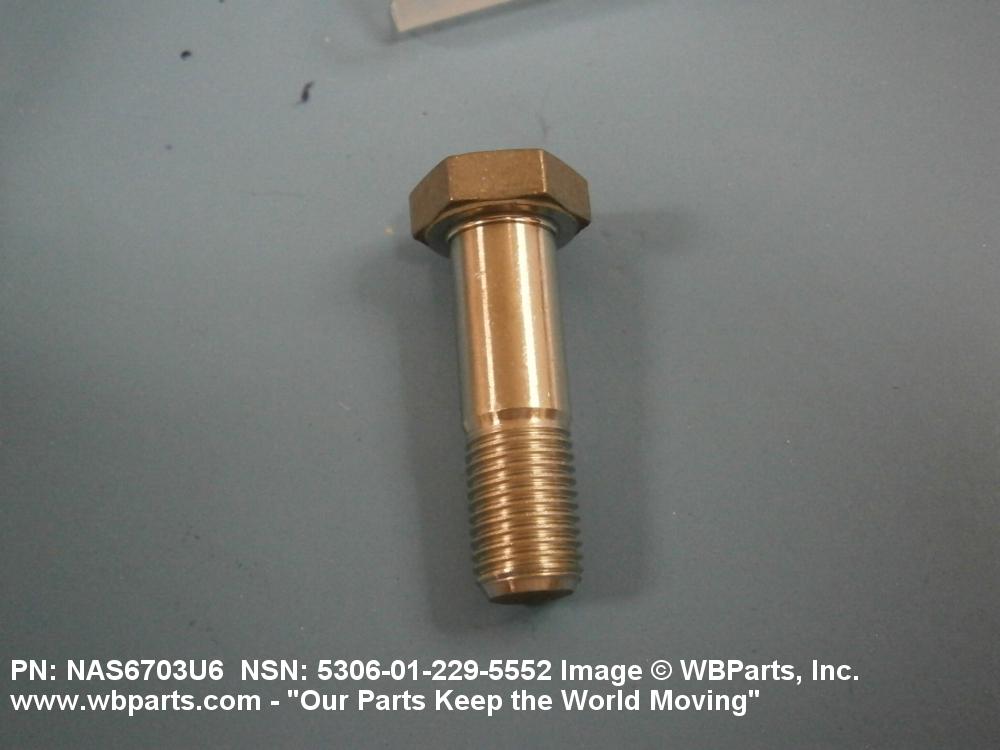

5306-01-229-5552 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS6703U6, 5306-01-229-5552, 01-229-5552, 5306012295552, 012295552
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 APR 1986 | 01-229-5552 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-01-229-5552
Demand History | NSN 5306-01-229-5552
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-229-5552 | 2024-09-260 | 2688 | DIBBS |
| 5306-01-229-5552 | 2024-06-176 | 732 | DIBBS |
| 5306-01-229-5552 | 2024-06-168 | 732 | DIBBS |
| 5306-01-229-5552 | 2024-01-28 | 908 | DIBBS |
| 5306-01-229-5552 | 2023-09-260 | 1030 | DIBBS |
| 5306-01-229-5552 | 2023-04-106 | 304 | DIBBS |
| 5306-01-229-5552 | 2023-03-73 | 503 | DIBBS |
| 5306-01-229-5552 | 2023-02-58 | 503 | DIBBS |
| 5306-01-229-5552 | 2023-02-43 | 503 | DIBBS |
| 5306-01-229-5552 | 2022-02-53 | 717 | DIBBS |
| NAS6703U6 | 2019-10-288 | 10 | United States |
| NAS6703U6 | 2013-03-79 | 2 | US |
| NAS6703U6 | 2012-02-41 | 4 | Philippines |
| NAS6703U6 | 2011-10-291 | 90 | United States |
| NAS6703U6 | 2011-10-290 | 90 | United States |
| 5306-01-229-5552 | 2011-09-269 | 1005 | DIBBS |
| NAS6703U6 | 2008-07-213 | 700 | Italy |
| NAS6703U6 | 2008-01-31 | 30 | US |
Cross Reference | NSN 5306-01-229-5552
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS6703U6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-229-5552
Related Products | NSN 5306-01-229-5552
Technical Data | NSN 5306-01-229-5552
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| WIDTH BETWEEN FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS6703 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| GRIP LENGTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 32 |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | DISHED HEXAGON |
| SURFACE FINISH | 125.0 MICROINCHES SIDES OF HEAD |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD LENGTH | 0.320 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES THREADS |
| GRIP DIAMETER | 0.1884 INCHES MINIMUM AND 0.1890 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD |
| MATERIAL | IRON ALLOY 660 OVERALL |
| FASTENER LENGTH | 0.705 INCHES MINIMUM AND 0.735 INCHES MAXIMUM |
| HEAD HEIGHT | 0.110 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE AND AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE FINISH | 32.0 MICROINCHES GRIP |
| SURFACE FINISH | 125.0 MICROINCHES TOP OF HEAD |
| THREAD CLASS | 3A |
