NSN 5306-01-195-5019 NAS178534, NAS1785-3-4, 01-195-5019
Product Details | SHEAR BOLT
5306-01-195-5019 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS178534, NAS1785-3-4, 5306-01-195-5019, 01-195-5019, 5306011955019, 011955019
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 NOV 1984 | 01-195-5019 | 15903 ( BOLT, SHEAR ) |

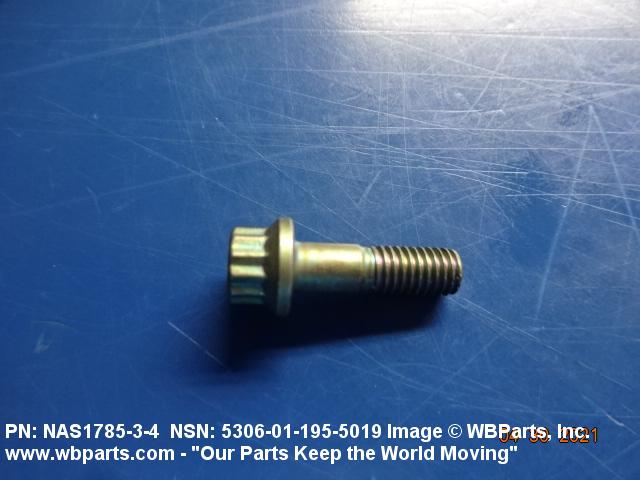

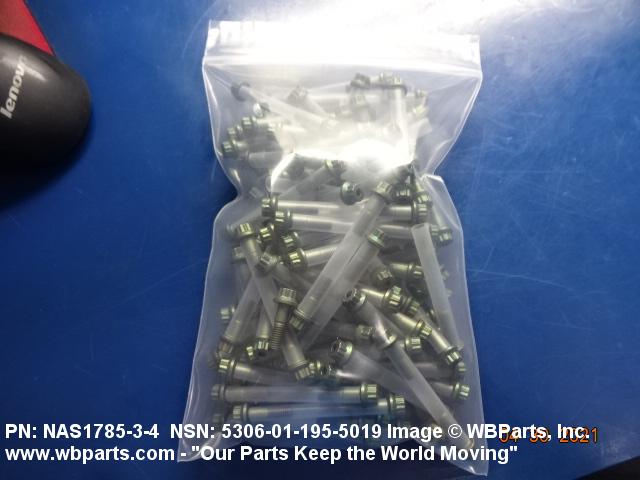

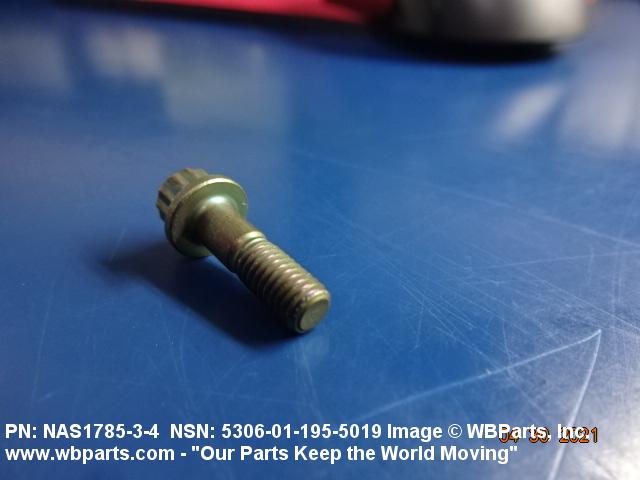

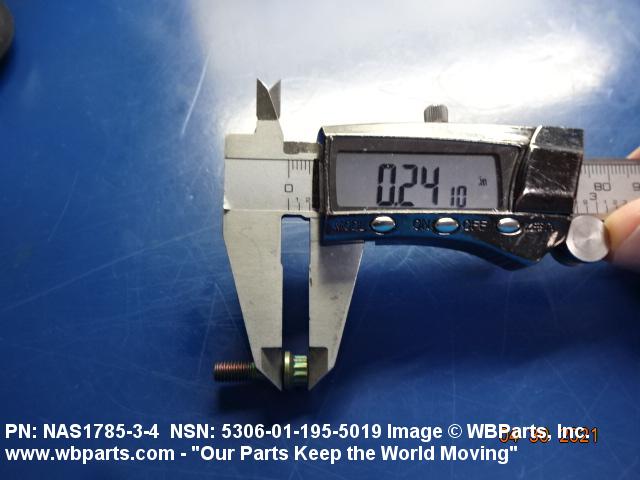

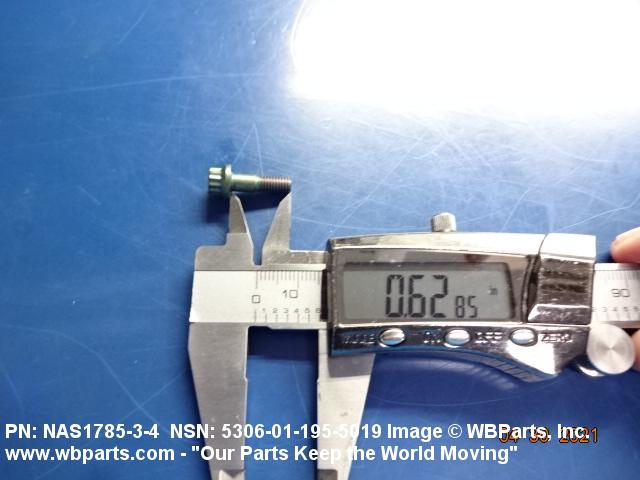

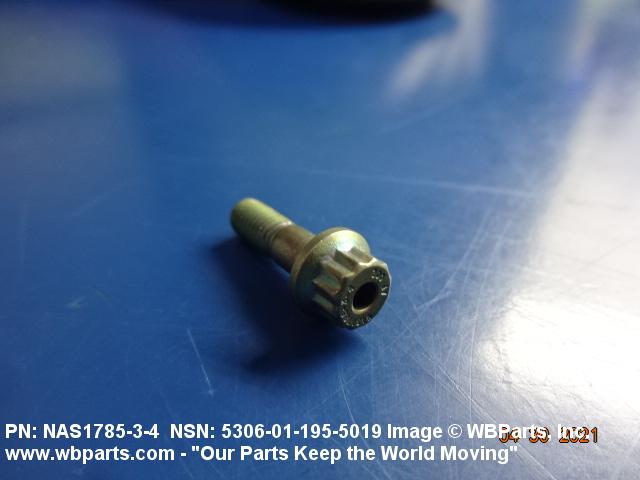

Drawings & Photos | NSN 5306-01-195-5019
Demand History | NSN 5306-01-195-5019
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS178534 | 2021-03-74 | 174 | United States |
| 5306-01-195-5019 | 2016-04-108 | 719 | DIBBS |
| 5306-01-195-5019 | 2015-09-268 | 500 | DIBBS |
| 5306-01-195-5019 | 2015-09-256 | 500 | DIBBS |
| 5306-01-195-5019 | 2014-10-295 | 538 | DIBBS |
Cross Reference | NSN 5306-01-195-5019
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1785-3-4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-195-5019
Technical Data | NSN 5306-01-195-5019
| Characteristic | Specifications |
|---|---|

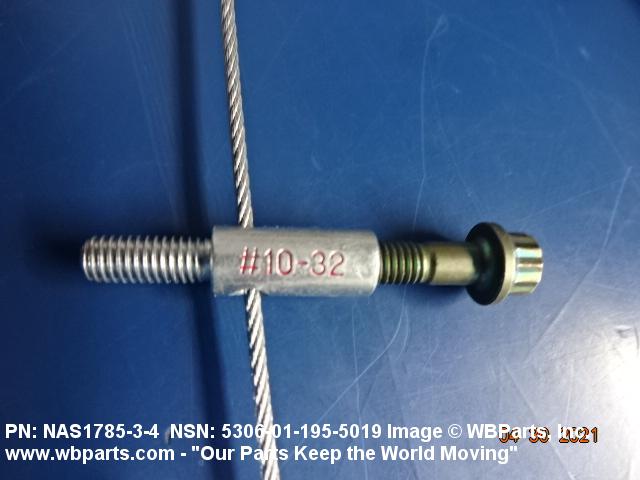

| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

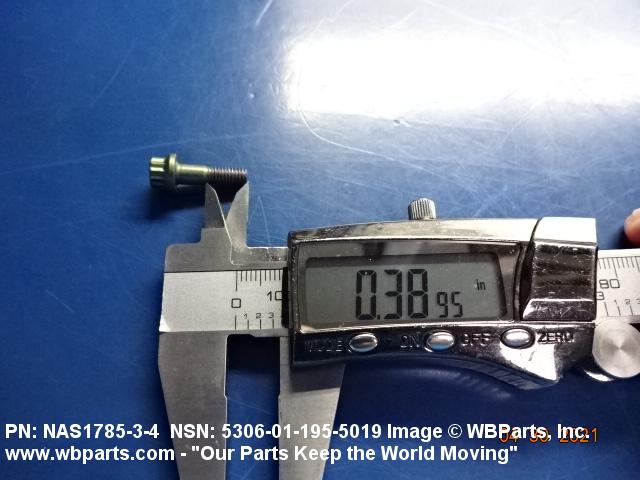

| THREAD LENGTH | 0.380 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| FASTENER LENGTH | 0.630 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| MATERIAL | STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6487 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | NICKEL AND CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2416 ASSN STD ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |

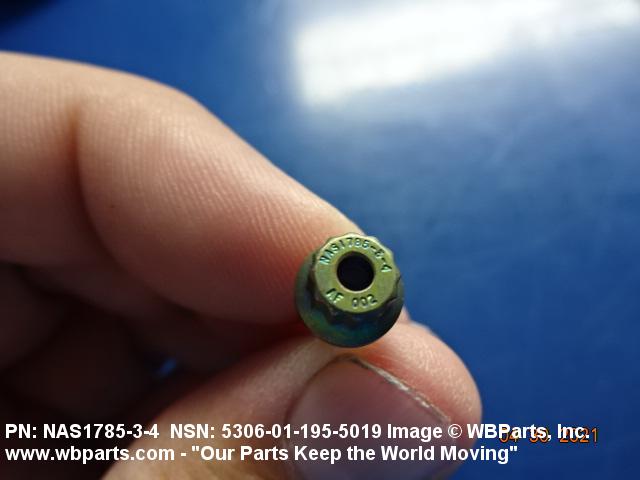

| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.204 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.243 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |

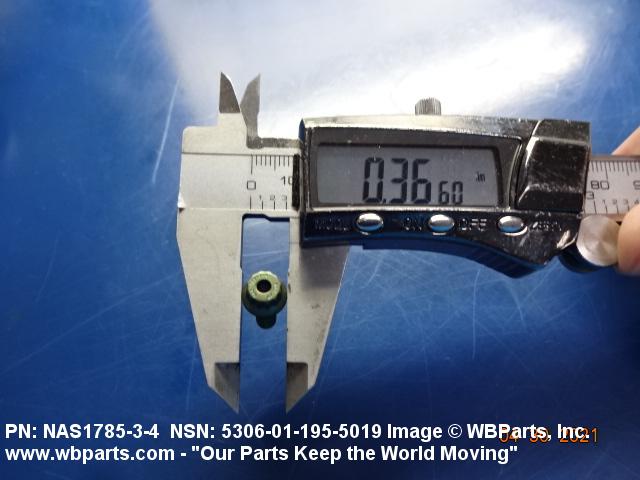

| EXTENDED WASHER DIAMETER | 0.359 INCHES MINIMUM AND 0.369 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.040 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |
| GRIP LENGTH | 0.250 INCHES NOMINAL |

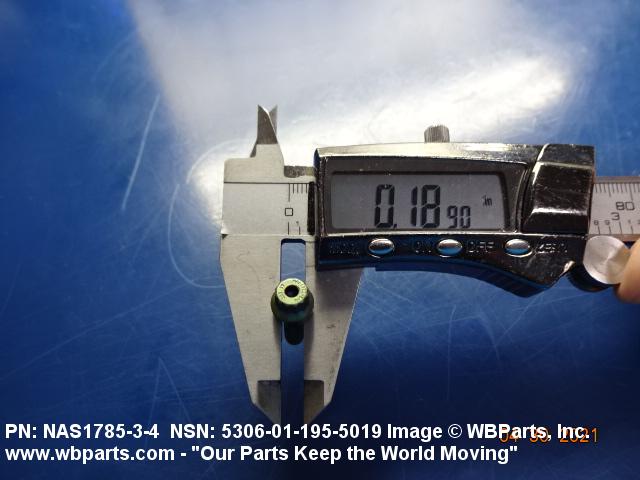

| GRIP DIAMETER | 0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP |
| SPECIFICATION/STANDARD DATA | 80205-NAS1785 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5306-01-195-5019
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-195-5019
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
