Product Details | SHEAR BOLT

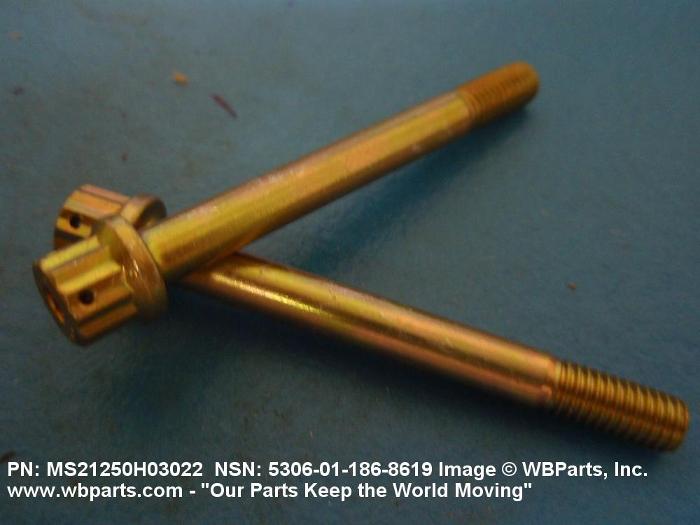

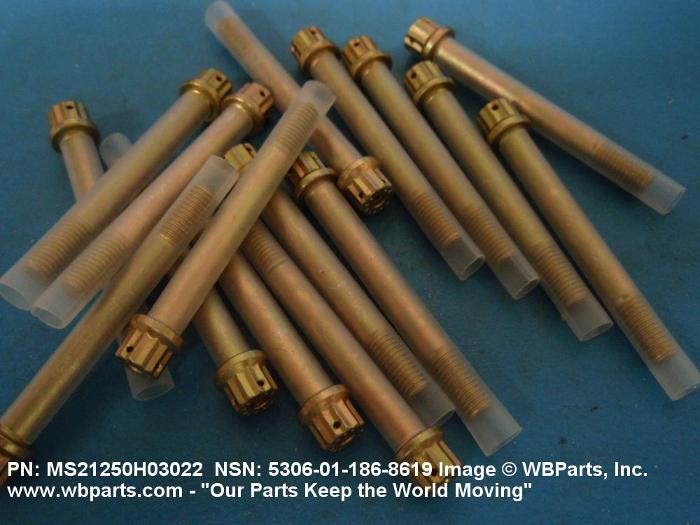

5306-01-186-8619 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: MS21250H03022, 10116120 , 5306-01-186-8619, 01-186-8619, 5306011868619, 011868619
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 AUG 1984 | 01-186-8619 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-01-186-8619
Demand History | NSN 5306-01-186-8619
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-186-8619 | 2015-04-92 | 26 | DIBBS |
| 5306-01-186-8619 | 2015-02-32 | 26 | DIBBS |
| 5306-01-186-8619 | 2014-09-246 | 26 | DIBBS |
| MS21250H03022 | 2011-03-82 | 16 | United States |
Cross Reference | NSN 5306-01-186-8619
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21250H03022 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-186-8619
Technical Data | NSN 5306-01-186-8619
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.420 INCHES MINIMUM AND 0.460 INCHES MAXIMUM |
| FASTENER LENGTH | 1.805 INCHES MINIMUM AND 1.825 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 8740 OR STEEL COMP 6150 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.255 INCHES MINIMUM AND 0.275 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.340 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.045 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E5 HEXAGON LONGITUDINAL HOLE |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 4 |
| HOLE DIAMETER | 0.032 INCHES MINIMUM AND 0.042 INCHES MAXIMUM |
| GRIP LENGTH | 1.365 INCHES MINIMUM AND 1.385 INCHES MAXIMUM |
| GRIP DIAMETER | 0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21250H03022 |
