NSN 5306-01-142-2138 NAS620419D, NAS6204-19D, 01-142-2138
Product Details | SHEAR BOLT

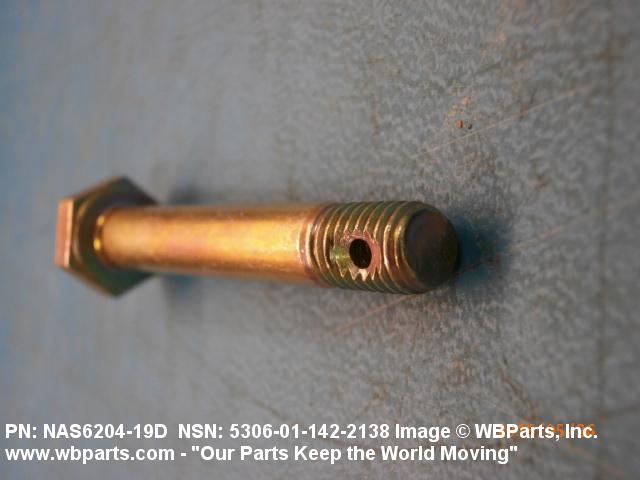

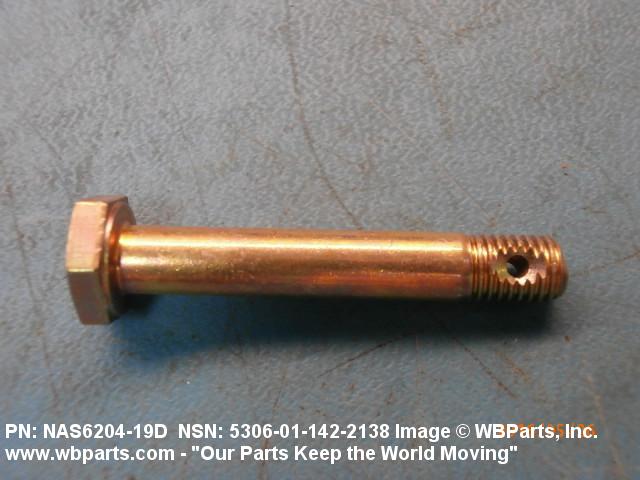

5306-01-142-2138 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS620419D, NAS6204-19D, 5306-01-142-2138, 01-142-2138, 5306011422138, 011422138
Hardware and Abrasives | Bolts
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 13 NOV 1982 | 01-142-2138 | 15903 ( BOLT, SHEAR ) |
Demand History | NSN 5306-01-142-2138
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5306-01-142-2138 | 2021-08-215 | 4712 | DIBBS |
5306-01-142-2138 | 2021-02-53 | 892 | DIBBS |
NAS620419D | 2020-01-06 | 50 | United States |
NAS620419D | 2020-01-06 | 50 | United States |
5306-01-142-2138 | 2019-09-253 | 401 | DIBBS |
5306-01-142-2138 | 2018-10-282 | 7663 | DIBBS |
5306-01-142-2138 | 2018-07-198 | 1780 | DIBBS |
NAS620419D | 2018-02-36 | 1 | SA |
5306-01-142-2138 | 2018-01-04 | 3427 | DIBBS |
5306-01-142-2138 | 2017-05-149 | 3000 | DIBBS |
5306-01-142-2138 | 2017-02-43 | 1185 | DIBBS |
5306-01-142-2138 | 2016-09-269 | 891 | DIBBS |
NAS620419D | 2016-05-146 | 10 | United States |
NAS620419D | 2013-11-316 | 50 | China |
5306-01-142-2138 | 2013-10-287 | 850 | DIBBS |
5306-01-142-2138 | 2013-06-172 | 120 | DIBBS |
5306-01-142-2138 | 2010-03-85 | 1276 | DIBBS |
5306-01-142-2138 | 2009-04-92 | 50 | US |
Cross Reference | NSN 5306-01-142-2138
Part Number | Cage Code | Manufacturer |
---|---|---|
NAS6204-19D | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5306-01-142-2138
Technical Data | NSN 5306-01-142-2138
Characteristic | Specifications |
---|---|
THREAD SERIES DESIGNATOR | UNJF |

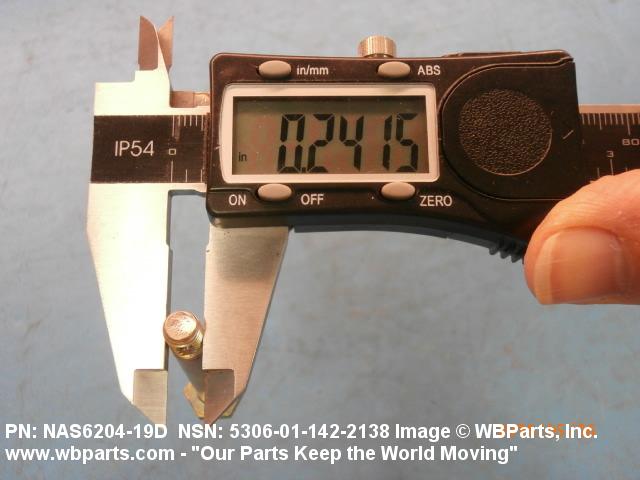

NOMINAL THREAD DIAMETER | 0.250 INCHES |

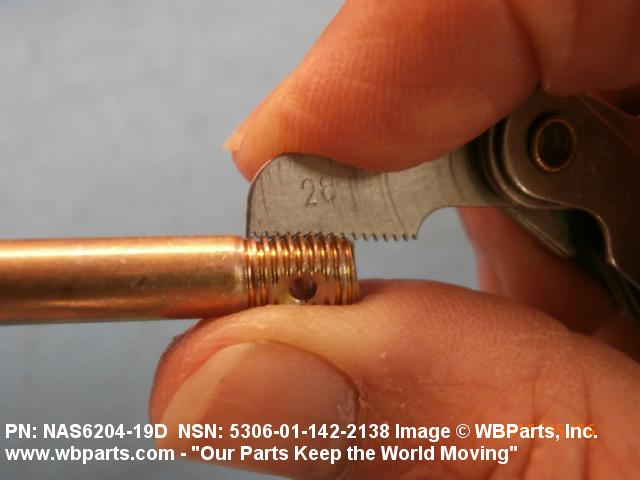

THREAD QUANTITY PER INCH | 28 |
THREAD CLASS | 3A |
THREAD DIRECTION | RIGHT-HAND |

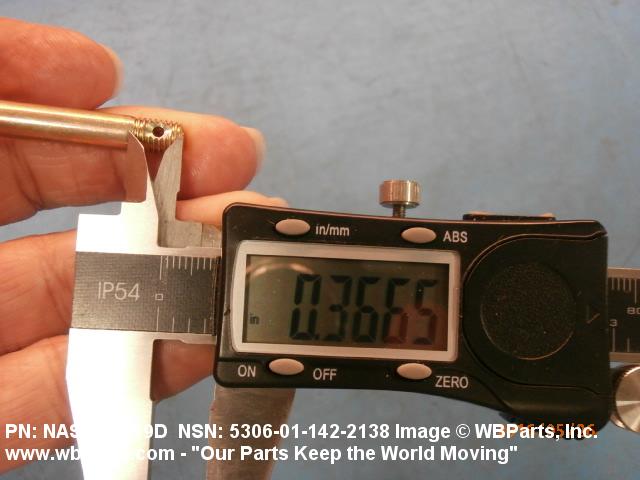

THREAD LENGTH | 0.370 INCHES NOMINAL |
FASTENER LENGTH | 1.558 INCHES NOMINAL |
MATERIAL | STEEL OVERALL |
MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

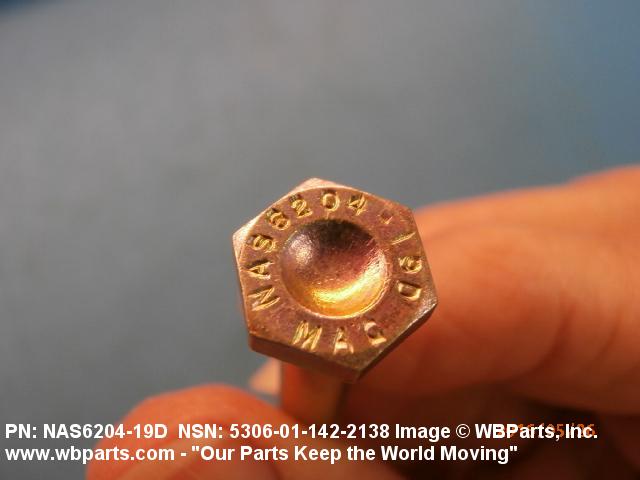

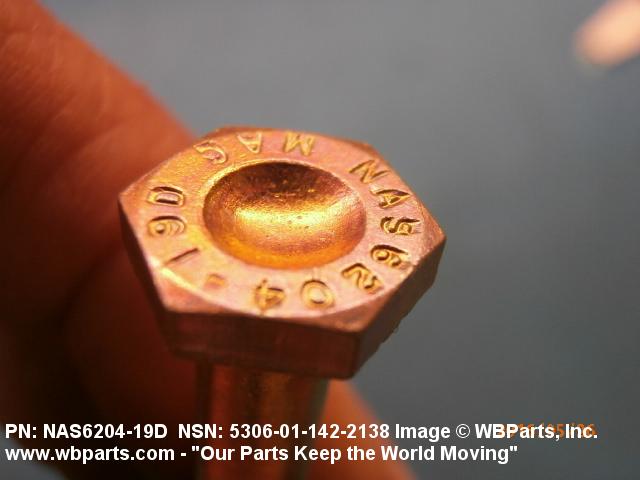

HEAD STYLE | C3 DISHED HEXAGON |

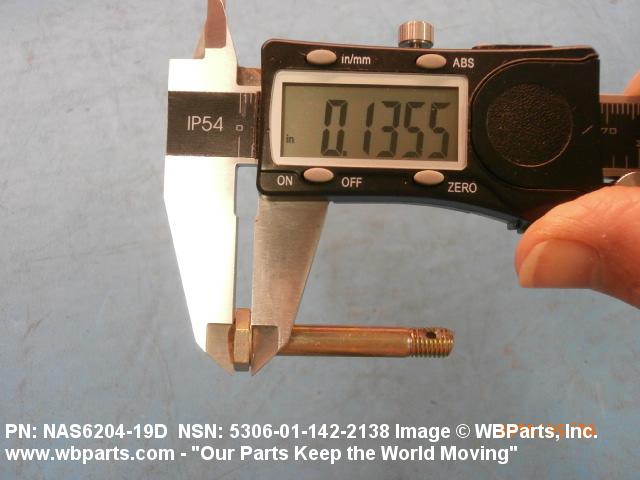

HEAD HEIGHT | 0.132 INCHES NOMINAL |

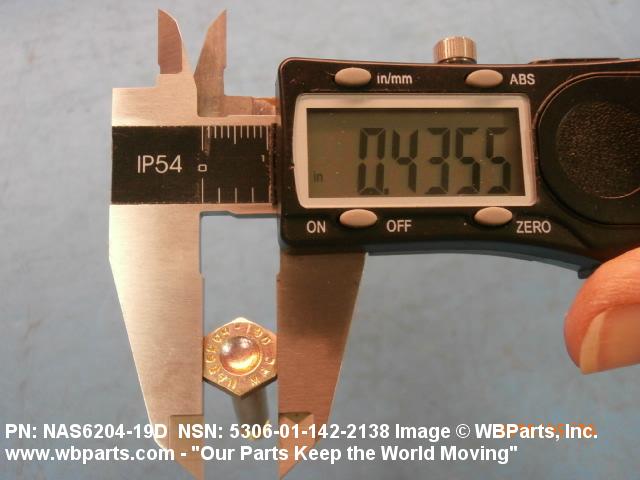

WIDTH BETWEEN FLATS | 0.434 INCHES NOMINAL |

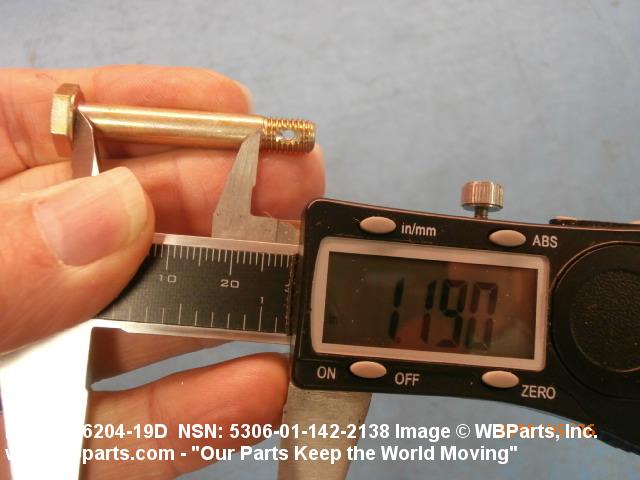

GRIP LENGTH | 1.188 INCHES NOMINAL |

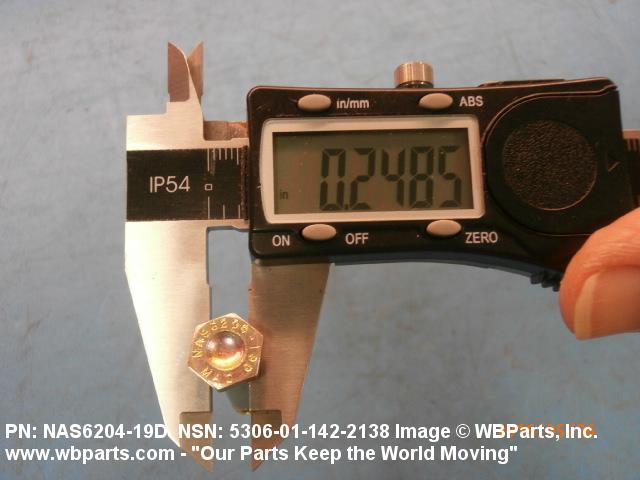

GRIP DIAMETER | 0.2490 INCHES NOMINAL |
DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 1.388 INCHES NOMINAL FIRST HOLE |

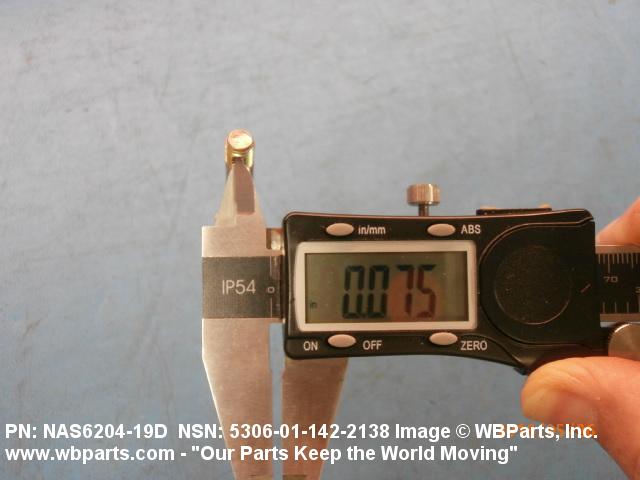

SHANK UNTHREADED HOLE DIAMETER | 0.081 INCHES NOMINAL FIRST HOLE |
SPECIFICATION/STANDARD DATA | 80205-NAS6204 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5306-01-142-2138
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
No Freight Information |
