NSN 5306-01-133-0178 MS27576852, MS27576-8-52, CIPRDMS27576852R
Product Details | CLOSE TOLERANCE BOLT
5306-01-133-0178 An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE.
Part Alternates: MS27576852, MS27576-8-52, CIPRDMS27576852R, CIPRD-MS27576-8-52R, 5306-01-133-0178, 01-133-0178, 5306011330178, 011330178
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 JUN 1982 | 01-133-0178 | 27851 ( BOLT, CLOSE TOLERANCE ) |
Drawings & Photos | NSN 5306-01-133-0178
Demand History | NSN 5306-01-133-0178
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-133-0178 | 2025-01-28 | 25 | DIBBS |
| 5306-01-133-0178 | 2022-07-209 | 44 | DIBBS |
| 5306-01-133-0178 | 2022-07-198 | 44 | DIBBS |
| 5306-01-133-0178 | 2020-02-43 | 65 | DIBBS |
| 5306-01-133-0178 | 2010-06-174 | 25 | DIBBS |
Cross Reference | NSN 5306-01-133-0178
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-133-0178
Technical Data | NSN 5306-01-133-0178
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.417 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| FASTENER LENGTH | 3.896 INCHES MINIMUM AND 3.916 INCHES MAXIMUM |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 OR STEEL COMP 6150 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 41.0 ROCKWELL C MAXIMUM OVERALL |

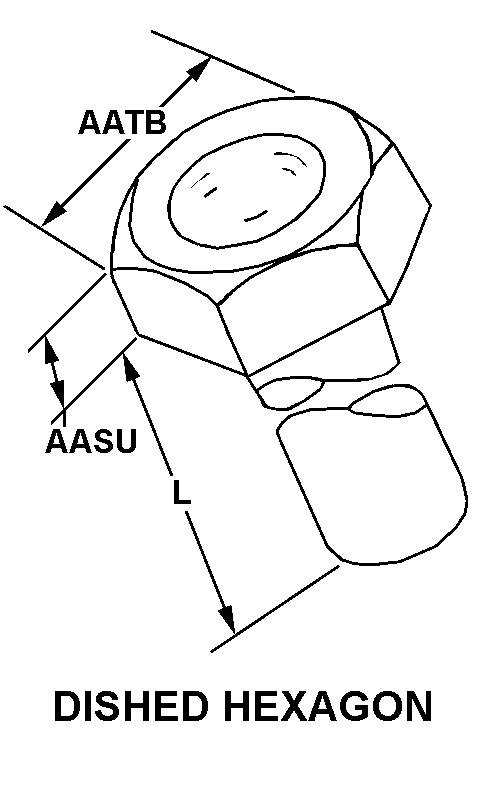

| HEAD STYLE | C3 DISHED HEXAGON |
| HEAD HEIGHT | 0.251 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.741 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |
| GRIP LENGTH | 3.250 INCHES MINIMUM AND 3.266 INCHES MAXIMUM |
| GRIP DIAMETER | 0.4982 INCHES MINIMUM AND 0.4991 INCHES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES BEARING SURFACE OF HEAD 63.0 MICROINCHES GRIP |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 3.786 INCHES MINIMUM AND 3.796 INCHES MAXIMUM FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.106 INCHES MINIMUM AND 0.116 INCHES MAXIMUM FIRST HOLE |
| SPECIAL FEATURES | WITH RETAINING ELEMENT ON SHANK |
Restrictions/Controls & Freight Information | NSN 5306-01-133-0178
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
