NSN 5306-00-871-8772 74855, 00-871-8772, 008718772
Product Details | CLOSE TOLERANCE BOLT
5306-00-871-8772 An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE.
Part Alternates: 74855, 5306-00-871-8772, 00-871-8772, 5306008718772, 008718772
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-871-8772 | 27851 ( BOLT, CLOSE TOLERANCE ) |

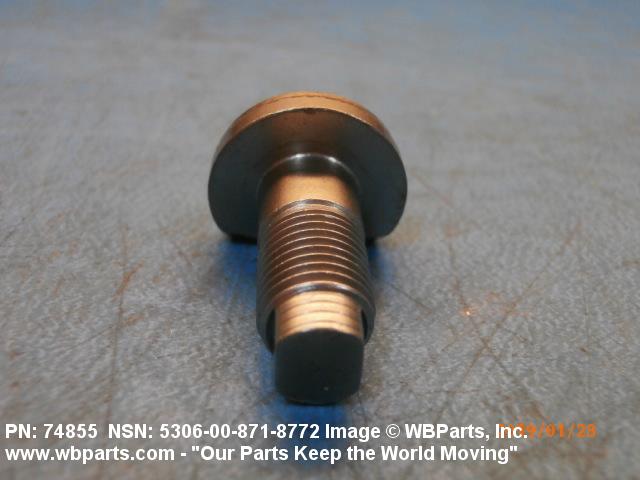

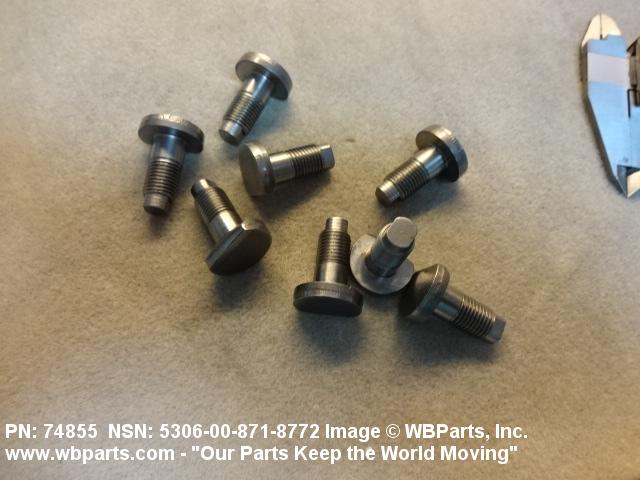

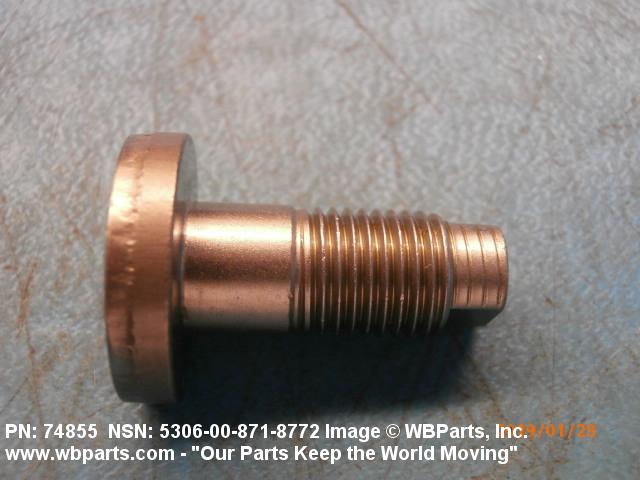

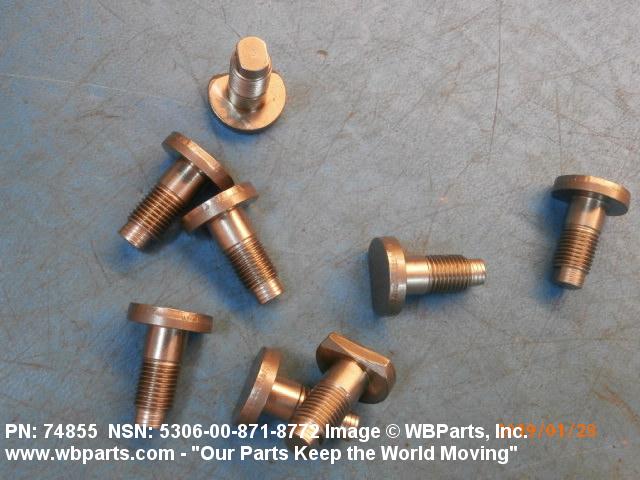

Drawings & Photos | NSN 5306-00-871-8772
Demand History | NSN 5306-00-871-8772
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-871-8772 | 2019-01-31 | 8 | United States |
| 5306-00-871-8772 | 2019-01-09 | 16 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-871-8772
Technical Data | NSN 5306-00-871-8772
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |

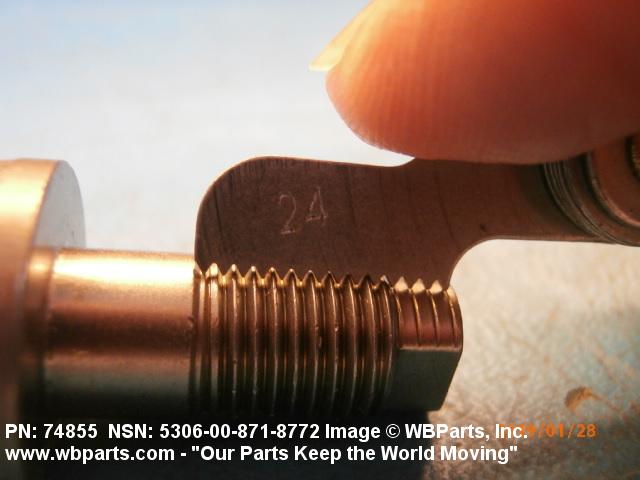

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

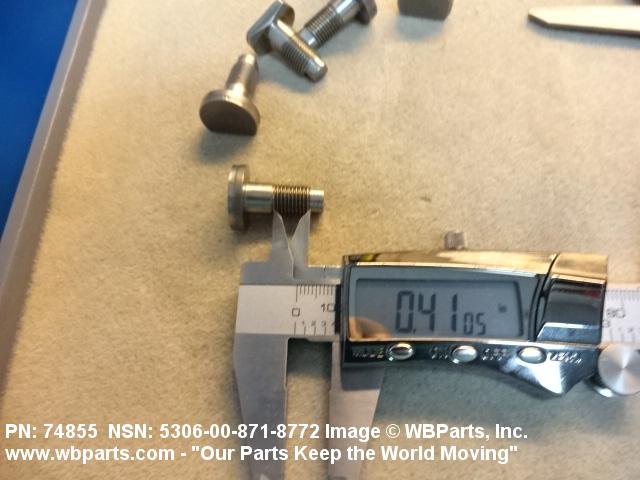

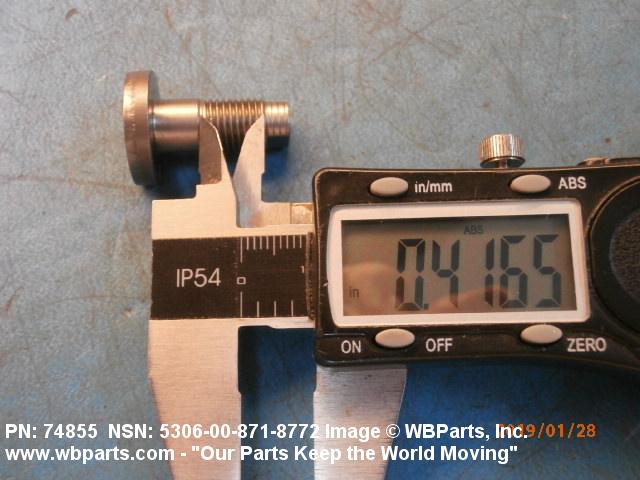

| THREAD LENGTH | 0.410 INCHES NOMINAL |

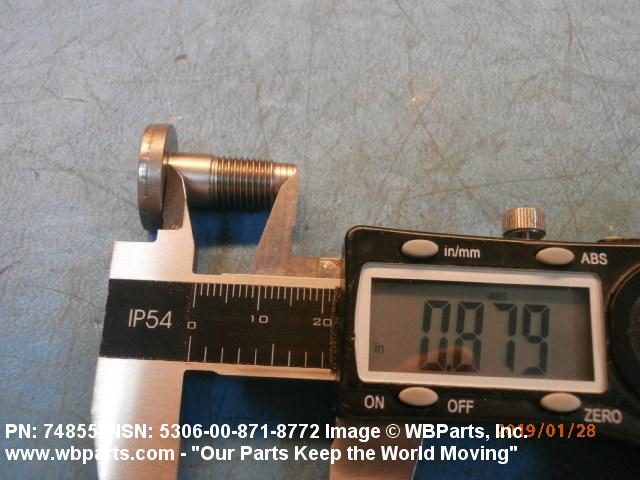

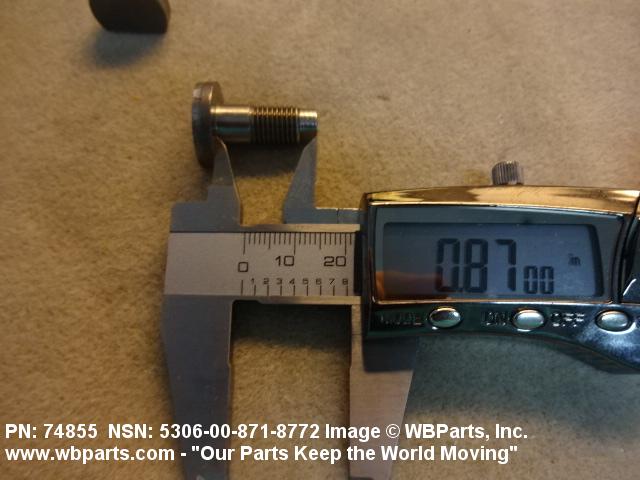

| FASTENER LENGTH | 0.870 INCHES NOMINAL |
| MATERIAL | STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6320 ASSN STD 1ST MATERIAL RESPONSE OR AMS 6322 ASSN STD 2ND MATERIAL RESPONSE OR AMS 6415 ASSN STD 3RD MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 28.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |

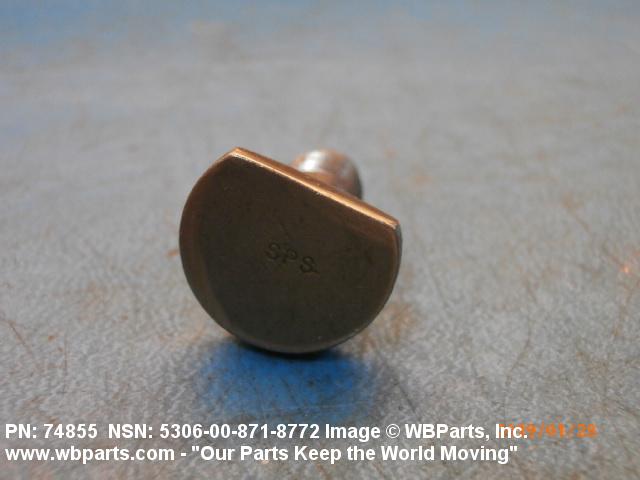

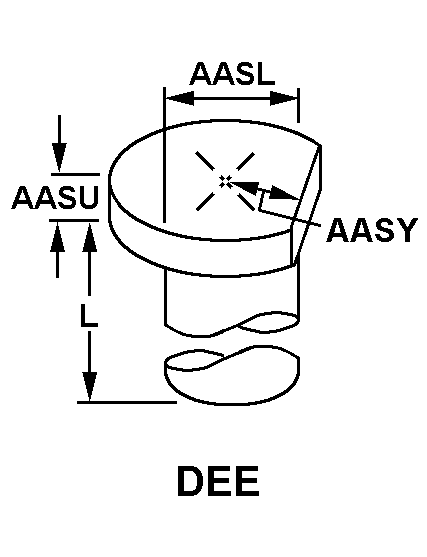

| HEAD STYLE | C25 DEE |

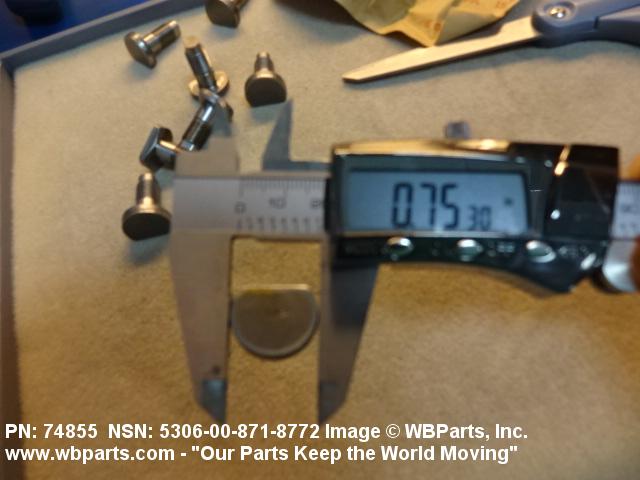

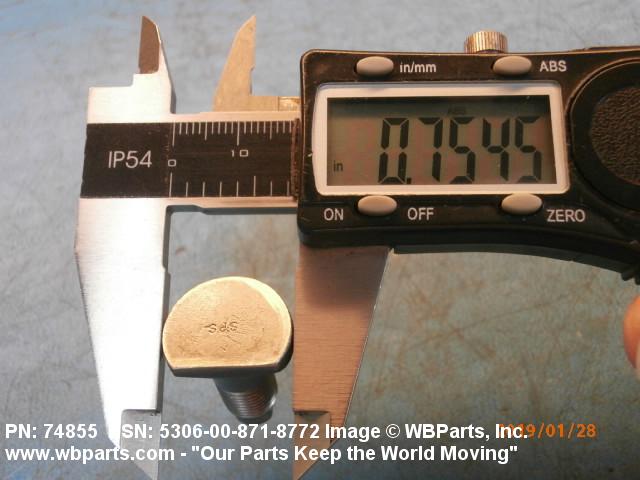

| HEAD DIAMETER | 0.750 INCHES NOMINAL |

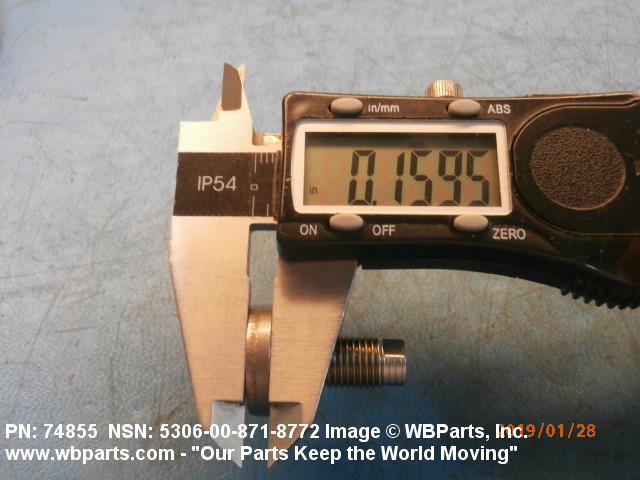

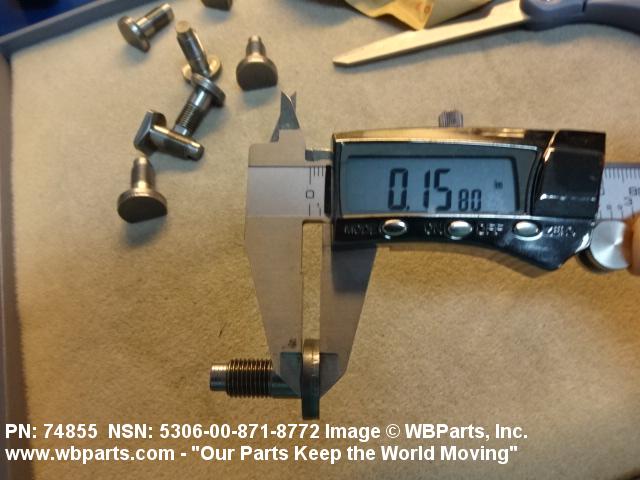

| HEAD HEIGHT | 0.150 INCHES MINIMUM AND 0.165 INCHES MAXIMUM |

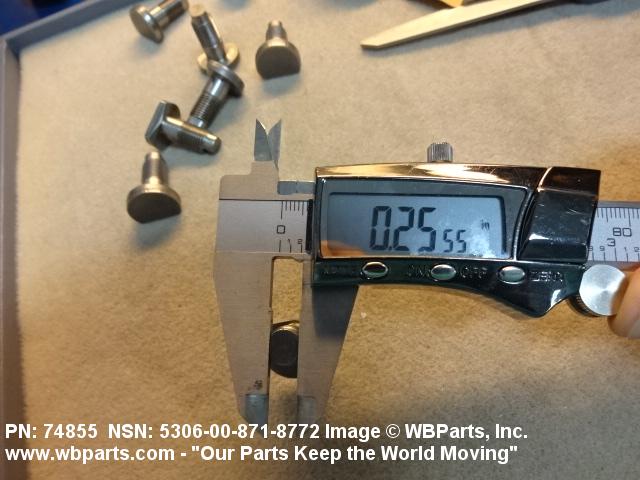

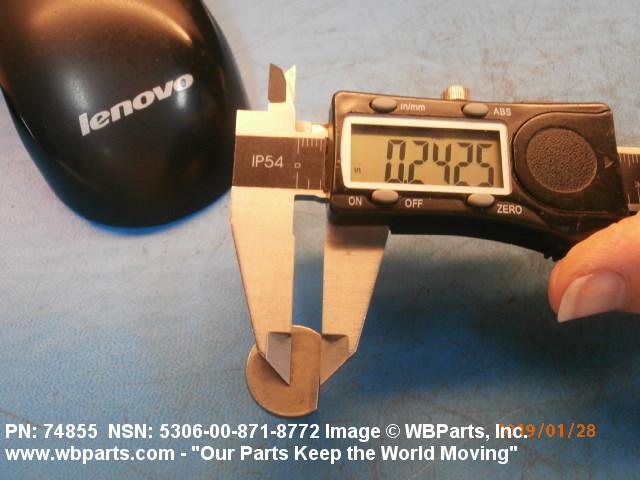

| DISTANCE FROM CENTERLINE TO FLAT | 0.240 INCHES NOMINAL |

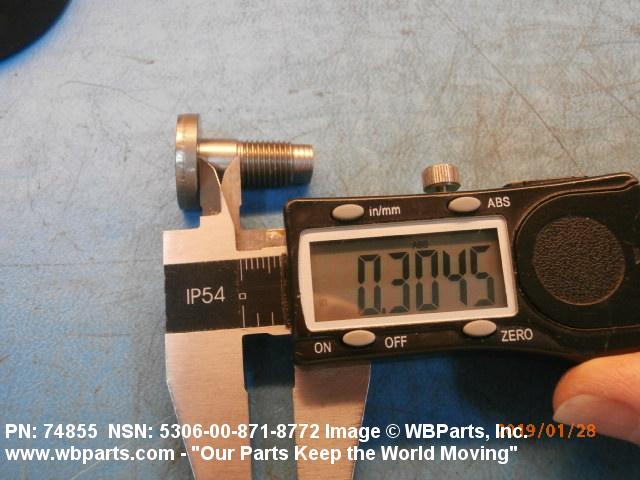

| GRIP LENGTH | 0.310 INCHES NOMINAL |

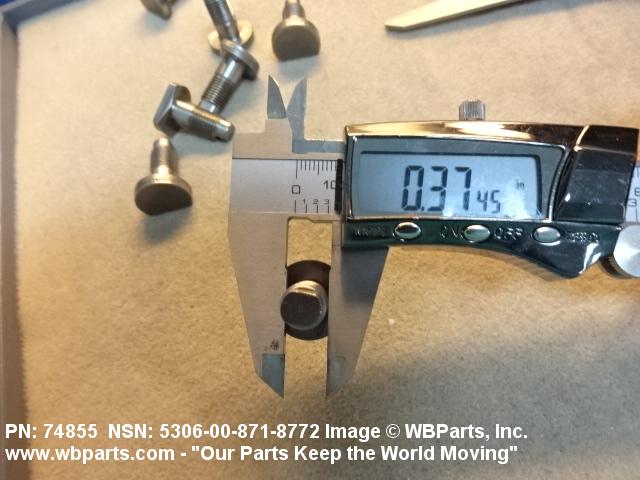

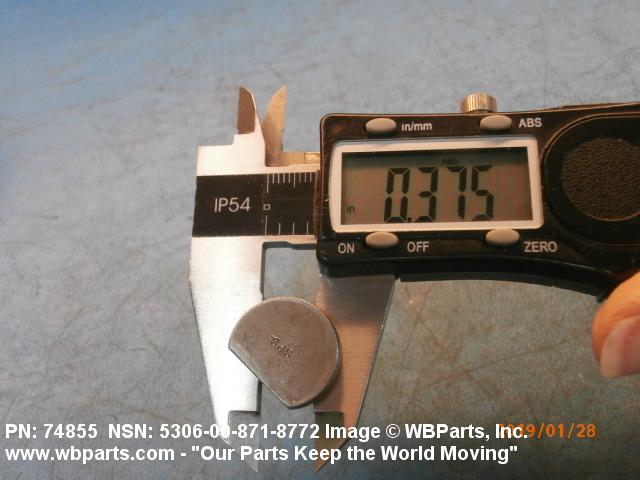

| GRIP DIAMETER | 0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |

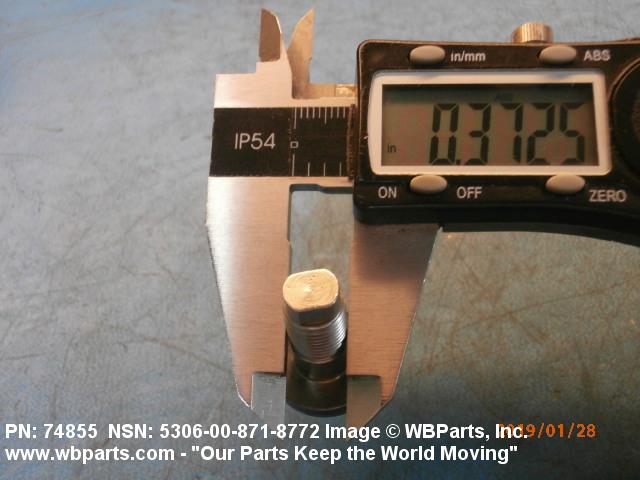

| SPECIAL FEATURES | EXTENDED DIA ON THREADED END 0.368 IN.MIN AND 0.370 IN.MAX,0.150 IN.LG,DIA SHALL HAVE 2 FLATS 0.130 IN. |
| MANUFACTURERS CODE | 80254 |
| DESIGN CONTROL REFERENCE | 74855 |
Restrictions/Controls & Freight Information | NSN 5306-00-871-8772
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-871-8772
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
