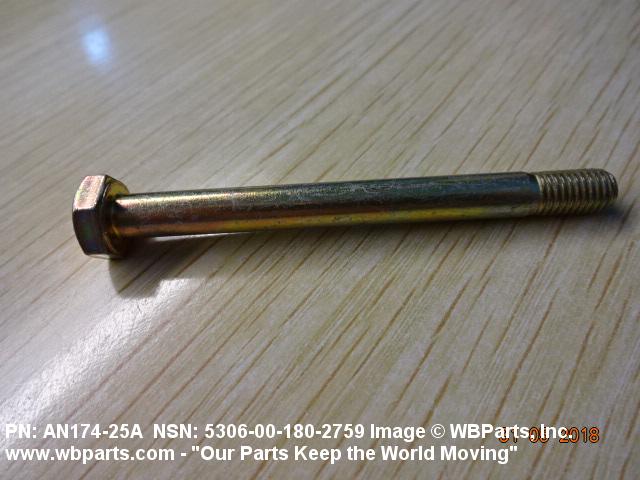

NSN 5306-00-180-2759 AN17425A, AN174-25A, NASM6812
Product Details | CLOSE TOLERANCE BOLT
5306-00-180-2759 An externally threaded fastener whose unthreaded portion is of a specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten-thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. For items having close tolerance, and fabricated from material having 160,000 pounds per square inch (1100 megapascals) minimum tensile strength, see BOLT, SHEAR. For items fabricated from material having less than 160,000 pounds per square inch (1100 megapascals) minimum tensile strength and not having a close tolerance, see BOLT, MACHINE.
Part Alternates: AN17425A, AN174-25A, NASM6812, 5306-00-180-2759, 00-180-2759, 5306001802759, 001802759
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-180-2759 | 27851 ( BOLT, CLOSE TOLERANCE ) |

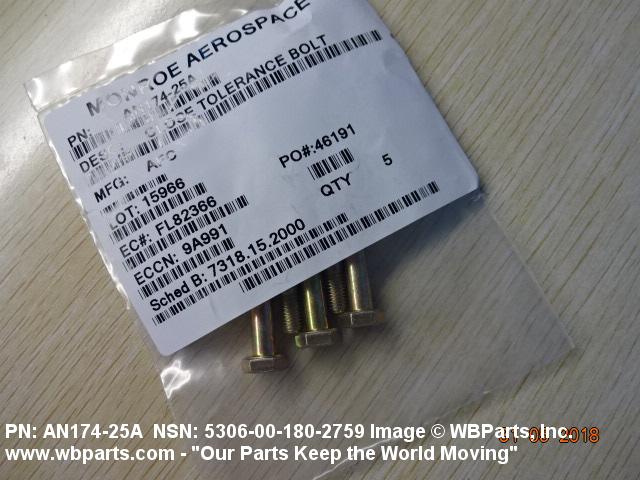

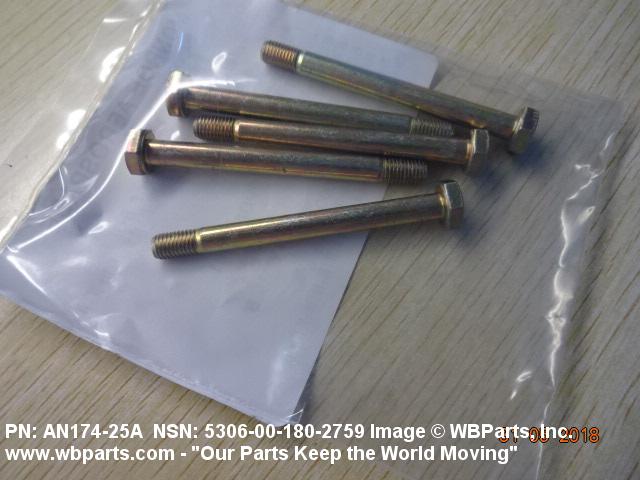

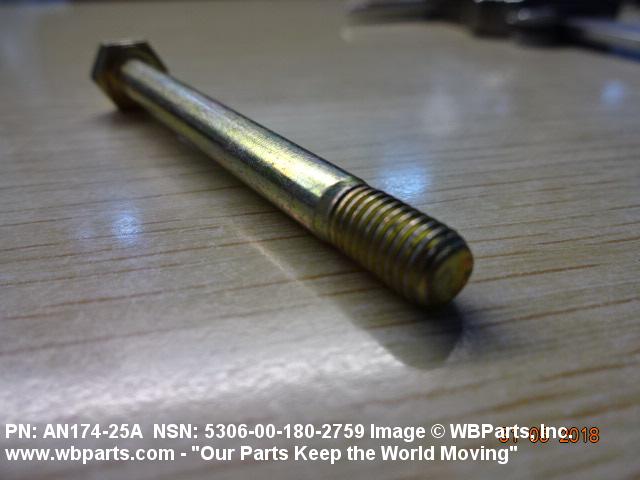

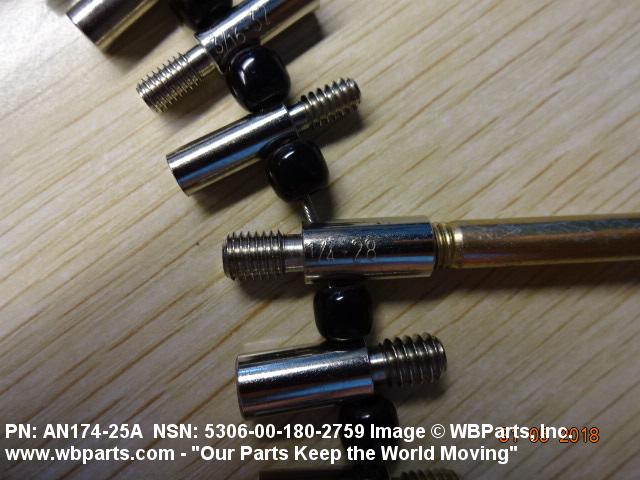

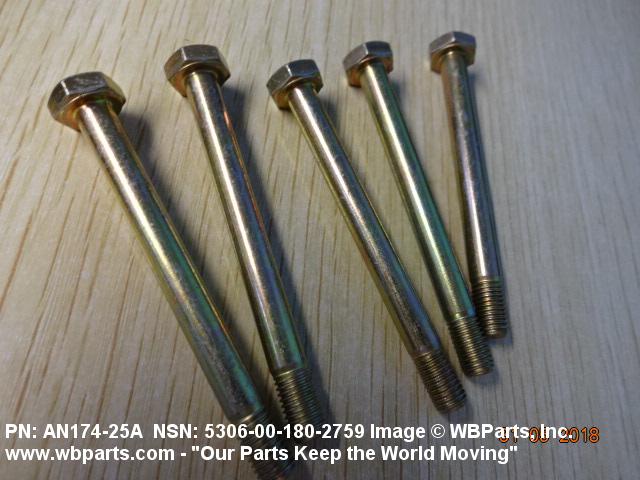

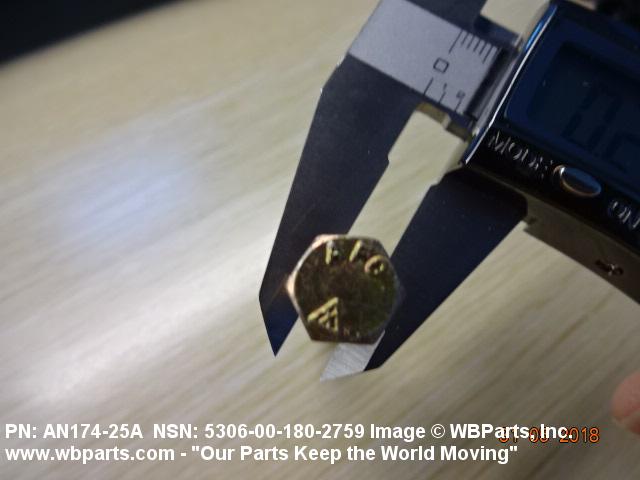

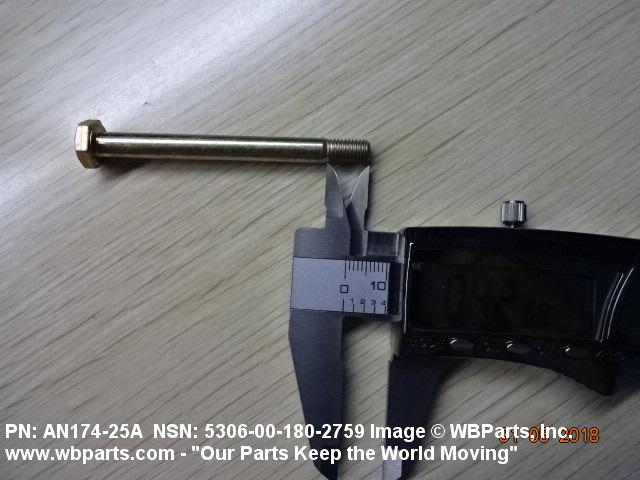

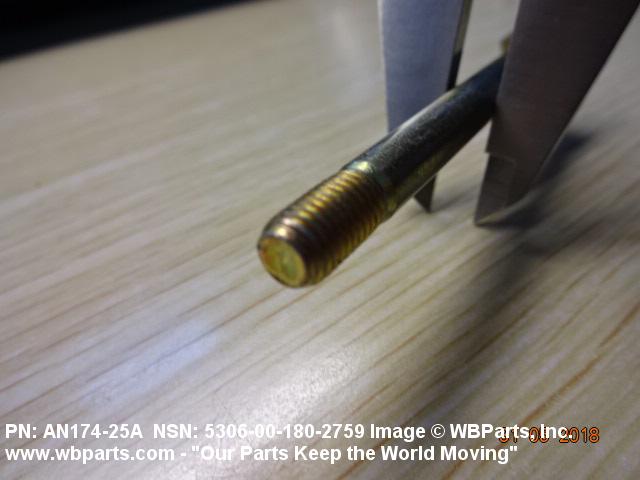

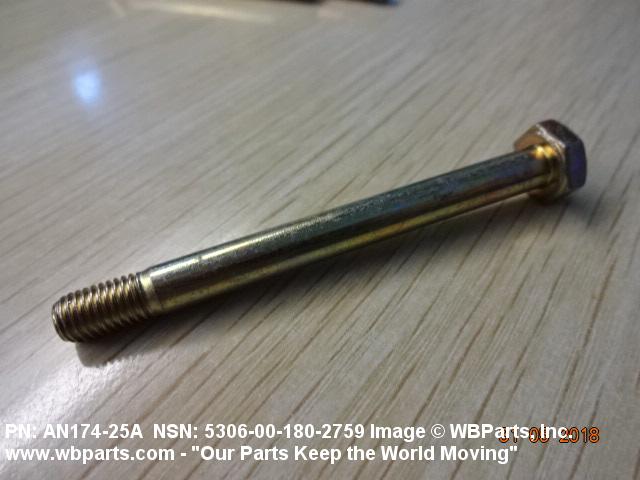

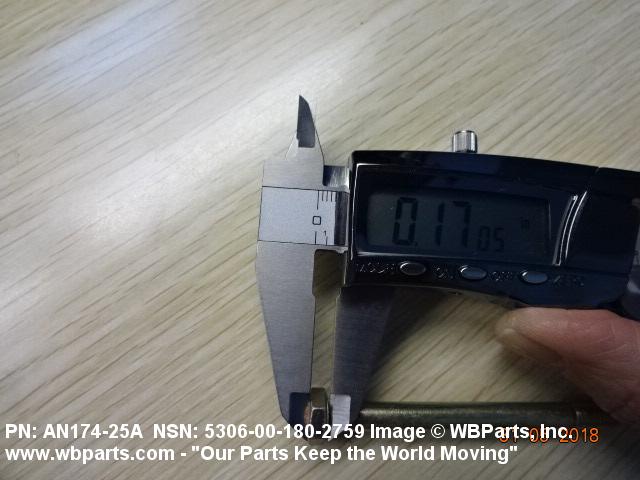

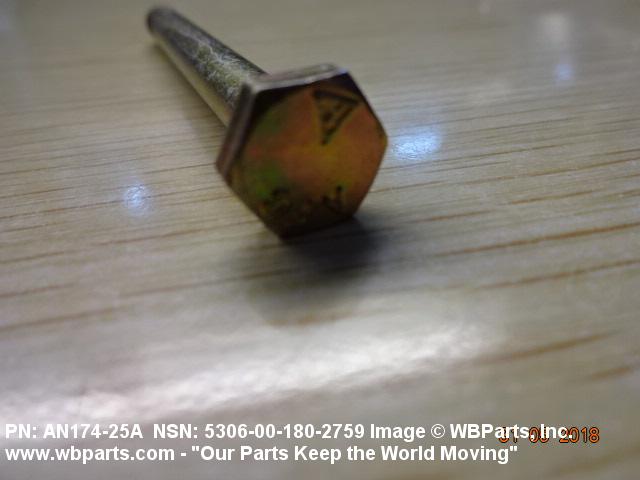

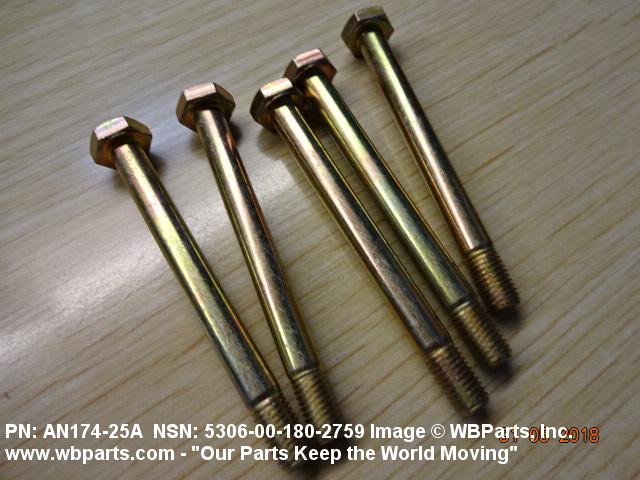

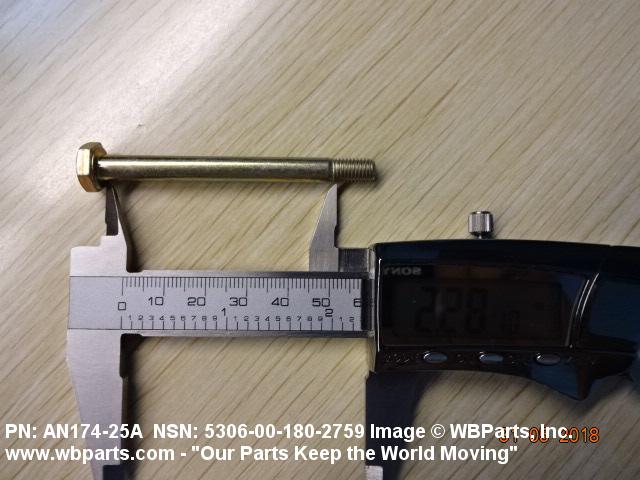

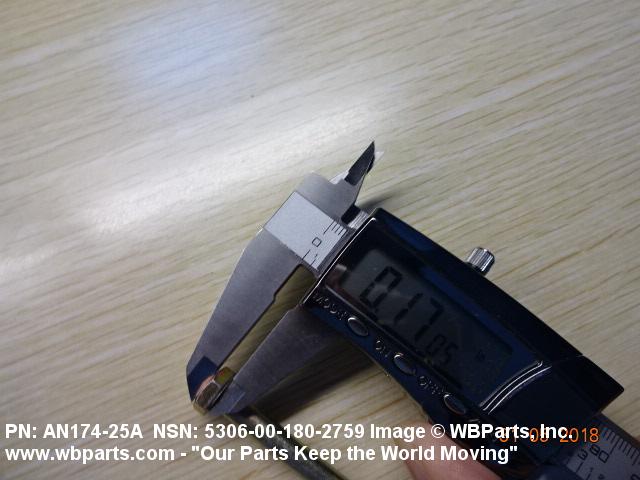

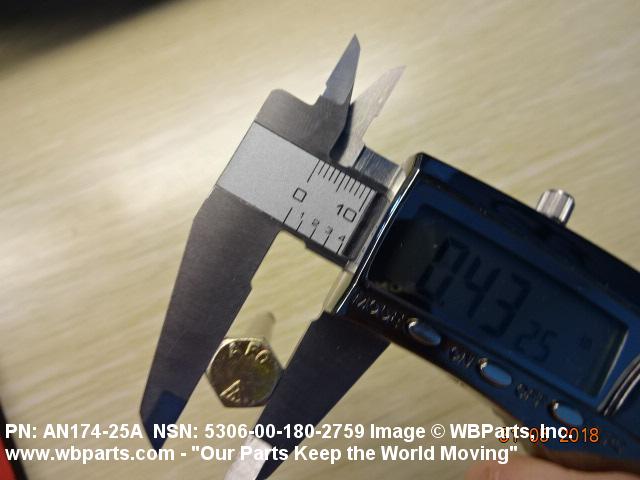

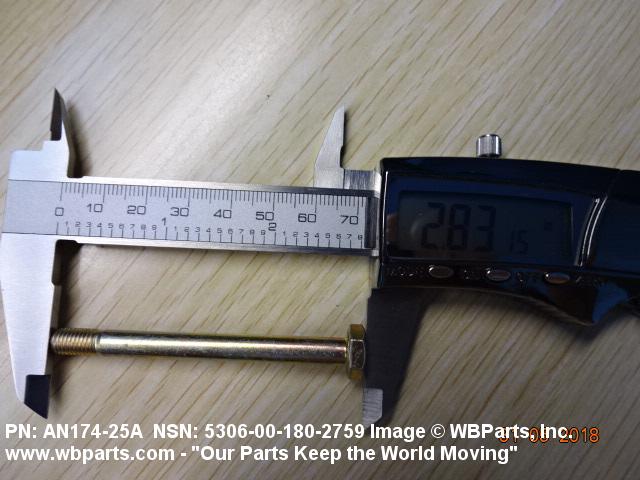

Drawings & Photos | NSN 5306-00-180-2759
Demand History | NSN 5306-00-180-2759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-180-2759 | 2024-04-102 | 930 | us |
| AN17425A | 2024-03-72 | 2 | US |
| AN17425A | 2020-10-287 | 5 | US |
| 5306-00-180-2759 | 2010-06-155 | 3 | US |
| AN17425A | 2010-04-92 | 20 | US |
| AN17425A | 2009-02-45 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-180-2759
Technical Data | NSN 5306-00-180-2759
| Characteristic | Specifications |
|---|---|
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.468 INCHES MINIMUM |
| FASTENER LENGTH | 2.656 INCHES NOMINAL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD HEIGHT | 0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN174-25A |
