NSN 5306-01-125-9019 NAS130634, NAS1306-34, NAS660634
Product Details | SHEAR BOLT

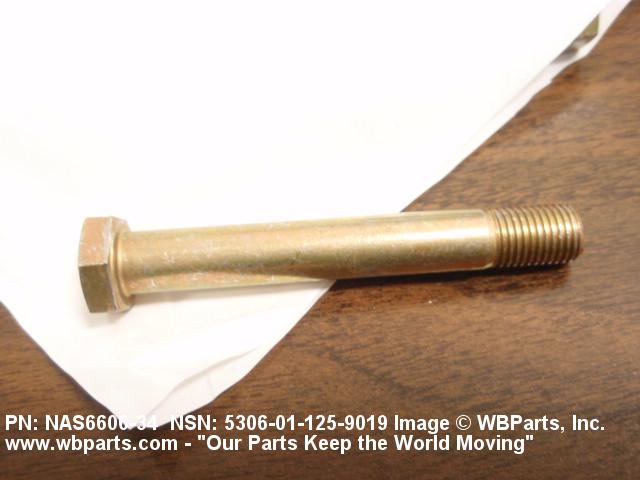

5306-01-125-9019 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS130634, NAS1306-34, NAS660634, NAS6606-34, BACB30NE624, BACB30NE6-24, BACB30NE634, BACB30NE6-34, 10339853 , 20057634, 5306-01-125-9019, 01-125-9019, 20-057-6-34, 5306011259019, 011259019
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 FEB 1982 | 01-125-9019 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-01-125-9019
Demand History | NSN 5306-01-125-9019
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS660634 | 2020-08-237 | 10 | UY |
| 5306-01-125-9019 | 2014-10-294 | 1201 | DIBBS |
| 5306-01-125-9019 | 2014-08-215 | 838 | DIBBS |
| 5306-01-125-9019 | 2014-07-203 | 414 | DIBBS |
| NAS660634 | 2011-10-280 | 4 | UK |
| 5306-01-125-9019 | 2011-09-273 | 1686 | DIBBS |
| NAS660634 | 2010-10-292 | 12 | Netherlands |
| 5306-01-125-9019 | 2009-06-169 | 4 | US |
| 5306-01-125-9019 | 2007-08-241 | 1 | US |
Cross Reference | NSN 5306-01-125-9019
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20-057-6-34 | 97499 | BELL HELICOPTER TEXTRON INC. |
| BACB30NE6-24 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| BACB30NE6-34 | 06710 | VALLEY-TODECO, INC. |
| BACB30NE6-34 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| BACB30NE6-34 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACB30NE6-34 | 17943 | FEDERAL MANUFACTURING CORPORATION |
| BACB30NE6-34 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BACB30NE6-34 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BACB30NE6-34 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACB30NE6-34 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACB30NE6-34 | 97928 | HUCK INTL INC |
| NAS1306-34 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS6606-34 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-125-9019
Related Products | NSN 5306-01-125-9019
Technical Data | NSN 5306-01-125-9019
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.553 INCHES MINIMUM AND 0.603 INCHES MAXIMUM |
| FASTENER LENGTH | 2.688 INCHES MINIMUM AND 2.718 INCHES MAXIMUM |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR AMS6322 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C3 DISHED HEXAGON |
| HEAD HEIGHT | 0.188 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.554 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| GRIP LENGTH | 2.115 INCHES MINIMUM AND 2.135 INCHES MAXIMUM |
| GRIP DIAMETER | 0.3735 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| SPECIFICATION/STANDARD DATA | 80205-NAS6606 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
