Product Details | SHEAR BOLT
5306-01-107-3543 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: MS2129705013, MS21297-05013, 5306-01-107-3543, 01-107-3543, 5306011073543, 011073543
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 FEB 1981 | 01-107-3543 | 15903 ( BOLT, SHEAR ) |

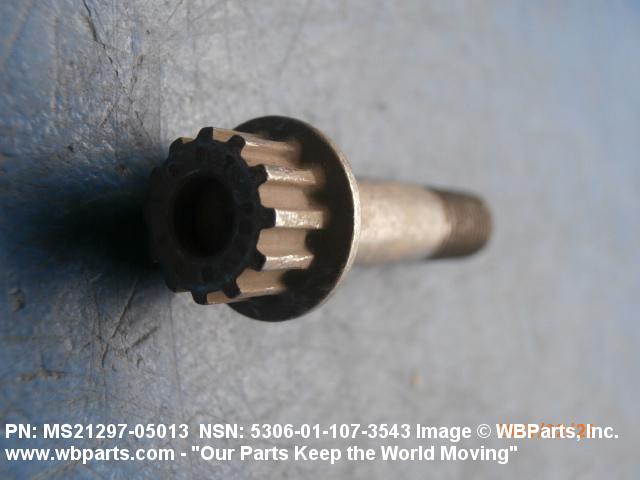

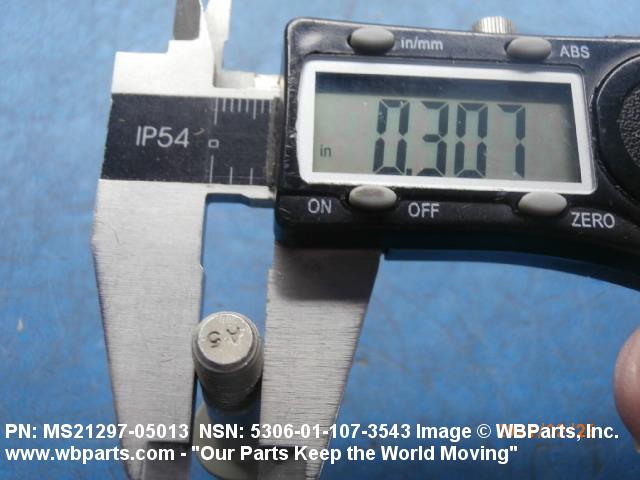

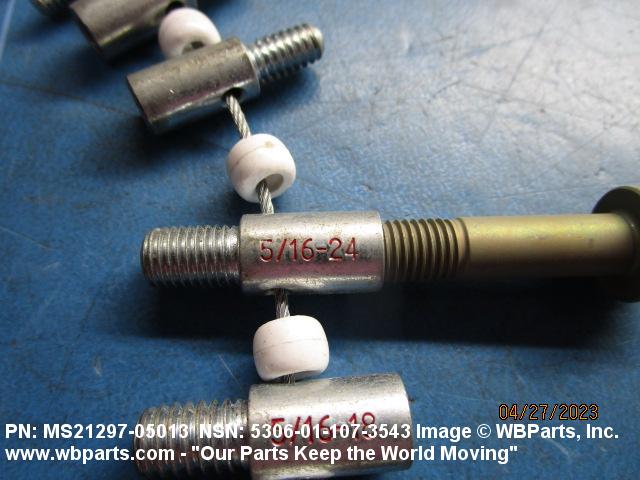

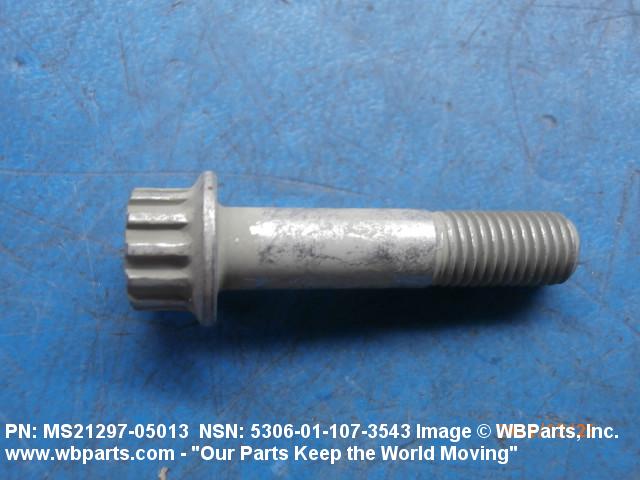

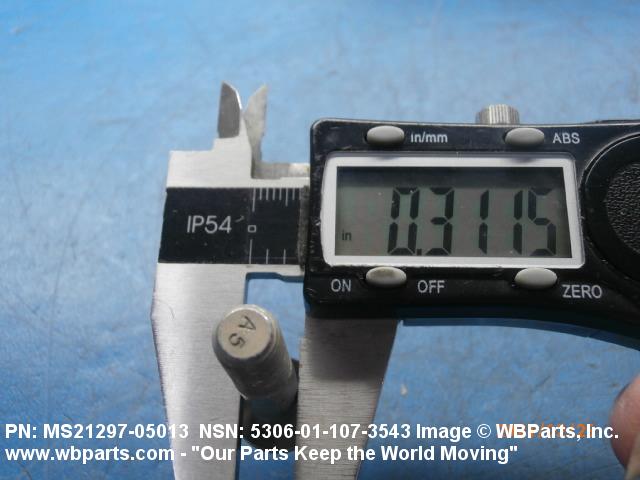

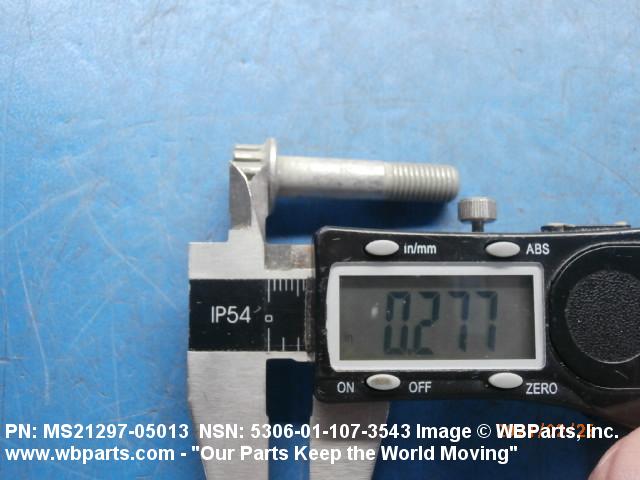

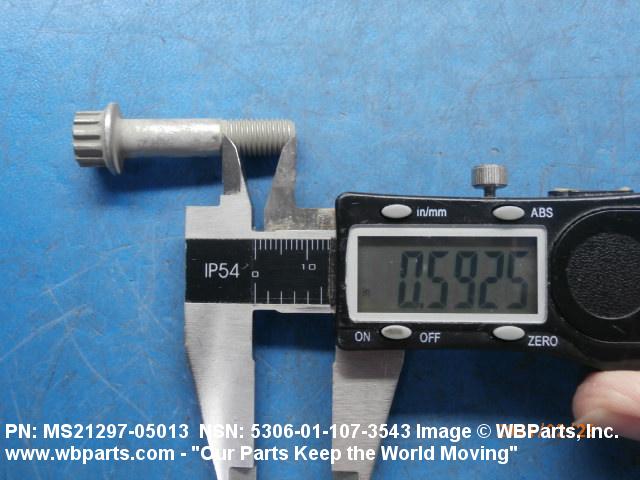

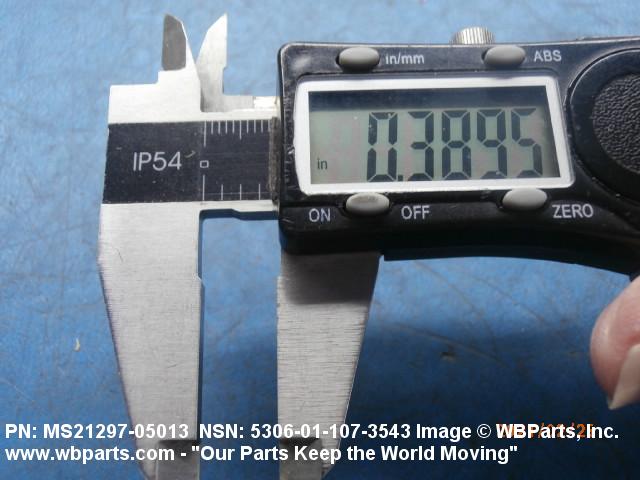

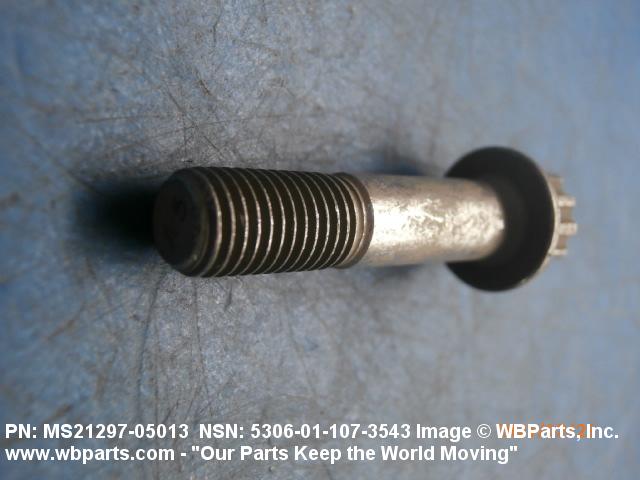

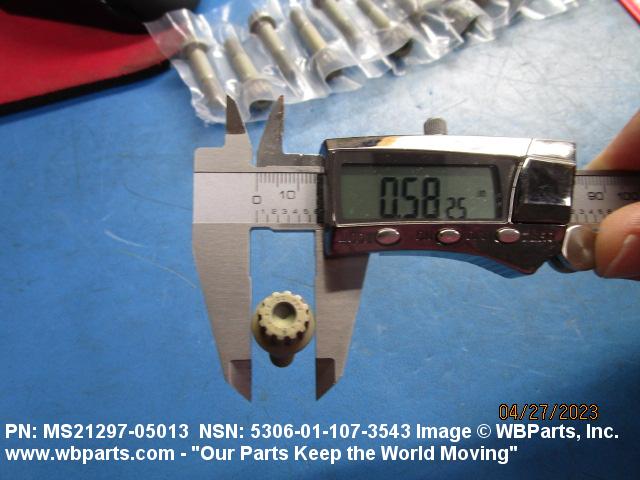

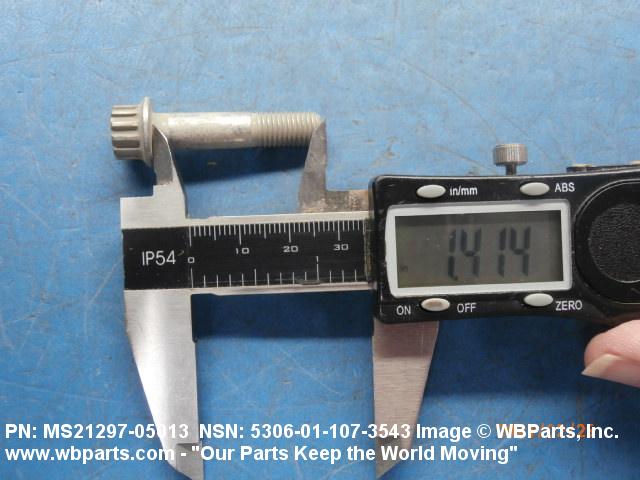

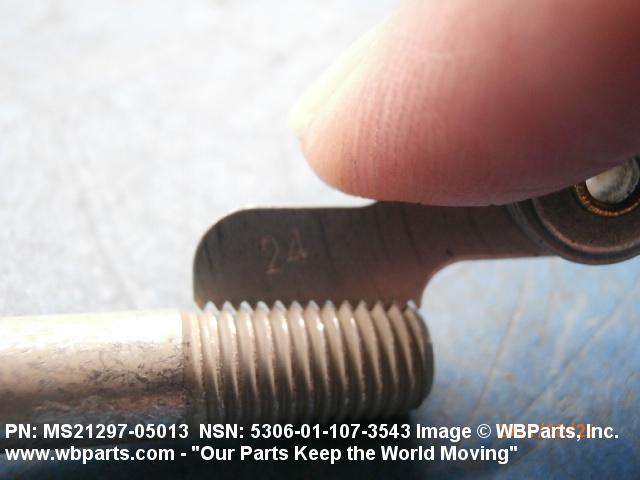

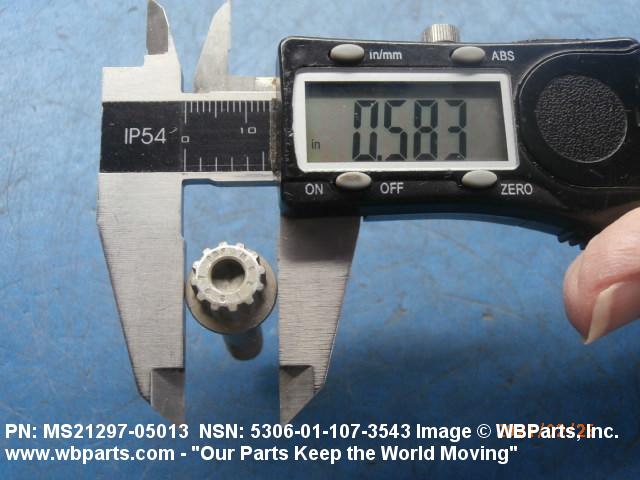

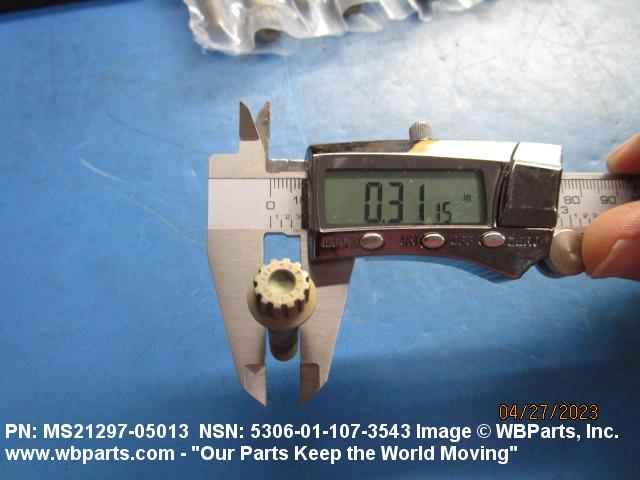

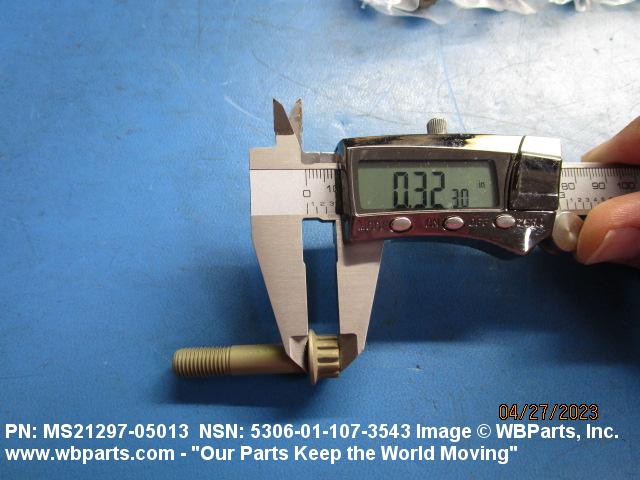

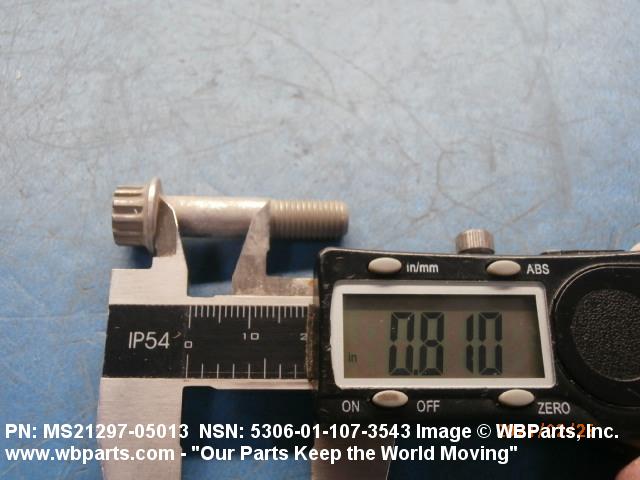

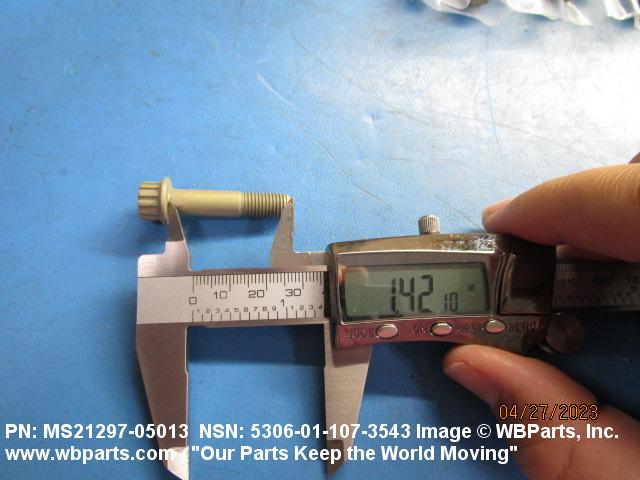

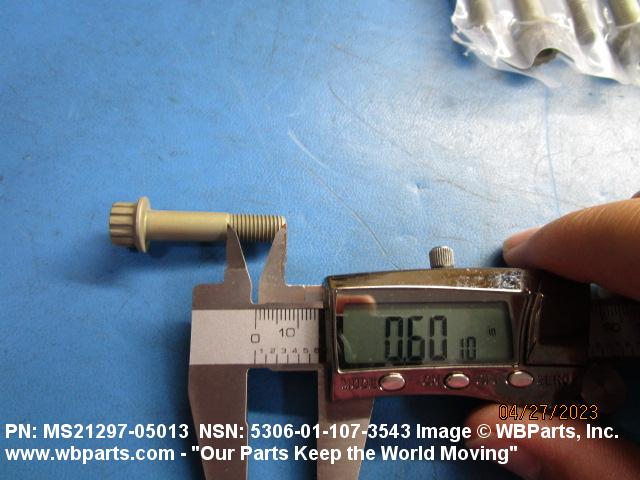

Drawings & Photos | NSN 5306-01-107-3543
Demand History | NSN 5306-01-107-3543
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-107-3543 | 2023-04-107 | 15 | Taiwan |
| MS2129705013 | 2021-02-46 | 120 | Taiwan |
| MS2129705013 | 2021-01-28 | 40 | Taiwan |
| 5306-01-107-3543 | 2011-02-46 | 8000 | US |
| MS2129705013 | 2008-01-18 | 16 | United Kingdom |
Cross Reference | NSN 5306-01-107-3543
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21297-05013 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| MS21297-05013 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21297-05013 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| MS21297-05013 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21297-05013 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-107-3543
Technical Data | NSN 5306-01-107-3543
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.579 INCHES MINIMUM AND 0.629 INCHES MAXIMUM |
| FASTENER LENGTH | 1.401 INCHES MINIMUM AND 1.431 INCHES MAXIMUM |
| MATERIAL | STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6487 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-8837 TYPE 2 CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 220000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C11 SPLINE EXTENDED WASHER |
| HEAD HEIGHT | 0.247 INCHES MINIMUM AND 0.287 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.575 INCHES MINIMUM AND 0.585 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.035 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| HEAD MINOR DIAMETER | 0.383 INCHES MINIMUM AND 0.389 INCHES MAXIMUM |
| GRIP LENGTH | 0.802 INCHES MINIMUM AND 0.822 INCHES MAXIMUM |
| GRIP DIAMETER | 0.3110 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21297-05013 |
