NSN 5306-01-100-3985 NAS620416, NAS6204-16, 10115715
Product Details | SHEAR BOLT

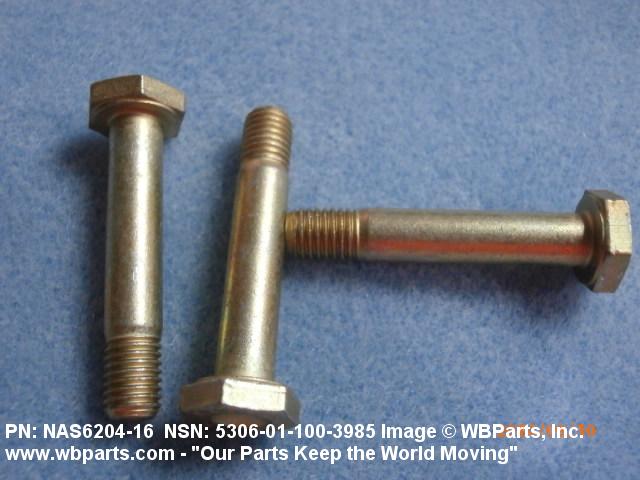

5306-01-100-3985 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS620416, NAS6204-16, 10115715 , 5306-01-100-3985, 01-100-3985, 5306011003985, 011003985
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 SEP 1980 | 01-100-3985 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-01-100-3985
Demand History | NSN 5306-01-100-3985
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS620416 | 2021-11-29 | 27 | United States |
| NAS620416 | 2021-07-09 | 50 | Hong Kong |
| NAS620416 | 2021-03-30 | 1 | US |
| 5306-01-100-3985 | 2018-02-13 | 75878 | United States |
| 5306-01-100-3985 | 2018-01-15 | 75878 | DIBBS |
| NAS620416 | 2016-08-25 | 2 | BR |
| NAS6204-16 | 2016-04-05 | 200 | Romania |
| NAS620416 | 2015-07-02 | 50 | United States |
| 5306-01-100-3985 | 2015-06-11 | 11067 | DIBBS |
| 5306-01-100-3985 | 2015-05-31 | 11067 | DIBBS |
| NAS620416 | 2015-01-09 | 100 | us |
| NAS6204-16 | 2014-09-29 | 100 | United States |
| NAS620416 | 2012-05-14 | 5 | US |
| NAS620416 | 2011-12-27 | 14 | United States |
| NAS620416 | 2008-12-30 | 200 | IT |
| NAS620416 | 2008-07-31 | 200 | Italy |
| NAS620416 | 2008-07-28 | 10 | United States |
| 5306-01-100-3985 | 2006-10-30 | 10 | US |
| 5306-01-100-3985 | 2006-07-22 | 100 | US |
Cross Reference | NSN 5306-01-100-3985
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS6204-16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-100-3985
Related Products | NSN 5306-01-100-3985
Technical Data | NSN 5306-01-100-3985
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

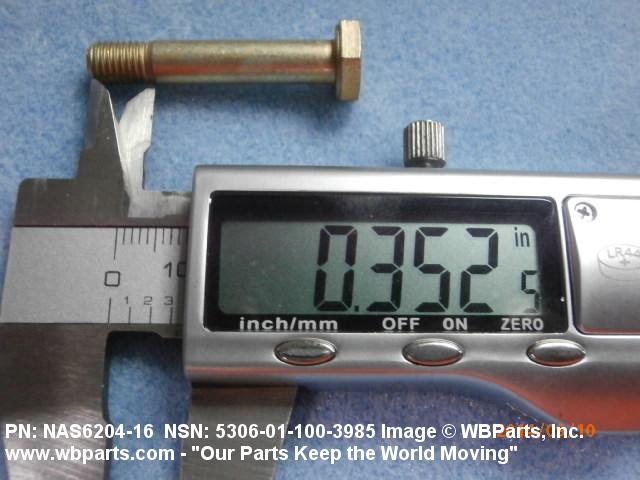

| THREAD LENGTH | 0.370 INCHES NOMINAL |

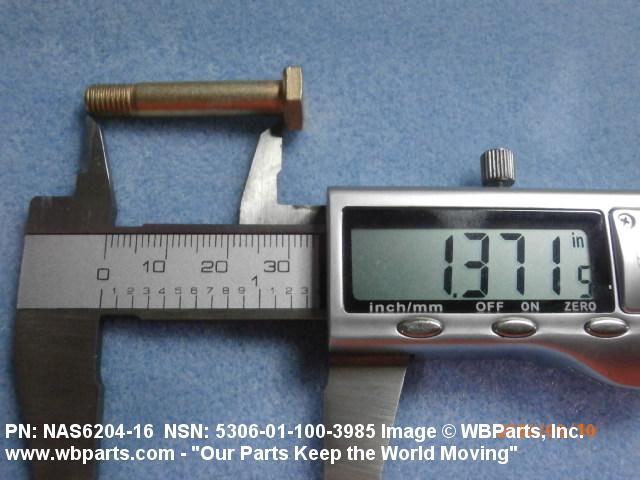

| FASTENER LENGTH | 1.370 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |

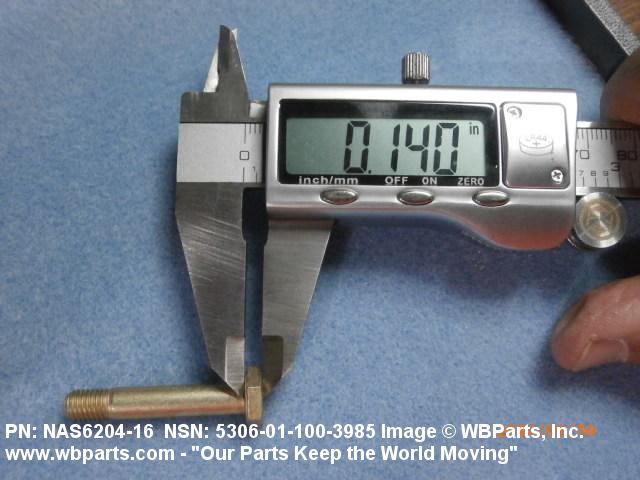

| HEAD HEIGHT | 0.125 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |

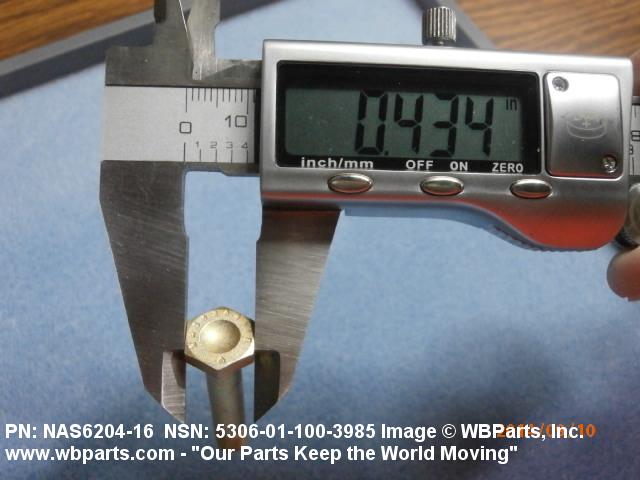

| WIDTH BETWEEN FLATS | 0.429 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |

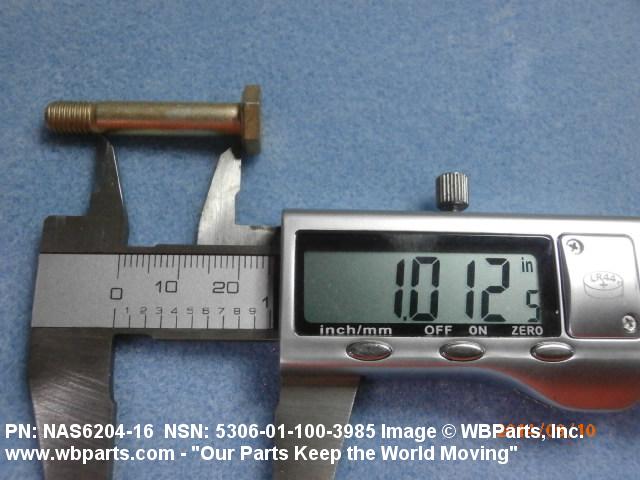

| GRIP LENGTH | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS6204 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
