Product Details | SHEAR BOLT

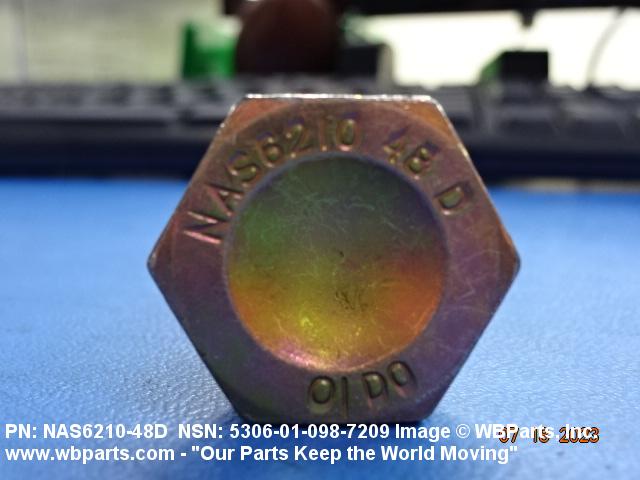

5306-01-098-7209 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.

Part Alternates: NAS621048D, NAS6210-48D, 5306-01-098-7209, 01-098-7209, 5306010987209, 010987209

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	07 AUG 1980	01-098-7209	15903 ( BOLT, SHEAR )

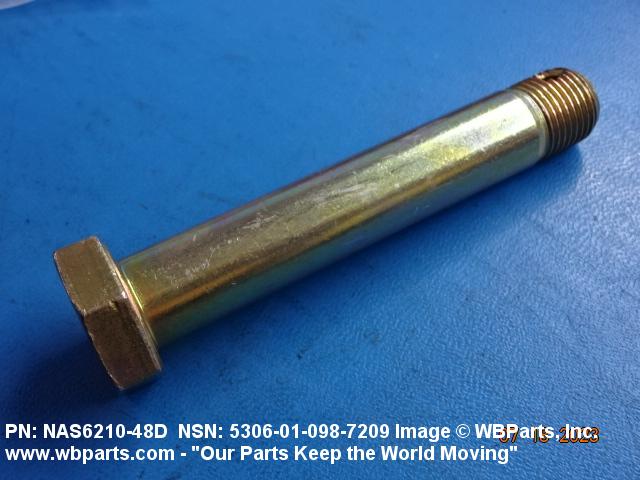

Drawings & Photos | NSN 5306-01-098-7209

Part Number	Request Date	QTY	Origin
5306-01-098-7209	2023-06-156	1	United States
5306-01-098-7209	2023-03-87	4	United States
5306-01-098-7209	2017-02-40	1	DIBBS-RFPs
5306-01-098-7209	2015-07-182	619	DIBBS

Cross Reference | NSN 5306-01-098-7209

Part Number	Cage Code	Manufacturer
NAS6210-48D	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-098-7209

Compare

Related Products | NSN 5306-01-098-7209

5306-01-098-7210, 5306-01-098-7211, 5306-01-098-7212, 5306-01-098-7219, 5306-01-098-7490

Technical Data | NSN 5306-01-098-7209

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD DIAMETER	0.625 INCHES
THREAD QUANTITY PER INCH	18
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

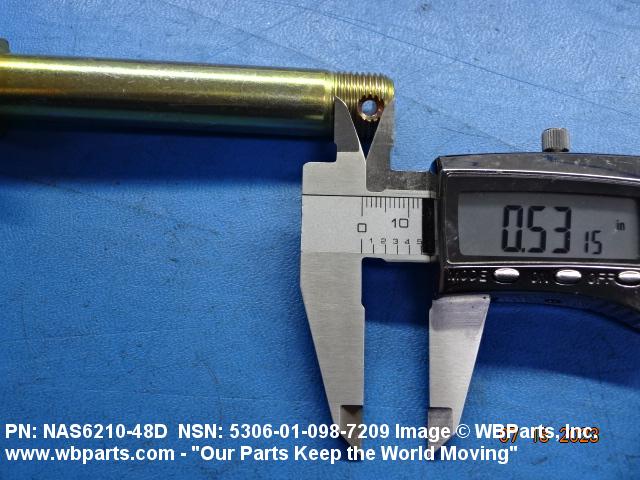

THREAD LENGTH	0.601 INCHES MINIMUM AND 0.651 INCHES MAXIMUM

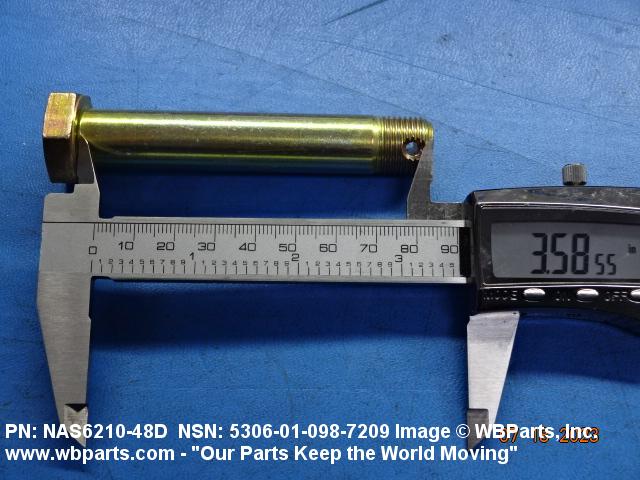

FASTENER LENGTH	3.611 INCHES MINIMUM AND 3.641 INCHES MAXIMUM
MATERIAL	STEEL COMP E4340 OR STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH

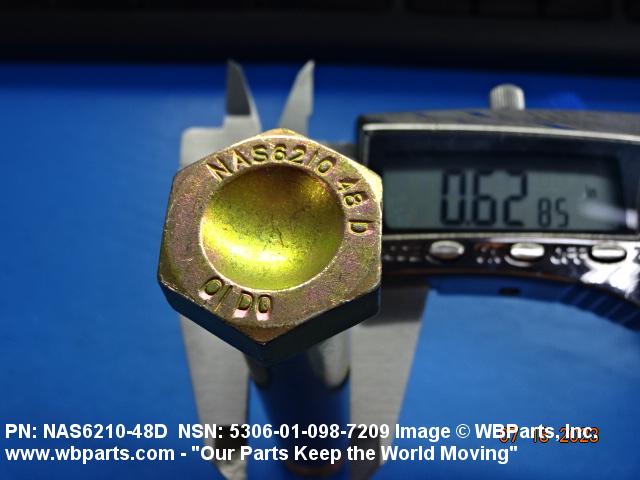

HEAD STYLE	C3 DISHED HEXAGON

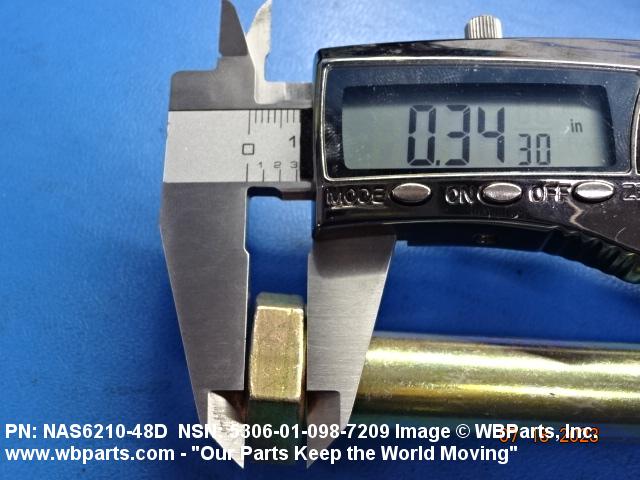

HEAD HEIGHT	0.312 INCHES MINIMUM AND 0.327 INCHES MAXIMUM

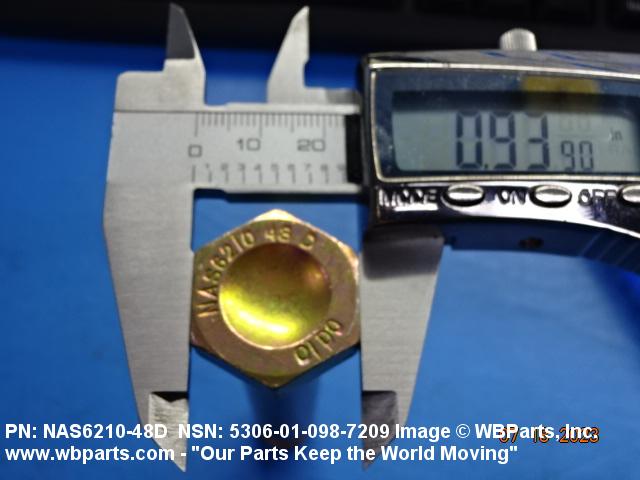

WIDTH BETWEEN FLATS	0.928 INCHES MINIMUM AND 0.940 INCHES MAXIMUM
GRIP LENGTH	2.990 INCHES MINIMUM AND 3.010 INCHES MAXIMUM

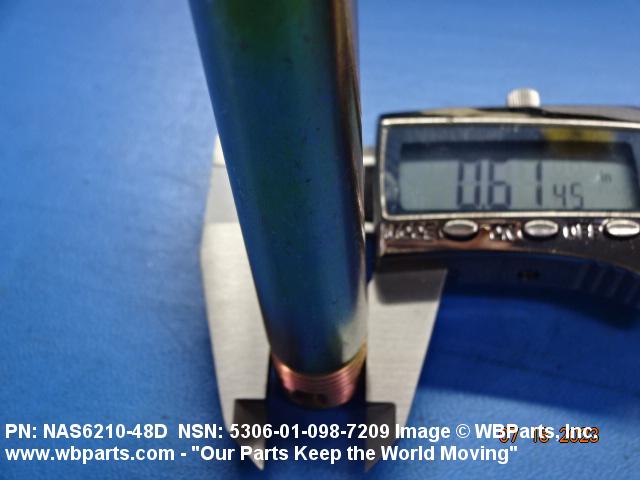

GRIP DIAMETER	0.6230 INCHES MINIMUM AND 0.6240 INCHES MAXIMUM
SURFACE FINISH	32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS
DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER	3.394 INCHES MINIMUM AND 3.444 INCHES MAXIMUM FIRST HOLE

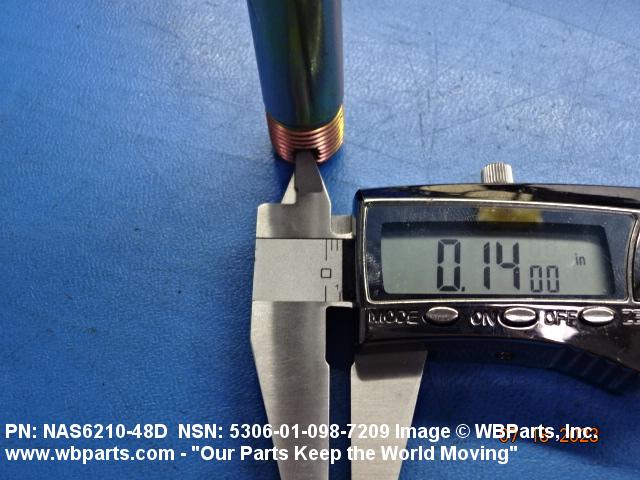

SHANK UNTHREADED HOLE DIAMETER	0.141 INCHES MINIMUM AND 0.151 INCHES MAXIMUM FIRST HOLE
SPECIFICATION/STANDARD DATA	80205-NAS6210 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
