NSN 5306-00-955-8237 MS2125005022, MS21250-05022, MS212500522
Product Details | SHEAR BOLT

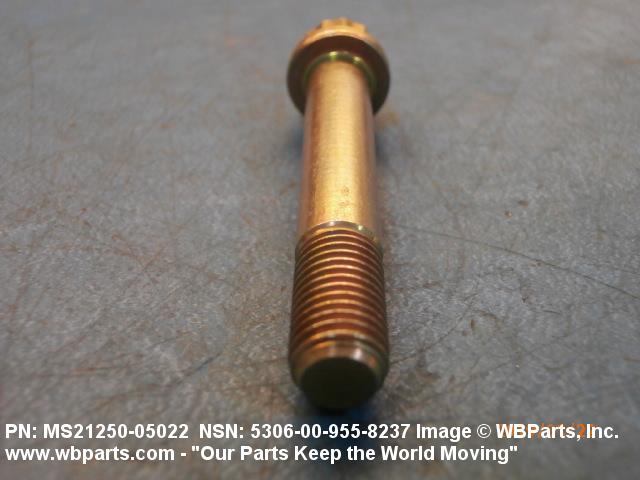

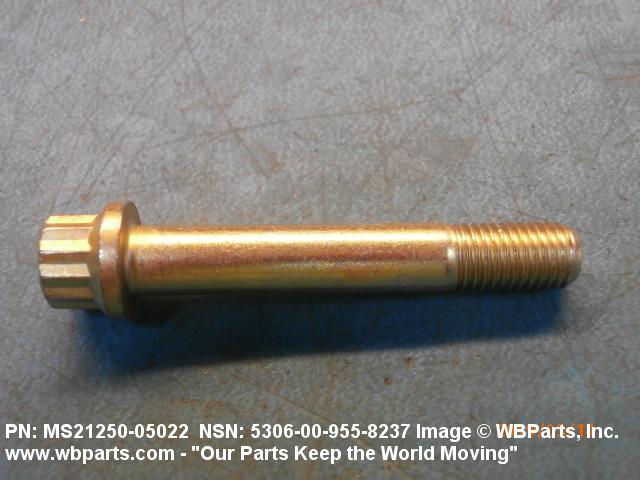

5306-00-955-8237 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: MS2125005022, MS21250-05022, MS212500522, MS21250-0522, VFK100G05022, VFK100G-05022, 5306-00-955-8237, 00-955-8237, 5306009558237, 009558237
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 1966 | 00-955-8237 | 15903 ( BOLT, SHEAR ) |

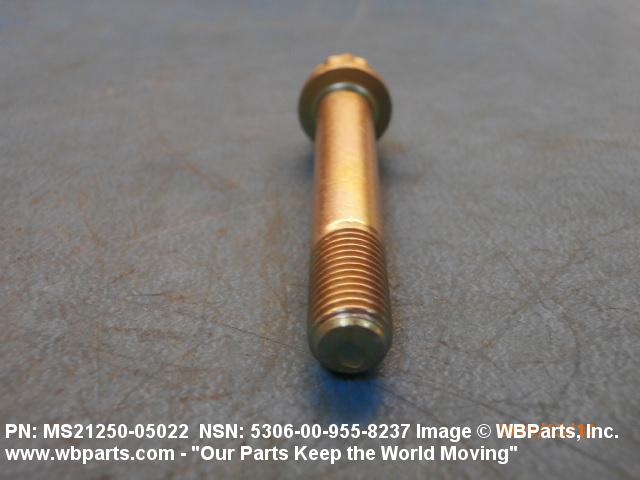

Drawings & Photos | NSN 5306-00-955-8237
Demand History | NSN 5306-00-955-8237
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2125005022 | 2023-03-72 | 10 | China |
| MS2125005022 | 2019-11-316 | 8 | United States |
| MS2125005022 | 2015-03-62 | 20 | US |
| MS2125005022 | 2014-03-85 | 20 | United States |
| MS2125005022 | 2011-08-221 | 25 | Indonesia |
| MS212500522 | 2008-03-80 | 12 | United States |
Cross Reference | NSN 5306-00-955-8237
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21250-05022 | 06710 | VALLEY-TODECO, INC. |
| MS21250-05022 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-05022 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-05022 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| MS21250-05022 | 50945 | MERCURY AEROSPACE FASTENERS INC |
| MS21250-05022 | 52628 | CHANDLER CRAFTSMAN CONTROLS |
| MS21250-05022 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| MS21250-05022 | 70276 | ALLEN MFG CO SUB OF CHICAGO PNEUMATIC TOOL CO |
| MS21250-05022 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-05022 | 93907 | TEXTRON FASTENING SYSTEMS DBA DECORAH OPERATIONS TFS |
| MS21250-05022 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21250-05022 | 97928 | HUCK INTL INC |
| MS21250-05022 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| MS21250-0522 | 57472 | ALL MANUFACTURERS, INC. DBA ALLIED HARBOR AEROSPACE |
| VFK100G-05022 | 06710 | VALLEY-TODECO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-955-8237
Related Products | NSN 5306-00-955-8237
Technical Data | NSN 5306-00-955-8237
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |

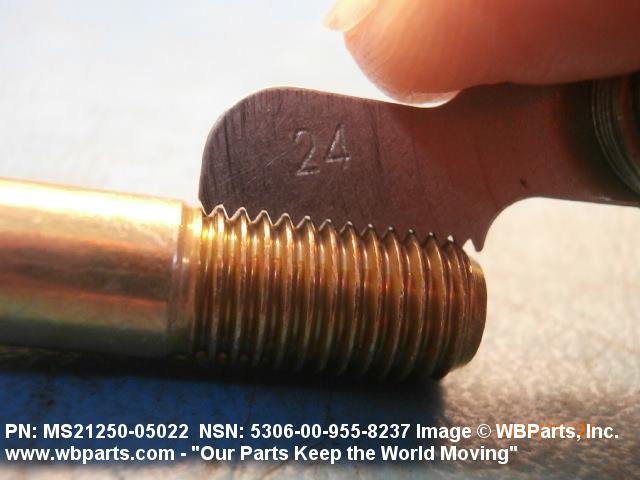

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

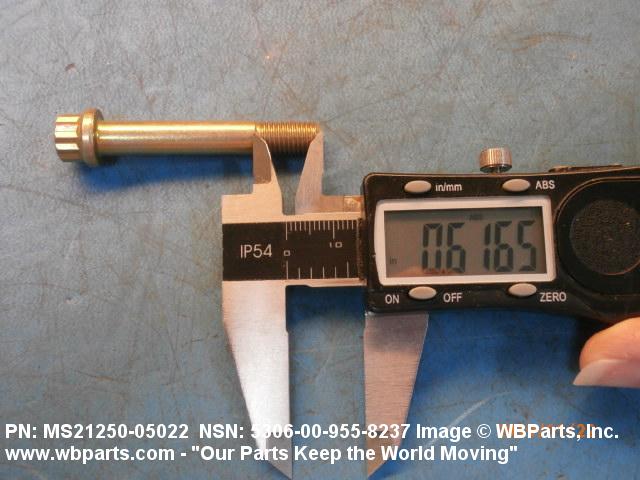

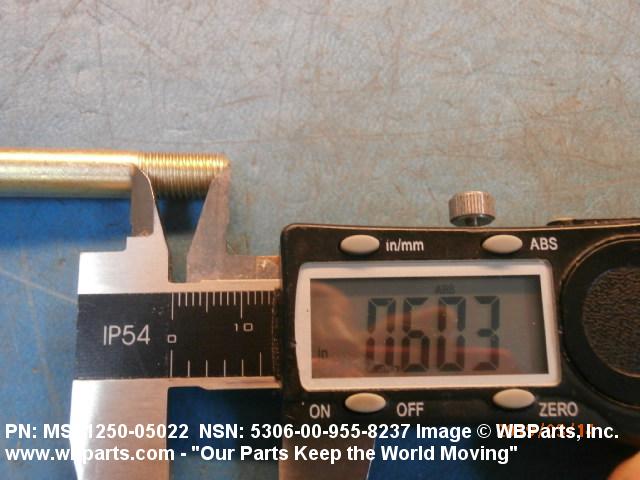

| THREAD LENGTH | 0.579 INCHES MINIMUM AND 0.619 INCHES MAXIMUM |

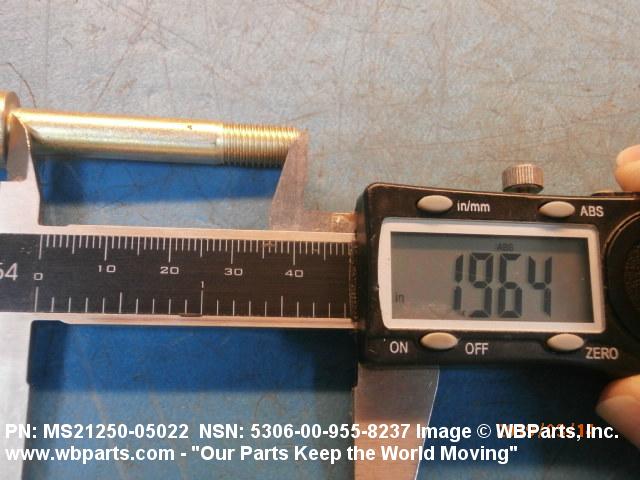

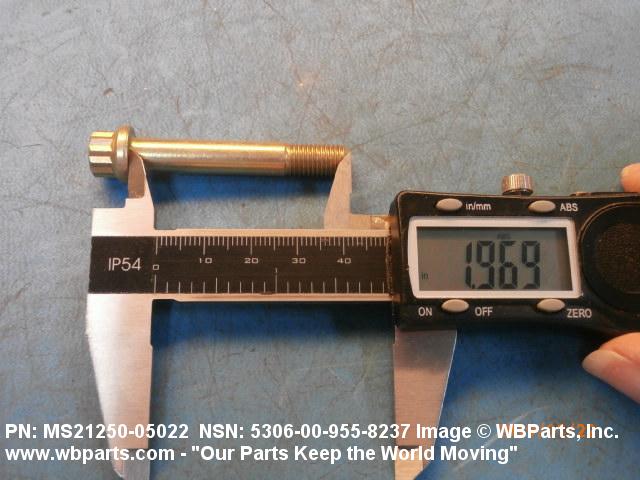

| FASTENER LENGTH | 1.964 INCHES MINIMUM AND 1.984 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| SINGLE SHEAR STRENGTH | 108000 POUNDS PER SQUARE INCH |

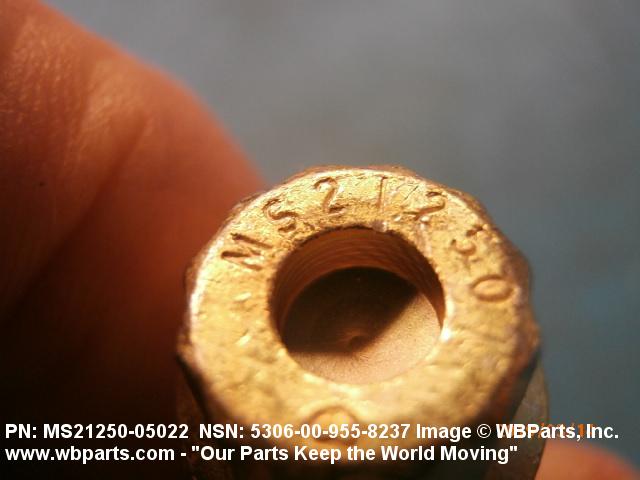

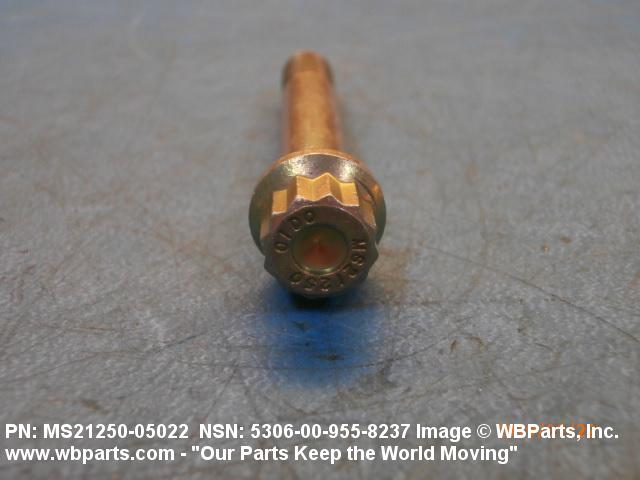

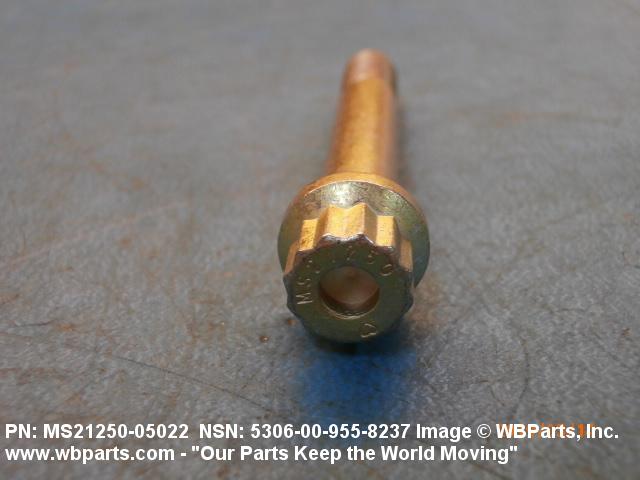

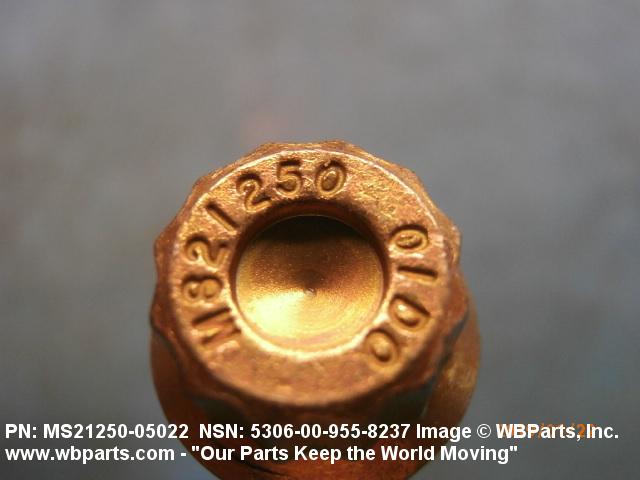

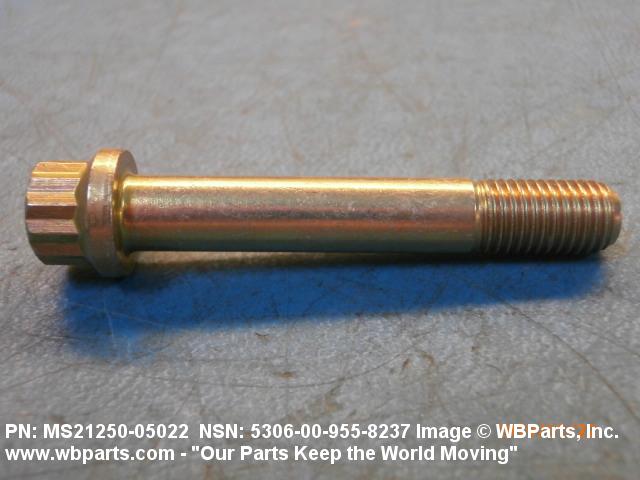

| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |

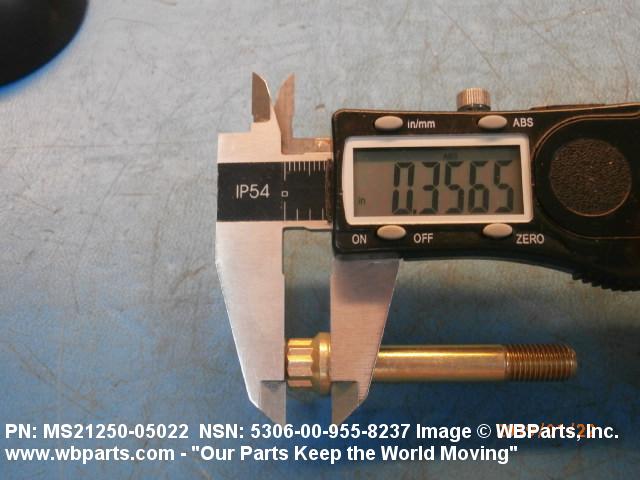

| HEAD HEIGHT | 0.338 INCHES MINIMUM AND 0.358 INCHES MAXIMUM |

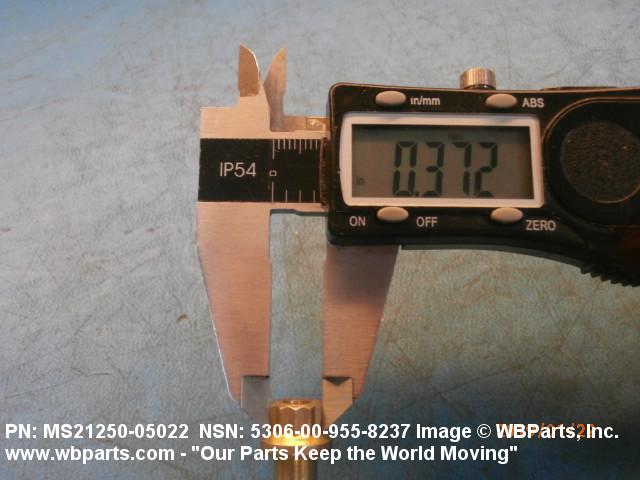

| WIDTH BETWEEN FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |

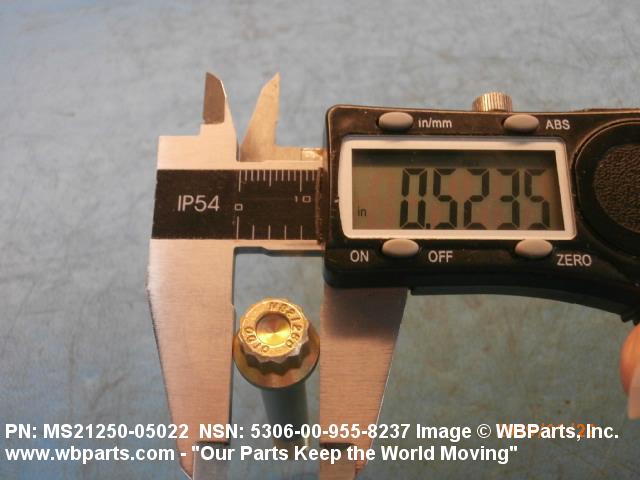

| EXTENDED WASHER DIAMETER | 0.521 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |

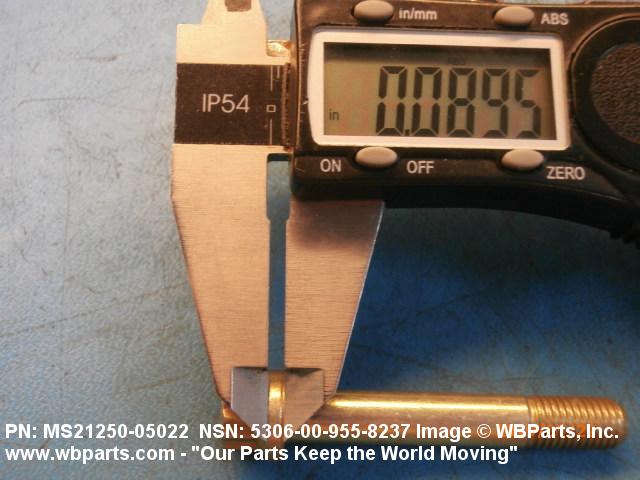

| EXTENDED WASHER THICKNESS | 0.072 INCHES MINIMUM AND 0.092 INCHES MAXIMUM |

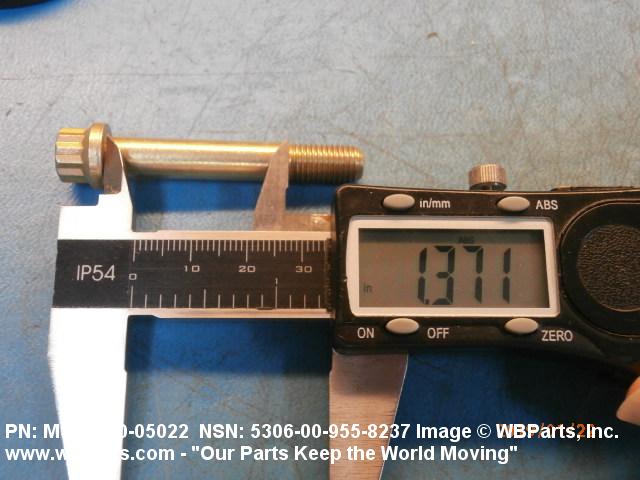

| GRIP LENGTH | 1.365 INCHES MINIMUM AND 1.385 INCHES MAXIMUM |

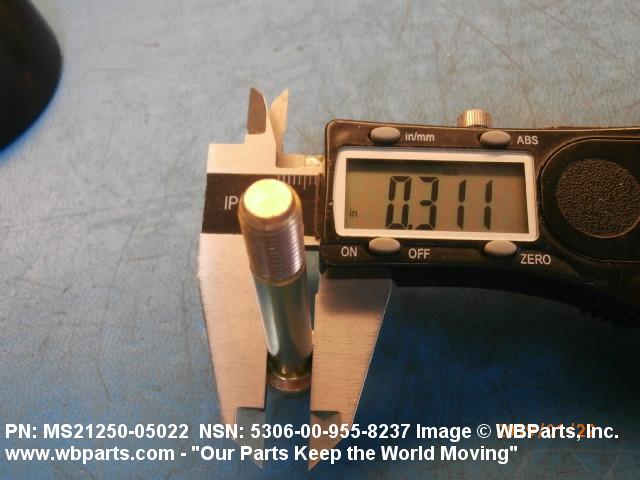

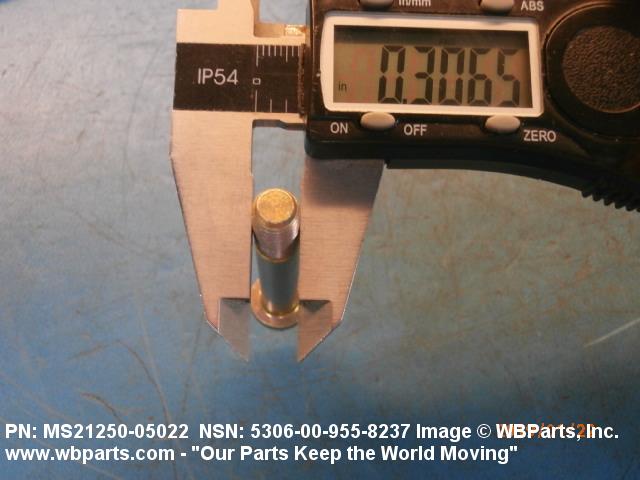

| GRIP DIAMETER | 0.3110 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21250-05022 |
Restrictions/Controls & Freight Information | NSN 5306-00-955-8237
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
