NSN 5306-00-812-2305 NAS13038, NAS1303-8, NAS13038H
Product Details | SHEAR BOLT
5306-00-812-2305 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS13038, NAS1303-8, NAS13038H, NAS1303-8H, 5306-00-812-2305, 00-812-2305, 5306008122305, 008122305
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-812-2305 | 15903 ( BOLT, SHEAR ) |

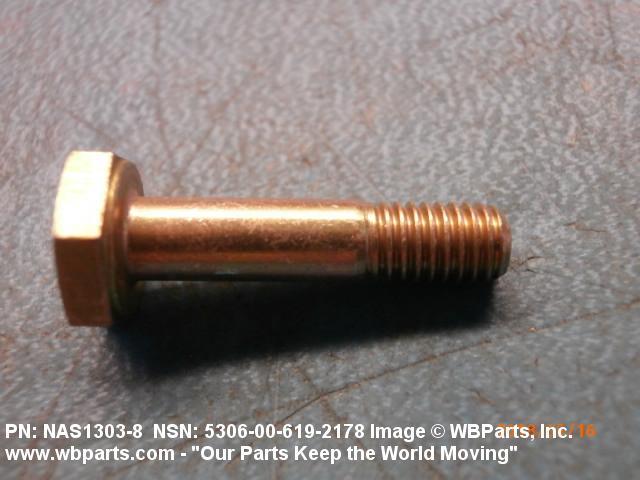

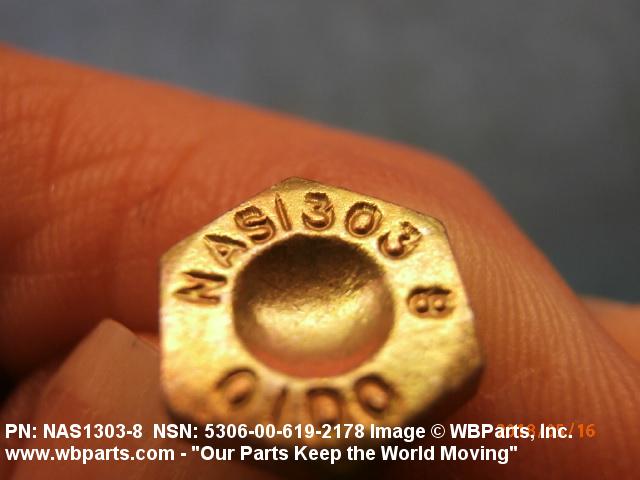

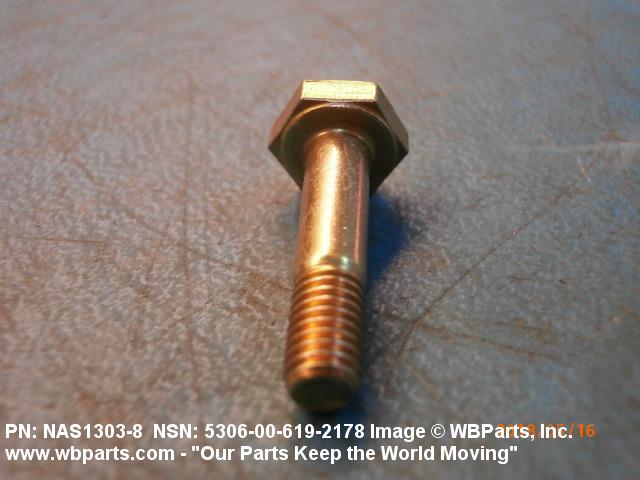

Drawings & Photos | NSN 5306-00-812-2305
Demand History | NSN 5306-00-812-2305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-812-2305 | 2024-10-278 | 9780 | DIBBS |
| 5306-00-812-2305 | 2024-09-269 | 9780 | DIBBS |
| NAS13038H | 2024-09-249 | 5 | United States |
| 5306-00-812-2305 | 2021-05-132 | 9587 | DIBBS |
| 5306-00-812-2305 | 2021-05-129 | 6373 | DIBBS |
| 5306-00-812-2305 | 2021-02-54 | 40000 | DIBBS |
| 5306-00-812-2305 | 2020-11-309 | 620 | DIBBS |
| 5306-00-812-2305 | 2020-10-278 | 4006 | DIBBS |
| 5306-00-812-2305 | 2020-07-194 | 3324 | DIBBS |
| 5306-00-812-2305 | 2018-11-329 | 20480 | DIBBS |
| 5306-00-812-2305 | 2018-10-295 | 21682 | DIBBS |
| NAS1303-8 | 2018-05-121 | 142 | United States |
| 5306-00-812-2305 | 2017-11-323 | 17527 | DIBBS |
| 5306-00-812-2305 | 2017-09-260 | 21682 | DIBBS |
| 5306-00-812-2305 | 2017-06-169 | 6444 | DIBBS |
| 5306-00-812-2305 | 2017-04-114 | 2876 | DIBBS |
| 5306-00-812-2305 | 2017-03-71 | 4516 | DIBBS |
| 5306-00-812-2305 | 2017-02-53 | 180 | MANUAL |
| 5306-00-812-2305 | 2017-02-43 | 3819 | DIBBS |
| NAS13038 | 2016-12-343 | 16 | India |
| 5306-00-812-2305 | 2016-12-339 | 12710 | DIBBS |
| 5306-00-812-2305 | 2016-04-101 | 3103 | DIBBS |
| 5306-00-812-2305 | 2015-06-165 | 11797 | DIBBS |
| 5306-00-812-2305 | 2014-11-329 | 23160 | DIBBS |
| 5306-00-812-2305 | 2014-09-246 | 4441 | DIBBS |
| NAS13038 | 2014-05-127 | 3 | US |
| 5306-00-812-2305 | 2014-03-82 | 5051 | DIBBS |
| NAS13038 | 2014-02-55 | 800 | US |
| 5306-00-812-2305 | 2009-11-307 | 3 | United States |
| 5306-00-812-2305 | 2008-09-259 | 160 | US |
| 5306-00-812-2305 | 2008-09-254 | 55000 | DIBBS |
| NAS13038 | 2008-07-212 | 8 | United States |
| 5306-00-812-2305 | 2008-03-64 | 46600 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-812-2305
Related Products | NSN 5306-00-812-2305
Technical Data | NSN 5306-00-812-2305
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |

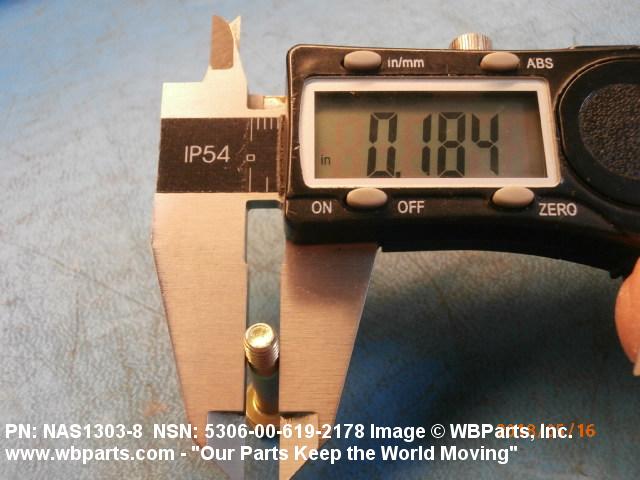

| NOMINAL THREAD DIAMETER | 0.190 INCHES |

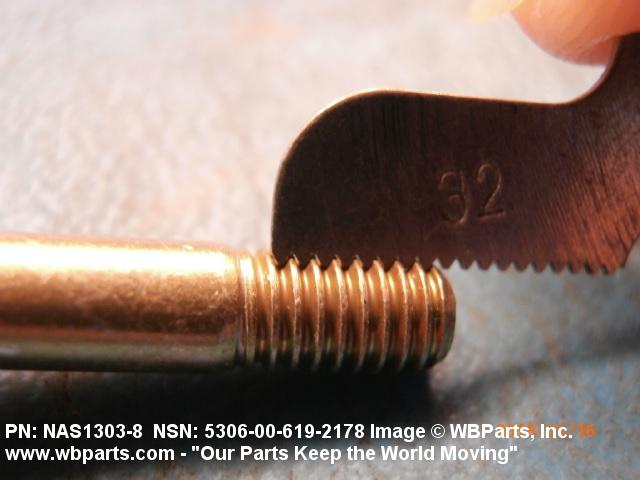

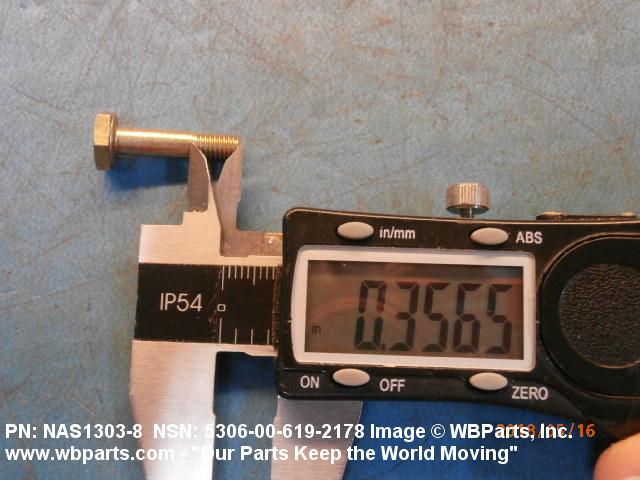

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.313 INCHES MINIMUM AND 0.363 INCHES MAXIMUM |

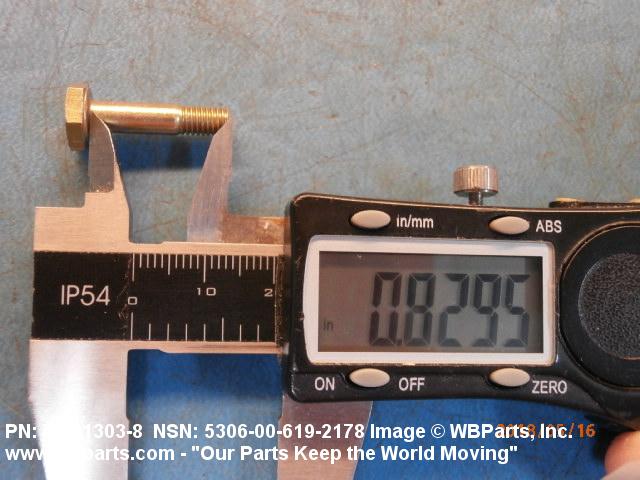

| FASTENER LENGTH | 0.823 INCHES MINIMUM AND 0.853 INCHES MAXIMUM |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8735 OR STEEL COMP 6150 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |

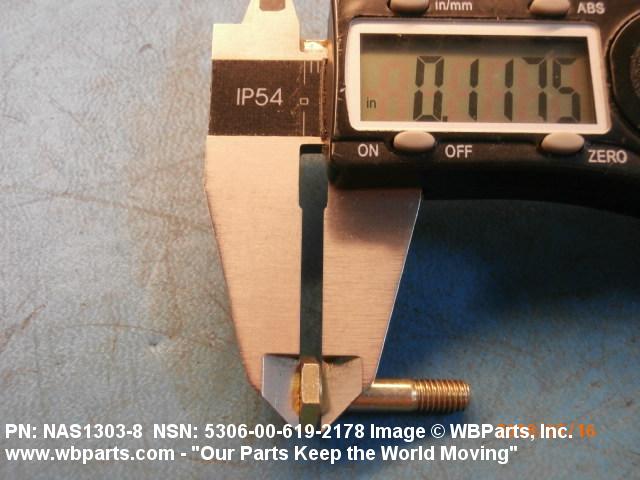

| HEAD HEIGHT | 0.110 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |

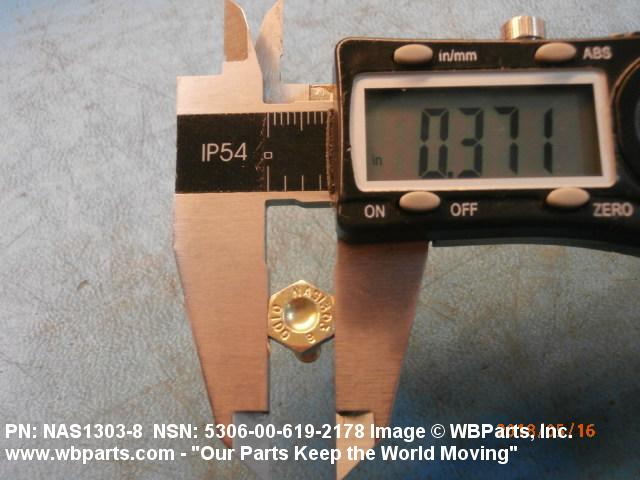

| WIDTH BETWEEN FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E4 HEXAGON CORNERS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 3 |
| HOLE DIAMETER | 0.046 INCHES NOMINAL |

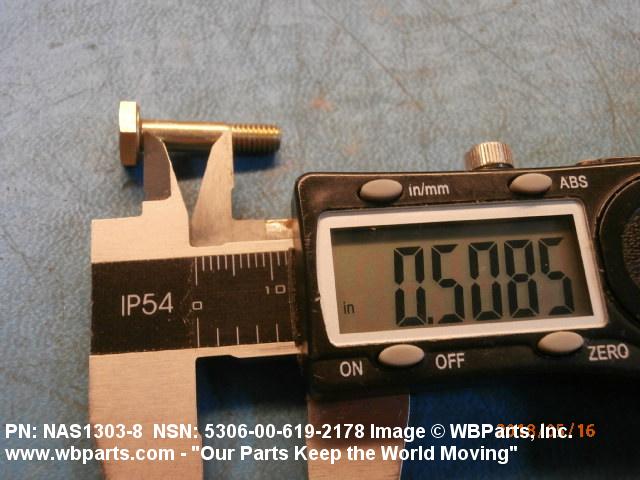

| GRIP LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

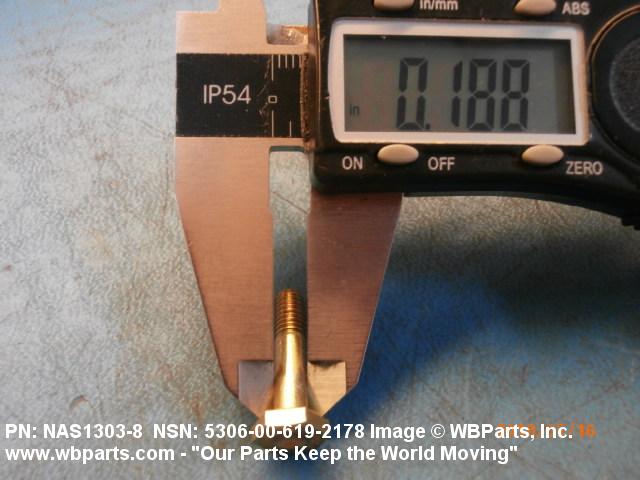

| GRIP DIAMETER | 0.1885 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1303 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | TWA; CGF; AZF; BEN; AYF; CPN; ATF; BPN; MVF |
Restrictions/Controls & Freight Information | NSN 5306-00-812-2305
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-812-2305
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
