NSN 5306-00-781-1169 1788193, 00-781-1169, 007811169
Product Details | U BOLT
5306-00-781-1169 An externally threaded fastener bent approximately 180 degrees (3.141 radians) in the shape of the letter U and with both ends threaded.
Part Alternates: 1788193, 5306-00-781-1169, 00-781-1169, 5306007811169, 007811169
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-781-1169 | 06665 ( BOLT, U ) |
Drawings & Photos | NSN 5306-00-781-1169
Cross Reference | NSN 5306-00-781-1169
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1788193 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-781-1169
Related Products | NSN 5306-00-781-1169
Technical Data | NSN 5306-00-781-1169
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.062 INCHES MINIMUM |
| MATERIAL | STEEL COMP 303 OVERALL |
| SURFACE TREATMENT | PRIMER OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-8585 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-E-15130 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |

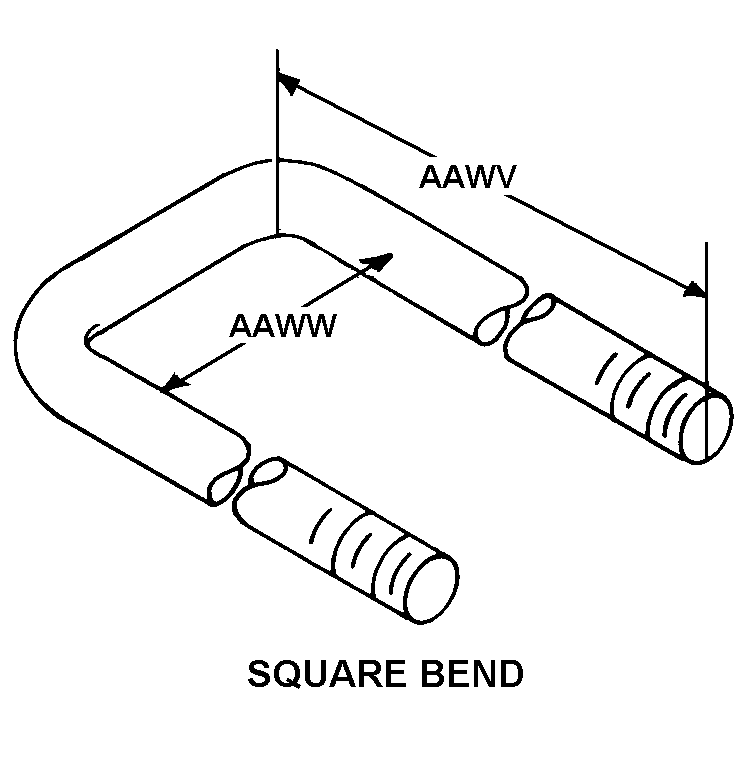

| STYLE DESIGNATOR | B31 SQUARE BEND |
