5306-01-147-8225 An externally threaded fastener bent approximately 180 degrees (3.141 radians) in the shape of the letter U and with both ends threaded.
Part Alternates: 12313028, 5306-01-147-8225, 01-147-8225, 5306011478225, 011478225
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 FEB 1983 | 01-147-8225 | 06665 ( BOLT, U ) |
Drawings & Photos | NSN 5306-01-147-8225
Demand History | NSN 5306-01-147-8225
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-147-8225 | 2019-04-108 | 20 | United States |
Cross Reference | NSN 5306-01-147-8225
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12313028 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-147-8225
Related Products | NSN 5306-01-147-8225
Technical Data | NSN 5306-01-147-8225
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

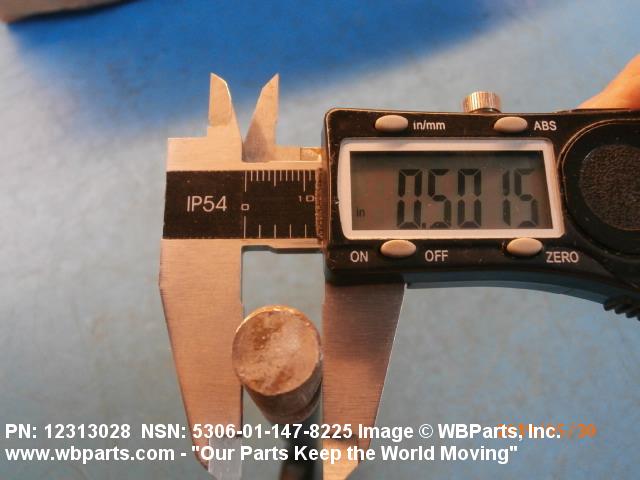

| NOMINAL THREAD DIAMETER | 0.500 INCHES |

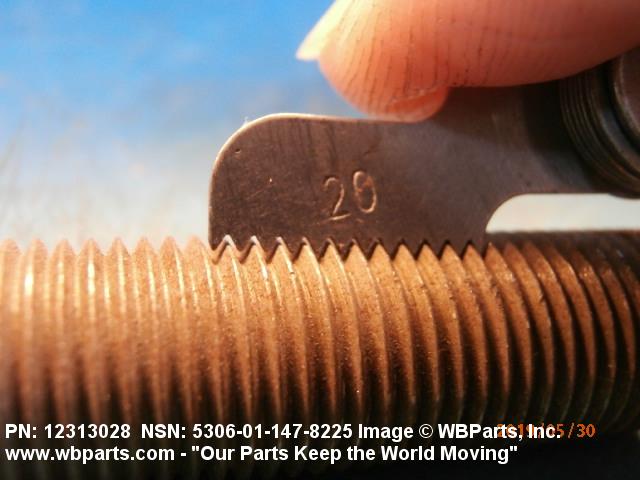

| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

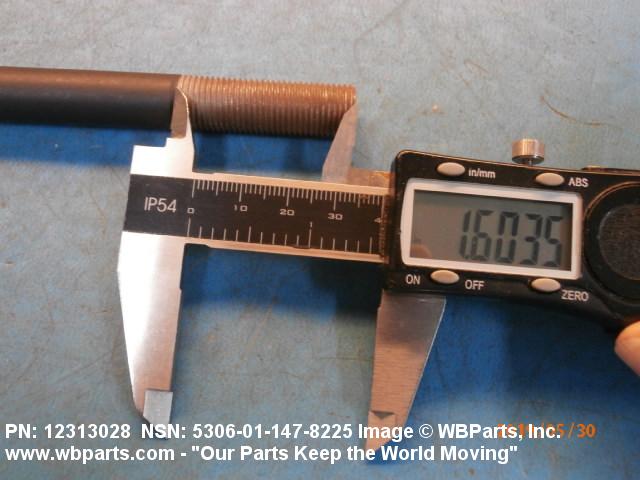

| THREAD LENGTH | 2.500 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1035 OR STEEL COMP 1536 OR STEEL COMP 1037 OR STEEL COMP 1038 OR STEEL COMP 1039 OR STEEL COMP 1040 OR STEEL COMP 1541 OR STEEL COMP 1042 OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-P-636 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B31 SQUARE BEND |
| DISTANCE FROM INSIDE CENTER OF BEND TO BOLT END | 8.120 INCHES NOMINAL |
| INSIDE DISTANCE BETWEEN SHANKS | 2.120 INCHES NOMINAL |
