NSN 5306-00-753-4289 NAS4648A43, NAS464-8A43, NAS498

Product Details | SHEAR BOLT

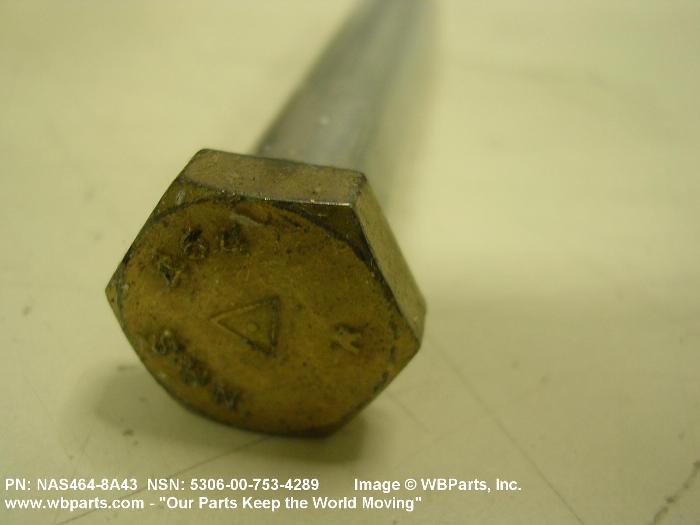

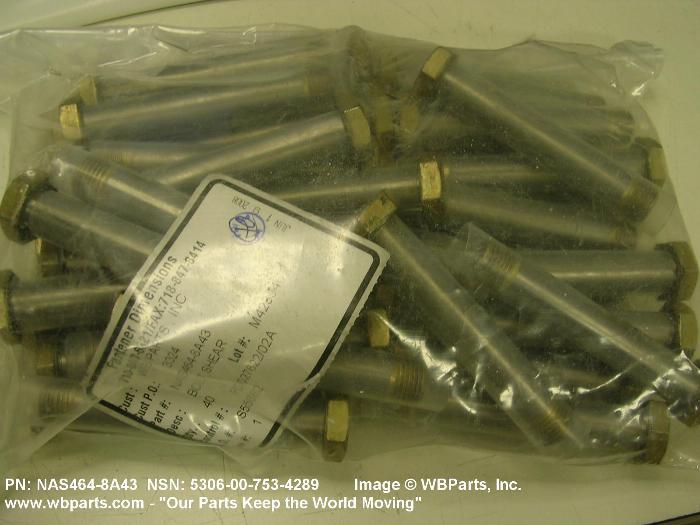

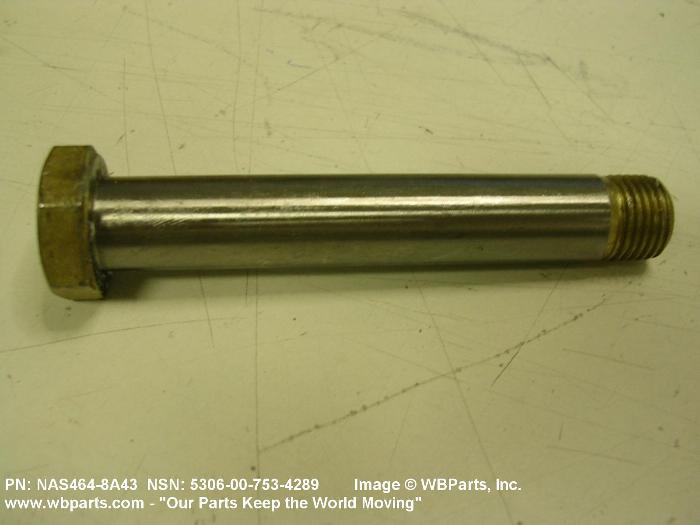

5306-00-753-4289 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.

Part Alternates: NAS4648A43, NAS464-8A43, NAS498, NAS6203 THRU NAS6220, NAS6203THRUNAS6220, NAS620843, NAS6208-43, SCB53361, SC-B-53361 , 5306-00-753-4289, 00-753-4289, 5306007534289, 007534289

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-753-4289	15903 ( BOLT, SHEAR )

Drawings & Photos | NSN 5306-00-753-4289

Part Number	Request Date	QTY	Origin
NAS498	2013-08-229	250	Canada
5306-00-753-4289	2012-02-40	400	DIBBS
5306-00-753-4289	2012-01-11	63	DIBBS
5306-00-753-4289	2011-07-201	200	DIBBS
5306-00-753-4289	2011-07-198	200	DIBBS
5306-00-753-4289	2011-07-195	66	DIBBS
5306-00-753-4289	2010-09-253	223	DIBBS
5306-00-753-4289	2010-09-251	150	DIBBS
5306-00-753-4289	2010-09-247	73	DIBBS
5306-00-753-4289	2010-08-229	200	DIBBS
5306-00-753-4289	2010-04-115	70	DIBBS
5306-00-753-4289	2010-04-115	15	DIBBS
5306-00-753-4289	2010-04-106	100	DIBBS
5306-00-753-4289	2009-10-286	200	DIBBS
5306-00-753-4289	2008-08-243	20	DIBBS
5306-00-753-4289	2008-08-231	40	DIBBS
5306-00-753-4289	2008-07-205	3	DIBBS
5306-00-753-4289	2008-07-203	20	DIBBS
NAS4648A43	2008-06-155	40	France

Cross Reference | NSN 5306-00-753-4289

Part Number	Cage Code	Manufacturer
NAS464-8A43	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS498	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS6203 THRU NAS6220	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS6208-43	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-753-4289

Compare

Related Products | NSN 5306-00-753-4289

5306-00-753-4294, 5306-00-753-4303, 5306-00-753-4310, 5306-00-753-4324, 5306-00-753-4375

Technical Data | NSN 5306-00-753-4289

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.500 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.421 INCHES MINIMUM
FASTENER LENGTH	3.109 INCHES NOMINAL
MATERIAL	STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4037 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OR MIL-S-8695 MIL SPEC 6TH MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE HEAD CADMIUM AND CHROMATE THREADS
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC 1ST TREATMENT RESPONSE HEAD QQ-P-416,TYPE 2,CLASS 3 FED SPEC 2ND TREATMENT RESPONSE THREADS
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
SINGLE SHEAR STRENGTH	18650 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.250 INCHES NOMINAL
WIDTH BETWEEN FLATS	0.750 INCHES NOMINAL
GRIP LENGTH	2.688 INCHES NOMINAL
GRIP DIAMETER	0.4991 INCHES NOMINAL
