Product Details | SHEAR BOLT
5306-00-680-9277 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS63274, NAS632-74, 5306-00-680-9277, 00-680-9277, 5306006809277, 006809277
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-680-9277 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-00-680-9277
Demand History | NSN 5306-00-680-9277
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS63274 | 2021-05-124 | 109 | Malaysia |
| 5306-00-680-9277 | 2021-03-82 | 3181 | DIBBS |
| 5306-00-680-9277 | 2018-02-47 | 10 | United States |
| 5306-00-680-9277 | 2017-02-40 | 1 | DIBBS-RFPs |
| 5306-00-680-9277 | 2016-08-217 | 603 | DIBBS |
| 5306-00-680-9277 | 2016-05-146 | 488 | DIBBS |
| NAS63274 | 2015-09-267 | 60 | US |
| NAS632-74 | 2015-07-201 | 60 | |
| 5306-00-680-9277 | 2015-05-148 | 1187 | DIBBS |
| 5306-00-680-9277 | 2015-05-137 | 1187 | DIBBS |
| 5306-00-680-9277 | 2014-10-287 | 833 | DIBBS |
| NAS63274 | 2013-11-319 | 72 | United States |
| 5306-00-680-9277 | 2009-04-117 | 3000 | DIBBS |
| NAS63274 | 2008-01-25 | 20 | Singapore |
Cross Reference | NSN 5306-00-680-9277
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS632-74 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-680-9277
Technical Data | NSN 5306-00-680-9277
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

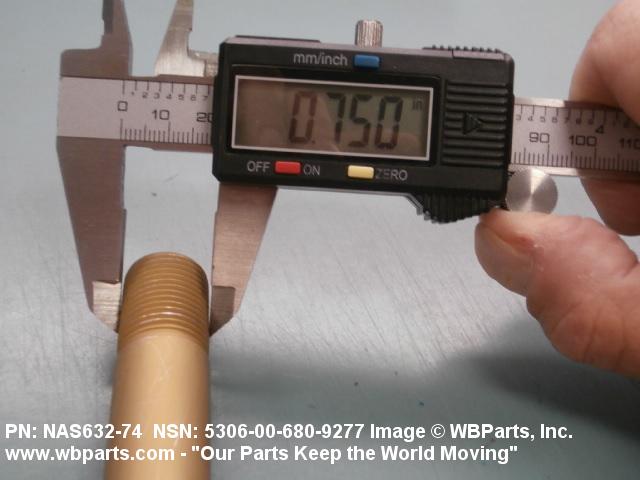

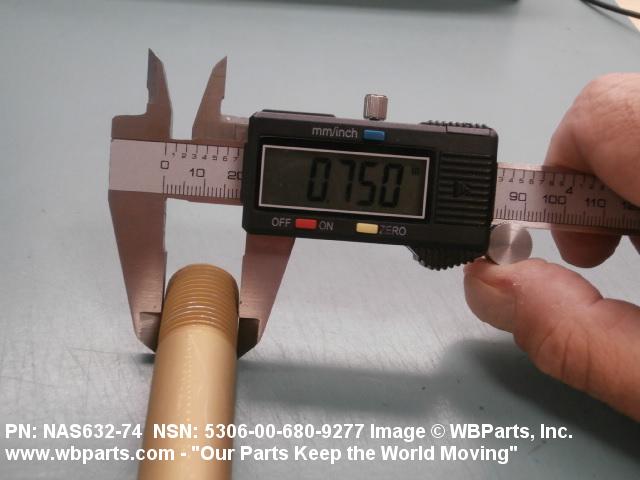

| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

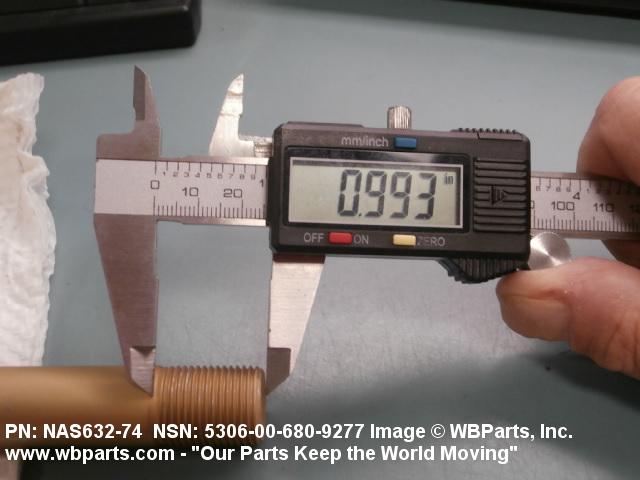

| THREAD LENGTH | 0.993 INCHES MINIMUM |

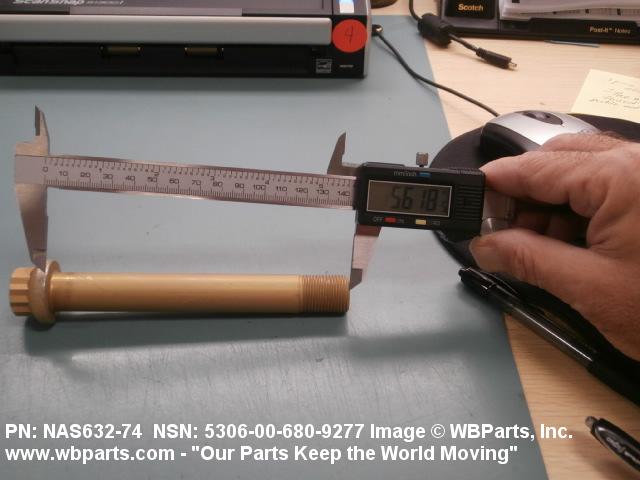

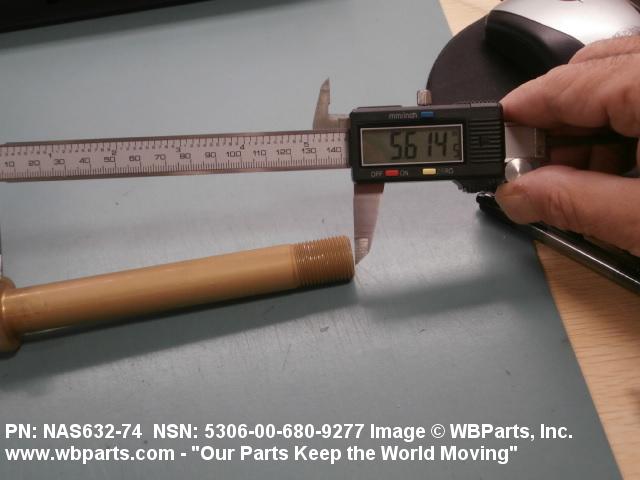

| FASTENER LENGTH | 5.618 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | NAS 672 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |

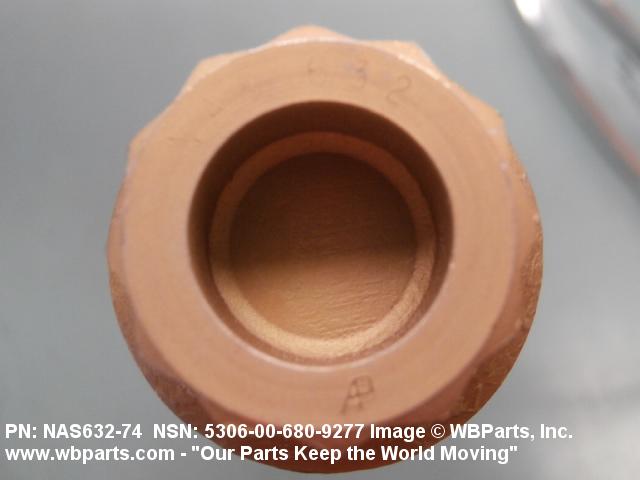

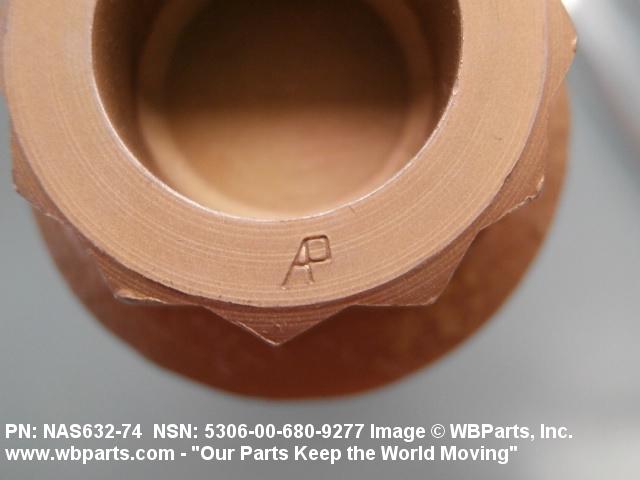

| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |

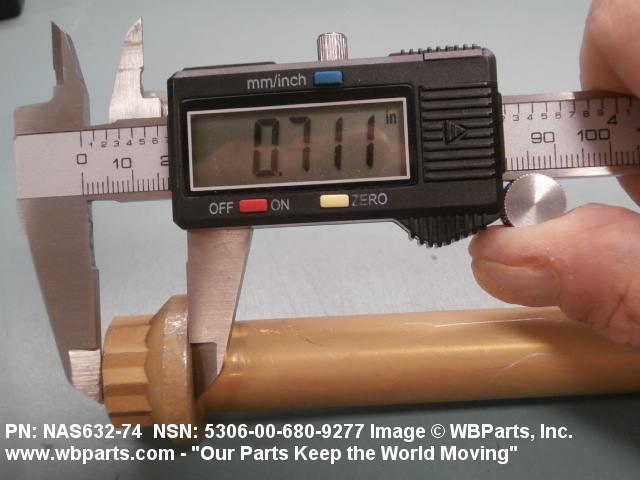

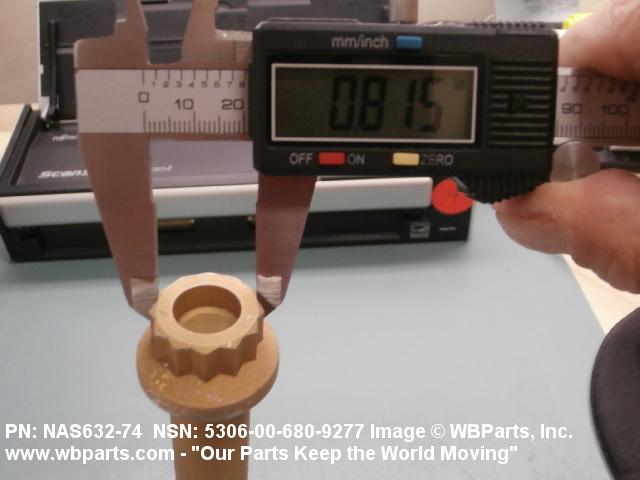

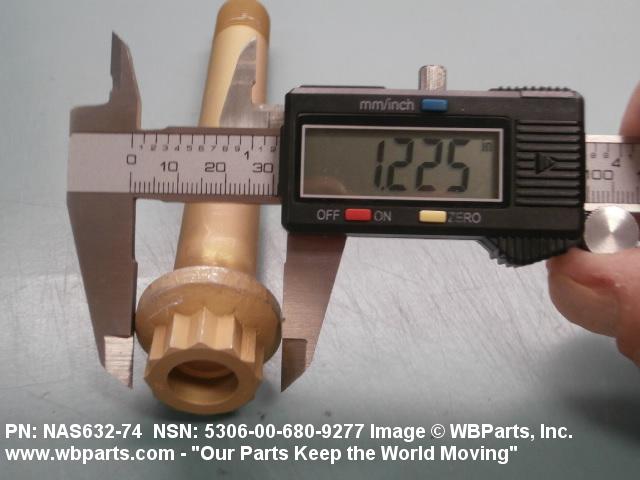

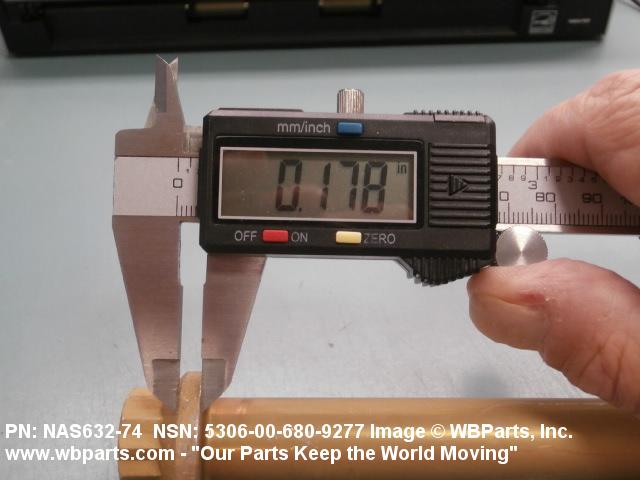

| HEAD HEIGHT | 0.711 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.808 INCHES MINIMUM AND 0.817 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 1.225 INCHES NOMINAL |
| EXTENDED WASHER THICKNESS | 0.178 INCHES NOMINAL |
| GRIP LENGTH | 4.625 INCHES NOMINAL |

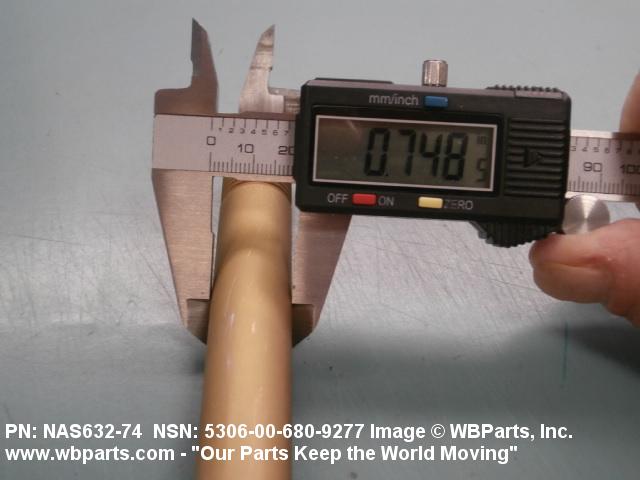

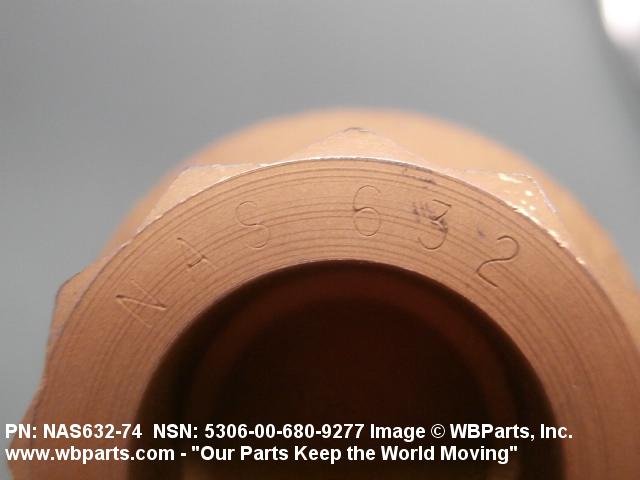

| GRIP DIAMETER | 0.7480 INCHES MINIMUM AND 0.7490 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS632 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
