NSN 5306-00-551-8103 AN960C1416L , NAS1149C1432R, NAS464P4A29
Product Details | SHEAR BOLT
5306-00-551-8103 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.

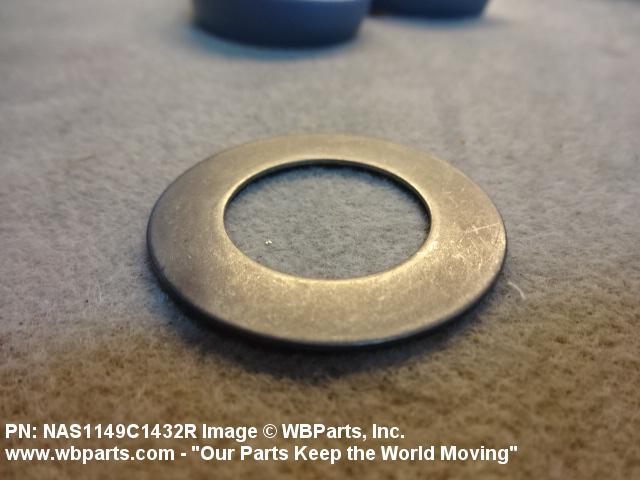

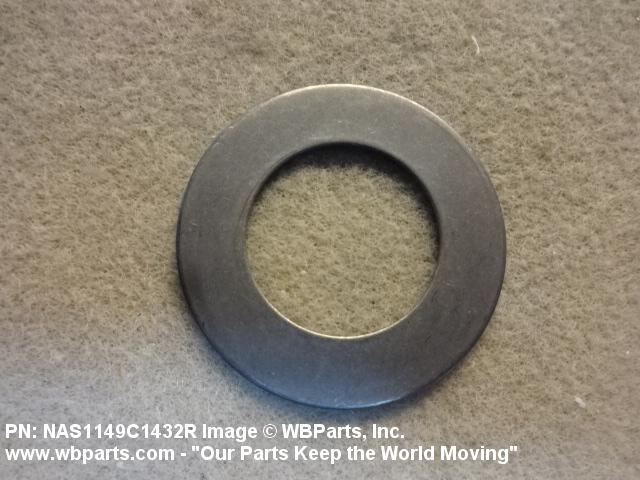

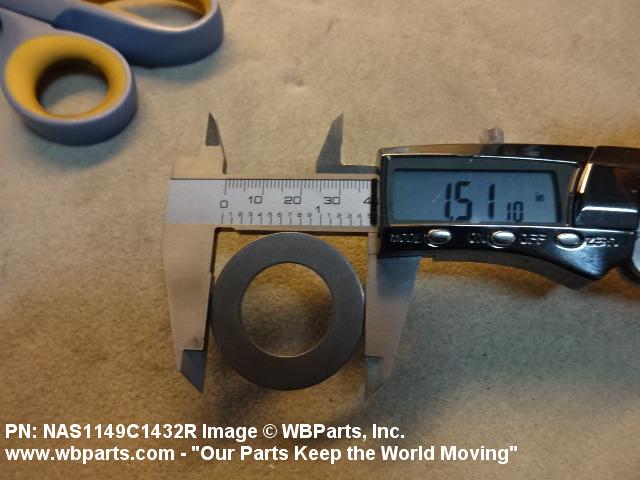

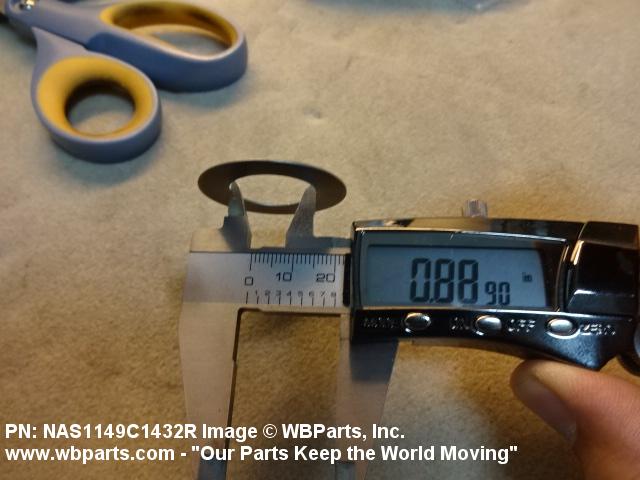

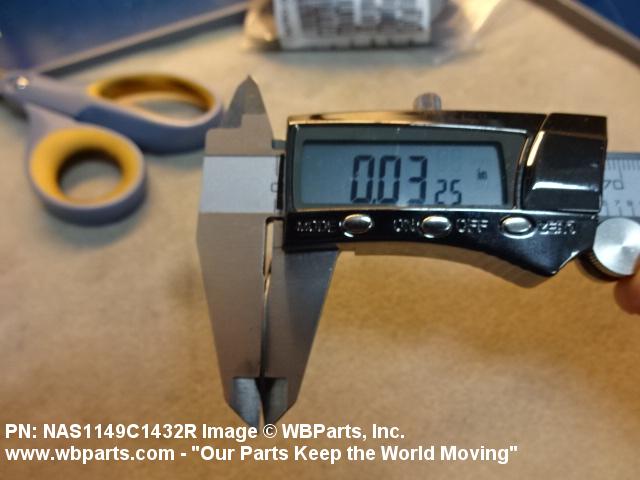

Part Alternates: AN960C1416L , NAS1149C1432R, NAS464P4A29, 70307-03150-101 , 10121499 , 2W171416M, 2W17-1416M , 004003081053, 004-003081-053 , 5306-00-551-8103, 00-551-8103, 7030703150101, 5306005518103, 005518103
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-551-8103 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-00-551-8103
Demand History | NSN 5306-00-551-8103
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN960C1416L | 2024-09-274 | 8 | US |
| NAS1149C1432R | 2021-03-78 | 100 | Malaysia |
| AN960C1416L | 2018-10-292 | 100 | Sweden |
| NAS1149C1432R | 2014-09-267 | 2400 | DK |
| AN960C1416L | 2014-06-157 | 50 | United States |
| NAS1149C1432R | 2014-03-71 | 49 | United States |
| AN960C1416L | 2012-11-310 | 50 | |
| NAS464P4A29 | 2011-07-198 | 6 | NL |
| AN960C1416L | 2010-11-334 | 100 | United States |
| AN960C1416L | 2010-11-327 | 1 | United States |
| AN960C1416L | 2010-04-97 | 8 | US |
| AN960C1416L | 2010-04-97 | 8 | US |
| AN960C1416L | 2010-03-89 | 8 | US |
| AN960C1416L | 2009-10-302 | 25 | Italy |
Cross Reference | NSN 5306-00-551-8103
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS464P4A29 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-551-8103
Related Products | NSN 5306-00-551-8103
Technical Data | NSN 5306-00-551-8103
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.327 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| FASTENER LENGTH | 2.140 INCHES MINIMUM AND 2.187 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| SINGLE SHEAR STRENGTH | 4650 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| GRIP LENGTH | 1.812 INCHES NOMINAL |
| GRIP DIAMETER | 0.2483 INCHES MINIMUM AND 0.2492 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS464 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
