NSN 5306-00-519-7452 NAS33032416, NAS3303-24-16, 17A55614
Product Details | U BOLT
5306-00-519-7452 An externally threaded fastener bent approximately 180 degrees (3.141 radians) in the shape of the letter U and with both ends threaded.
Part Alternates: NAS33032416, NAS3303-24-16, 17A55614, 17A5561-4, 5306-00-519-7452, 00-519-7452, 5306005197452, 005197452
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 AUG 1974 | 00-519-7452 | 06665 ( BOLT, U ) |
Drawings & Photos | NSN 5306-00-519-7452
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-519-7452
Related Products | NSN 5306-00-519-7452
Technical Data | NSN 5306-00-519-7452
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1018 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-634 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |

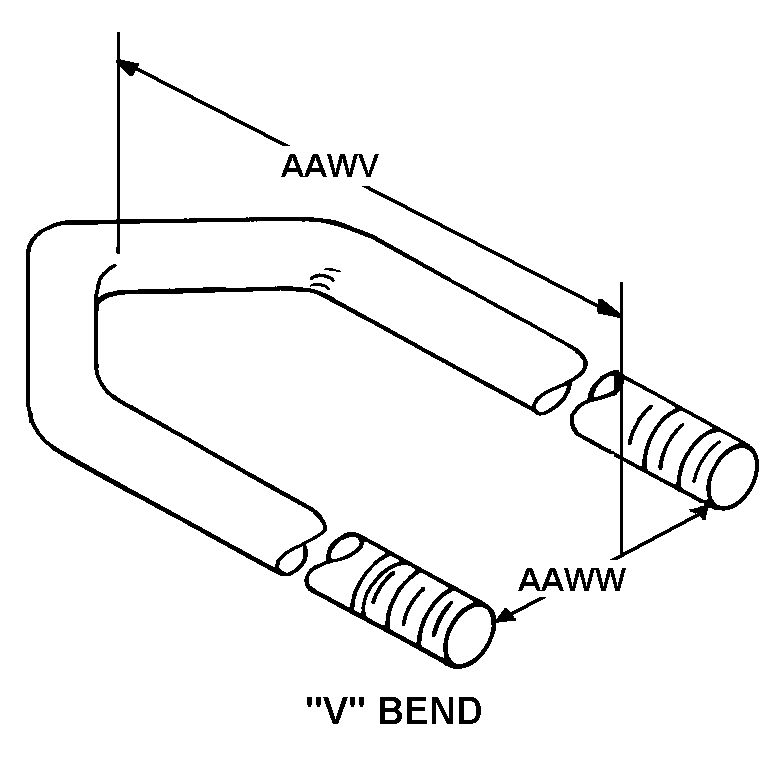

| STYLE DESIGNATOR | B32 V BEND |
| DISTANCE FROM INSIDE CENTER OF BEND TO BOLT END | 3.500 INCHES MINIMUM AND 3.650 INCHES MAXIMUM |
| INSIDE DISTANCE BETWEEN SHANKS | 3.000 INCHES MINIMUM AND 3.060 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS3303 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | ENGINE, AIRCRAFT TF-34 |
Restrictions/Controls & Freight Information | NSN 5306-00-519-7452
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
