NSN 5306-00-514-4840 MS2125006058, MS21250-06058, VFK100G06058
Product Details | SHEAR BOLT

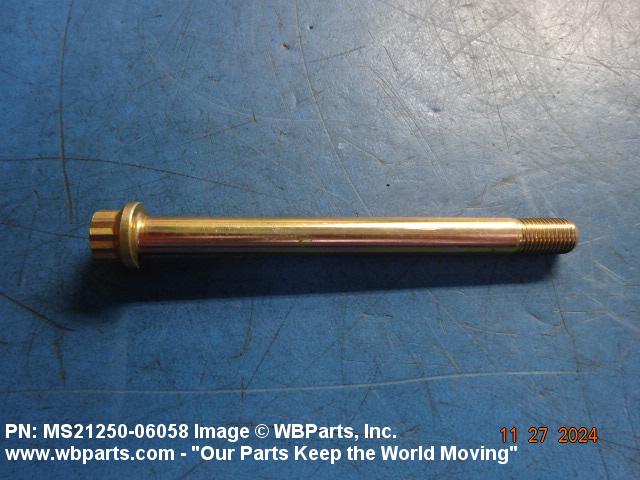

5306-00-514-4840 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: MS2125006058, MS21250-06058, VFK100G06058, VFK100G-06058, 5306-00-514-4840, 00-514-4840, 5306005144840, 005144840
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 1974 | 00-514-4840 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-00-514-4840
Demand History | NSN 5306-00-514-4840
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2125006058 | 2024-10-304 | 8 | United States |
| 5306-00-514-4840 | 2020-08-230 | 2 | DIBBS |
| 5306-00-514-4840 | 2016-08-230 | 2 | DIBBS |
| MS2125006058 | 2009-05-140 | 10 | United States |
| MS2125006058 | 2009-05-140 | 10 | United States |
Cross Reference | NSN 5306-00-514-4840
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21250-06058 | 06710 | VALLEY-TODECO, INC. |
| MS21250-06058 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-06058 | 06957 | AIR WORLD MFG |
| MS21250-06058 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-06058 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| MS21250-06058 | 50945 | MERCURY AEROSPACE FASTENERS INC |
| MS21250-06058 | 52628 | CHANDLER CRAFTSMAN CONTROLS |
| MS21250-06058 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| MS21250-06058 | 57472 | ALL MANUFACTURERS, INC. DBA ALLIED HARBOR AEROSPACE |
| MS21250-06058 | 70276 | ALLEN MFG CO SUB OF CHICAGO PNEUMATIC TOOL CO |
| MS21250-06058 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-06058 | 93907 | TEXTRON FASTENING SYSTEMS DBA DECORAH OPERATIONS TFS |
| MS21250-06058 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21250-06058 | 97928 | HUCK INTL INC |
| VFK100G-06058 | 06710 | VALLEY-TODECO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-514-4840
Technical Data | NSN 5306-00-514-4840
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.635 INCHES MINIMUM AND 0.655 INCHES MAXIMUM |
| FASTENER LENGTH | 4.270 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |

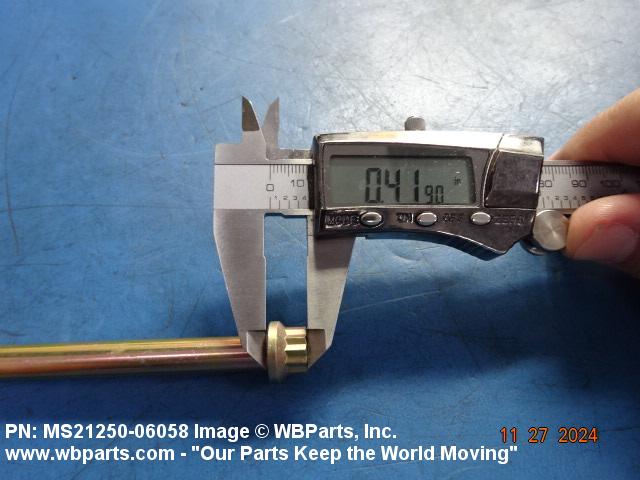

| HEAD HEIGHT | 0.388 INCHES NOMINAL |
