NSN 5306-00-255-6555 NAS629H60, 00-255-6555, 002556555
Product Details | SHEAR BOLT
5306-00-255-6555 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS629H60, 5306-00-255-6555, 00-255-6555, 5306002556555, 002556555
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 MAR 1971 | 00-255-6555 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-00-255-6555
Cross Reference | NSN 5306-00-255-6555
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS629H60 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-255-6555
Technical Data | NSN 5306-00-255-6555
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.800 INCHES MINIMUM AND 0.850 INCHES MAXIMUM |
| FASTENER LENGTH | 4.560 INCHES MINIMUM AND 4.590 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | NAS 672 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.547 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.619 INCHES MINIMUM AND 0.628 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.928 INCHES MINIMUM AND 0.938 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.123 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |

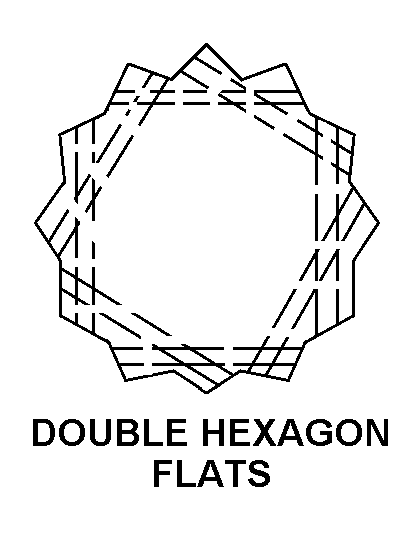

| HOLE CONFIGURATION STYLE | E3 DOUBLE HEXAGON FLATS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 4 |
| HOLE DIAMETER | 0.055 INCHES NOMINAL |
| GRIP LENGTH | 3.740 INCHES MINIMUM AND 3.760 INCHES MAXIMUM |
| GRIP DIAMETER | 0.5605 INCHES MINIMUM AND 0.5615 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS629 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5306-00-255-6555
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-255-6555
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
