Product Details | INTERNAL WRENCHING BOLT

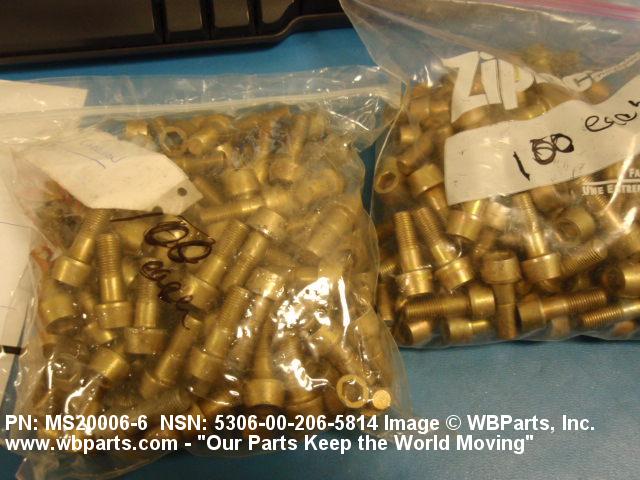

5306-00-206-5814 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: MS200066, MS20006-6, 85364000, 853640-00, 5306-00-206-5814, 00-206-5814, 5306002065814, 002065814
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-206-5814 | 06666 ( BOLT, INTERNAL WRENCHING ) |
Drawings & Photos | NSN 5306-00-206-5814
Demand History | NSN 5306-00-206-5814
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-206-5814 | 2023-09-254 | 10 | US |
| 5306-00-206-5814 | 2021-05-144 | 100 | United States |
| MS200066 | 2021-05-132 | 400 | KR |
| 5306-00-206-5814 | 2020-02-55 | 32 | United States |
| MS200066 | 2017-12-349 | 400 | US |
| MS200066 | 2013-07-211 | 300 | us |
| 5306-00-206-5814 | 2009-11-324 | 200 | United States |
| 5306-00-206-5814 | 2008-03-86 | 100 | SE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-206-5814
Related Products | NSN 5306-00-206-5814
Technical Data | NSN 5306-00-206-5814
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.662 INCHES MINIMUM AND 0.712 INCHES MAXIMUM |
| FASTENER LENGTH | 1.047 INCHES MINIMUM AND 1.077 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD DIAMETER | 0.639 INCHES MINIMUM AND 0.649 INCHES MAXIMUM |
| HEAD HEIGHT | 0.375 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.313 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20006-6 |
