NSN 5306-00-202-1629 NAS13049, NAS1304-9, NAS66049
Product Details | SHEAR BOLT
5306-00-202-1629 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS13049, NAS1304-9, NAS66049, NAS6604-9, BACB30NF49, BACB30NF4-9, 10114203 , 5306-00-202-1629, 00-202-1629, 5306002021629, 002021629
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 APR 1973 | 00-202-1629 | 15903 ( BOLT, SHEAR ) |

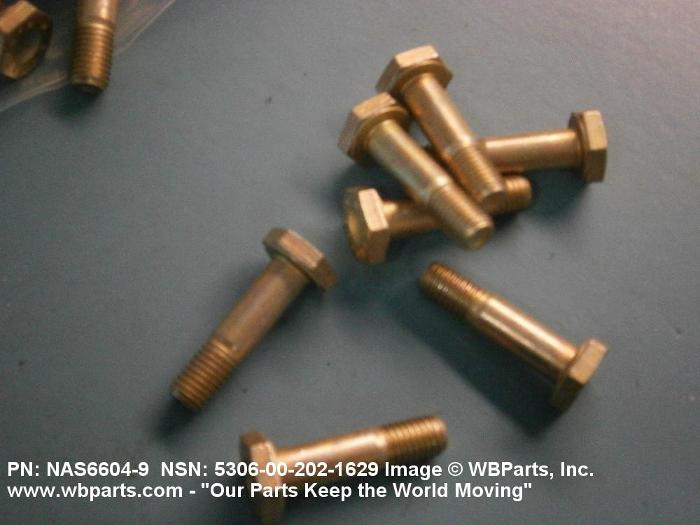

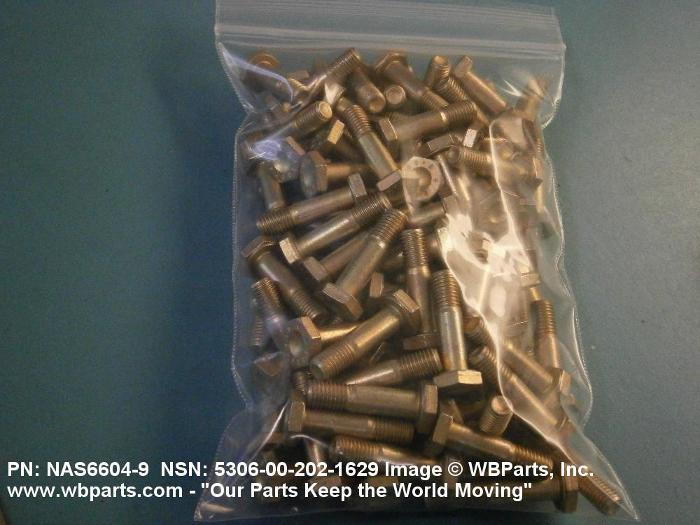

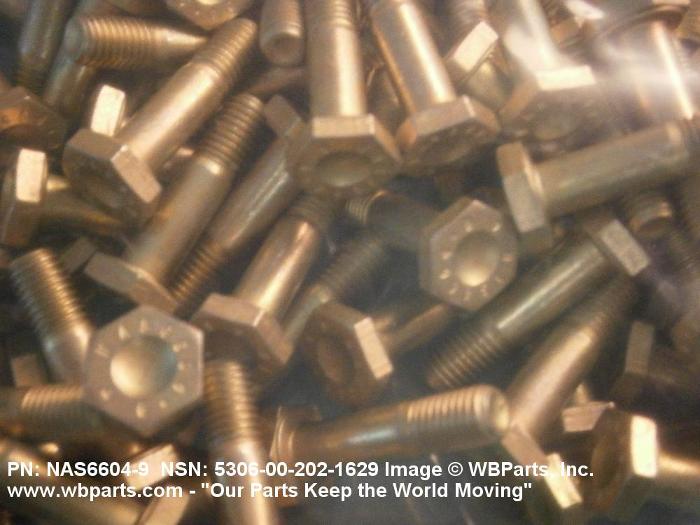

Drawings & Photos | NSN 5306-00-202-1629
Demand History | NSN 5306-00-202-1629
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS6604-9 | 2024-10-275 | 883 | DIBBS |
| NAS6604-9 | 2024-09-267 | 883 | DIBBS |
| 5306-00-202-1629 | 2022-06-158 | 1382 | DIBBS |
| 5306-00-202-1629 | 2022-04-93 | 1762 | DIBBS |
| 5306-00-202-1629 | 2022-02-59 | 26603 | DIBBS |
| 5306-00-202-1629 | 2022-02-53 | 12253 | DIBBS |
| 5306-00-202-1629 | 2022-01-31 | 7763 | DIBBS |
| 5306-00-202-1629 | 2022-01-25 | 1140 | DIBBS |
| 5306-00-202-1629 | 2021-12-361 | 3250 | DIBBS |
| 5306-00-202-1629 | 2021-12-335 | 3095 | DIBBS |
| 5306-00-202-1629 | 2021-09-245 | 1142 | DIBBS |
| 5306-00-202-1629 | 2021-08-242 | 1140 | DIBBS |
| 5306-00-202-1629 | 2021-08-224 | 25445 | DIBBS |
| 5306-00-202-1629 | 2021-03-70 | 14524 | DIBBS |
| 5306-00-202-1629 | 2021-01-25 | 62738 | DIBBS |
| 5306-00-202-1629 | 2020-09-253 | 9245 | DIBBS |
| 5306-00-202-1629 | 2020-07-210 | 7355 | United States |
| 5306-00-202-1629 | 2020-07-205 | 7355 | DIBBS |
| 5306-00-202-1629 | 2019-09-266 | 24104 | DIBBS |
| 5306-00-202-1629 | 2019-08-233 | 29994 | DIBBS |
| 5306-00-202-1629 | 2019-05-127 | 4275 | DIBBS |
| 5306-00-202-1629 | 2018-07-198 | 4275 | DIBBS |
| 5306-00-202-1629 | 2017-11-309 | 60901 | DIBBS |
| NAS66049 | 2017-03-73 | 15 | EG |
| NAS66049 | 2017-03-72 | 15 | EG |
| 5306-00-202-1629 | 2017-02-53 | 18 | MANUAL |
| 5306-00-202-1629 | 2017-02-40 | 1 | DIBBS-RFPs |
| NAS66049 | 2016-08-228 | 2 | United States |
| NAS66049 | 2016-07-203 | 100 | Philippines |
| NAS66049 | 2015-04-120 | 4 | Ecuador |
| NAS66049 | 2014-09-252 | 100 | United States |
| NAS6604-9 | 2014-08-232 | 32 | Australia |
| NAS6604-9 | 2014-08-232 | 32 | United States |
| NAS6604-9 | 2014-08-232 | 32 | United States |
| NAS6604-9 | 2014-08-227 | 32 | Australia |
| NAS13049 | 2014-02-55 | 1360 | US |
| NAS6604-9 | 2013-05-134 | 50 | CZ |
| NAS13049 | 2012-06-178 | 100 | United States |
| 5306-00-202-1629 | 2011-09-255 | 10 | United States |
| 5306-00-202-1629 | 2011-09-255 | 25 | United States |
| NAS13049 | 2010-10-287 | 1 | CA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-202-1629
Related Products | NSN 5306-00-202-1629
Technical Data | NSN 5306-00-202-1629
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.400 INCHES MINIMUM AND 0.450 INCHES MAXIMUM |
| FASTENER LENGTH | 0.972 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 4340 OR STEEL COMP 8740 OR STEEL COMP 8640 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C3 DISHED HEXAGON |
| HEAD HEIGHT | 0.125 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| GRIP LENGTH | 0.552 INCHES MINIMUM AND 0.572 INCHES MAXIMUM |
| GRIP DIAMETER | 0.2485 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5306-00-202-1629
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
