Product Details | INTERNAL WRENCHING BOLT
5306-00-149-9999 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: NAS145DH24, 5306-00-149-9999, 00-149-9999, 5306001499999, 001499999
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-149-9999 | 06666 ( BOLT, INTERNAL WRENCHING ) |

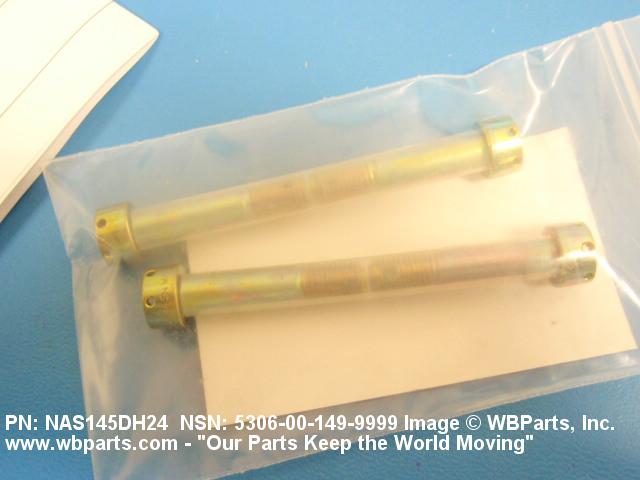

Drawings & Photos | NSN 5306-00-149-9999
Demand History | NSN 5306-00-149-9999
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-149-9999 | 2009-02-33 | 4 | United States |
Cross Reference | NSN 5306-00-149-9999
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS145DH24 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-149-9999
Technical Data | NSN 5306-00-149-9999
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.563 INCHES MINIMUM |
| FASTENER LENGTH | 1.485 INCHES MINIMUM AND 1.515 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 3140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 BEVEL-CONICAL |
| HEAD DIAMETER | 0.523 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| HEAD HEIGHT | 0.266 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.313 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E6 HEXAGON FLATS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 6 |
| HOLE DIAMETER | 0.070 INCHES NOMINAL |
