NSN 5306-00-081-6591 MS2125010024, MS21250-10024, VFK100G10024
Product Details | SHEAR BOLT

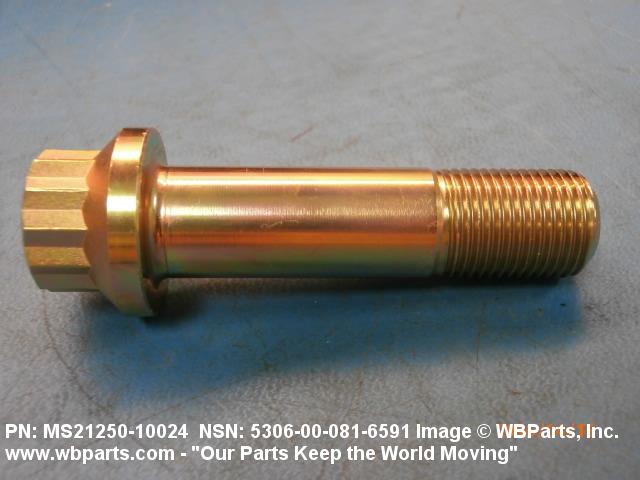

5306-00-081-6591 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: MS2125010024, MS21250-10024, VFK100G10024, VFK100G-10024, 5306-00-081-6591, 00-081-6591, 5306000816591, 000816591
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 DEC 1967 | 00-081-6591 | 15903 ( BOLT, SHEAR ) |

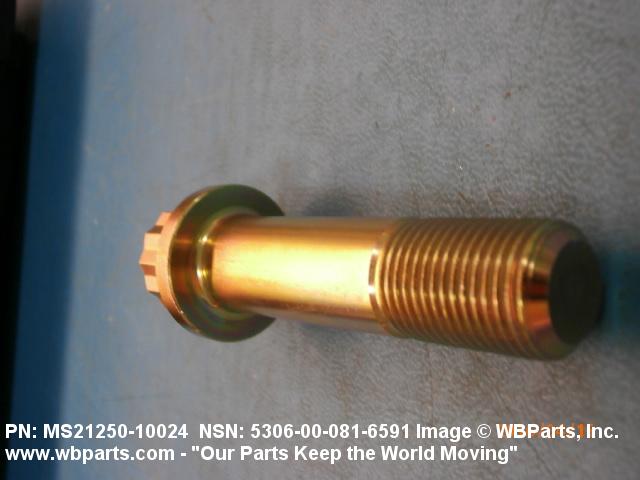

Drawings & Photos | NSN 5306-00-081-6591
Demand History | NSN 5306-00-081-6591
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-081-6591 | 2019-09-273 | 24 | US |
| MS2125010024 | 2016-03-89 | 12 | Sweden |
| MS2125010024 | 2015-06-181 | 150 | CN |
| MS2125010024 | 2014-02-43 | 1400 | United States |
| MS21250-10024 | 2012-11-310 | 4 | |
| MS2125010024 | 2011-11-326 | 2 | US |
| 5306-00-081-6591 | 2007-11-325 | 100 | United States |
Cross Reference | NSN 5306-00-081-6591
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21250-10024 | 06710 | VALLEY-TODECO, INC. |
| MS21250-10024 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| MS21250-10024 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-10024 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-10024 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| MS21250-10024 | 50945 | MERCURY AEROSPACE FASTENERS INC |
| MS21250-10024 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| MS21250-10024 | 57472 | ALL MANUFACTURERS, INC. DBA ALLIED HARBOR AEROSPACE |
| MS21250-10024 | 73197 | HI-SHEAR CORPORATION |
| MS21250-10024 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21250-10024 | 93907 | TEXTRON FASTENING SYSTEMS DBA DECORAH OPERATIONS TFS |
| MS21250-10024 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21250-10024 | 97928 | HUCK INTL INC |
| MS21250-10024 | L4528 | LISI AEROSPACE CANADA CORP |
| VFK100G-10024 | 06710 | VALLEY-TODECO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-081-6591
Technical Data | NSN 5306-00-081-6591

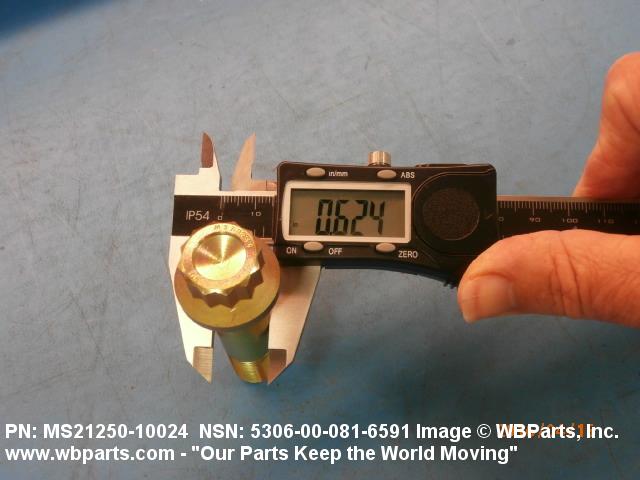

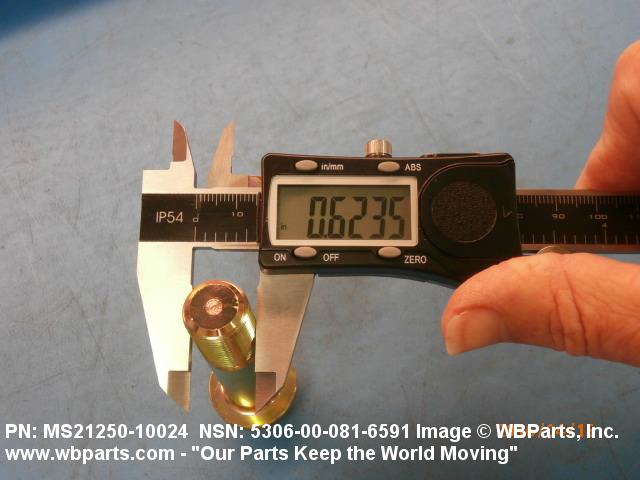

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |

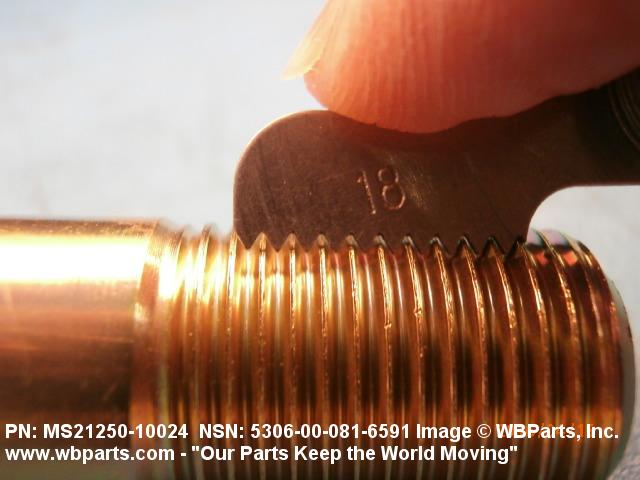

| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.899 INCHES MINIMUM AND 0.939 INCHES MAXIMUM |

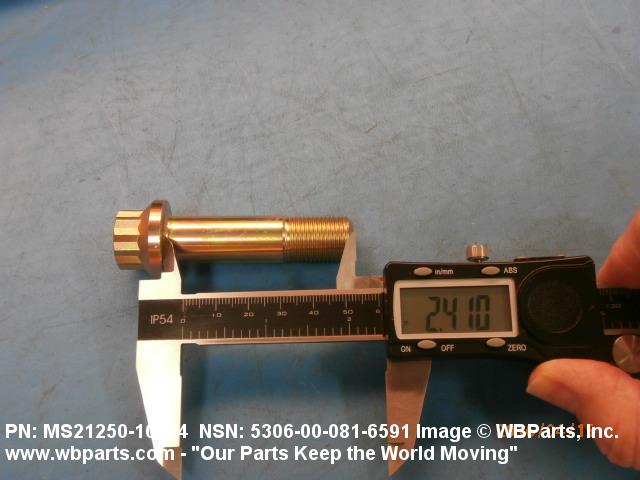

| FASTENER LENGTH | 2.409 INCHES MINIMUM AND 2.429 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 4TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2 CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |

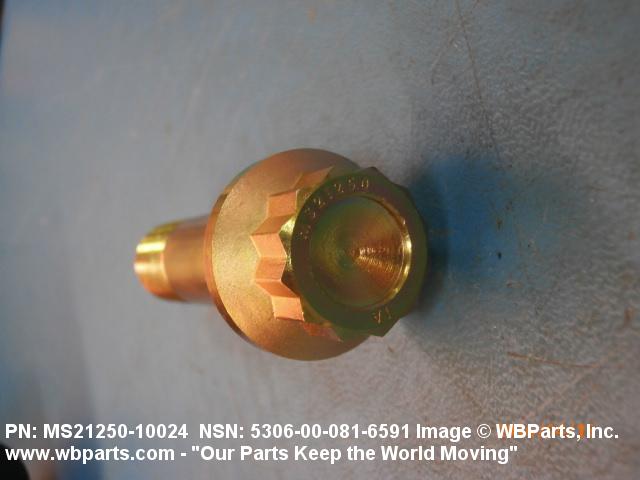

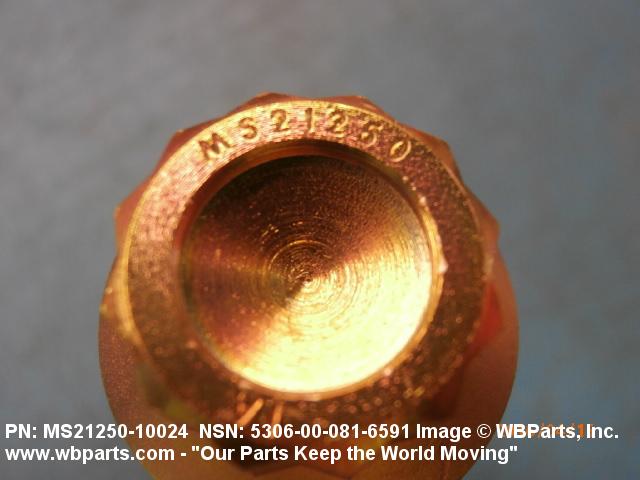

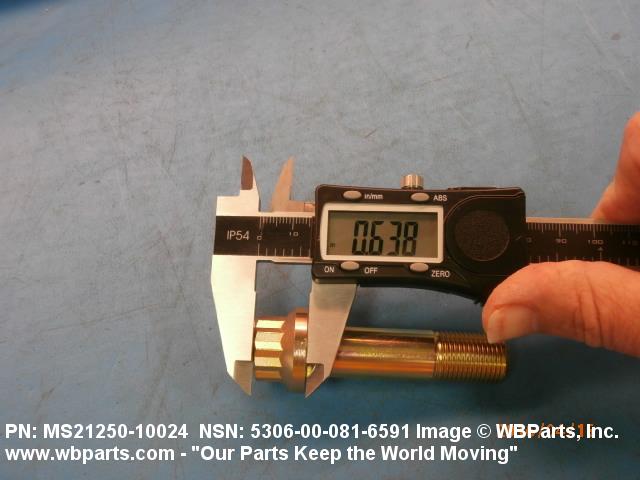

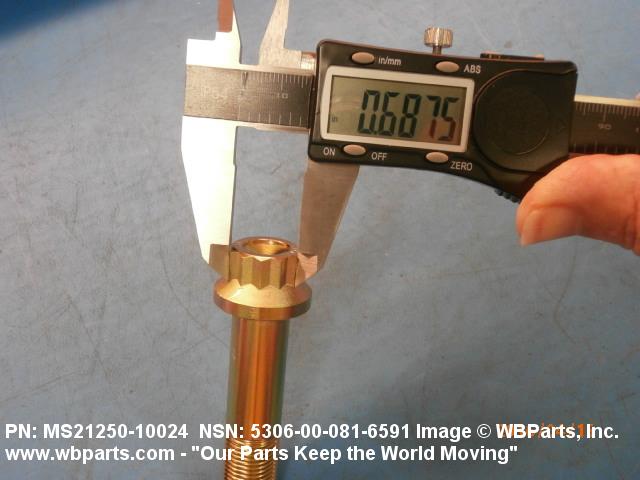

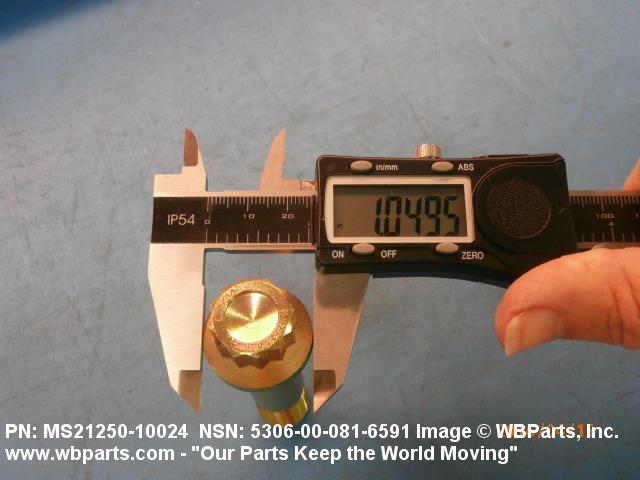

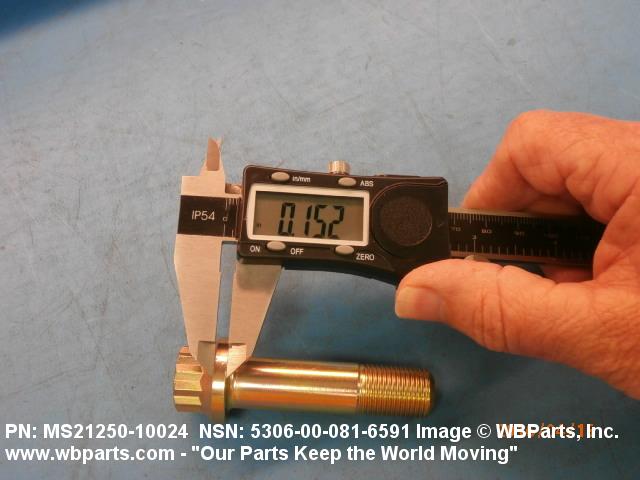

| HEAD STYLE | C10 DOUBLE HEXAGON WITH HOLE |
| HEAD HEIGHT | 0.618 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.679 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 1.040 INCHES MINIMUM AND 1.050 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.150 INCHES NOMINAL |

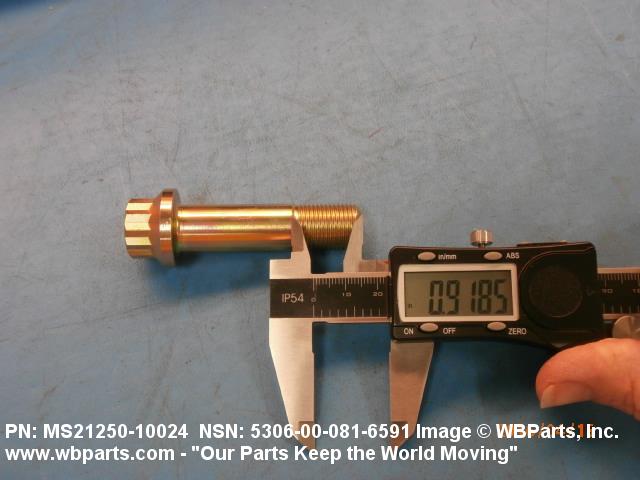

| GRIP LENGTH | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |
