Product Details | TEE HEAD BOLT

5306-00-058-7077 An externally threaded fastener whose threaded portion is of one nominal diameter and with a head specially designed to fit in a slot and hold against turning.

Part Alternates: 10943119, 5306-00-058-7077, 00-058-7077, 5306000587077, 000587077

Hardware and Abrasives | Bolts

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1961 00-058-7077

Drawings & Photos | NSN 5306-00-058-7077


Demand History | NSN 5306-00-058-7077

Part Number Request Date QTY Origin
5306-00-058-7077 2015-05-125 365 DIBBS
5306-00-058-7077 2008-11-322 51 DIBBS

Cross Reference | NSN 5306-00-058-7077

Part Number Cage Code Manufacturer
10943119 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
5306000587077 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-058-7077

Technical Data | NSN 5306-00-058-7077

Characteristic Specifications
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD DIAMETER 0.312 INCHES
THREAD QUANTITY PER INCH 18
THREAD CLASS 2A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 3.000 INCHES MAXIMUM
FASTENER LENGTH 7.000 INCHES NOMINAL
MATERIAL STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-624 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

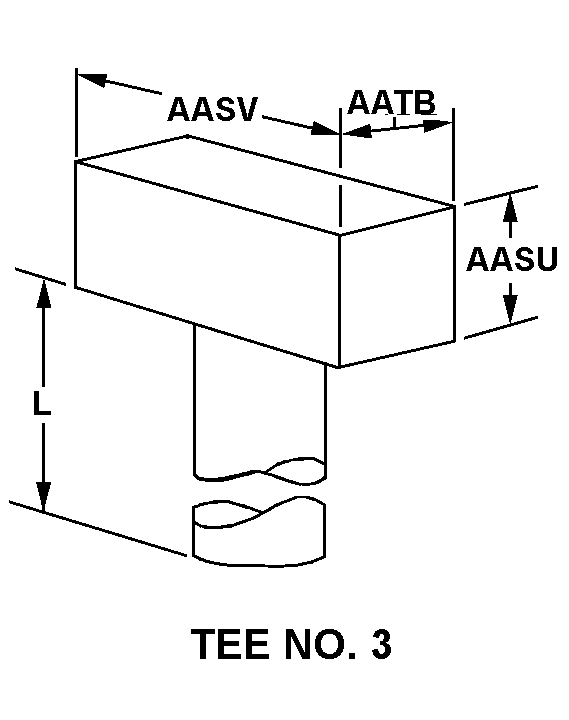

HEAD STYLE C19 TEE NO. 3
HEAD HEIGHT 0.312 INCHES NOMINAL
HEAD LENGTH 1.125 INCHES NOMINAL
WIDTH BETWEEN FLATS 0.312 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5306-00-058-7077

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5306-00-058-7077

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
