NSN 5305-01-629-0922 91253A583 , 01-629-0922, 016290922
Product Details | SOCKET HEAD CAP SCREW

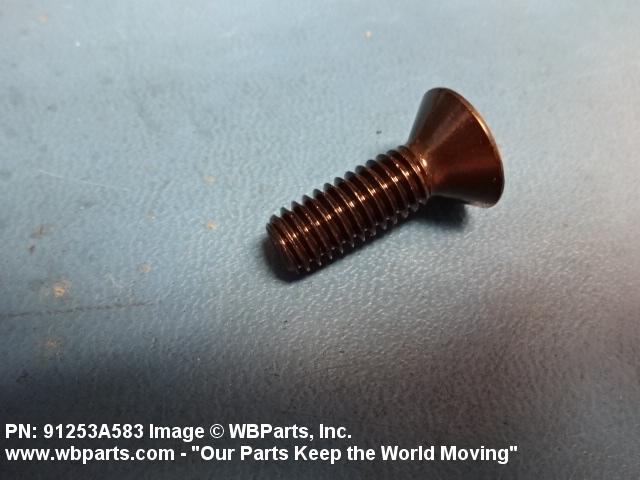

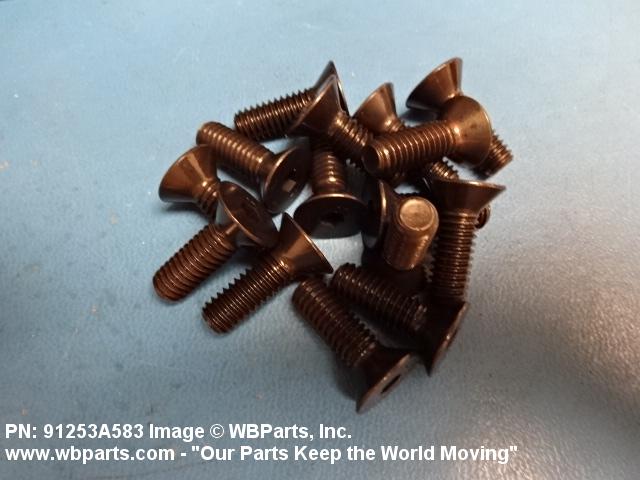

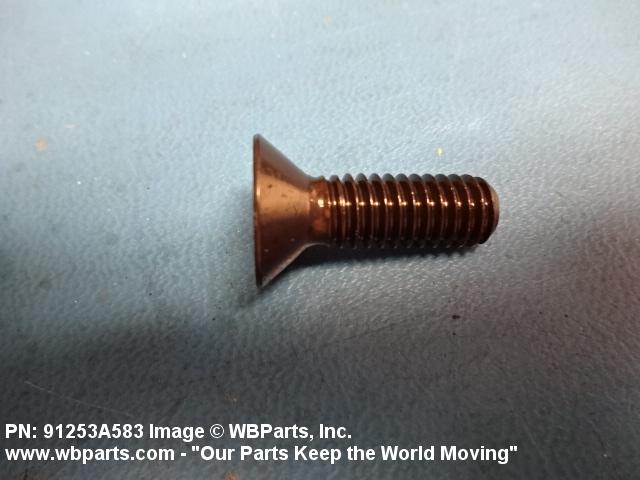

5305-01-629-0922 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 91253A583 , 5305-01-629-0922, 01-629-0922, 5305016290922, 016290922
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2014169 | 01-629-0922 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

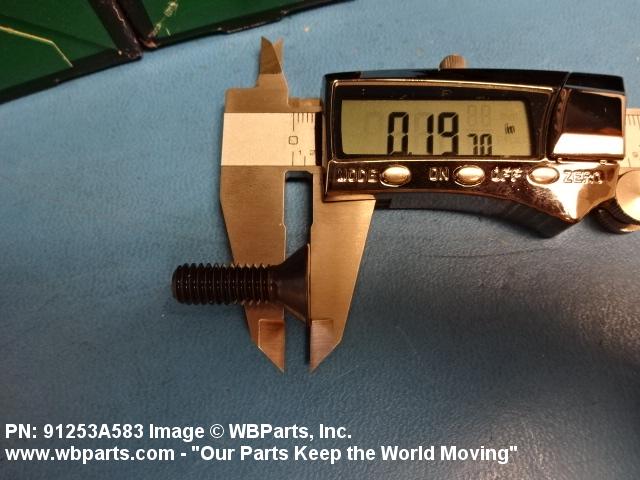

Drawings & Photos | NSN 5305-01-629-0922
Demand History | NSN 5305-01-629-0922
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 91253A583 | 2022-05-130 | 1 | DIBBS |
| 91253A583 | 2020-11-308 | 25 | United States |
| 5305-01-629-0922 | 2018-12-361 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-629-0922
Technical Data | NSN 5305-01-629-0922
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

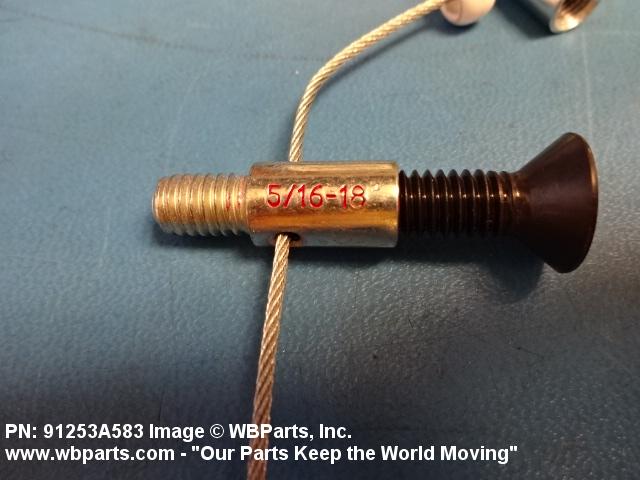

| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.802 INCHES NOMINAL |

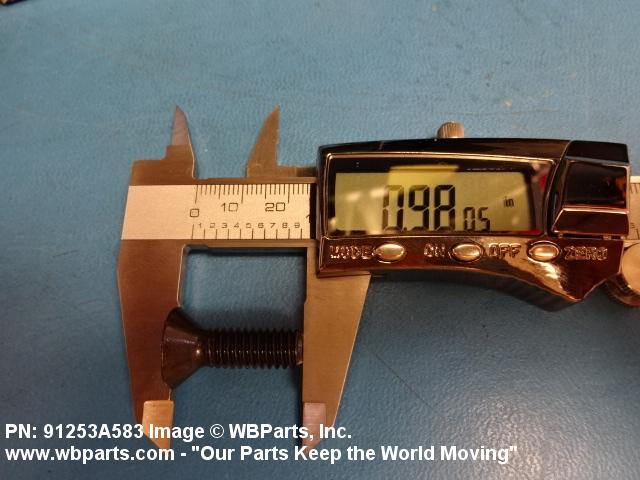

| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| COLOR | BLACK OVERALL |
| HEAD STYLE | FLAT COUNTERSUNK |

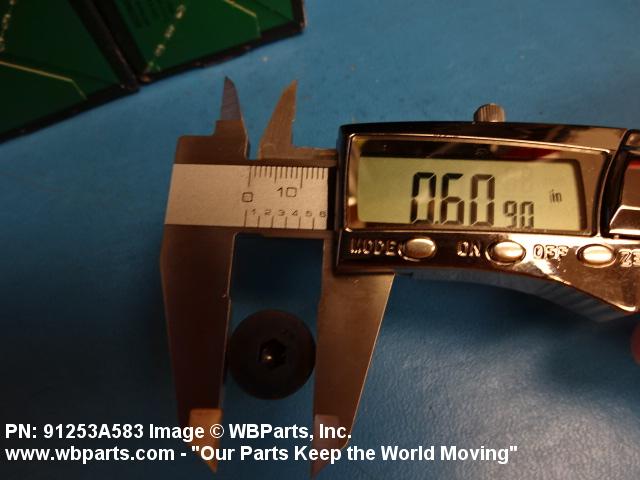

| HEAD DIAMETER | 0.656 INCHES NOMINAL |
| COUNTERSINK ANGLE | 82.0 DEGREES NOMINAL |

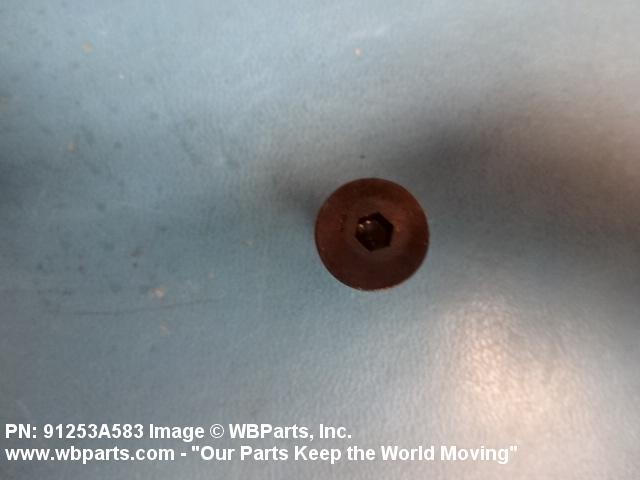

| INTERNAL DRIVE STYLE | HEXAGON |
| WIDTH ACROSS FLATS | 0.188 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | RATCHET AND PAWL ASSEMBLY, BOW RAMP WINCH |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FLAT-HEAD SOCKET CAP SCREW |
