NSN 5305-01-601-4296 92620A955, 01-601-4296, 016014296
Product Details | HEXAGON HEAD CAP SCREW
5305-01-601-4296 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: 92620A955, 5305-01-601-4296, 01-601-4296, 5305016014296, 016014296
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 JAN 2012 | 01-601-4296 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

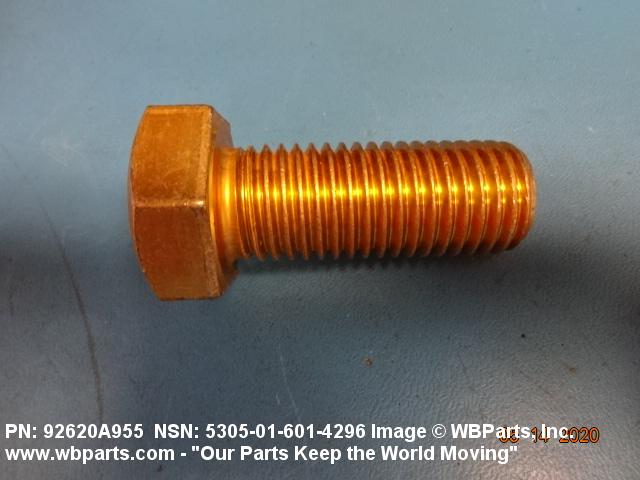

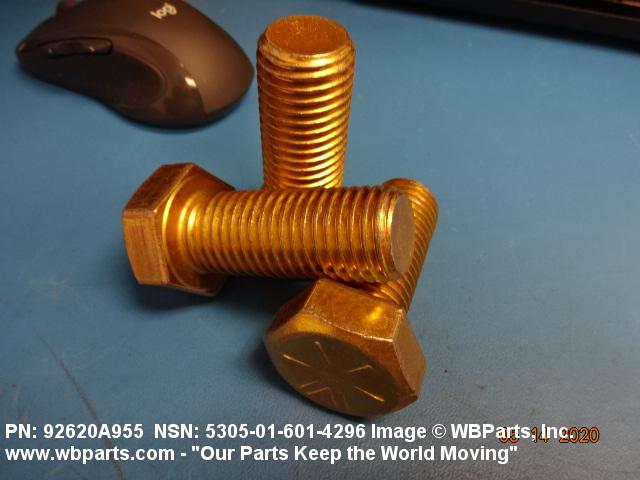

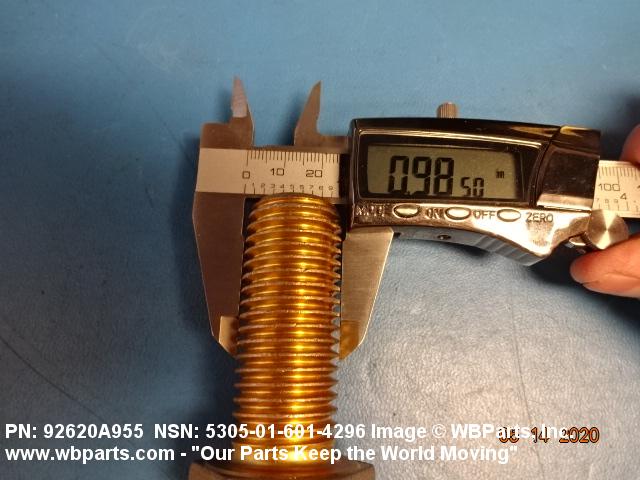

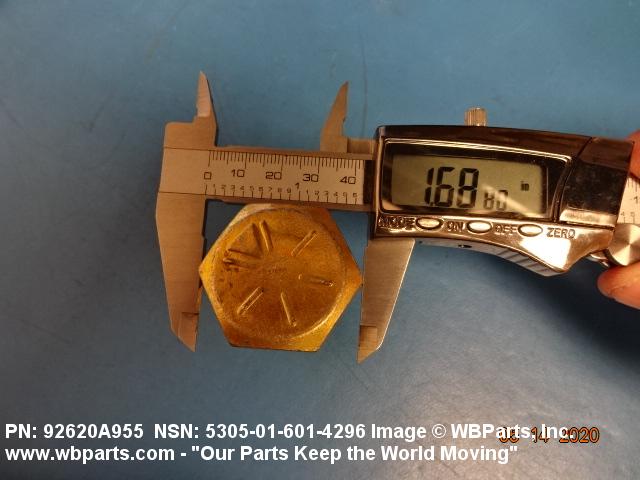

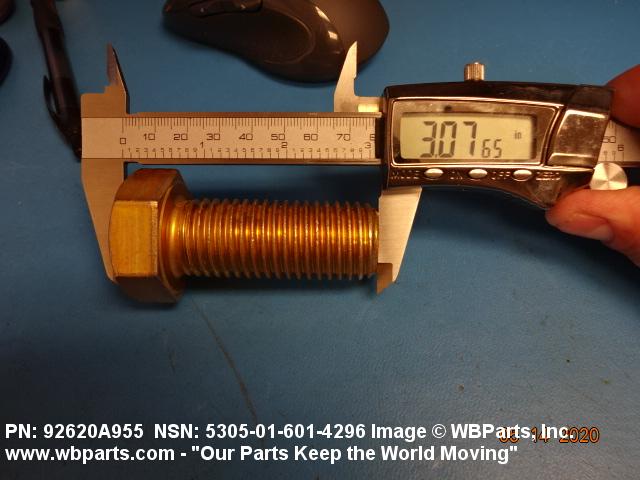

Drawings & Photos | NSN 5305-01-601-4296
Demand History | NSN 5305-01-601-4296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 92620A955 | 2019-07-212 | 46 | DIBBS |
| 5305-01-601-4296 | 2018-11-305 | 50 | DIBBS |
Cross Reference | NSN 5305-01-601-4296
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 92620A955 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-601-4296
Technical Data | NSN 5305-01-601-4296
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 1.00 INCHES |

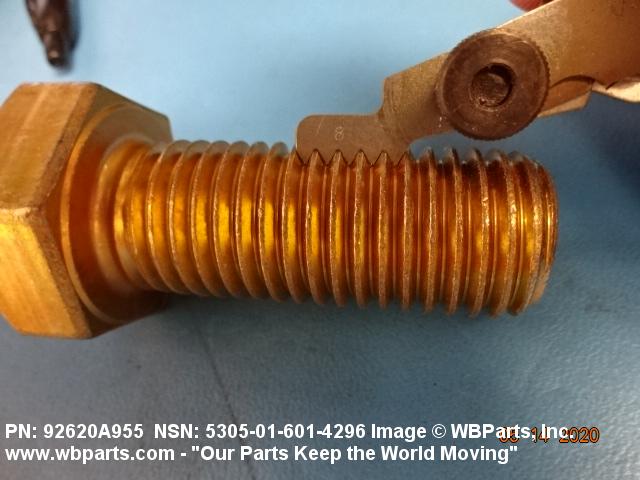

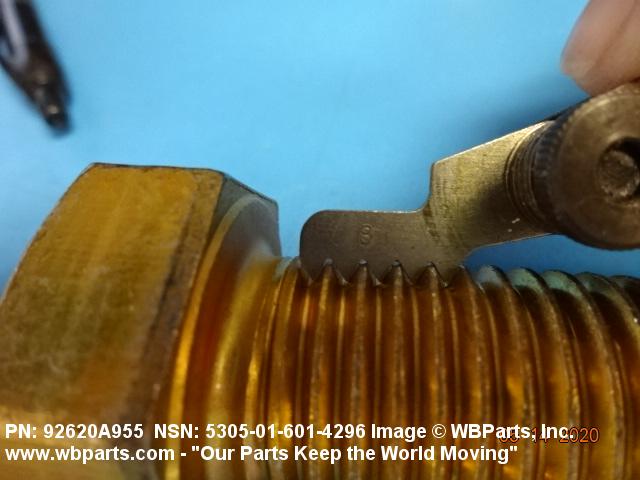

| THREAD QUANTITY PER INCH | 8 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.50 INCHES NOMINAL |
| FASTENER LENGTH | 2.50 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | GRADE 8 HIGH STRENGTH ALLOY STEEL MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 150000 POUNDS PER SQUARE INCH |
| HEAD STYLE | HEXAGON |

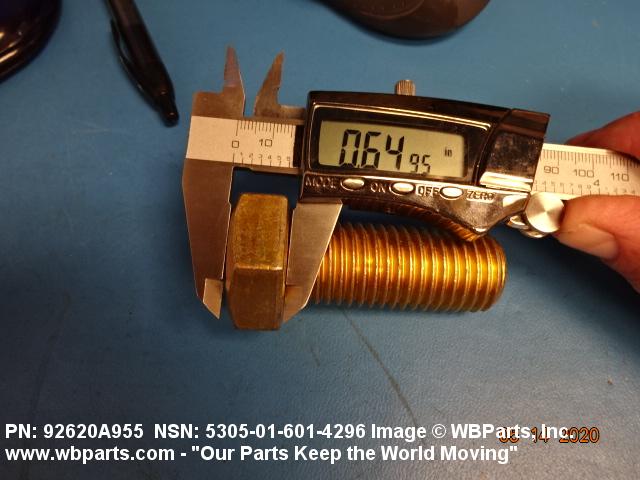

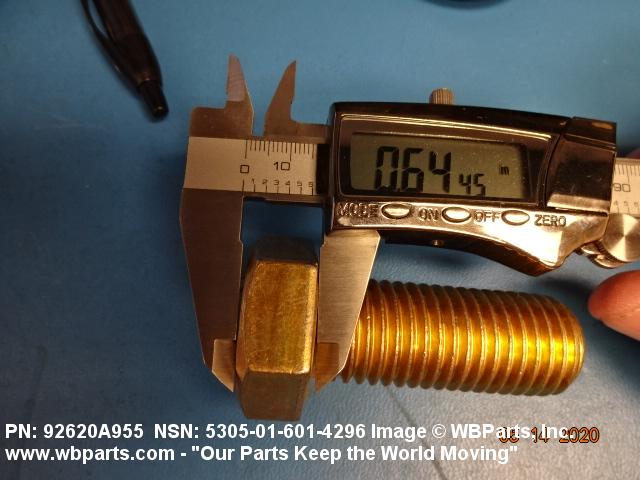

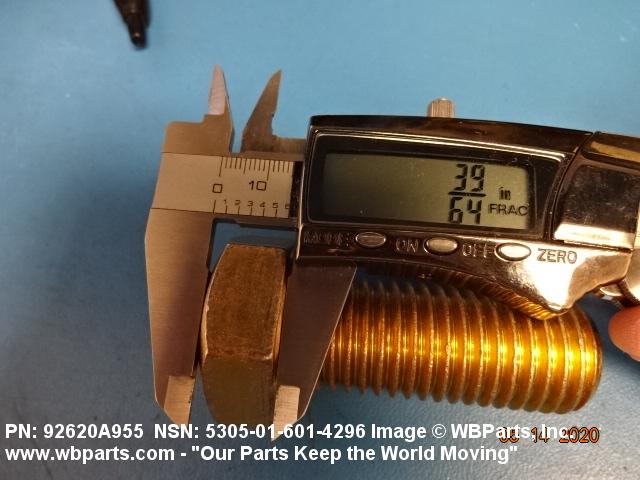

| HEAD HEIGHT | 0.609 INCHES NOMINAL |

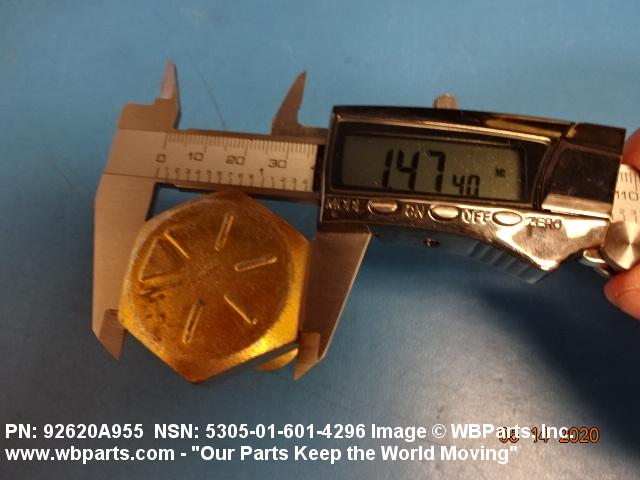

| WIDTH BETWEEN FLATS | 1.50 INCHES NOMINAL |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GRADE 8 ZINC-PLATED ALLOY STEEL HEX HEAD CAP SCREW |
Restrictions/Controls & Freight Information | NSN 5305-01-601-4296
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5305-01-601-4296
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
