NSN 5305-01-597-3907 NAS1352824, NAS1352-8-24, 01-597-3907
Product Details | SOCKET HEAD CAP SCREW
5305-01-597-3907 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1352824, NAS1352-8-24, 5305-01-597-3907, 01-597-3907, 5305015973907, 015973907
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUN 2011 | 01-597-3907 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

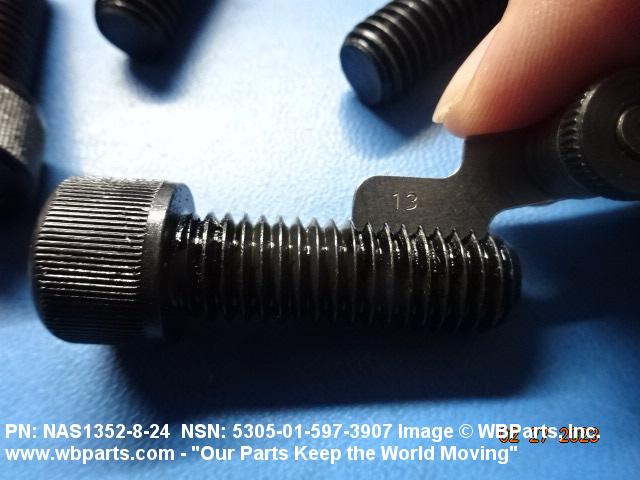

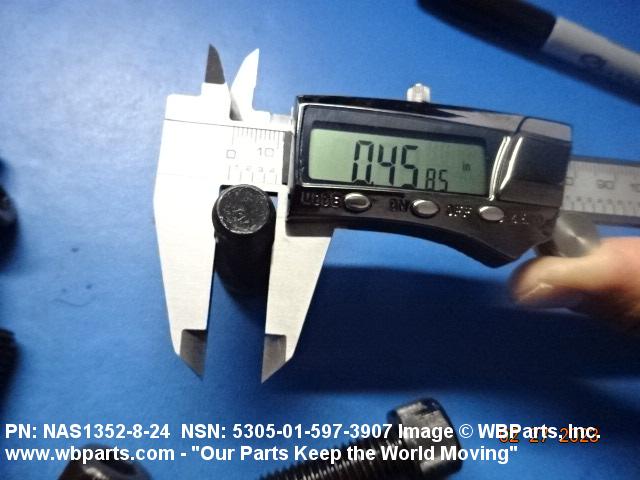

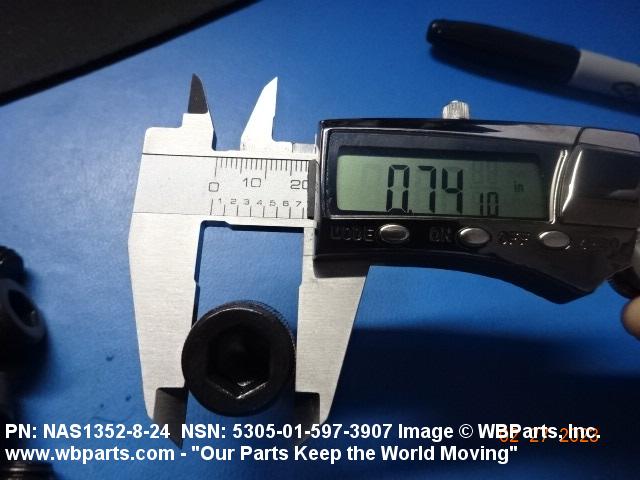

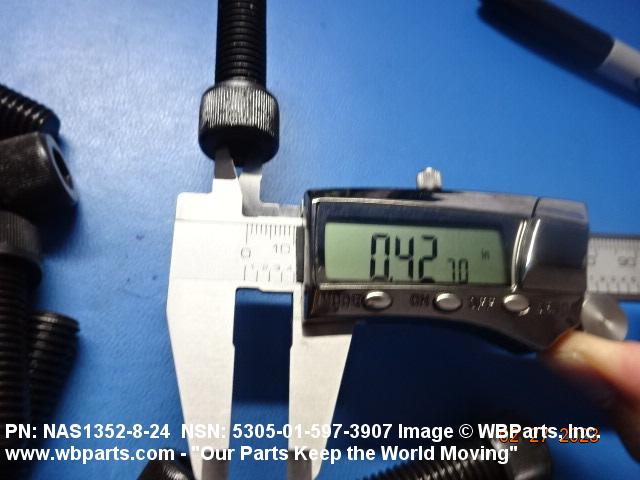

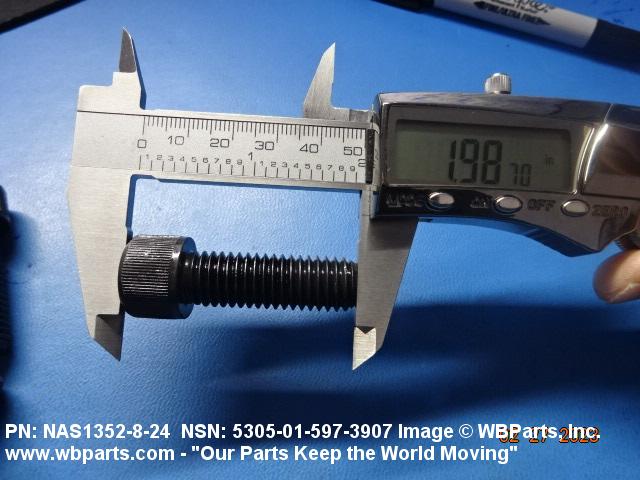

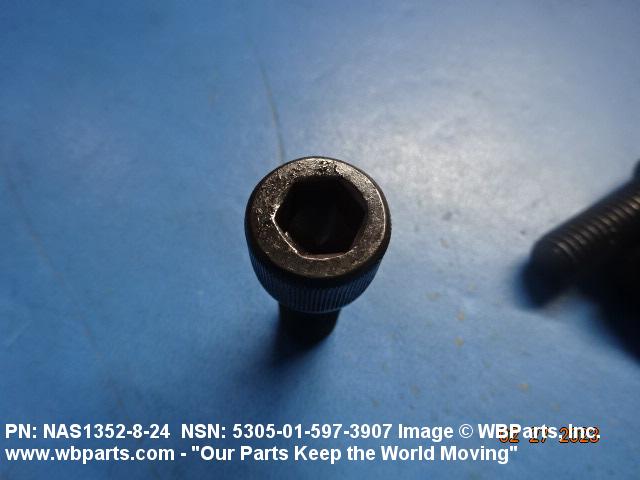

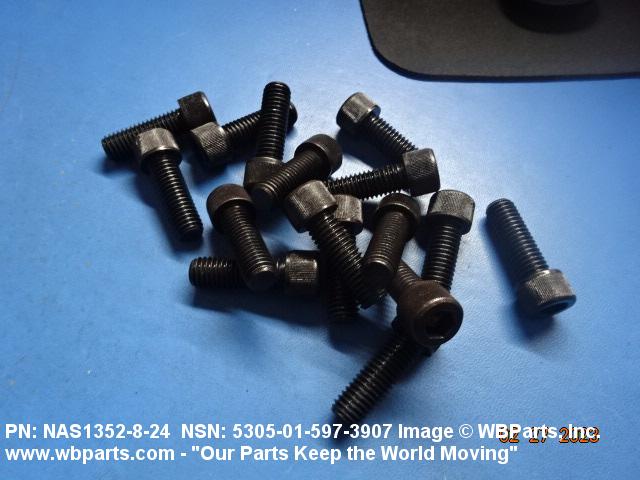

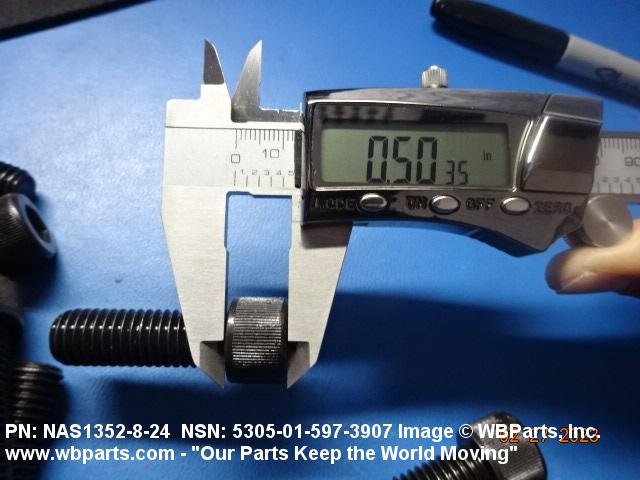

Drawings & Photos | NSN 5305-01-597-3907
Demand History | NSN 5305-01-597-3907
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-597-3907 | 2023-04-18 | 26 | DIBBS |
| 5305-01-597-3907 | 2023-04-10 | 26 | DIBBS |
| NAS1352824 | 2023-01-30 | 16 | United States |
| 5305-01-597-3907 | 2022-11-08 | 105 | DIBBS |
| NAS1352824 | 2022-05-03 | 2 | United States |
| 5305-01-597-3907 | 2021-08-30 | 421 | DIBBS |
| 5305-01-597-3907 | 2021-08-17 | 421 | DIBBS |
| 5305-01-597-3907 | 2021-08-10 | 421 | US |
| 5305-01-597-3907 | 2021-08-09 | 122 | DIBBS |
| 5305-01-597-3907 | 2021-08-09 | 421 | DIBBS |
| 5305-01-597-3907 | 2021-07-19 | 66 | DIBBS |
| 5305-01-597-3907 | 2021-07-12 | 34 | DIBBS |
| 5305-01-597-3907 | 2021-07-07 | 82 | DIBBS |
| 5305-01-597-3907 | 2021-05-09 | 100 | DIBBS |
| 5305-01-597-3907 | 2021-03-30 | 1 | DIBBS |
| 5305-01-597-3907 | 2021-02-01 | 20 | DIBBS |
| 5305-01-597-3907 | 2021-01-20 | 20 | DIBBS |
| NAS1352824 | 2019-01-24 | 14 | India |
| NAS1352-8-24 | 2015-01-21 | 100 | United States |
| NAS1352824 | 2013-12-27 | 8 | US |
| NAS1352824 | 2008-03-12 | 4 | US |
Cross Reference | NSN 5305-01-597-3907
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1352-8-24 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-597-3907
Related Products | NSN 5305-01-597-3907
Technical Data | NSN 5305-01-597-3907
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| INTERNAL DRIVE STYLE | HEXAGON |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD SERIES DESIGNATOR | UNRC |
| HEAD STYLE | FLAT CHAMFER |
| WIDTH ACROSS FLATS | 0.375 INCHES MINIMUM AND 0.379 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 13 |
| HEAD DIAMETER | 0.735 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| COLOR | BLACK OVERALL |
| THREAD LENGTH | 1.306 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| SURFACE TREATMENT | OXIDE OVERALL |
| FASTENER LENGTH | 1.460 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| HEAD HEIGHT | 0.492 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5305-01-597-3907
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-597-3907
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
