NSN 5305-01-591-9318 MS169951, MS16995-1, 6C75SHCS
Product Details | SOCKET HEAD CAP SCREW
5305-01-591-9318 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS169951, MS16995-1, 6C75SHCS, 5305-01-591-9318, 01-591-9318, 5305015919318, 015919318
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 FEB 2011 | 01-591-9318 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

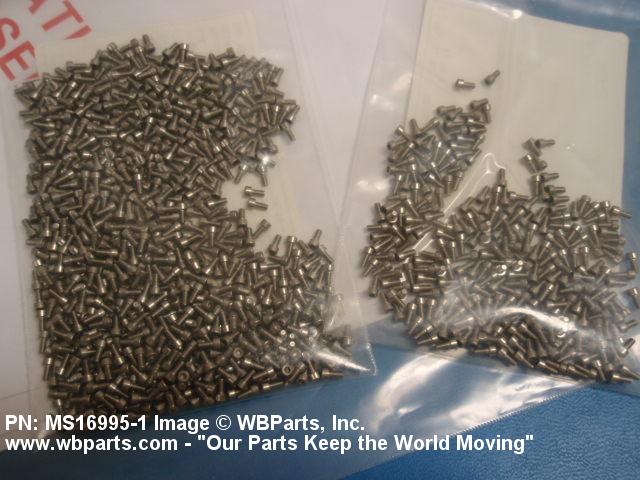

Drawings & Photos | NSN 5305-01-591-9318
Demand History | NSN 5305-01-591-9318
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-591-9318 | 2013-06-181 | 25 | DIBBS |
| MS169951 | 2012-05-140 | 1 | United States |
| MS169951 | 2011-02-32 | 1 | United States |
| MS169951 | 2009-09-273 | 500 | US |
| MS169951 | 2008-06-178 | 50000 | United States |
| MS169951 | 2006-10-285 | 100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-591-9318
Related Products | NSN 5305-01-591-9318
Technical Data | NSN 5305-01-591-9318
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD DIAMETER | 0.860 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| HEAD DIAMETER | 0.134 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | HEXAGON |
| WIDTH ACROSS FLATS | 0.078 INCHES MINIMUM AND 0.079 INCHES MAXIMUM |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW, CAP, SOCKET HEAD, HEXAGON |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM F593 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MATERIAL | STEEL COMP 304 OVERALL OR STEEL COMP 304L OVERALL OR STEEL COMP 305 OVERALL OR STEEL COMP 316 OVERALL OR STEEL COMP 316L OVERALL OR STEEL COMP 384 OVERALL OR STEEL COMP XM-7 OVERALL |
| THREAD SERIES DESIGNATOR | UNC |
| END ITEM IDENTIFICATION | 5895-01-562-6898 SATELLITE COMMUNICATION SYSTEM |
| THREAD LENGTH | 0.158 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 56 |
| HEAD HEIGHT | 0.083 INCHES MINIMUM AND 0.086 INCHES MAXIMUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | FLAT FILLISTER |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| FASTENER LENGTH | 0.158 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5305-01-591-9318
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-591-9318
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
