NSN 5305-01-590-7444 MS1699550S316, MS16995-50S316, 01-590-7444
Product Details | SOCKET HEAD CAP SCREW
5305-01-590-7444 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: MS1699550S316, MS16995-50S316, 5305-01-590-7444, 01-590-7444, 5305015907444, 015907444
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 DEC 2010 | 01-590-7444 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

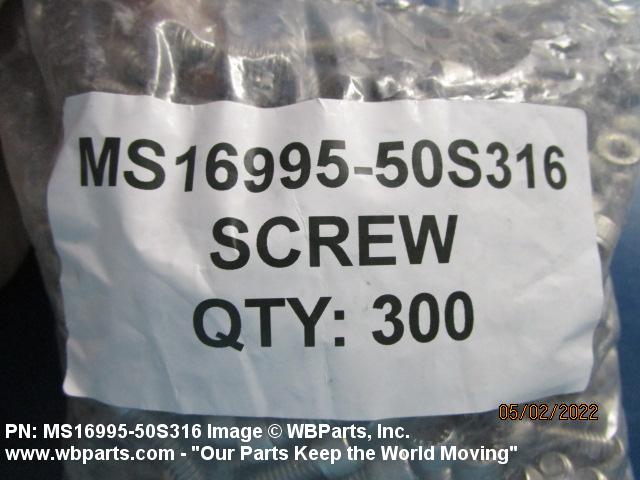

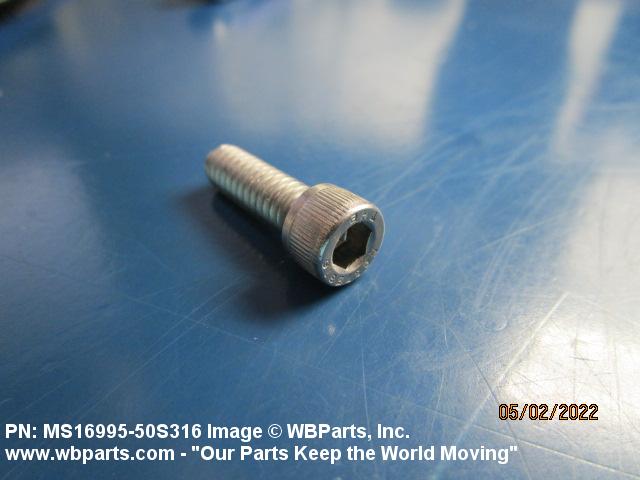

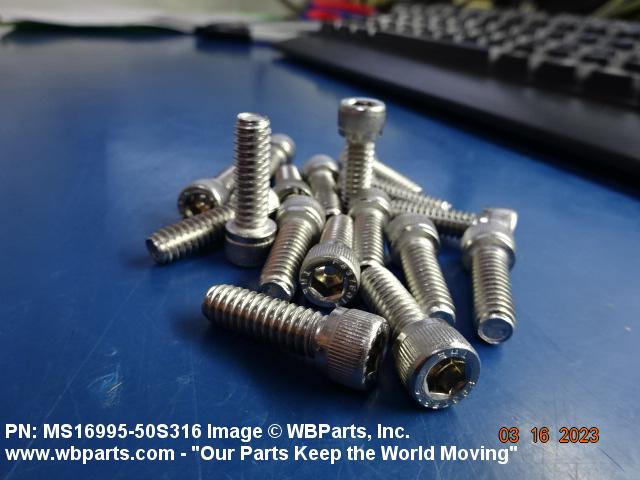

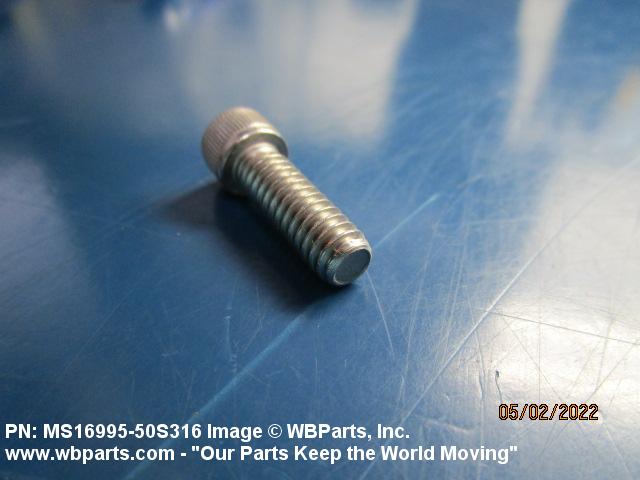

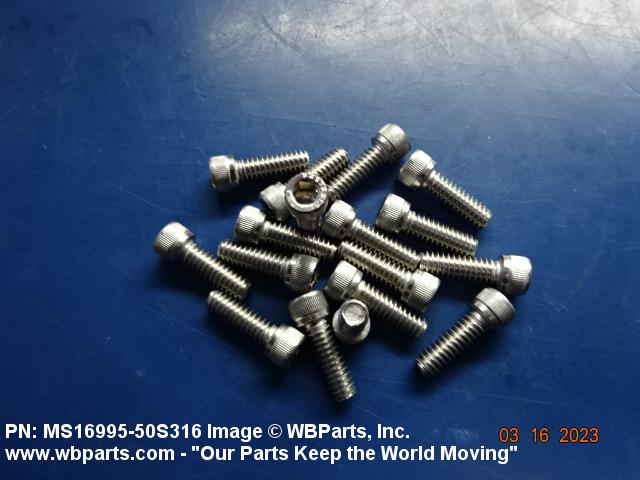

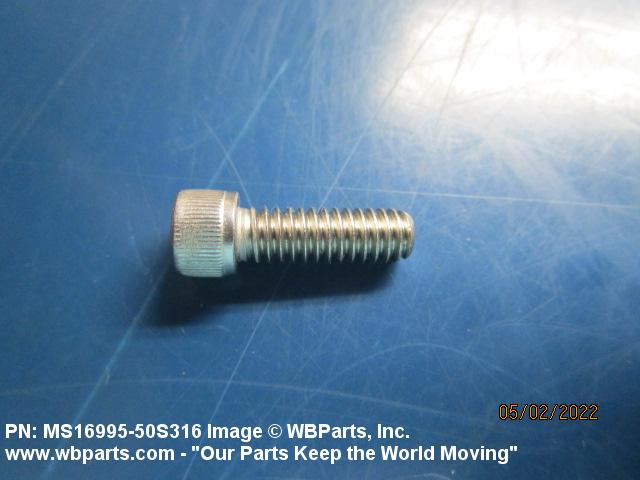

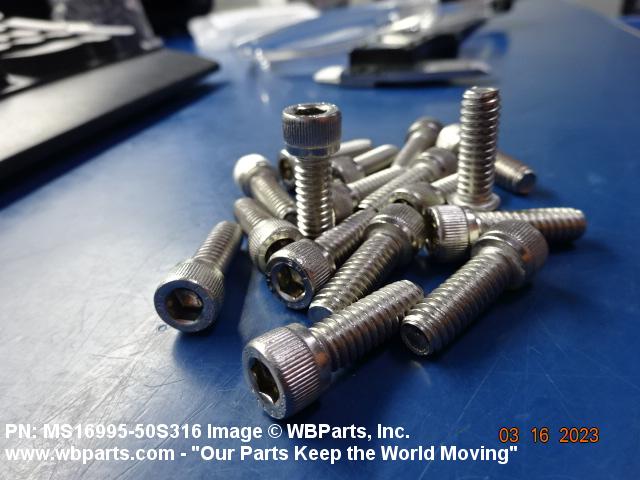

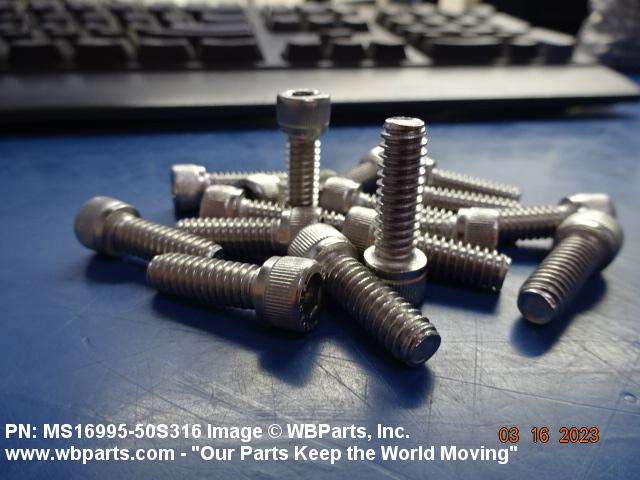

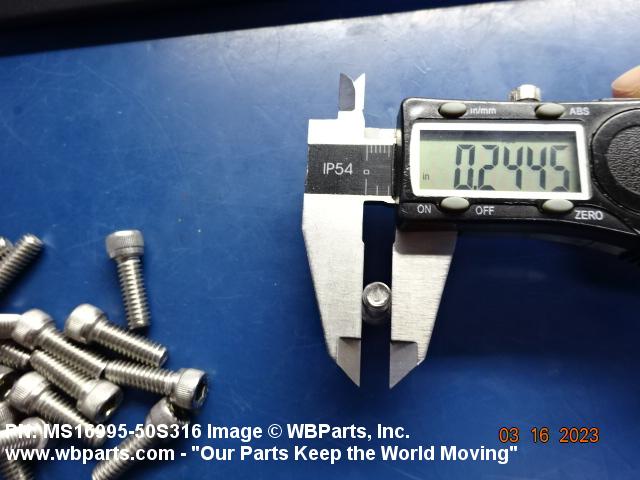

Drawings & Photos | NSN 5305-01-590-7444
Demand History | NSN 5305-01-590-7444
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1699550S316 | 2023-02-37 | 200 | United States |
| MS1699550S316 | 2022-03-89 | 250 | United States |
| MS1699550S316 | 2016-03-64 | 16 | US |
| MS1699550S316 | 2009-08-216 | 20 | United States |
Cross Reference | NSN 5305-01-590-7444
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS16995-50S316 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-590-7444
Related Products | NSN 5305-01-590-7444
Technical Data | NSN 5305-01-590-7444
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| INTERNAL DRIVE STYLE | HEXAGON |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW, CAP, SOCKET HEAD, HEXAGON |
| MINIMUM TENSILE STRENGTH | 2540 POUNDS PER SQUARE INCH |
| THREAD LENGTH | 0.720 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM F593 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNC |

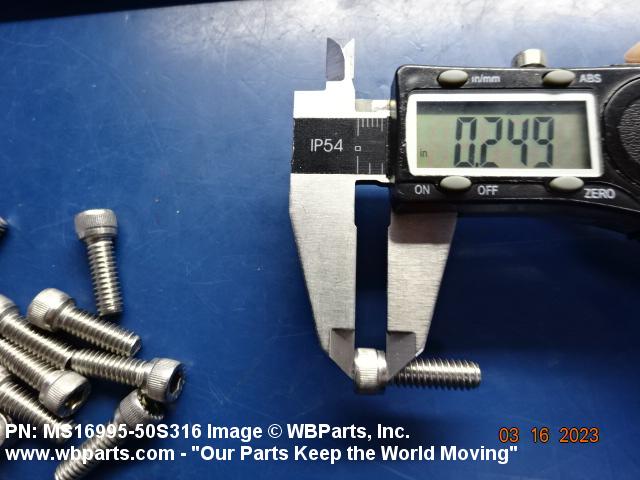

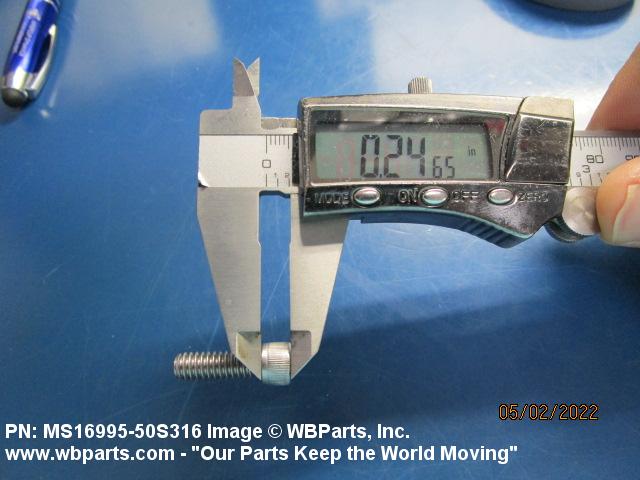

| HEAD HEIGHT | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 316 OVERALL OR STEEL COMP 316L OVERALL |

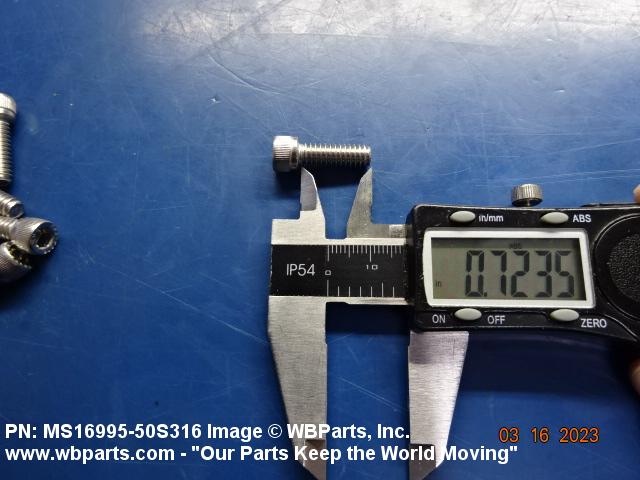

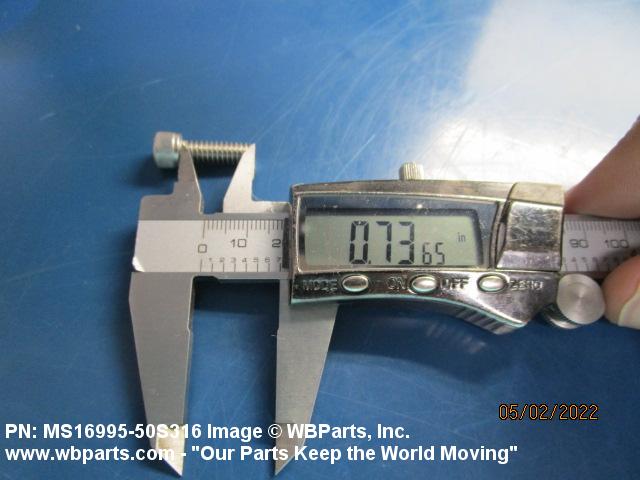

| FASTENER LENGTH | 0.720 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

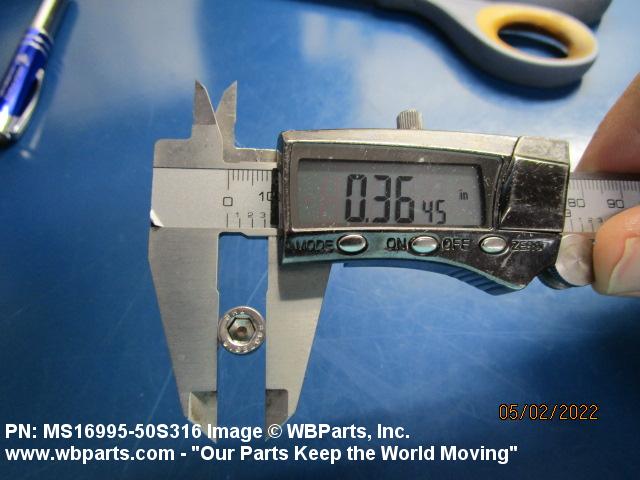

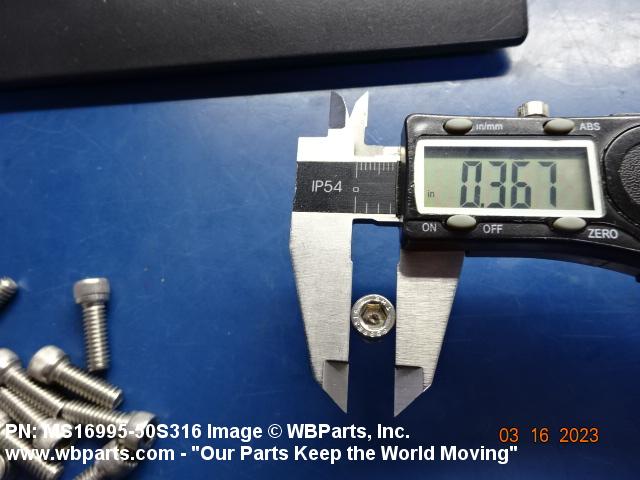

| HEAD DIAMETER | 0.365 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |

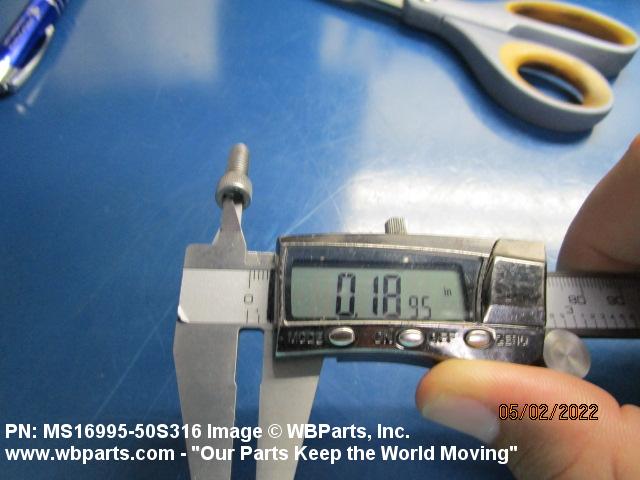

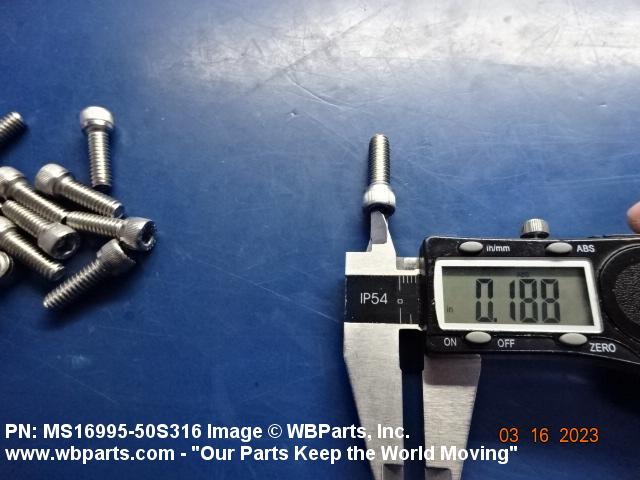

| WIDTH ACROSS FLATS | 0.188 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |

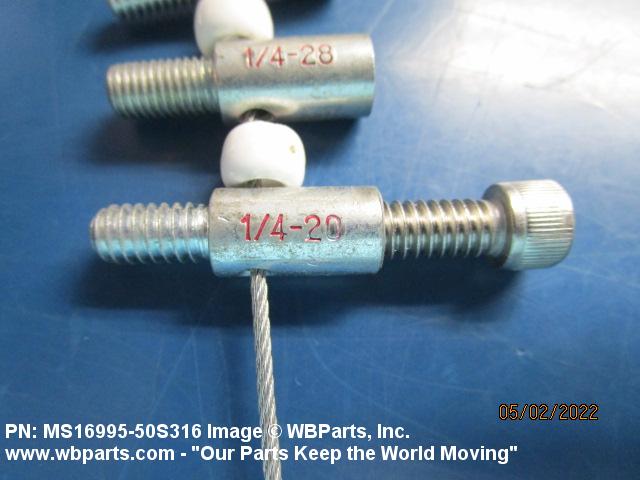

| THREAD QUANTITY PER INCH | 20 |
| END ITEM IDENTIFICATION | STRYKER |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| HEAD STYLE | FILLISTER |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5305-01-590-7444
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-590-7444
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | M8 | Light Armored Vehicle |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
