NSN 5305-01-579-7146 NAS13515H36P, NAS1351-5H36P, 01-579-7146
Product Details | SOCKET HEAD CAP SCREW
5305-01-579-7146 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS13515H36P, NAS1351-5H36P, 5305-01-579-7146, 01-579-7146, 5305015797146, 015797146
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 NOV 2009 | 01-579-7146 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

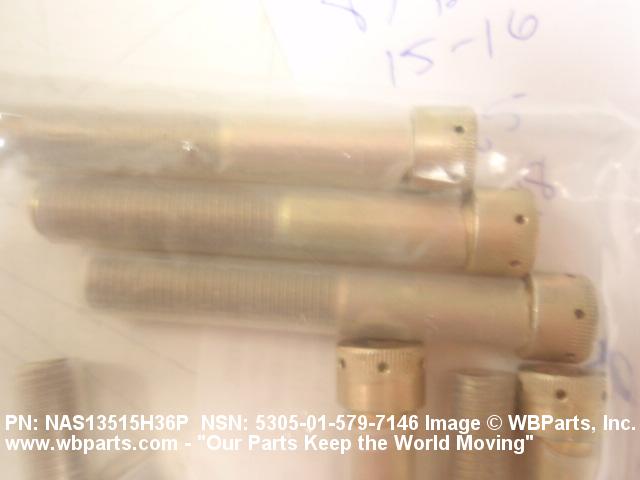

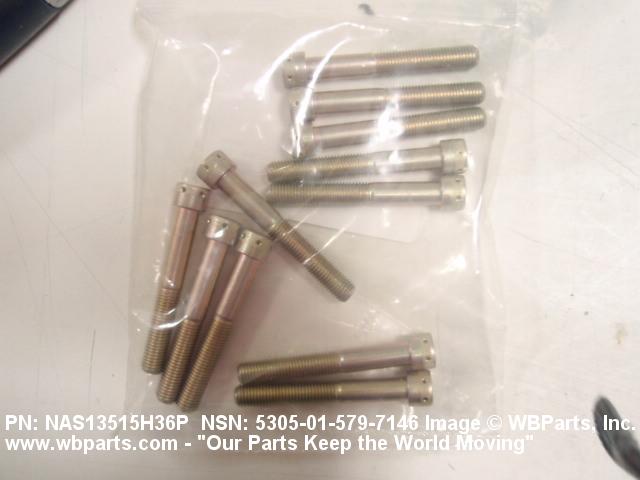

Drawings & Photos | NSN 5305-01-579-7146
Demand History | NSN 5305-01-579-7146
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS13515H36P | 2010-04-103 | 50 | United States |
Cross Reference | NSN 5305-01-579-7146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1351-5H36P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-579-7146
Related Products | NSN 5305-01-579-7146
Technical Data | NSN 5305-01-579-7146
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| HOLE DIAMETER | 0.044 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | HEXAGON |
| HEAD STYLE | FLAT CHAMFER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS-QQ-P-416, TYPE II, CLASS 2 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | INAVY: SCREW,CAP,SOCKET,HE; STD: SCREW, CAP, SOCKET HEAD, DRILLED, PLAIN, ALLOY STEEL, UNRF-3A |
| THREAD SERIES DESIGNATOR | UNRF |
| HEAD DIAMETER | 0.457 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FF-S-86 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |
| FASTENER LENGTH | 2.250 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| HOLE CONFIGURATION STYLE | ROUND INTERNAL HEXAGON |
| THREAD QUANTITY PER INCH | 24 |
| HOLE QUANTITY | 6 |
| NOMINAL THREAD DIAMETER | 0.313 INCHES |
| MINIMUM YIELD STRENGTH | 10400 POUNDS PER SQUARE INCH |
| HOLE TYPE | DRILLED |
| COLOR | BLACK OVERALL |
| THREAD LENGTH | 1.125 INCHES MINIMUM |
| FSC APPLICATION DATA | UNRF |
| END ITEM IDENTIFICATION | 3MH60SC AIRFRAME; GUIDE ASSEMBLY |
| HEAD HEIGHT | 0.306 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5305-01-579-7146
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-579-7146
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
