NSN 5305-01-569-2732 NAS1352C4H16, 01-569-2732, 015692732
Product Details | SOCKET HEAD CAP SCREW
5305-01-569-2732 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1352C4H16, 5305-01-569-2732, 01-569-2732, 5305015692732, 015692732
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 NOV 2008 | 01-569-2732 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

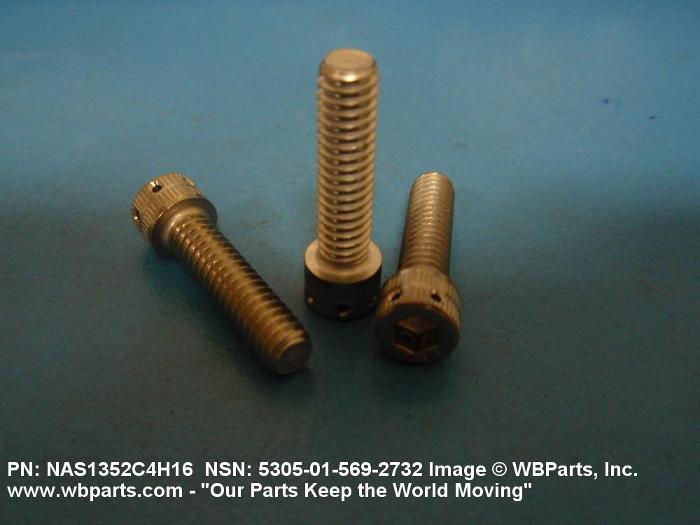

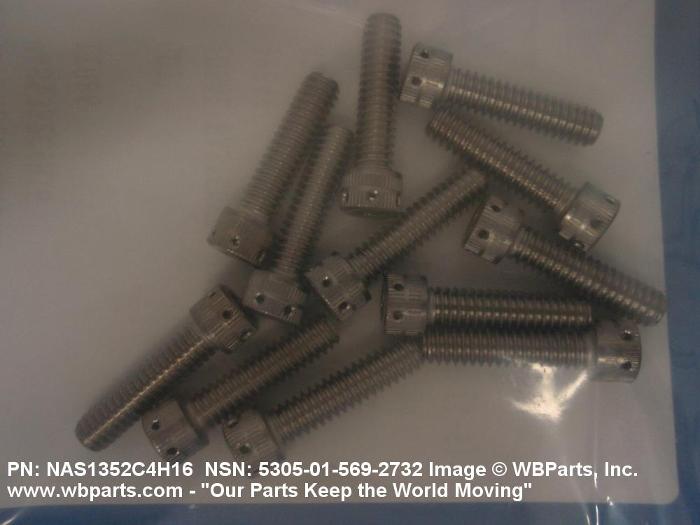

Drawings & Photos | NSN 5305-01-569-2732
Demand History | NSN 5305-01-569-2732
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-569-2732 | 2023-05-129 | 12 | DIBBS |
| NAS1352C4H16 | 2011-03-70 | 12 | United States |
| NAS1352C4H16 | 2006-10-296 | 425 | US |
Cross Reference | NSN 5305-01-569-2732
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1352C4H16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-569-2732
Related Products | NSN 5305-01-569-2732
Technical Data | NSN 5305-01-569-2732
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW,SOCKET CP |
| INTERNAL DRIVE STYLE | HEXAGON |
| MINIMUM TENSILE STRENGTH | 2540 POUNDS PER SQUARE INCH |
| THREAD SERIES DESIGNATOR | UNRC |
| THREAD LENGTH | 0.485 INCHES NOMINAL |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| HOLE DIAMETER | 0.085 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| HOLE CONFIGURATION STYLE | ROUND INTERNAL HEXAGON |
| HEAD STYLE | CHAMFER FLANGE |
| MATERIAL DOCUMENT AND CLASSIFICATION | SPEC FF-S-86 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 2 |
| SPECIAL FEATURES | MATERIAL; CORROSION RESISTANT STEEL; TWO HOLES DRILLED AT 180 DEGREES |
Restrictions/Controls & Freight Information | NSN 5305-01-569-2732
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-569-2732
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
