NSN 5305-01-472-3735 MS1699513, MS16995-13, FFS86

Product Details | SOCKET HEAD CAP SCREW

5305-01-472-3735 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS1699513, MS16995-13, FFS86, FF-S-86, 5305-01-472-3735, 01-472-3735, 5305014723735, 014723735

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	29 FEB 2000	01-472-3735	16282 ( SCREW, CAP, SOCKET HEAD )

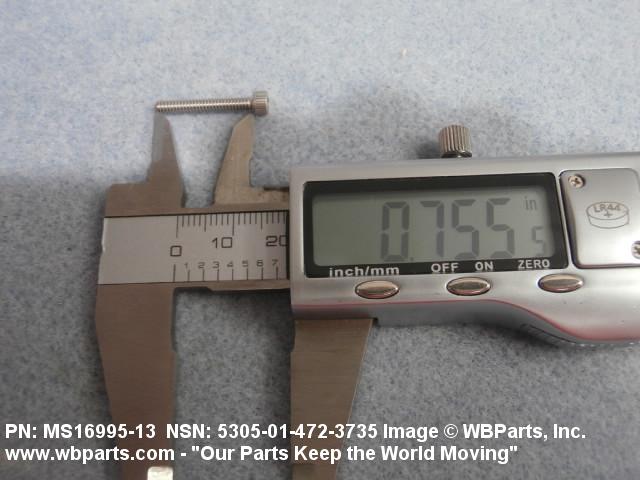

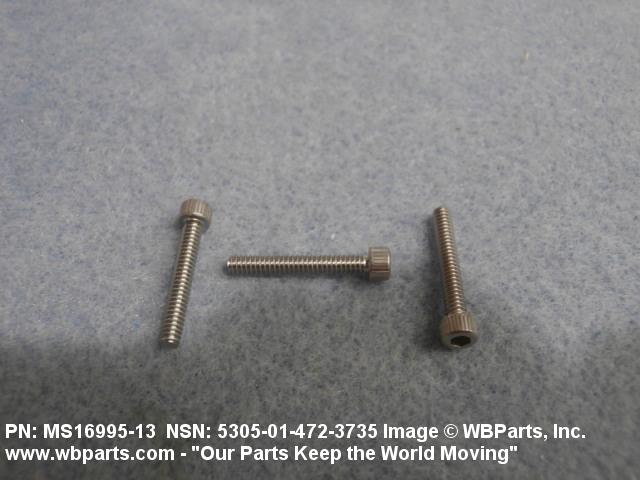

Drawings & Photos | NSN 5305-01-472-3735

Part Number	Request Date	QTY	Origin
MS1699513	2022-07-182	50	South Africa
FFS86	2022-05-143	40	United States
FFS86	2021-12-347	40	US
MS1699513	2021-02-42	14	United States
MS1699513	2019-10-301	400	Taiwan
MS1699513	2019-08-233	500	US
MS1699513	2019-02-36	1	US
MS1699513	2018-01-18	510	Taiwan
MS1699513	2017-11-311	100	United States
MS1699513	2017-10-303	100	United States
MS1699513	2016-01-25	50	Taiwan
MS16995-13	2015-05-141	8	United States
MS16995-13	2015-05-141	8	United States
MS1699513	2013-11-323	13	United States
MS1699513	2013-11-323	32	United States
FFS86	2013-08-229	80	Canada
MS1699513	2012-09-262	20	Germany
MS1699513	2012-07-193	36	US
MS1699513	2012-05-143	25	United States
FFS86	2012-03-74	2	US
MS1699513	2012-01-03	30	Germany
FFS86	2011-08-222	50	US
FFS86	2011-08-214	50	US
FFS86	2011-03-61	8	US
FFS86	2011-03-60	5000	US
MS1699513	2011-01-07	500	US
MS1699513	2008-09-246	150	United States

Cross Reference | NSN 5305-01-472-3735

Part Number	Cage Code	Manufacturer
FF-S-86	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS16995-13	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16995-13	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-472-3735

Compare

Related Products | NSN 5305-01-472-3735

5305-01-472-3736, 5305-01-472-3738, 5305-01-472-3766, 5305-01-472-3791, 5305-01-472-3845

Technical Data | NSN 5305-01-472-3735

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.750 INCHES NOMINAL
FASTENER LENGTH	0.750 INCHES NOMINAL
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ST0304 MFR REF 1ST MATERIAL RESPONSE AND ST0080 MFR REF 2ND MATERIAL RESPONSE AND ST0305 MFR REF 3RD MATERIAL RESPONSE AND ST0316 MFR REF 4TH MATERIAL RESPONSE AND ST0082 MFR REF 5TH MATERIAL RESPONSE OR ST0430 MFR REF ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC 1ST TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	480000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	30000 POUNDS PER SQUARE INCH
HEAD STYLE	C66 KNURLED NO. 1
HEAD DIAMETER	0.134 INCHES MINIMUM AND 0.140 INCHES MAXIMUM
HEAD HEIGHT	0.083 INCHES MINIMUM AND 0.086 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.0781 INCHES MINIMUM AND 0.0791 INCHES MAXIMUM
SPECIAL FEATURES	HEAD STYLE MANUFACTURERS OPTION PLAIN OR KNURLED
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-86

Restrictions/Controls & Freight Information | NSN 5305-01-472-3735

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-472-3735

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
