NSN 5305-01-471-6995 90298A537, 01-471-6995, 014716995
Product Details | SHOULDER SCREW
5305-01-471-6995 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: 90298A537, 5305-01-471-6995, 01-471-6995, 5305014716995, 014716995
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 FEB 2000 | 01-471-6995 | 22846 ( SCREW, SHOULDER ) |
Drawings & Photos | NSN 5305-01-471-6995
Demand History | NSN 5305-01-471-6995
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-471-6995 | 2017-02-37 | 289 | DIBBS |
| 5305-01-471-6995 | 2016-07-213 | 102 | DIBBS |
| 5305-01-471-6995 | 2016-06-154 | 61 | DIBBS |
| 5305-01-471-6995 | 2016-04-119 | 1 | DIBBS |
| 5305-01-471-6995 | 2016-02-32 | 28 | DIBBS |
| 5305-01-471-6995 | 2015-12-337 | 55 | DIBBS |
Cross Reference | NSN 5305-01-471-6995
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 90298A537 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-471-6995
Related Products | NSN 5305-01-471-6995
Technical Data | NSN 5305-01-471-6995
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.500 INCHES NOMINAL |
| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 18-8STAINLESSSTEEL MFR REF 1ST MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 55.0 ROCKWELL B MINIMUM ALL SHOULDERS |
| MINIMUM TENSILE STRENGTH | 70000 POUNDS PER SQUARE INCH |

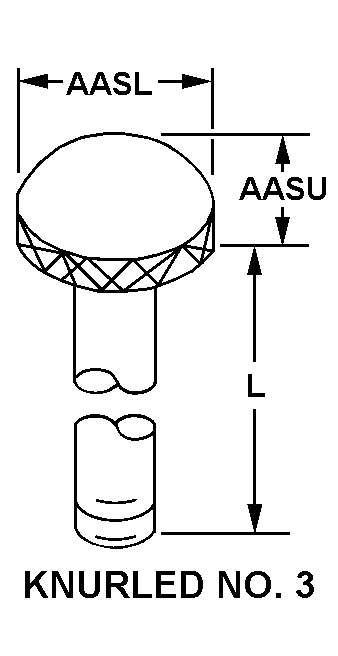

| HEAD STYLE | C68 KNURLED NO. 3 |
| HEAD DIAMETER | 0.375 INCHES NOMINAL |
| HEAD HEIGHT | 0.1875 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| SHOULDER SHAPE | ROUND ALL SHOULDERS |
| SHOULDER DIAMETER | 0.250 INCHES NOMINAL ALL SHOULDERS |
| SPECIAL FEATURES | HEX KEY SIZE 0.125 INCHES;MATERIAL CAN BE MILDLY MAGNETIC;HEAD CHAMFERIS 30-45 DEGREE ;TIP CHAMFER IS APPROXIAMTELY 45 DEGREE |
Restrictions/Controls & Freight Information | NSN 5305-01-471-6995
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
