Product Details | SHOULDER SCREW
5305-01-151-1032 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: 1532343, 5305-01-151-1032, 01-151-1032, 5305011511032, 011511032
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 APR 1983 | 01-151-1032 | 22846 ( SCREW, SHOULDER ) |

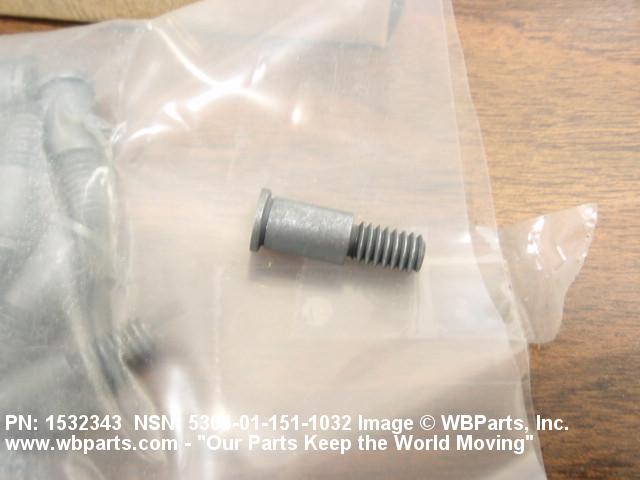

Drawings & Photos | NSN 5305-01-151-1032
Demand History | NSN 5305-01-151-1032
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-151-1032 | 2017-02-52 | 3 | DIBBS |
| 5305-01-151-1032 | 2016-02-56 | 6 | DIBBS |
| 5305-01-151-1032 | 2010-11-305 | 2 | DIBBS |
| 5305-01-151-1032 | 2009-11-309 | 20 | United Kingdom |
Cross Reference | NSN 5305-01-151-1032
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1532343 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-151-1032
Technical Data | NSN 5305-01-151-1032
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.388 INCHES NOMINAL |
| FASTENER LENGTH | 0.938 INCHES NOMINAL |
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 TY1,TY2 OR TY3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.375 INCHES NOMINAL |
| HEAD HEIGHT | 0.062 INCHES NOMINAL |

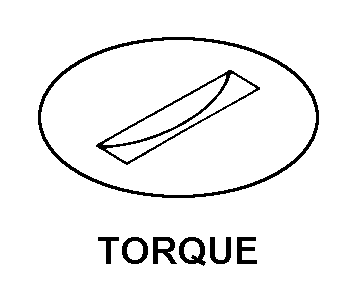

| INTERNAL DRIVE STYLE | D10 TORQUE |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SHOULDER DIAMETER | 0.310 INCHES MINIMUM AND 0.311 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 0.500 INCHES MINIMUM AND 0.505 INCHES MAXIMUM FIRST SHOULDER |
| SPECIAL FEATURES | SOLID FILM LUBRICANT MIL-L-46010 O/A; GROOVE UNDER HEAD 0.281 IN. DIA,0.031 IN. W; THD RELIEF |
