NSN 5305-00-038-8042 4104891, 410489-1, 00-038-8042
Product Details | SHOULDER SCREW
5305-00-038-8042 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: 4104891, 410489-1, 5305-00-038-8042, 00-038-8042, 5305000388042, 000388042
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 NOV 1972 | 00-038-8042 | 22846 ( SCREW, SHOULDER ) |

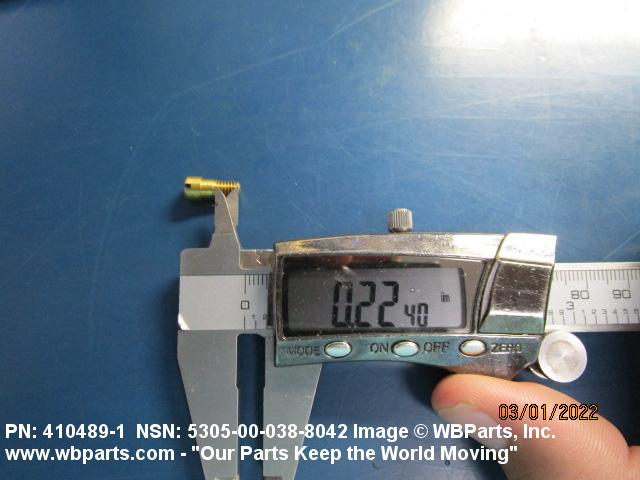

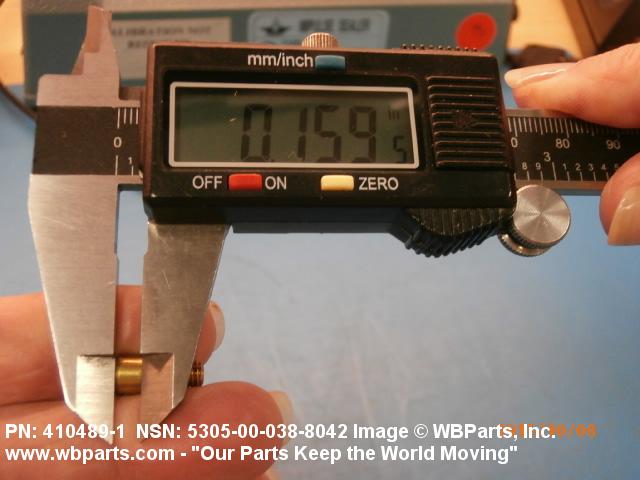

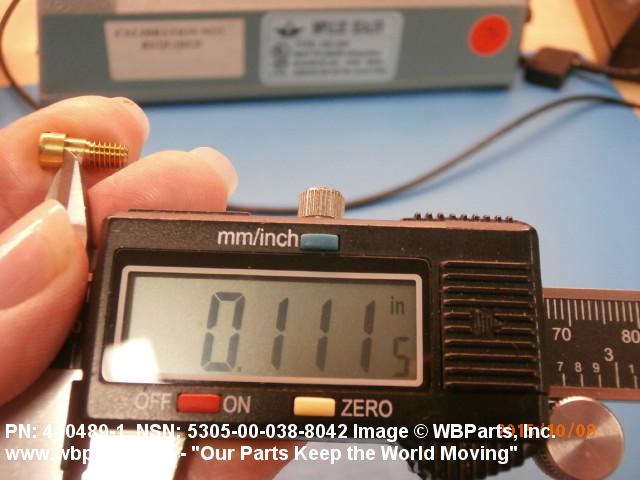

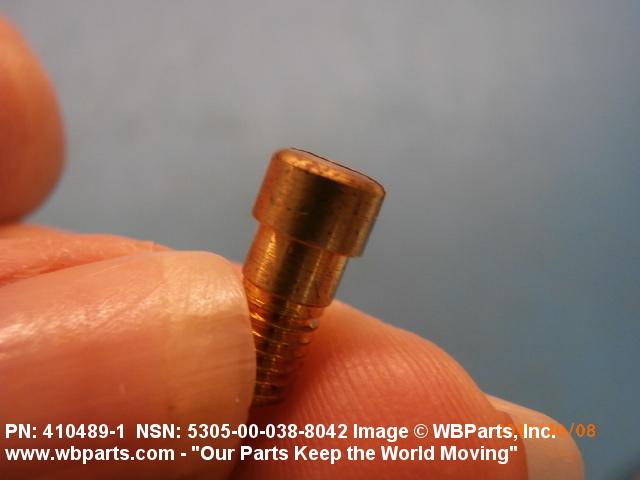

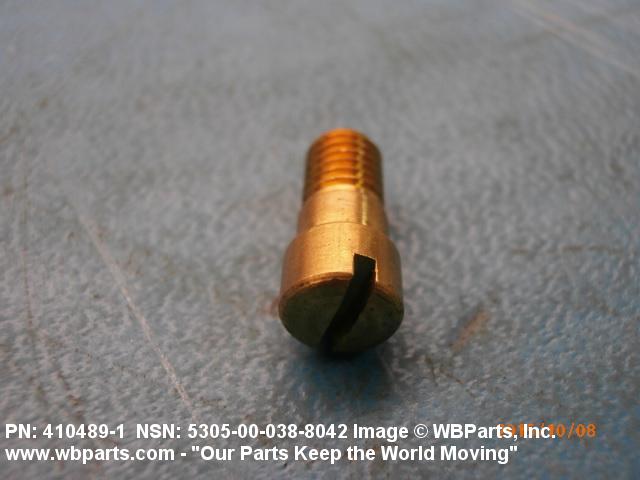

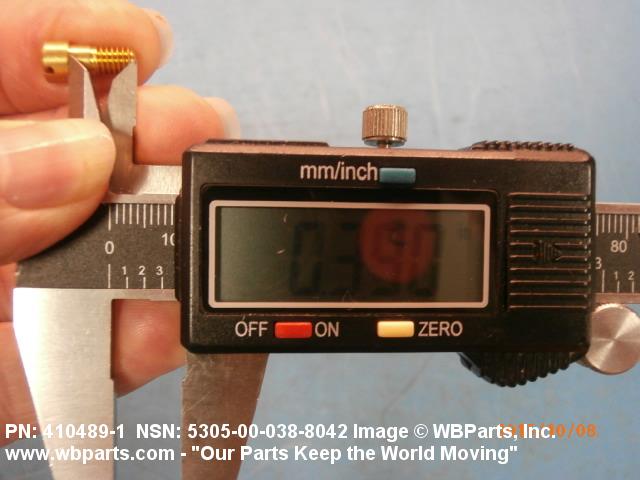

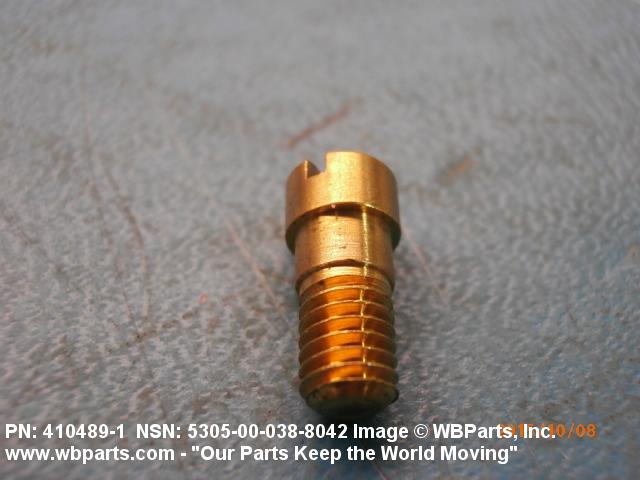

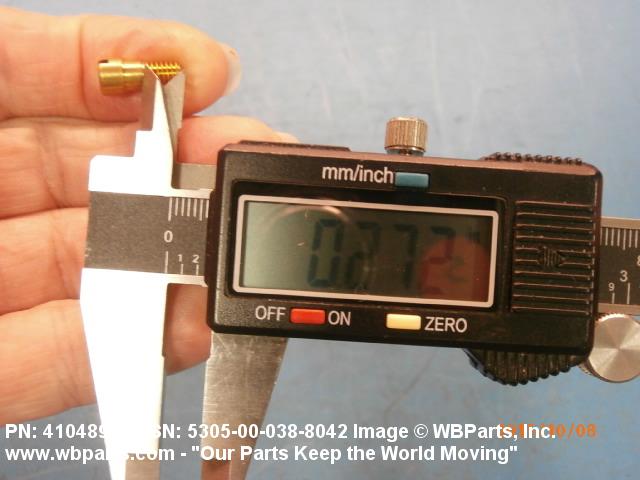

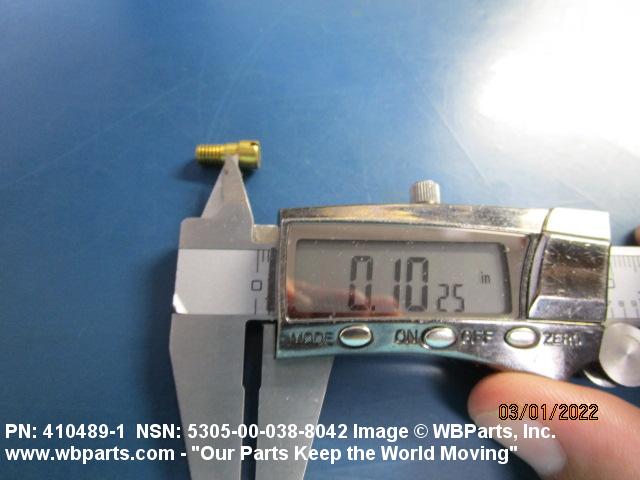

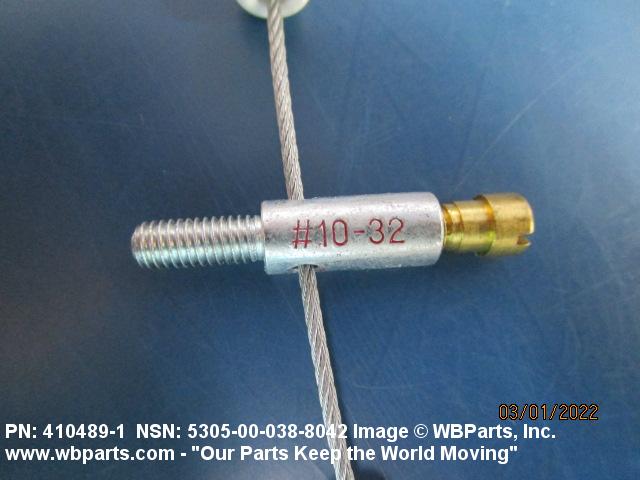

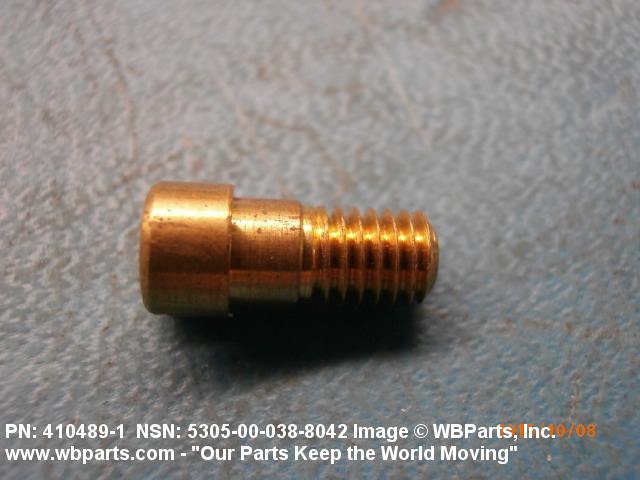

Drawings & Photos | NSN 5305-00-038-8042
Demand History | NSN 5305-00-038-8042
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-038-8042 | 2024-11-319 | 127 | DIBBS |
| 5305-00-038-8042 | 2024-07-208 | 520 | DIBBS |
| 5305-00-038-8042 | 2024-07-200 | 520 | DIBBS |
| 5305-00-038-8042 | 2024-03-77 | 98 | DIBBS |
| 5305-00-038-8042 | 2023-12-351 | 133 | DIBBS |
| 5305-00-038-8042 | 2023-09-268 | 416 | US |
| 5305-00-038-8042 | 2023-08-232 | 416 | DIBBS |
| 5305-00-038-8042 | 2023-05-141 | 112 | DIBBS |
| 5305-00-038-8042 | 2023-04-96 | 149 | DIBBS |
| 5305-00-038-8042 | 2023-04-93 | 487 | DIBBS |
| 5305-00-038-8042 | 2023-03-88 | 149 | DIBBS |
| 5305-00-038-8042 | 2023-03-78 | 487 | DIBBS |
| 5305-00-038-8042 | 2022-02-55 | 5 | United States |
| 5305-00-038-8042 | 2017-11-306 | 1535 | DIBBS |
| 5305-00-038-8042 | 2016-09-264 | 690 | DIBBS |
| 5305-00-038-8042 | 2015-10-274 | 20 | United States |
| 5305-00-038-8042 | 2014-02-58 | 1239 | DIBBS |
| 5305-00-038-8042 | 2014-02-42 | 1239 | DIBBS |
| 5305-00-038-8042 | 2009-07-198 | 1 | US |
Cross Reference | NSN 5305-00-038-8042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 410489-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-038-8042
Technical Data | NSN 5305-00-038-8042
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |

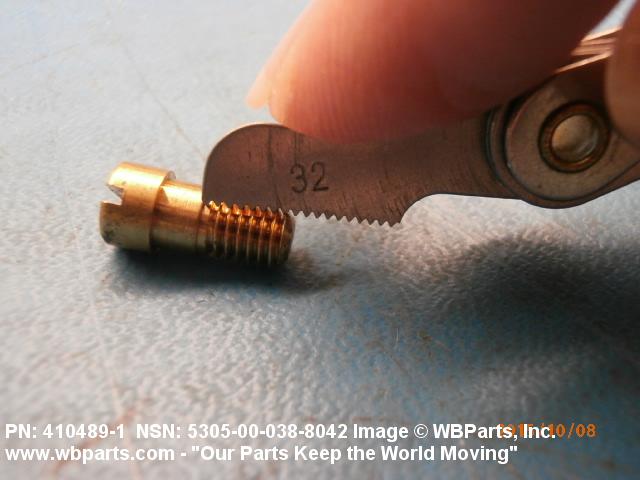

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

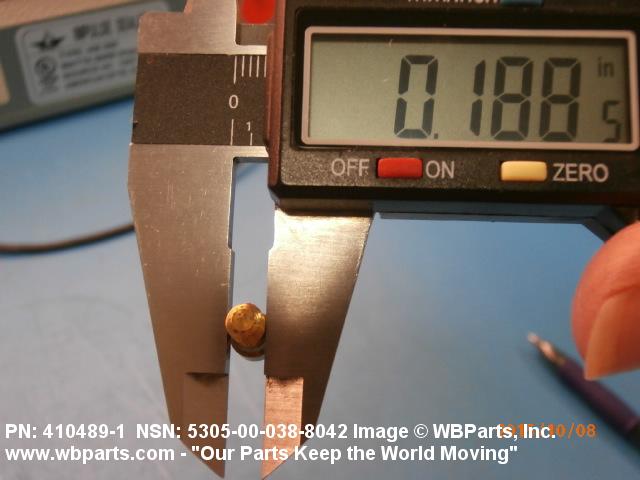

| THREAD LENGTH | 0.188 INCHES MINIMUM |

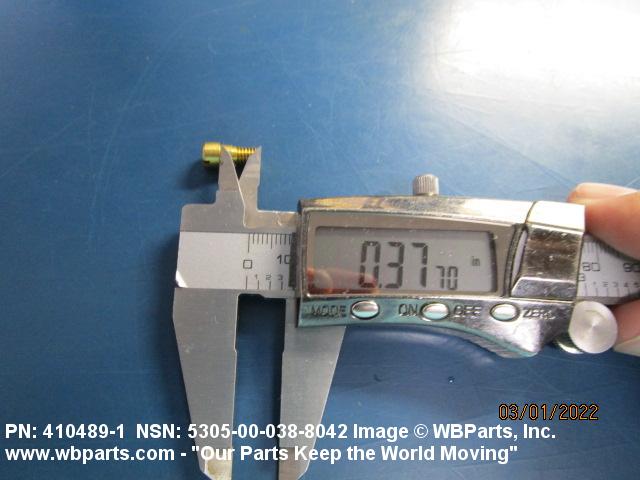

| FASTENER LENGTH | 0.371 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B36 ALLOY NO. 6 HALF HARD ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |

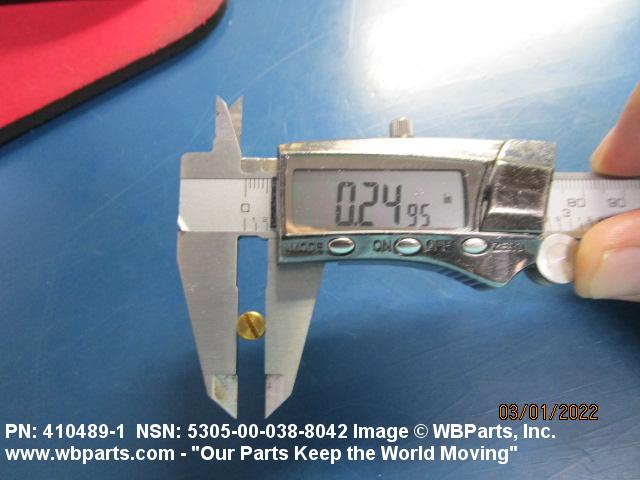

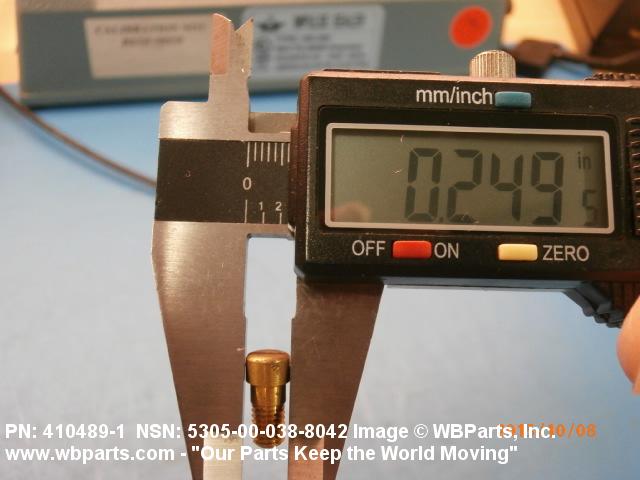

| HEAD DIAMETER | 0.2490 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |

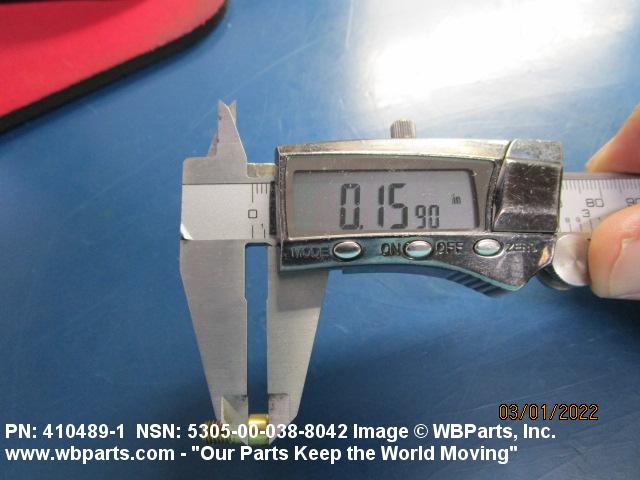

| HEAD HEIGHT | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |

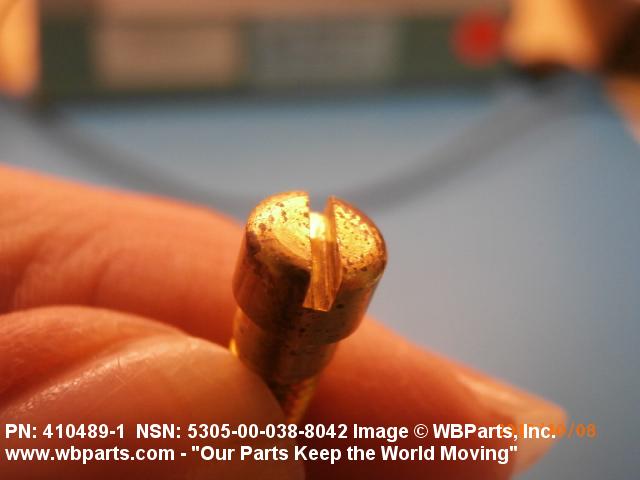

| INTERNAL DRIVE STYLE | D14 SLOT |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |

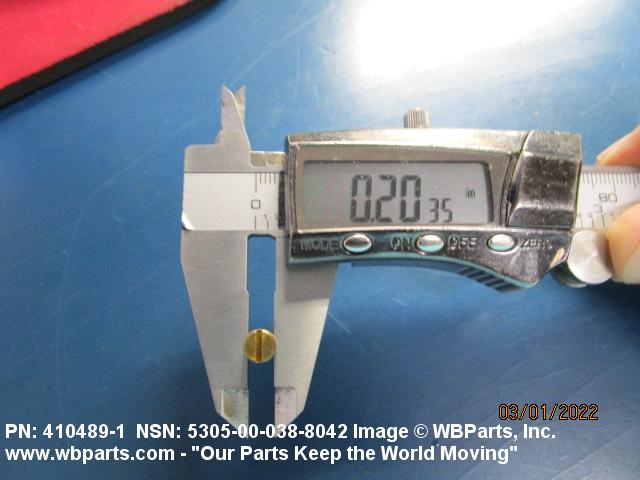

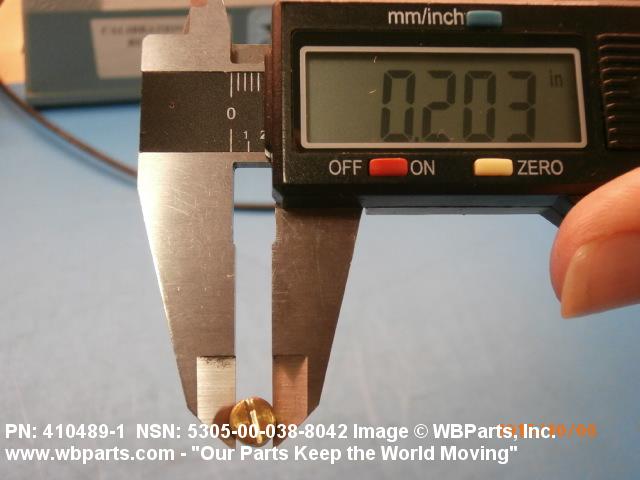

| SHOULDER DIAMETER | 0.203 INCHES MINIMUM AND 0.204 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 0.110 INCHES MINIMUM AND 0.140 INCHES MAXIMUM FIRST SHOULDER |
Restrictions/Controls & Freight Information | NSN 5305-00-038-8042
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096630 | SCREWS NOI BRASS/BRONZE/COPPER |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-038-8042
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
