NSN 5305-01-422-1820 MS5157613, MS51576-13, 01-422-1820
Product Details | SHOULDER SCREW
5305-01-422-1820 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: MS5157613, MS51576-13, 5305-01-422-1820, 01-422-1820, 5305014221820, 014221820
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 NOV 1995 | 01-422-1820 | 22846 ( SCREW, SHOULDER ) |

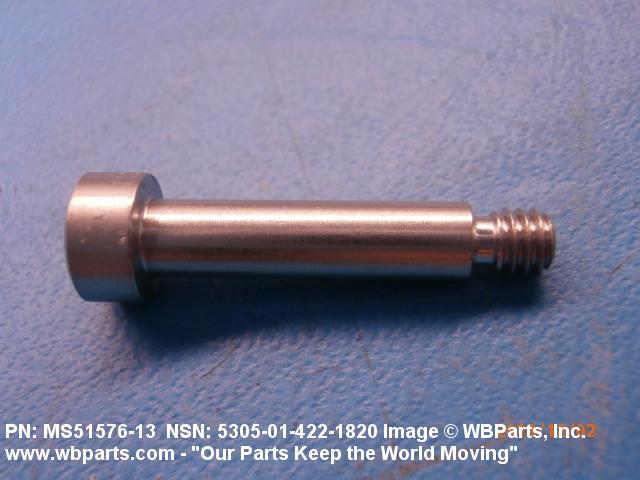

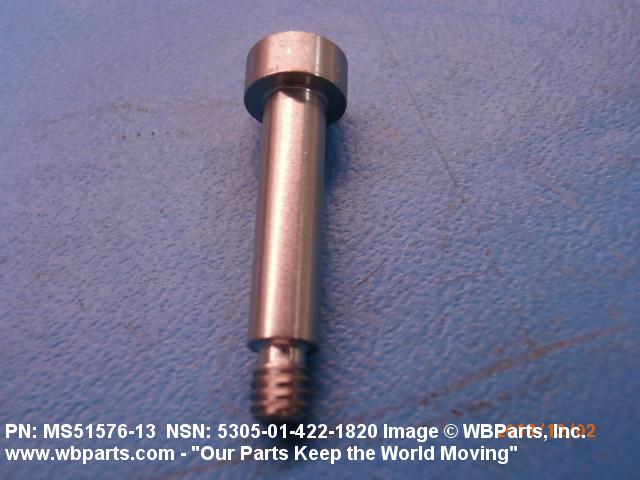

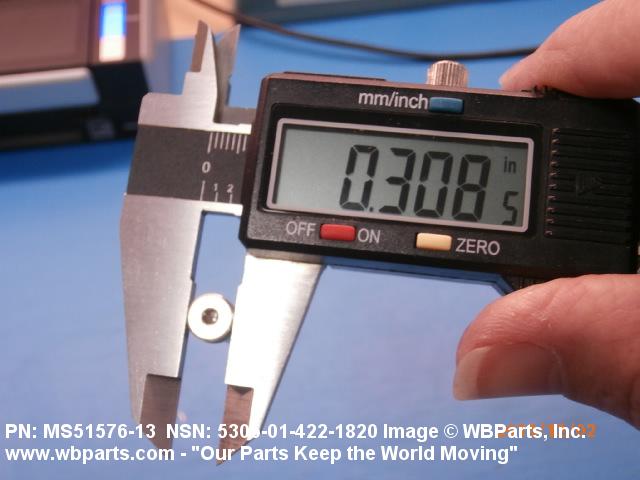

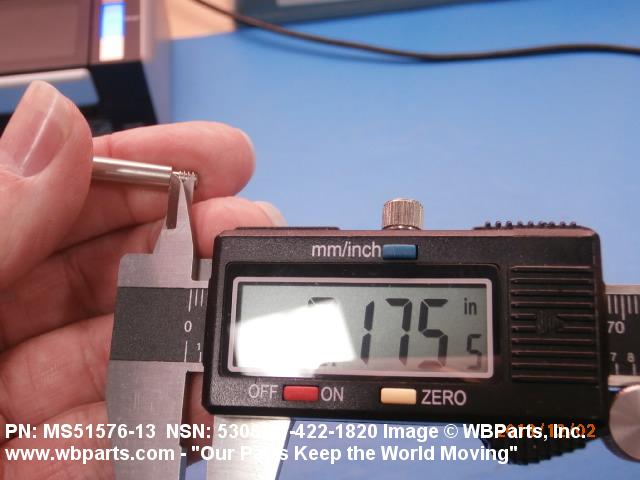

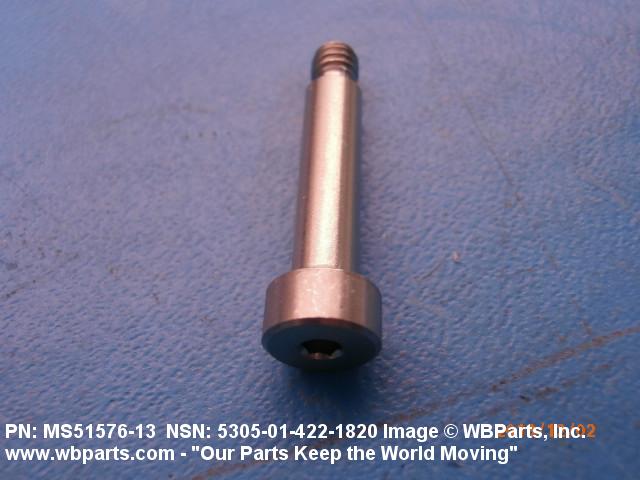

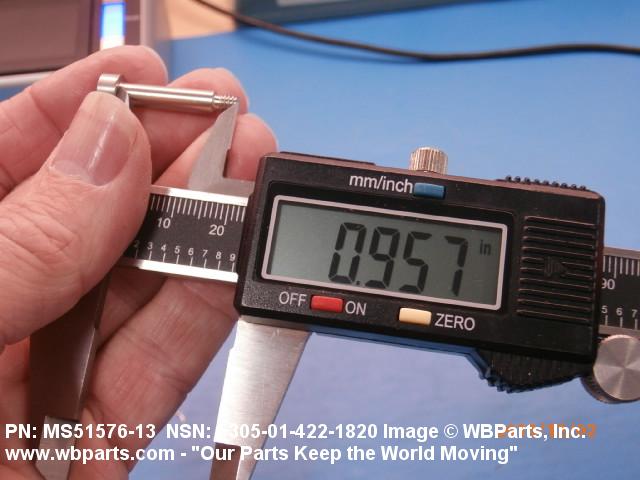

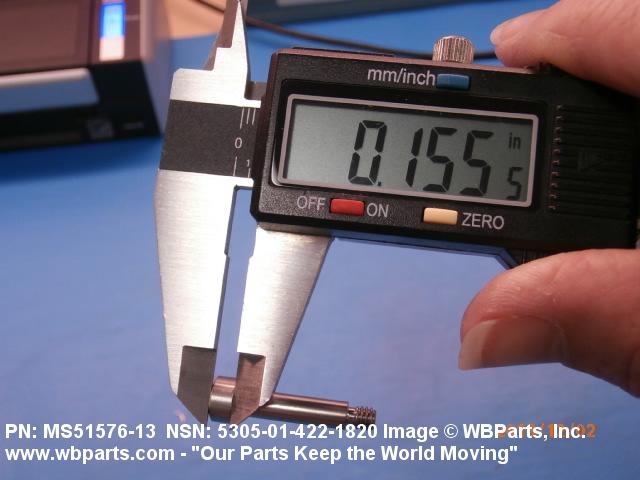

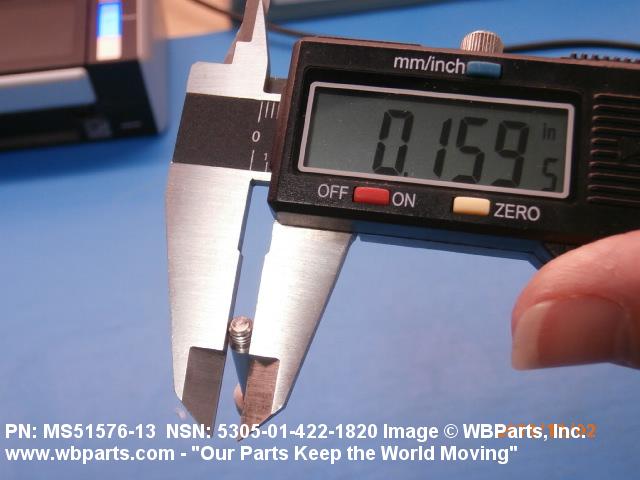

Drawings & Photos | NSN 5305-01-422-1820
Demand History | NSN 5305-01-422-1820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS5157613 | 2021-09-270 | 6 | US |
| MS5157613 | 2013-11-316 | 100 | United States |
| 5305-01-422-1820 | 2011-01-25 | 2 | US |
| MS5157613 | 2010-09-272 | 500 | Italy |
Cross Reference | NSN 5305-01-422-1820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51576-13 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-422-1820
Related Products | NSN 5305-01-422-1820
Technical Data | NSN 5305-01-422-1820
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.156 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| FASTENER LENGTH | 0.906 INCHES MINIMUM AND 0.971 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-21472 MIL STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35, TY 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.156 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| HEAD HEIGHT | 0.125 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |

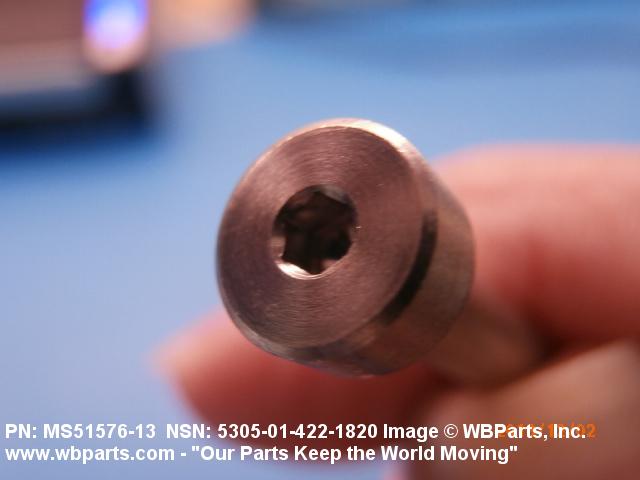

| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.940 INCHES NOMINAL |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |

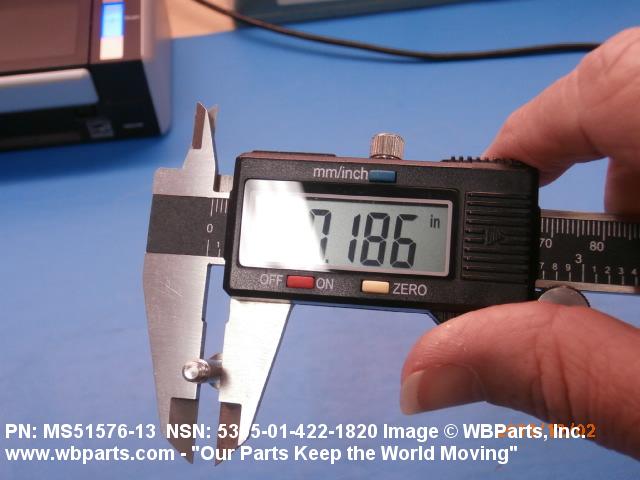

| SHOULDER DIAMETER | 0.186 INCHES MINIMUM AND 0.187 INCHES MAXIMUM FIRST SHOULDER |

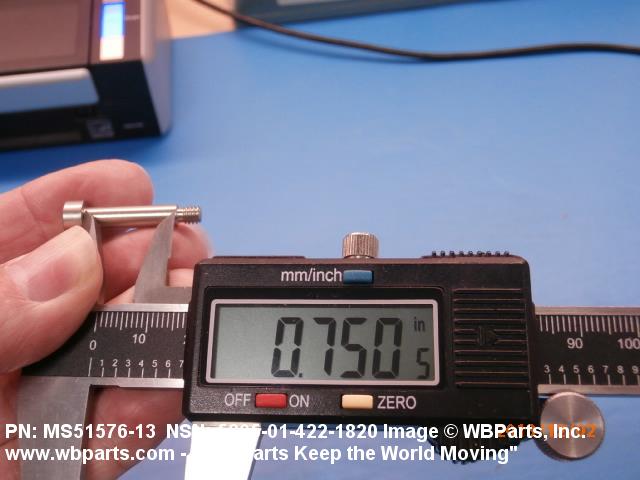

| SHOULDER LENGTH | 0.750 INCHES MINIMUM AND 0.753 INCHES MAXIMUM FIRST SHOULDER |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51576-13 |
Restrictions/Controls & Freight Information | NSN 5305-01-422-1820
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
