NSN 5305-01-419-8999 NA0069030008, NA0069-030008, 01-419-8999
Product Details | SOCKET HEAD CAP SCREW
5305-01-419-8999 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NA0069030008, NA0069-030008, 5305-01-419-8999, 01-419-8999, 5305014198999, 014198999
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-419-8999 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

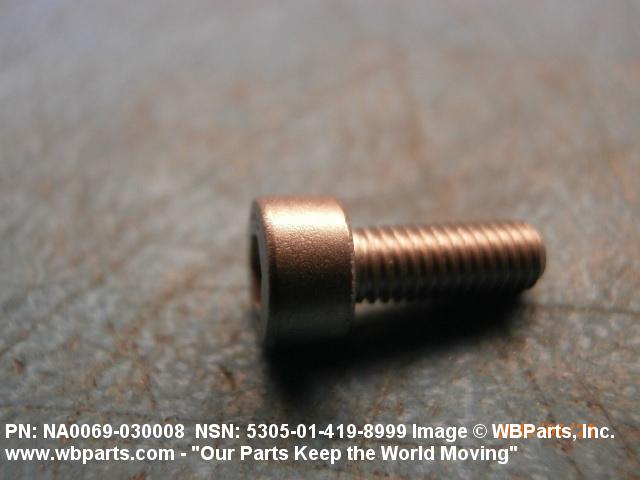

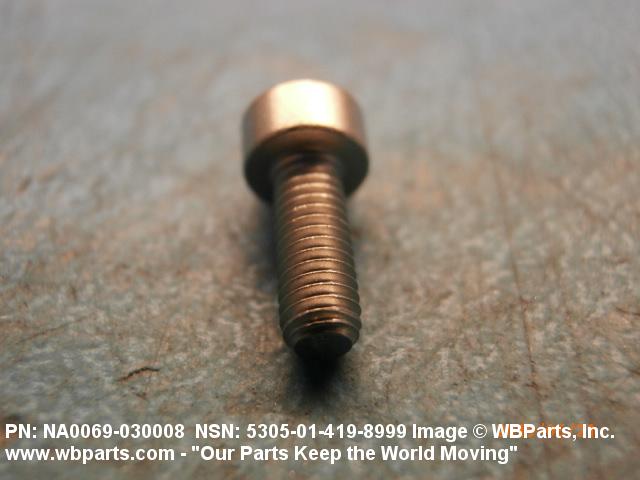

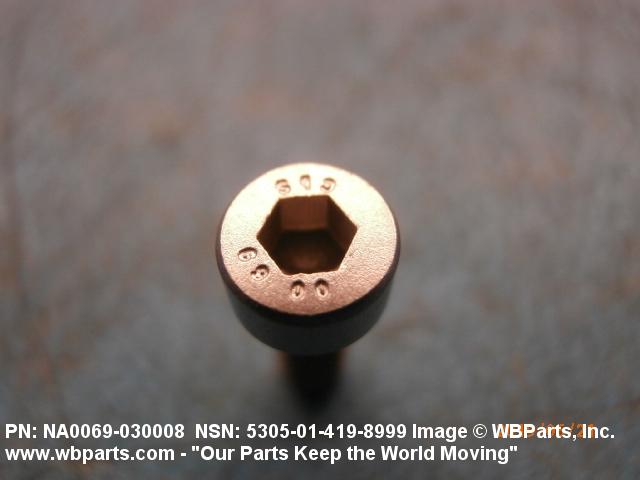

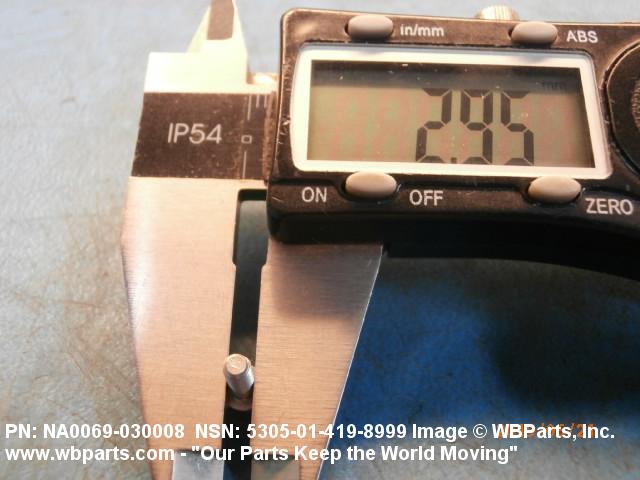

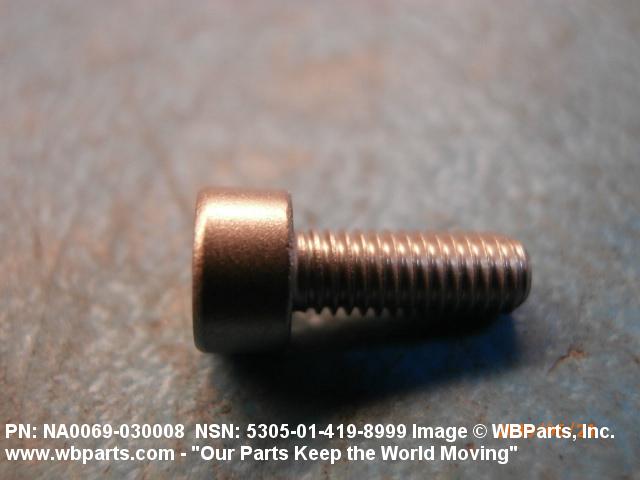

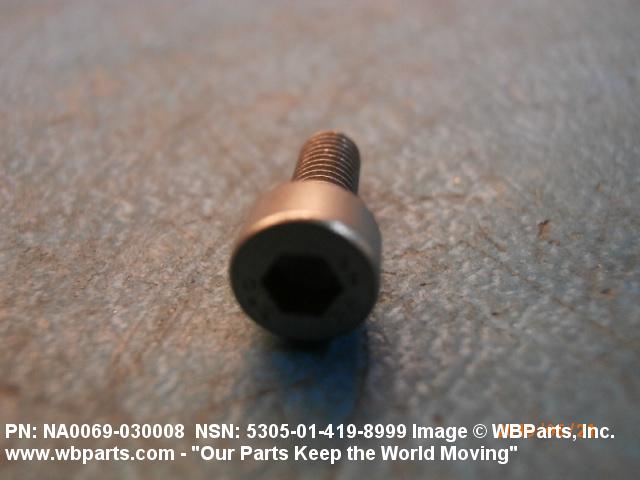

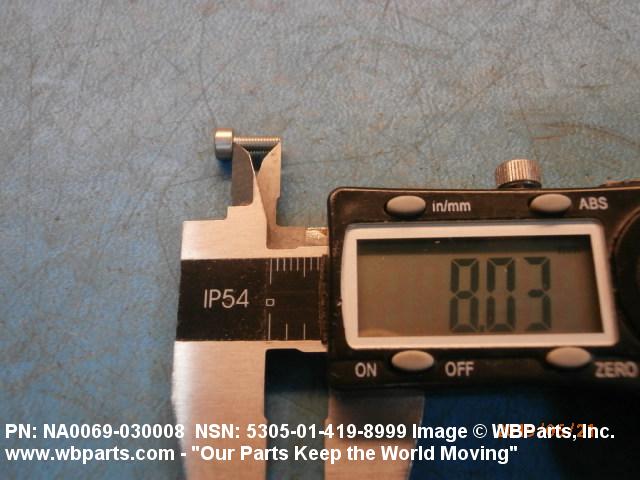

Drawings & Photos | NSN 5305-01-419-8999
Demand History | NSN 5305-01-419-8999
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-419-8999 | 2023-09-271 | 15 | US |
| 5305-01-419-8999 | 2019-06-155 | 400 | United States |
| 5305-01-419-8999 | 2018-12-337 | 30 | US |
| NA0069030008 | 2010-08-239 | 100 | US |
| 5305-01-419-8999 | 2008-08-227 | 25 | US |
| 5305-01-419-8999 | 2008-04-100 | 12 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-419-8999
Technical Data | NSN 5305-01-419-8999
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | MJ |
| NOMINAL THREAD DIAMETER | 3.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 0.5 |
| THREAD LENGTH | 8.0 MILLIMETERS NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HEAD STYLE | C44 FILLISTER |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| TEST DATA DOCUMENT | 80205-NA0026 STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-419-8999
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
