NSN 5305-01-371-9802 FSC7900-10-B-8.5, FSC790010B85, 86197-0129
Product Details | PANEL SCREW ASSEMBLY
5305-01-371-9802 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: FSC7900-10-B-8.5, FSC790010B85, 86197-0129, 8681970129, 868197-0129, 5305-01-371-9802, 01-371-9802, 5305013719802, 861970129, 013719802
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 FEB 1993 | 01-371-9802 | 33044 ( SCREW ASSEMBLY, PANEL ) |

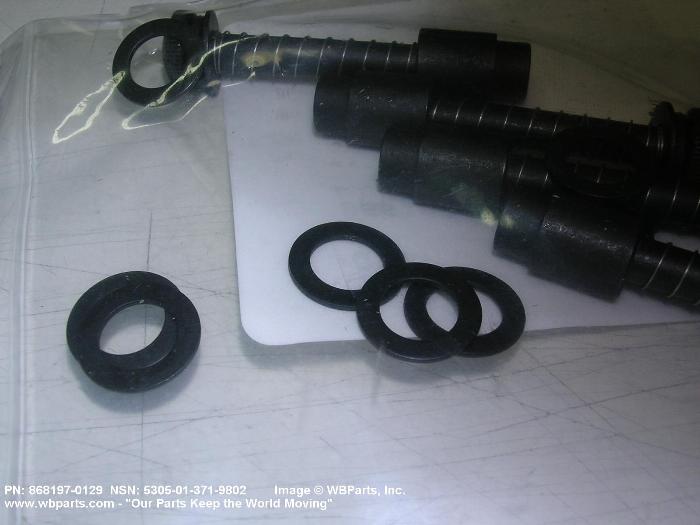

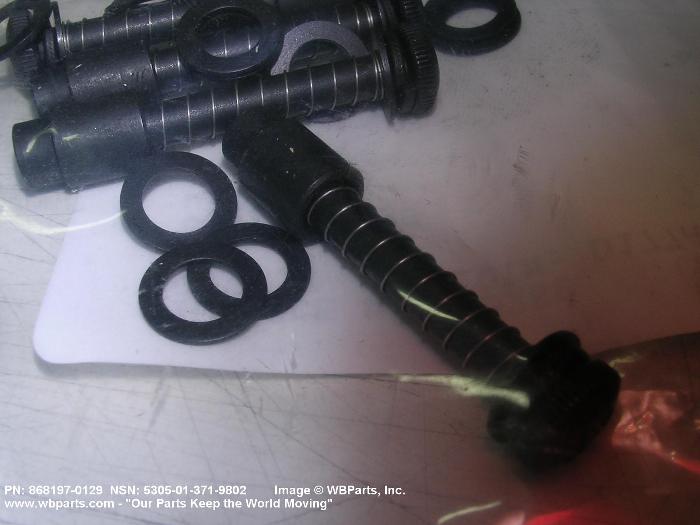

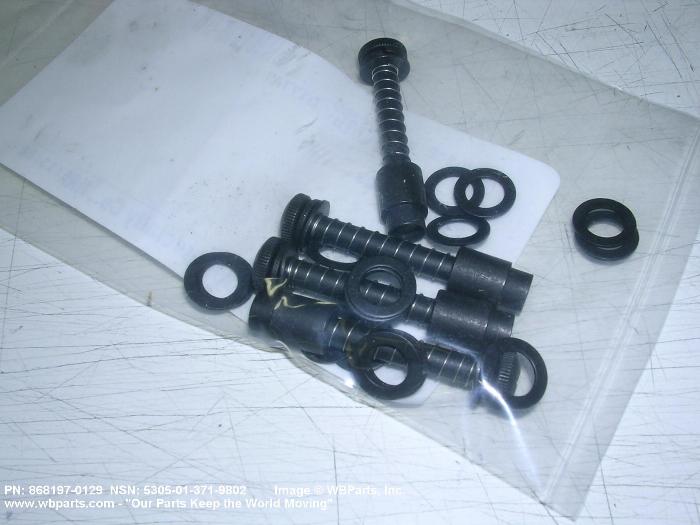

Drawings & Photos | NSN 5305-01-371-9802
Demand History | NSN 5305-01-371-9802
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-371-9802 | 2008-07-196 | 100 | DIBBS |
| 5305-01-371-9802 | 2008-03-72 | 15 | DIBBS |
| 5305-01-371-9802 | 2008-02-57 | 4 | United States |
Cross Reference | NSN 5305-01-371-9802
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 86197-0129 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 86197-0129 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 868197-0129 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 868197-0129 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| FSC7900-10-B-8.5 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| FSC7900-10-B-8.5 | 97928 | HUCK INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-371-9802
Related Products | NSN 5305-01-371-9802
Technical Data | NSN 5305-01-371-9802
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| FASTENER LENGTH | 1.422 INCHES MINIMUM AND 1.452 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 SECONDARY WASHER STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 PRIMARY WASHER STEEL COMP 302 SPRING STEEL COMP 304 STAND-OFF STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 FASTENER |
| SURFACE TREATMENT | OXIDE SECONDARY WASHER OXIDE PRIMARY WASHER PASSIVATE SPRING OXIDE STAND-OFF OXIDE FASTENER |
| HEAD STYLE | C68 KNURLED NO. 3 |
| HEAD DIAMETER | 0.365 INCHES NOMINAL |
| HEAD HEIGHT | 0.133 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| MATERIAL ACCOMMODATED THICKNESS | 0.032 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-371-9802
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-371-9802
Air Force
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
