NSN 5305-01-008-6405 DFP7900510B3, DFP79005-10B3, DFP79510B3
Product Details | PANEL SCREW ASSEMBLY
5305-01-008-6405 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: DFP7900510B3, DFP79005-10B3, DFP79510B3, DFP795-10B3, DPYS7900P-10-B- 3, DPYS7900P10B3, DPYS7900P-10-B-3, 21A0070000, 21A0070-000, 5305-01-008-6405, 01-008-6405, 5305010086405, 010086405
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 AUG 1975 | 01-008-6405 | 33044 ( SCREW ASSEMBLY, PANEL ) |

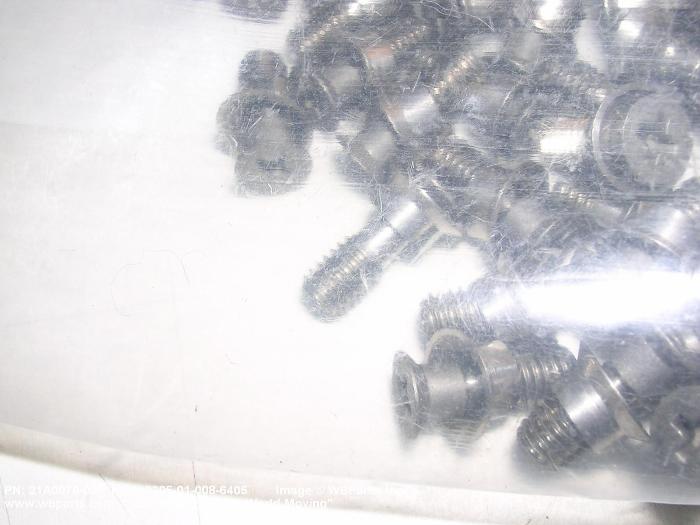

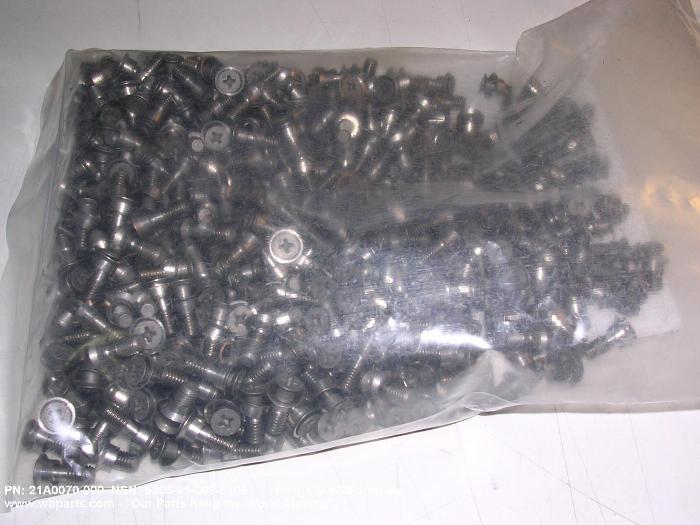

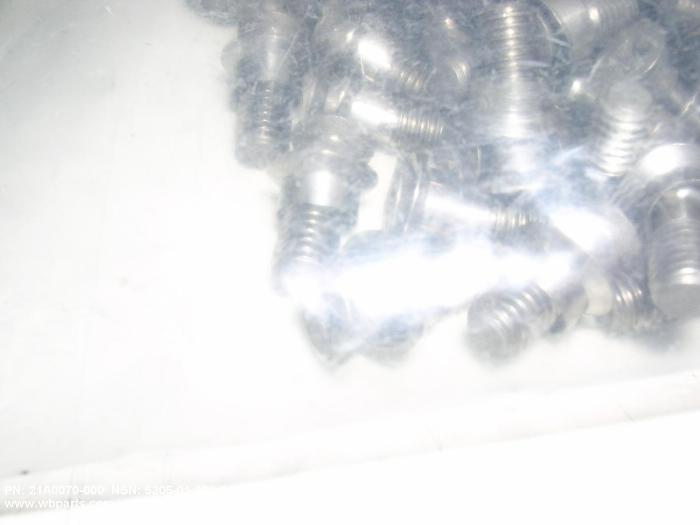

Drawings & Photos | NSN 5305-01-008-6405
Demand History | NSN 5305-01-008-6405
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DPYS7900P10B3 | 2008-03-66 | 12 | US |
| DPYS7900P10B3 | 2007-12-342 | 500 | United States |
Cross Reference | NSN 5305-01-008-6405
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21A0070-000 | 4S536 | UNISYS CORP FEDERAL SYSTEMS DIV |
| DFP79005-10B3 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| DFP795-10B3 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| DFP795-10B3 | 97928 | HUCK INTL INC |
| DPYS7900P-10-B- 3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| DPYS7900P-10-B-3 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-008-6405
Technical Data | NSN 5305-01-008-6405
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.250 INCHES NOMINAL |
| FASTENER LENGTH | 0.535 INCHES NOMINAL |
| MATERIAL | STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 347 OR STEEL COMP 348 STAND-OFF STEEL COMP 8740 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-23195 MIL SPEC ALL MATERIAL RESPONSES STAND-OFF MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE FASTENER |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 41.0 ROCKWELL C MAXIMUM FASTENER |
| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.300 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

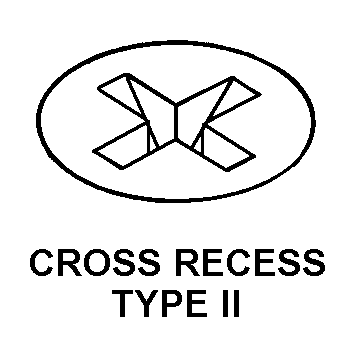

| INTERNAL DRIVE STYLE | D2 CROSS RECESS TYPE 11 |
