NSN 5305-01-315-7095 FRBEH750012D4, FRBEH-7500-12-D-4, FRBHE750012D4
Product Details | PANEL SCREW ASSEMBLY
5305-01-315-7095 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: FRBEH750012D4, FRBEH-7500-12-D-4, FRBHE750012D4, FRBHE-7500-12-D-4, KKF83J, LLHX64622, LL-HX6-4622, 5305-01-315-7095, 01-315-7095, 5305013157095, 013157095
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 FEB 1990 | 01-315-7095 | 33044 ( SCREW ASSEMBLY, PANEL ) |

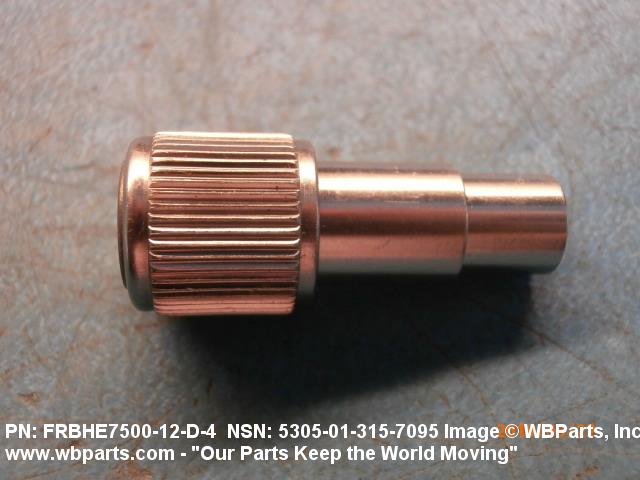

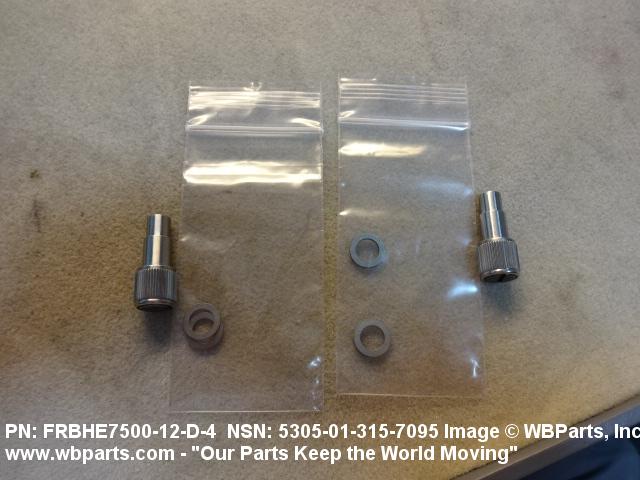

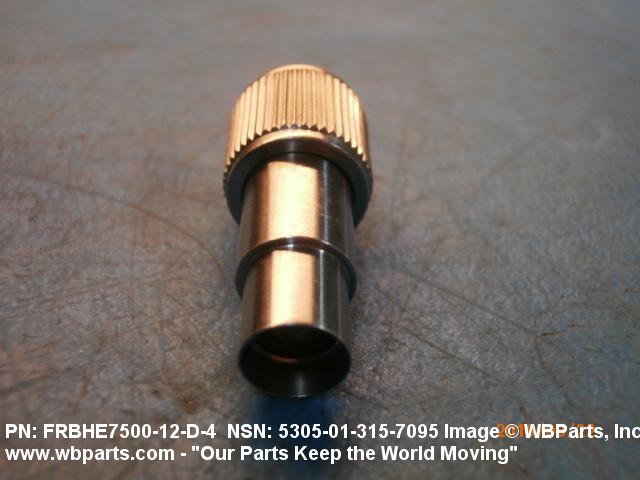

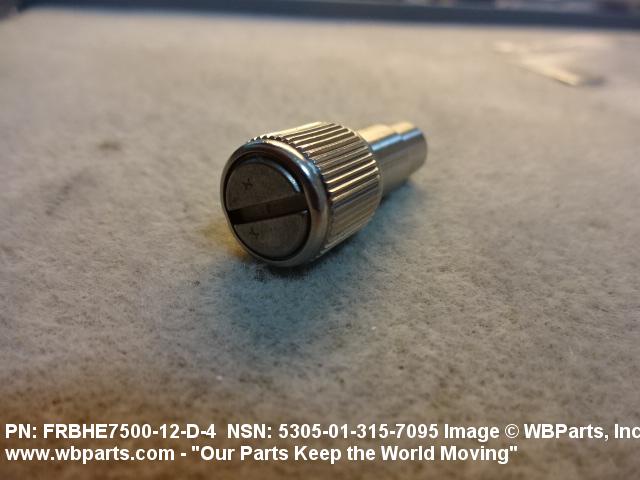

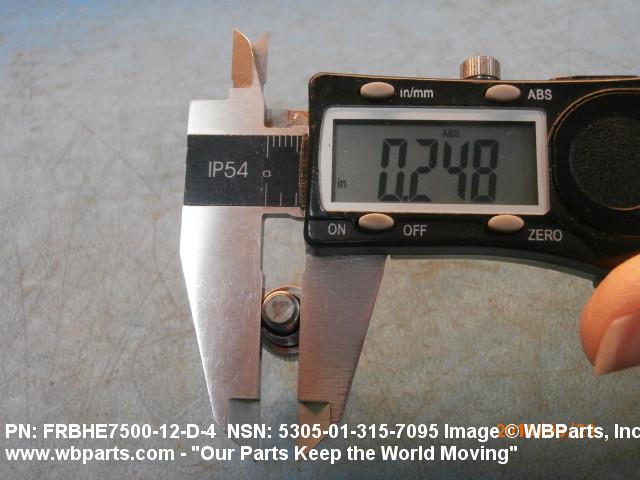

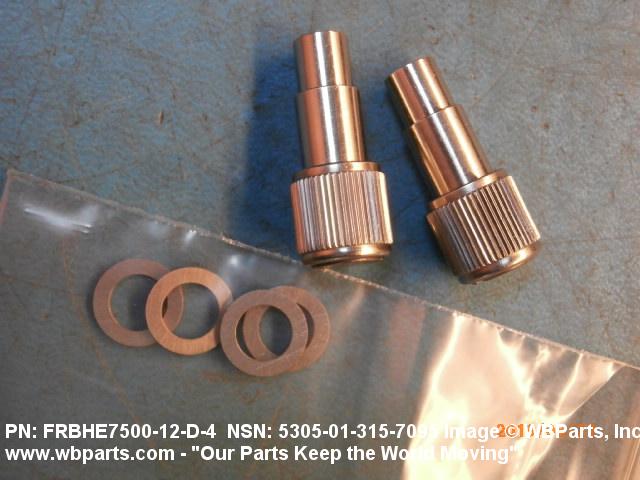

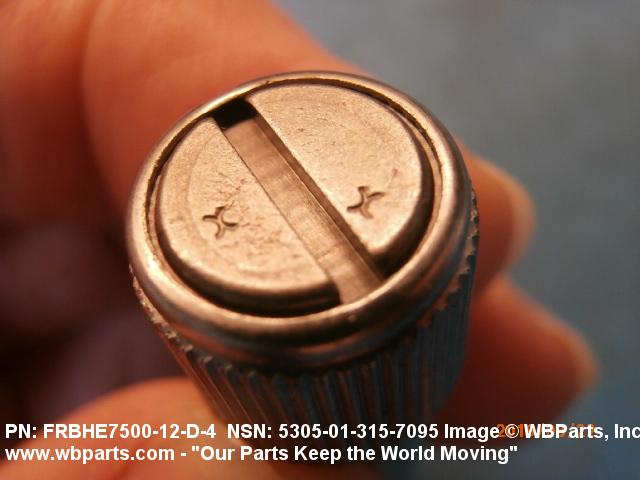

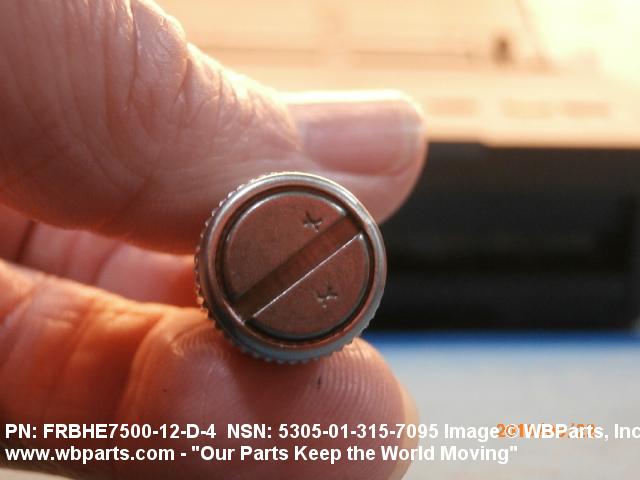

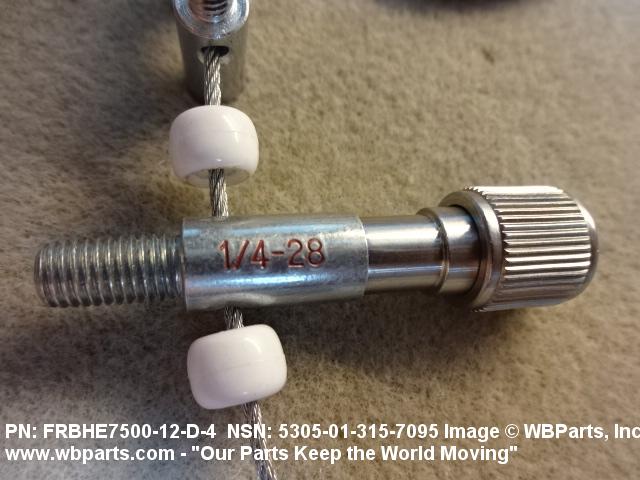

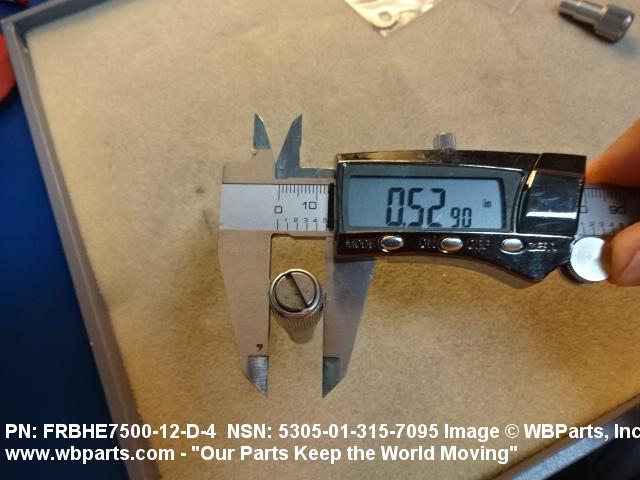

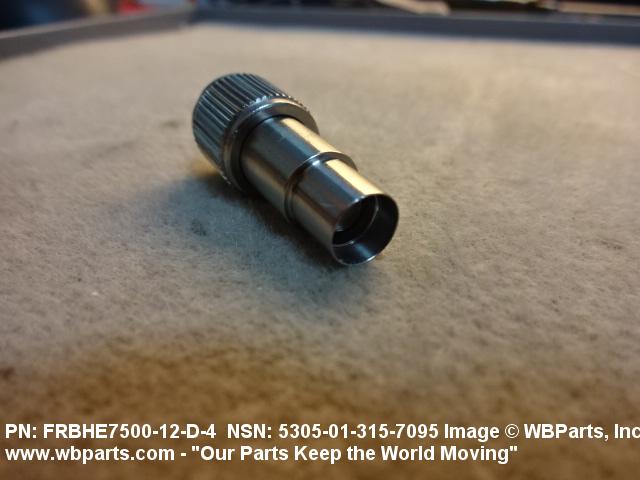

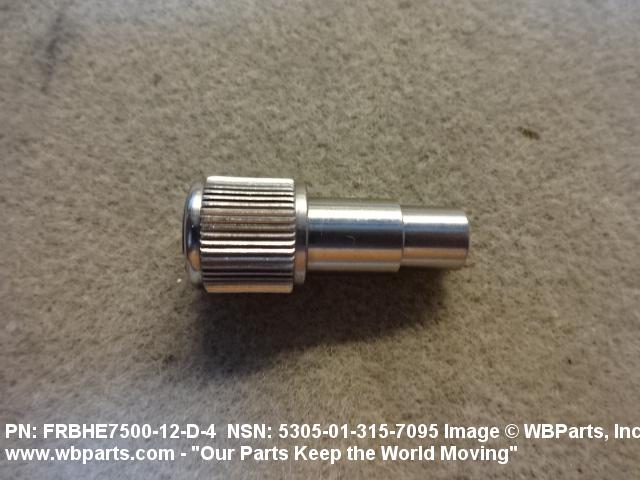

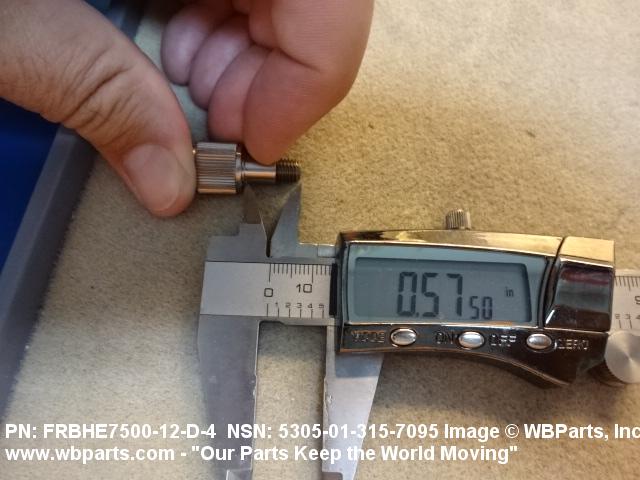

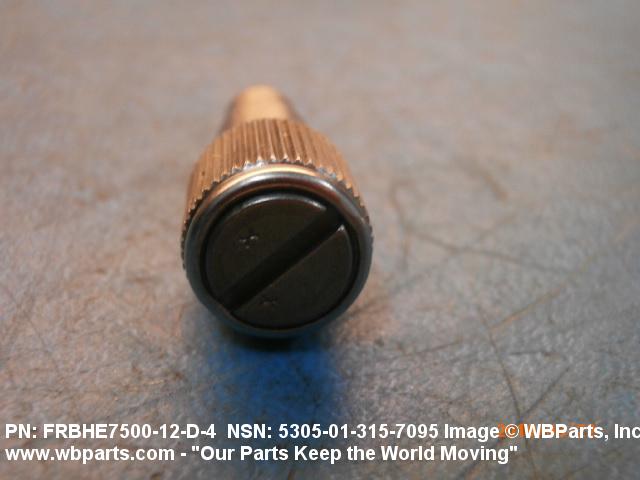

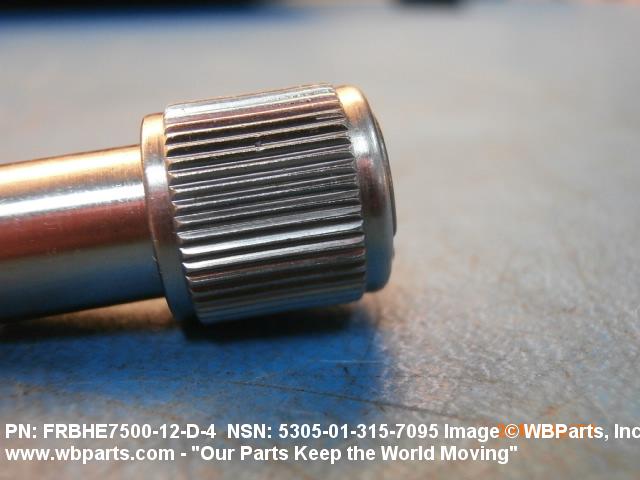

Drawings & Photos | NSN 5305-01-315-7095
Demand History | NSN 5305-01-315-7095
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-315-7095 | 2019-04-112 | 4 | us |
| FRBEH-7500-12-D-4 | 2019-04-107 | 242 | DIBBS |
| 5305-01-315-7095 | 2019-04-99 | 4 | us |
| FRBEH-7500-12-D-4 | 2019-04-99 | 242 | DIBBS |
| FRBEH-7500-12-D-4 | 2019-03-84 | 215 | DIBBS |
| 5305-01-315-7095 | 2019-03-79 | 2 | United States |
| FRBEH-7500-12-D-4 | 2019-03-76 | 215 | DIBBS |
| FRBEH-7500-12-D-4 | 2019-03-62 | 215 | DIBBS |
| FRBEH-7500-12-D-4 | 2019-01-24 | 50 | DIBBS |
| FRBEH-7500-12-D-4 | 2019-01-16 | 50 | DIBBS |
| 5305-01-315-7095 | 2018-12-350 | 24 | DIBBS |
| 5305-01-315-7095 | 2009-05-146 | 150 | DIBBS |
| 5305-01-315-7095 | 2009-05-131 | 150 | DIBBS |
Cross Reference | NSN 5305-01-315-7095
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FRBEH-7500-12-D-4 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| FRBEH-7500-12-D-4 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| FRBHE-7500-12-D-4 | 97928 | HUCK INTL INC |
| KKF83J | 02750 | EATON AEROSPACE LLC DIV ELECTRICAL SENSING & CONTROLS |
| LL-HX6-4622 | 14153 | DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-315-7095
Related Products | NSN 5305-01-315-7095
Technical Data | NSN 5305-01-315-7095
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |

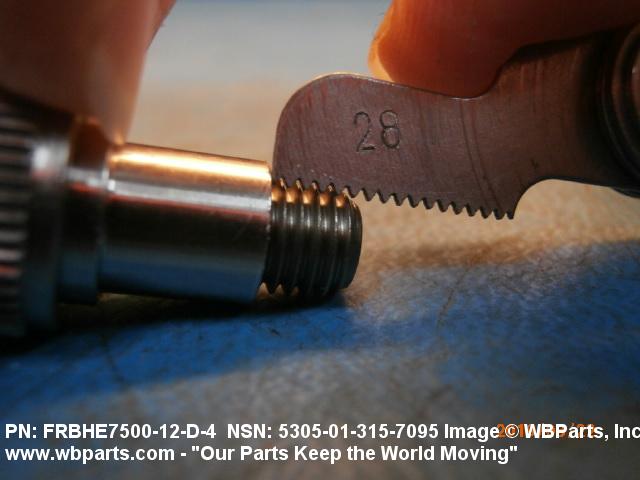

| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

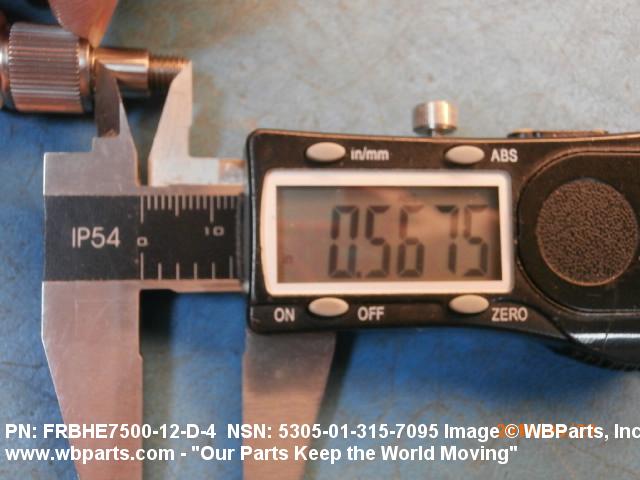

| FASTENER LENGTH | 0.590 INCHES NOMINAL |
| MATERIAL | STEEL COMP 303 HEAD STEEL COMP 301 SECONDARY WASHER IRON ALLOY 660 PRIMARY WASHER STEEL COMP 302 SPRING STEEL COMP 304 STAND-OFF IRON ALLOY 660 OR STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE SECONDARY WASHER AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE PRIMARY WASHER ASTM A313 ASSN STD SINGLE MATERIAL RESPONSE SPRING QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 140000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C66 KNURLED NO. 1 |

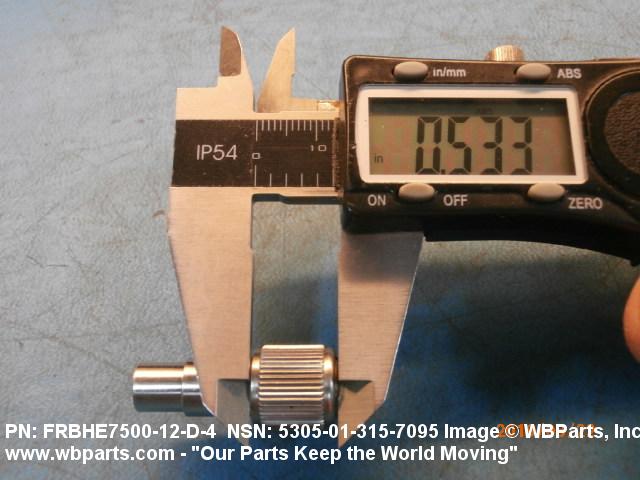

| HEAD DIAMETER | 0.531 INCHES NOMINAL |

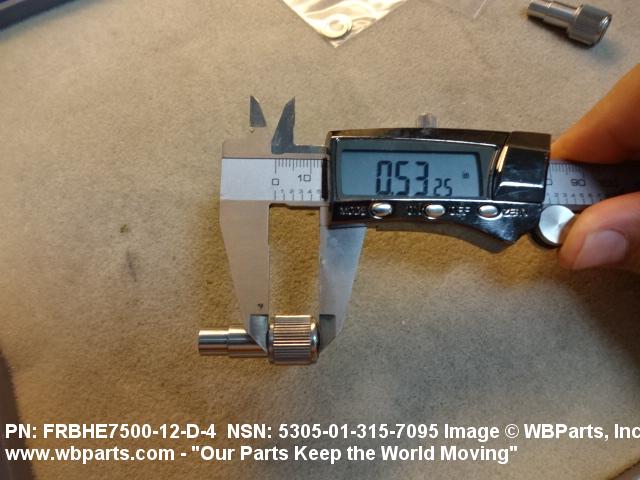

| HEAD HEIGHT | 0.530 INCHES NOMINAL |

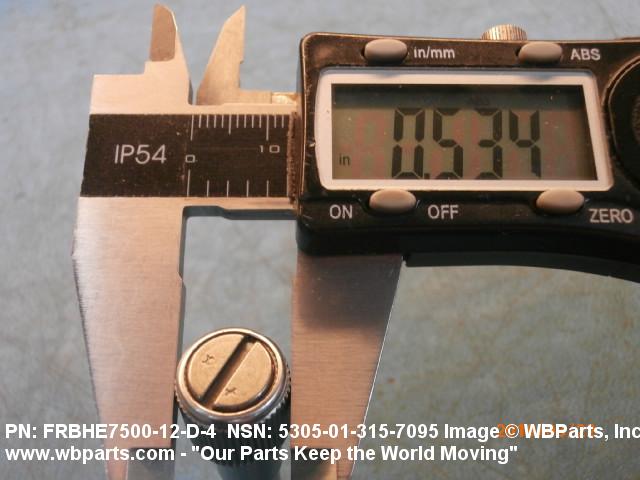

| INTERNAL DRIVE STYLE | D14 SLOT |
| MATERIAL ACCOMMODATED THICKNESS | 0.155 INCHES MINIMUM AND 0.217 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-P-23199 SPECIFICATION |
| SPECIAL TEST FEATURES | SPECIAL QUALITY CONTROL TESTING |
Restrictions/Controls & Freight Information | NSN 5305-01-315-7095
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-315-7095
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
