NSN 5305-01-310-6828 MS2467160, MS24671-60, FFS86

Product Details | SOCKET HEAD CAP SCREW

5305-01-310-6828 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: MS2467160, MS24671-60, FFS86, FF-S-86, 5305-01-310-6828, 01-310-6828, 5305013106828, 013106828

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	12 NOV 1989	01-310-6828	16282 ( SCREW, CAP, SOCKET HEAD )

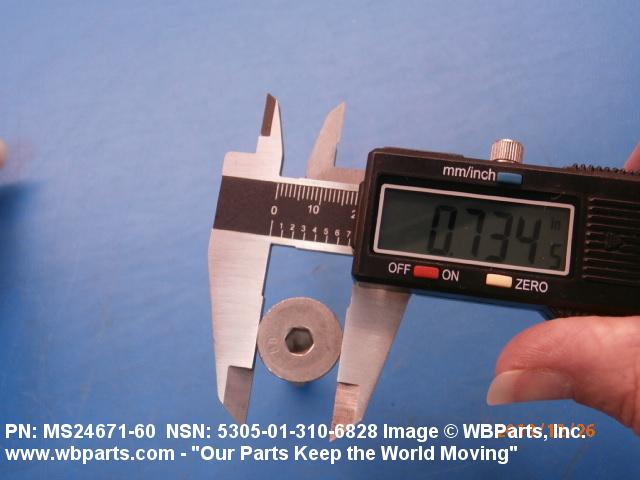

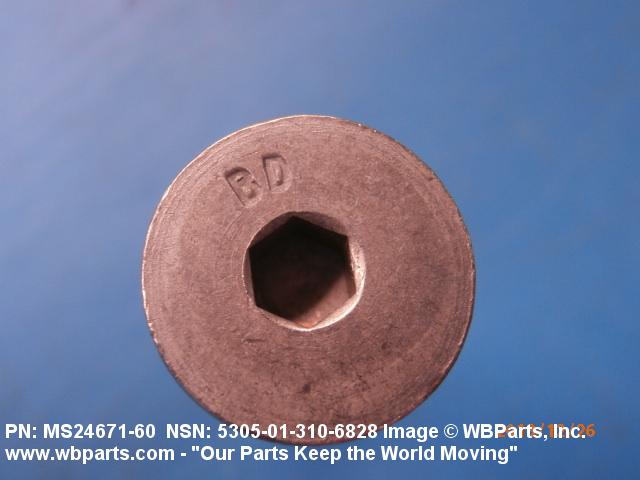

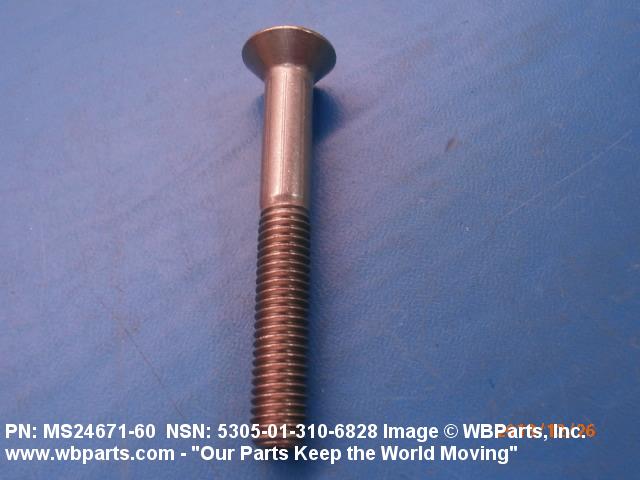

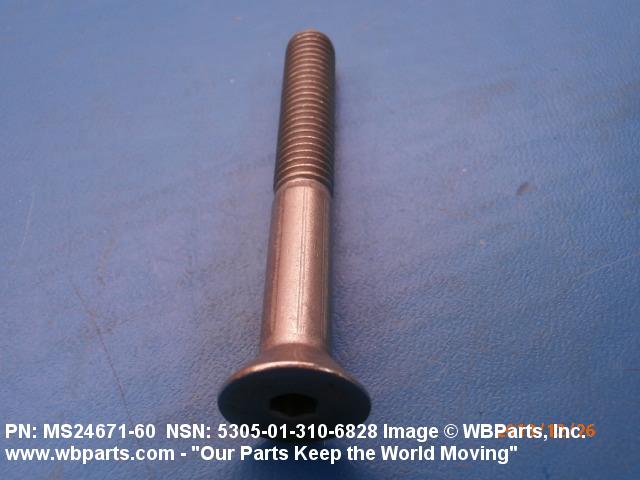

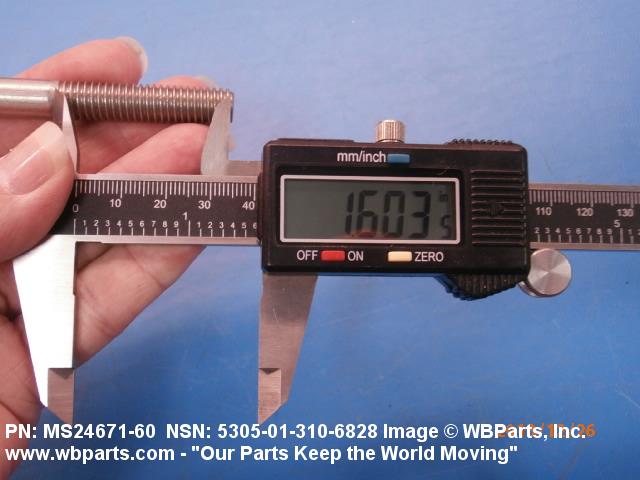

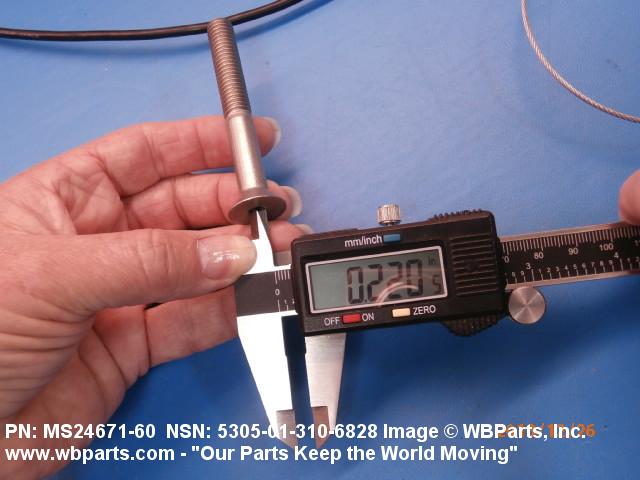

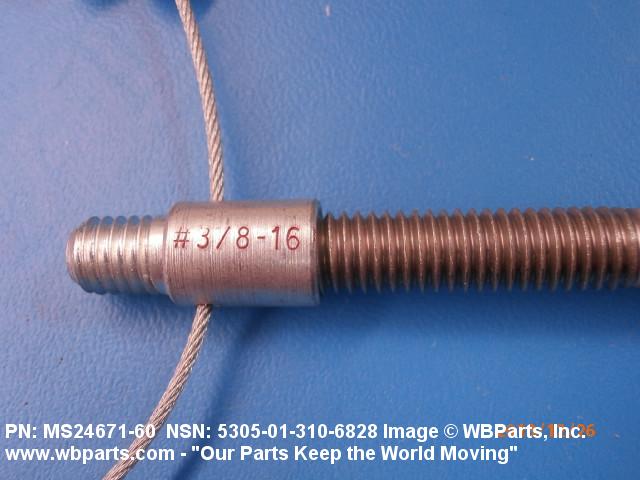

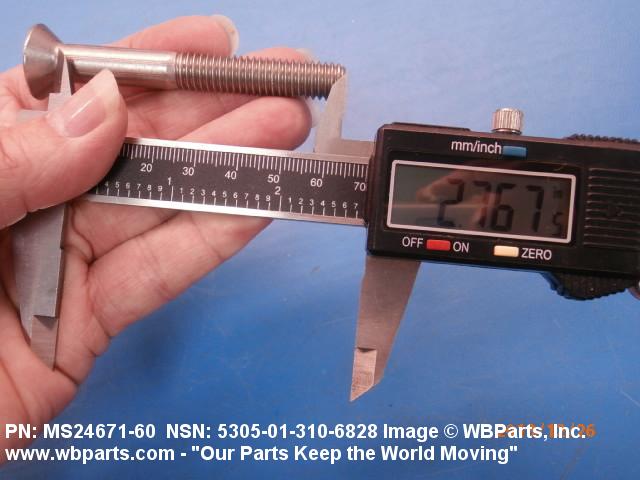

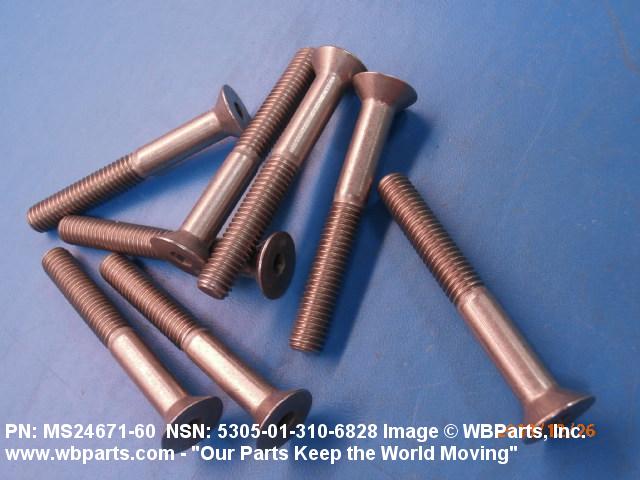

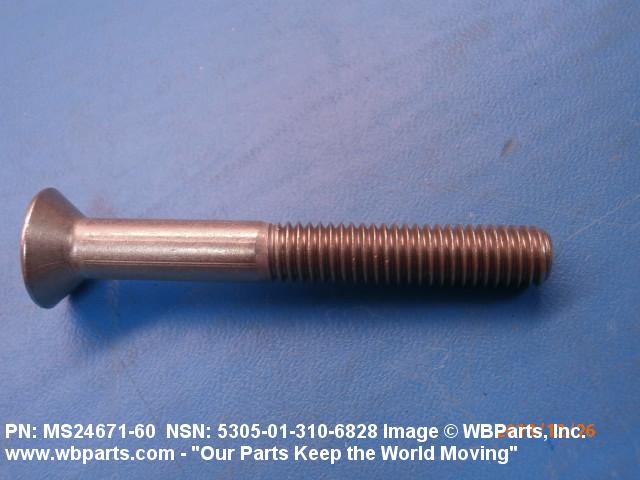

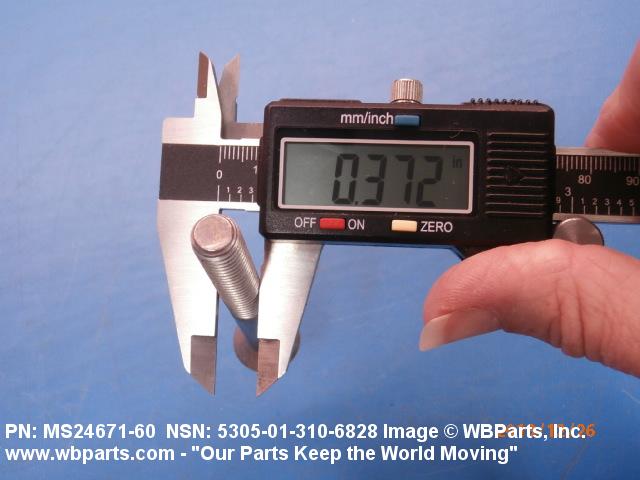

Drawings & Photos | NSN 5305-01-310-6828
