NSN 5305-01-273-6856 FRB7500P10B5, FRB7500P-10-B-5, FT1100P1025

Product Details | PANEL SCREW ASSEMBLY

5305-01-273-6856 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.

Part Alternates: FRB7500P10B5, FRB7500P-10-B-5, FT1100P1025, FT1100P-10-2-5, 7027270132, 70-2727013-2, 5305-01-273-6856, 01-273-6856, 5305012736856, 012736856

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	29 FEB 1988	01-273-6856	33044 ( SCREW ASSEMBLY, PANEL )

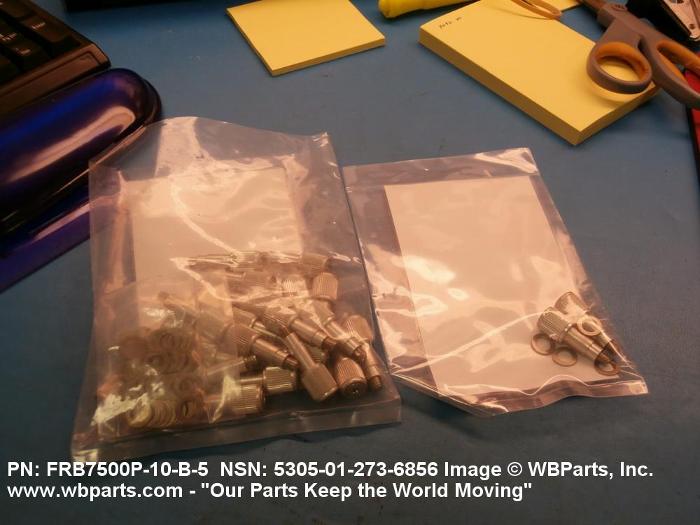

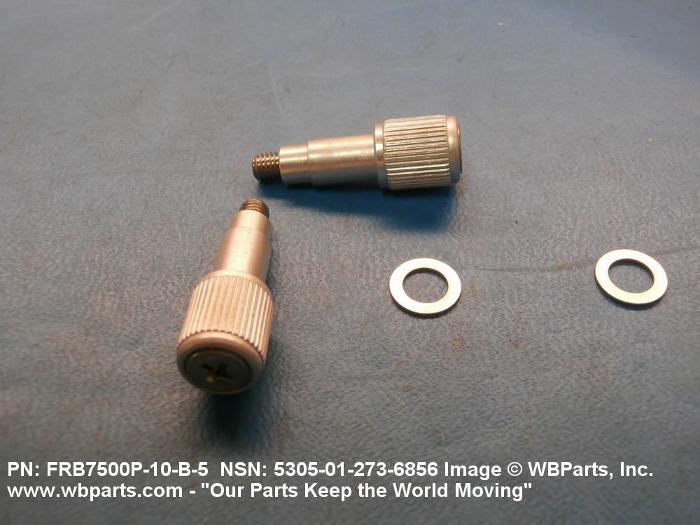

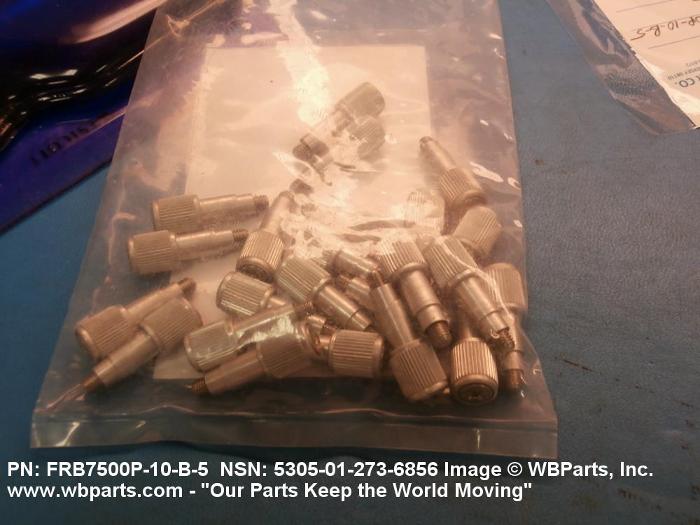

Drawings & Photos | NSN 5305-01-273-6856

Part Number	Request Date	QTY	Origin
FRB7500P10B5	2013-03-63	25	United States
5305-01-273-6856	2012-08-244	92	United States
FT1100P1025	2011-07-195	10	US
FRB7500P10B5	2007-07-212	5	US

Cross Reference | NSN 5305-01-273-6856

Part Number	Cage Code	Manufacturer
70-2727013-2	04655	GENERAL DYNAMICS C4 SYSTEMS, INC.
FRB7500P-10-B-5	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
FRB7500P-10-B-5	97928	HUCK INTL INC
FT1100P-10-2-5	58794	FASTENER TECHNOLOGY CORP.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-273-6856

Compare

Related Products | NSN 5305-01-273-6856

5305-01-273-7132, 5305-01-273-7156, 5305-01-273-7484, 5305-01-273-7485, 5305-01-273-7486

Technical Data | NSN 5305-01-273-6856

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
FASTENER LENGTH	0.747 INCHES MINIMUM AND 0.777 INCHES MAXIMUM
MATERIAL	ALUMINUM ALLOY 6061 HEAD STEEL COMP 301 SECONDARY WASHER STEEL COMP 301 PRIMARY WASHER STEEL COMP 302 SPRING ALUMINUM ALLOY 6061 STAND-OFF STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 FASTENER
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE HEAD MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE SECONDARY WASHER MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER ASTM A580 ASSN STD SINGLE MATERIAL RESPONSE SPRING QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE STAND-OFF ASTM A493 ASSN STD ALL MATERIAL RESPONSES FASTENER
SURFACE TREATMENT	ANODIZE HEAD PASSIVATE SECONDARY WASHER PASSIVATE PRIMARY WASHER PASSIVATE SPRING ANODIZE STAND-OFF PASSIVATE FASTENER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TYPE 1,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SECONDARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING MIL-A-8625,TYPE 1,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER
HEAD STYLE	C66 KNURLED NO. 1
HEAD DIAMETER	0.436 INCHES MINIMUM AND 0.466 INCHES MAXIMUM
HEAD HEIGHT	0.505 INCHES MINIMUM AND 0.535 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D1 CROSS RECESS TYPE 1
MATERIAL ACCOMMODATED THICKNESS	0.032 INCHES MINIMUM AND 0.093 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5305-01-273-6856

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-01-273-6856

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
