NSN 5305-01-265-1178 771A136094, 771A136-094, 01-265-1178
Product Details | SOCKET HEAD CAP SCREW
5305-01-265-1178 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 771A136094, 771A136-094, 5305-01-265-1178, 01-265-1178, 5305012651178, 012651178
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 OCT 1987 | 01-265-1178 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

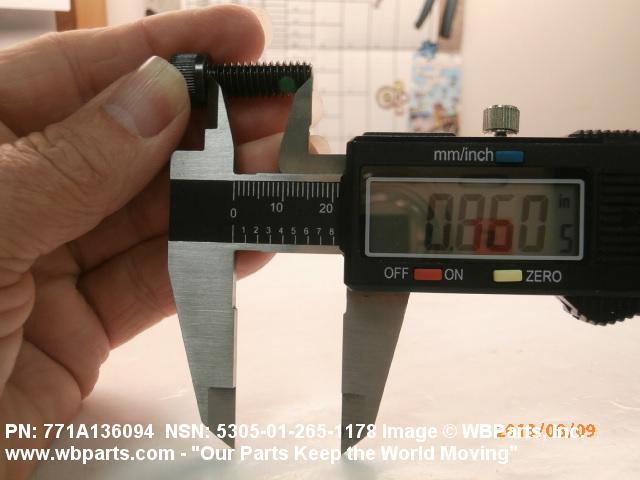

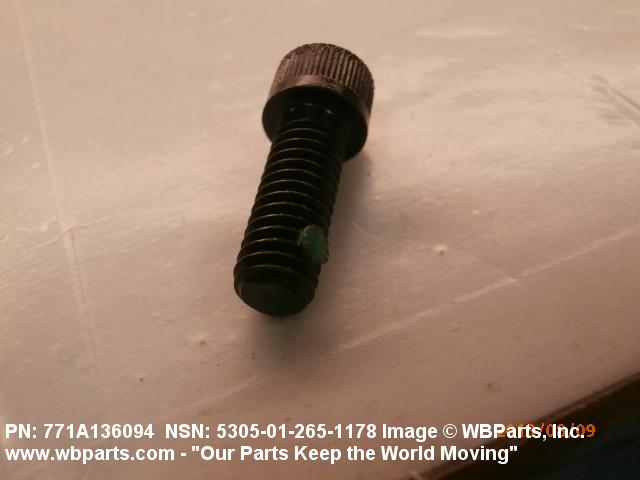

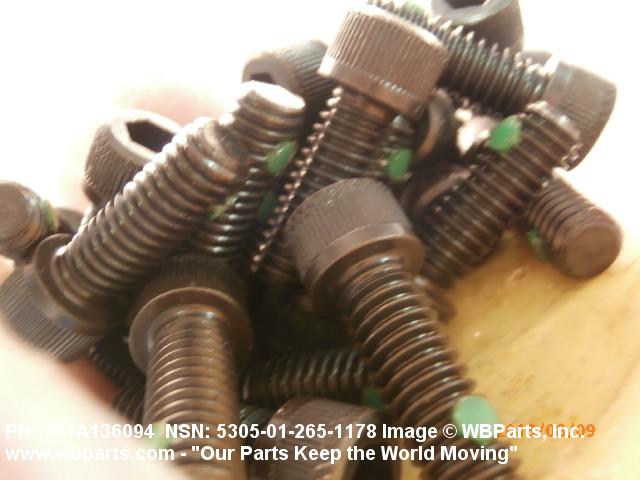

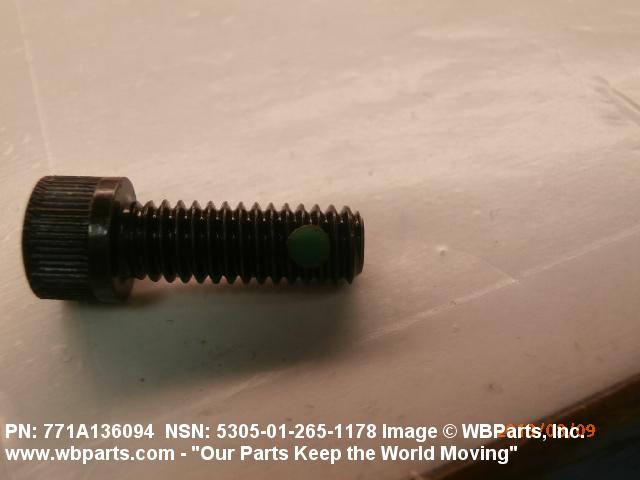

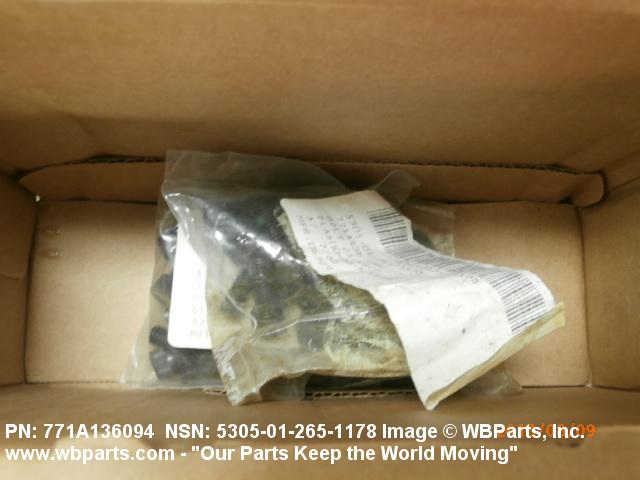

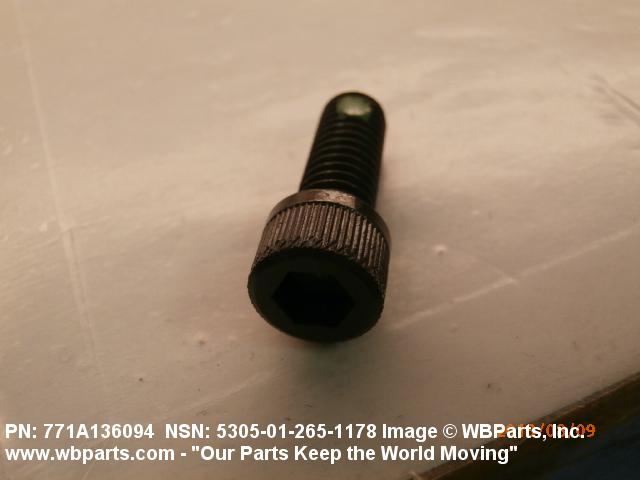

Drawings & Photos | NSN 5305-01-265-1178
Demand History | NSN 5305-01-265-1178
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 771A136-094 | 2024-06-178 | 15 | DIBBS |
| 771A136-094 | 2020-04-107 | 35 | DIBBS |
| 771A136-094 | 2020-04-99 | 35 | DIBBS |
| 5305-01-265-1178 | 2018-09-262 | 31 | DIBBS |
| 5305-01-265-1178 | 2018-09-254 | 31 | DIBBS |
| 5305-01-265-1178 | 2014-05-130 | 22 | DIBBS |
| 5305-01-265-1178 | 2014-04-118 | 22 | DIBBS |
| 5305-01-265-1178 | 2014-01-29 | 17 | DIBBS |
| 5305-01-265-1178 | 2013-12-345 | 12 | DIBBS |
| 771A136094 | 2013-08-213 | 50 | United States |
| 5305-01-265-1178 | 2013-06-166 | 12 | DIBBS |
| 5305-01-265-1178 | 2013-05-151 | 12 | DIBBS |
| 5305-01-265-1178 | 2012-10-303 | 12 | DIBBS |
| 5305-01-265-1178 | 2008-10-305 | 2 | DIBBS |
| 5305-01-265-1178 | 2008-04-120 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-265-1178
Technical Data | NSN 5305-01-265-1178
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.769 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
| FASTENER LENGTH | 0.880 INCHES MAXIMUM |
| MATERIAL | PLASTIC LOCKING FEATURE STEEL FASTENER |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.468 INCHES NOMINAL |
| HEAD HEIGHT | 0.312 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.3125 INCHES MINIMUM AND 0.3160 INCHES MAXIMUM |
| LOCKING FEATURE | PELLET THREADS |
Restrictions/Controls & Freight Information | NSN 5305-01-265-1178
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-265-1178
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
