NSN 5305-01-264-1467 FF-S-86 TYPE IV, FFS86TYPEIV, 92197A244
Product Details | SOCKET HEAD CAP SCREW

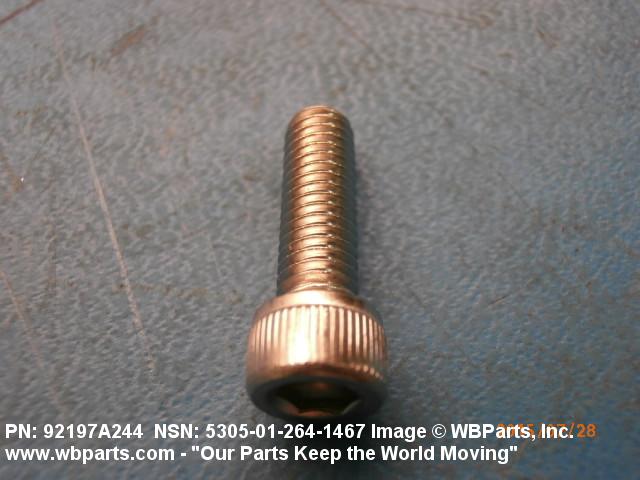

5305-01-264-1467 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: FF-S-86 TYPE IV, FFS86TYPEIV, 92197A244, 5305-01-264-1467, 01-264-1467, 5305012641467, 012641467
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 SEP 1987 | 01-264-1467 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

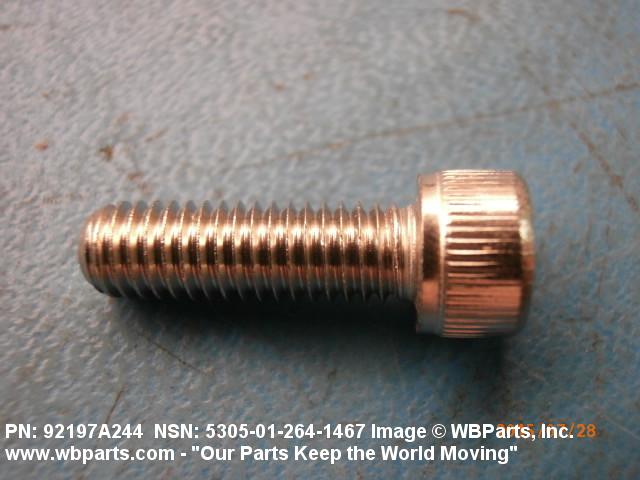

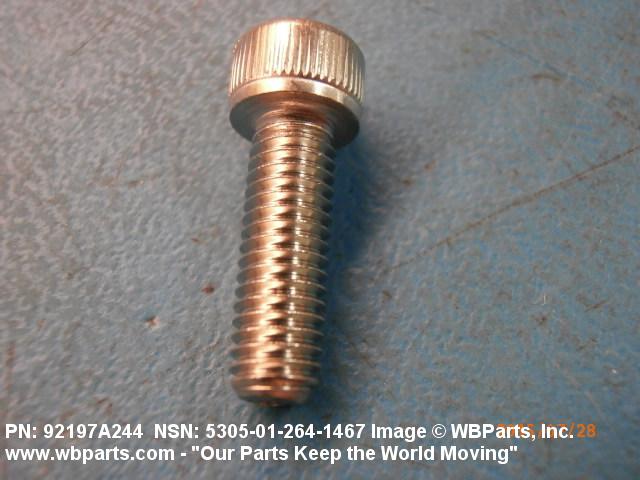

Drawings & Photos | NSN 5305-01-264-1467
Demand History | NSN 5305-01-264-1467
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-264-1467 | 2015-07-196 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-264-1467
Related Products | NSN 5305-01-264-1467
Technical Data | NSN 5305-01-264-1467

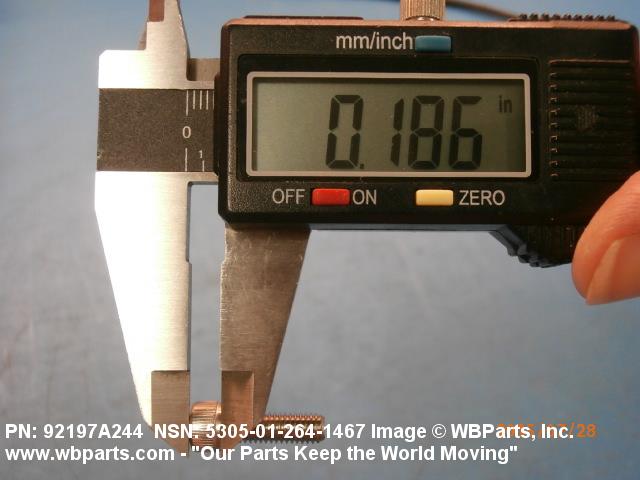

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

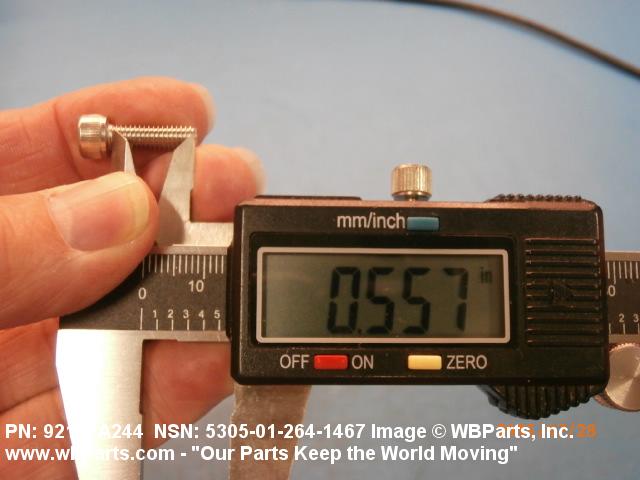

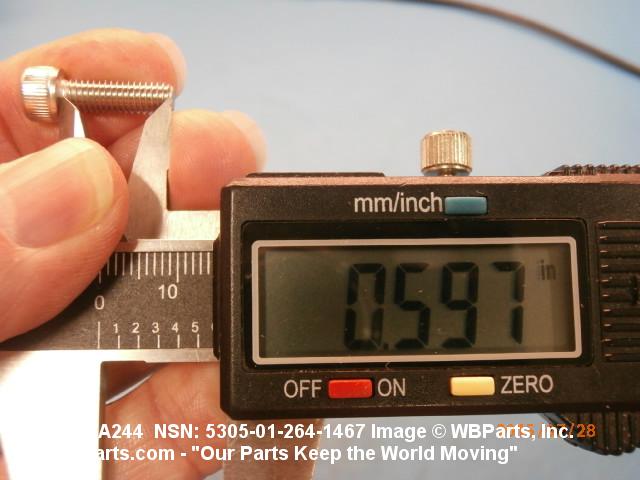

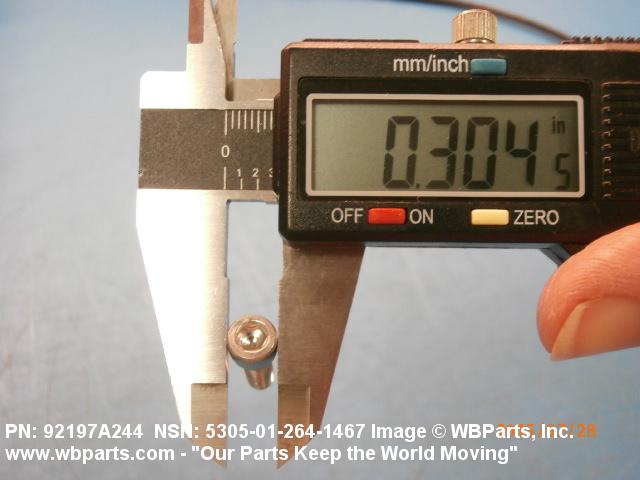

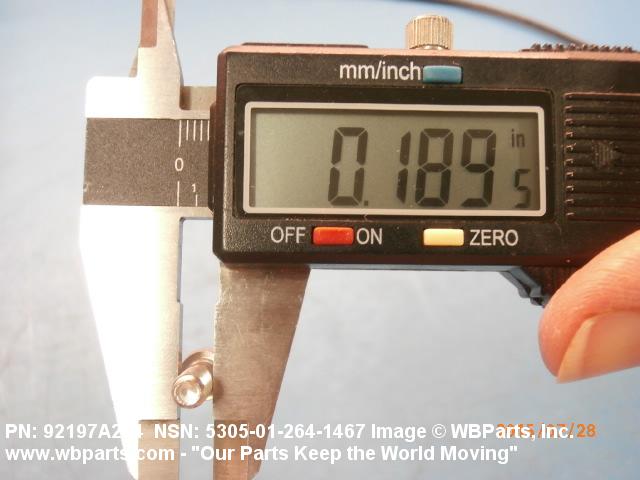

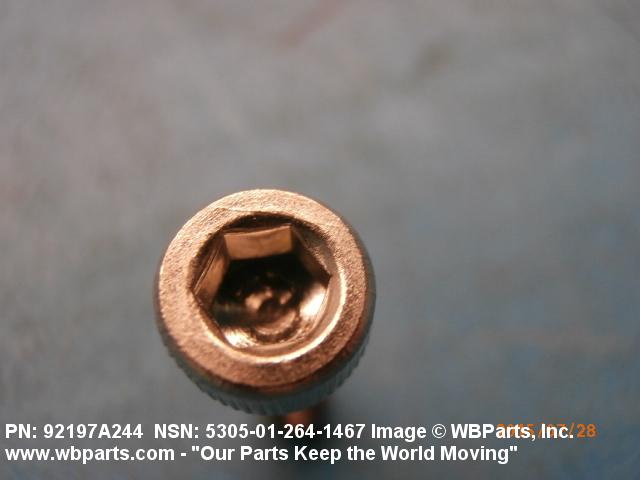

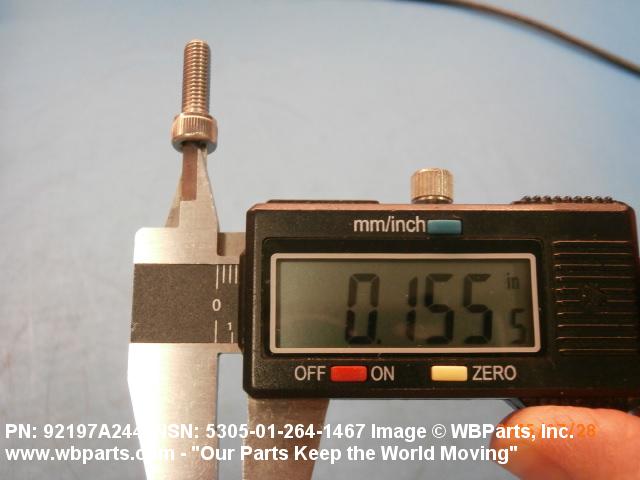

| THREAD LENGTH | 0.533 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| FASTENER LENGTH | 0.595 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 302B OR STEEL COMP 303 OR STEEL COMP 303 PLUS X OR STEEL COMP 303SE OR STEEL COMP 303CU OR STEEL COMP 303MA OR STEEL COMP 304 OR STEEL COMP 304L OVERALL |
| MINIMUM TENSILE STRENGTH | 75000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.303 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| HEAD HEIGHT | 0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.156 INCHES NOMINAL |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-86 TYPE IV |
