NSN 5305-01-241-2656 FRB7500HS10C4, FRB7500HS-10-C-4, 28775571
Product Details | PANEL SCREW ASSEMBLY

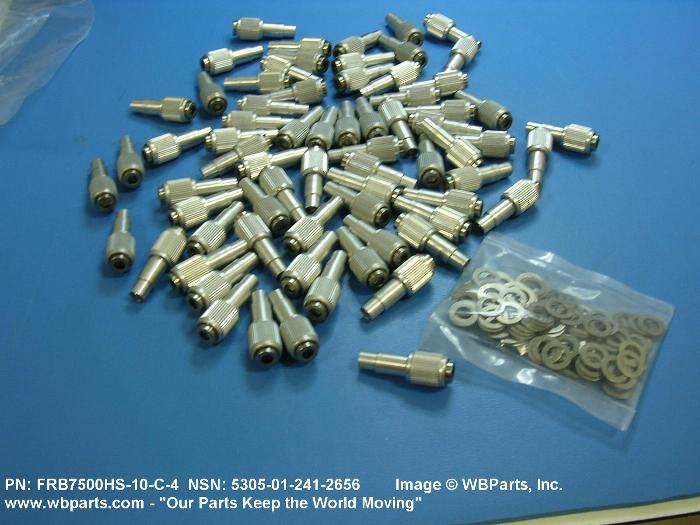

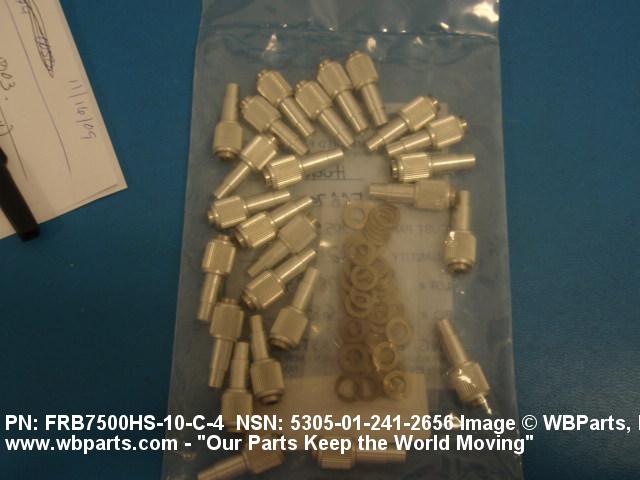

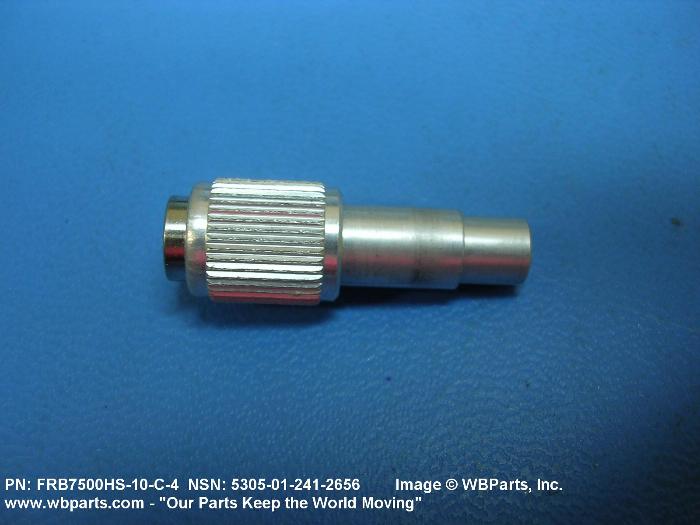

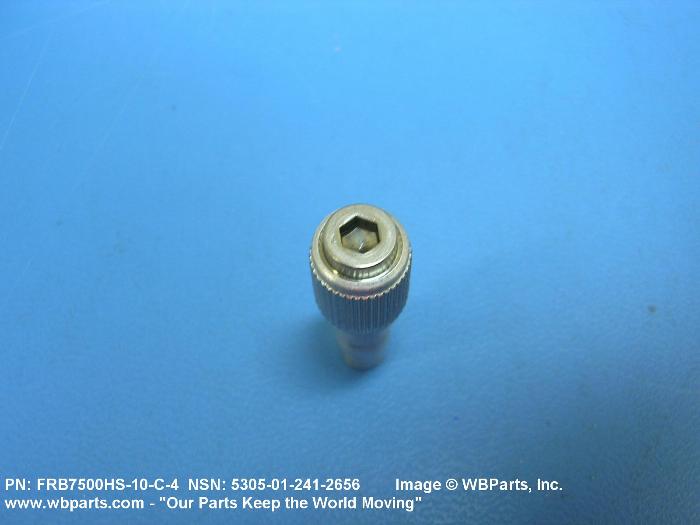

5305-01-241-2656 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: FRB7500HS10C4, FRB7500HS-10-C-4, 28775571, 2877557-1, 5305-01-241-2656, 01-241-2656, 5305012412656, 012412656
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 SEP 1986 | 01-241-2656 | 33044 ( SCREW ASSEMBLY, PANEL ) |
