Product Details | SOCKET HEAD CAP SCREW

5305-01-202-8975 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.

Part Alternates: NAS1351C352, NAS1351C3-52, 5305-01-202-8975, 01-202-8975, 5305012028975, 012028975

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 07 MAR 1985 01-202-8975

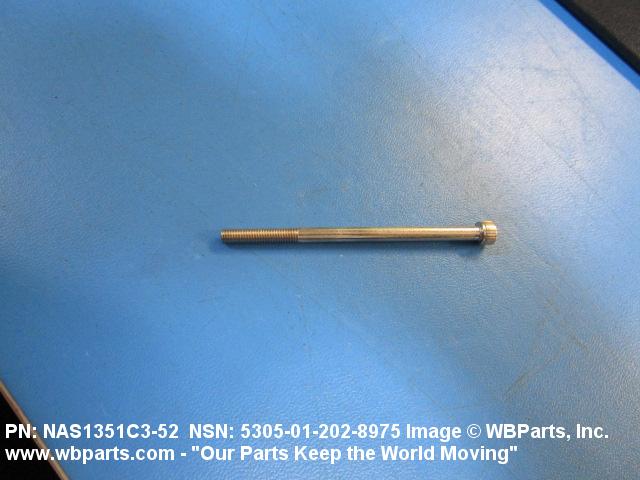

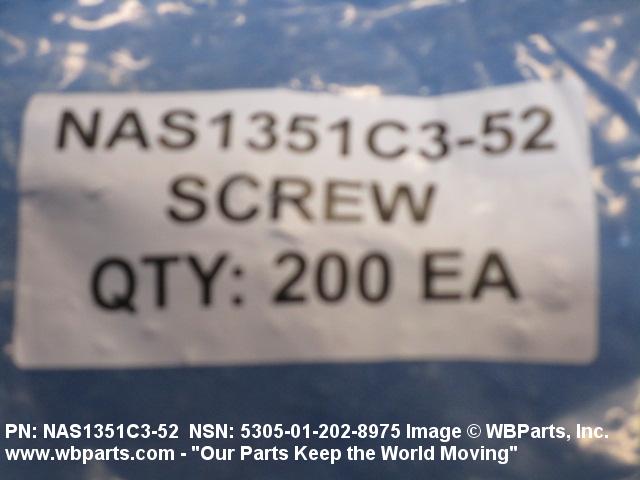

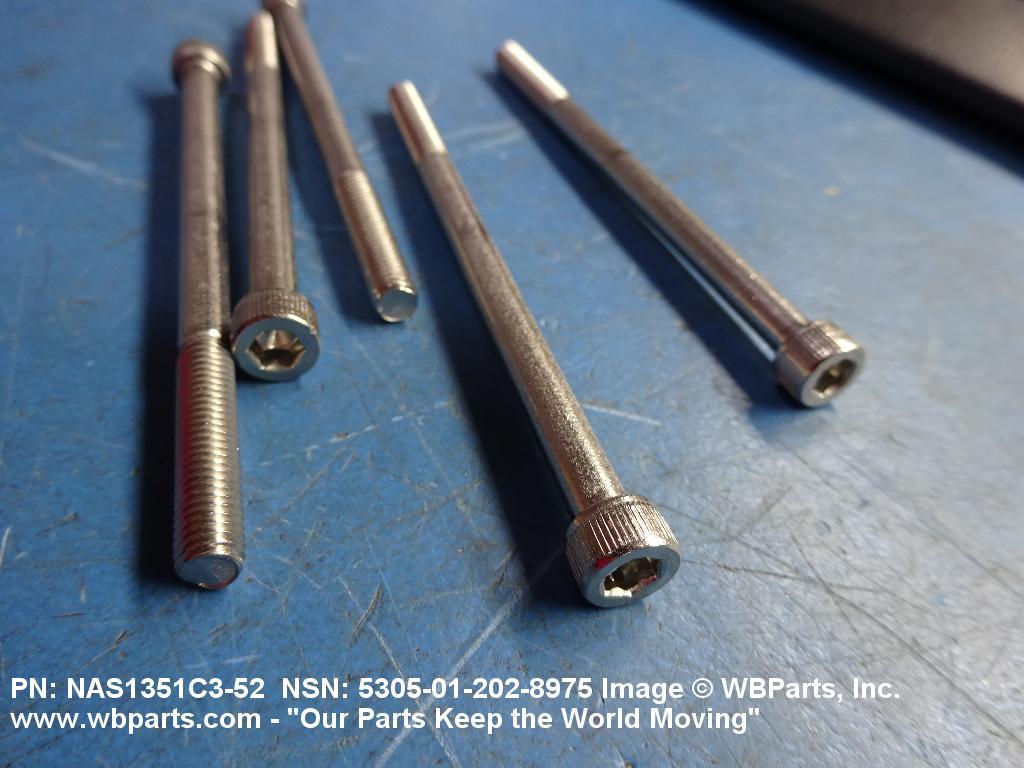

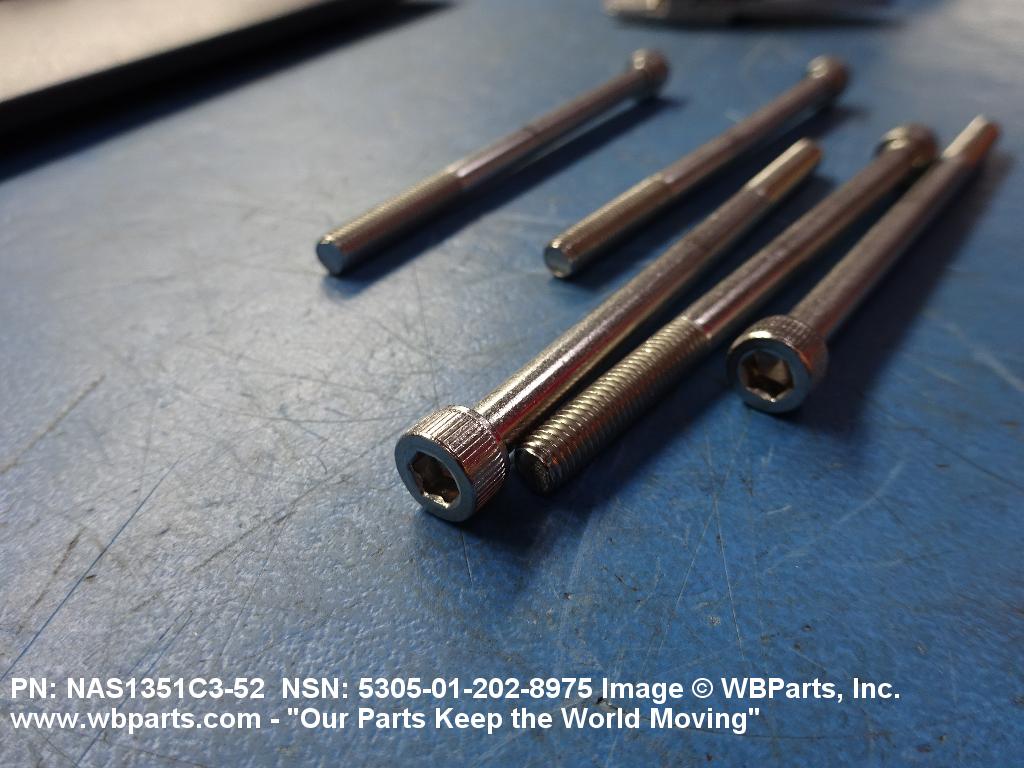

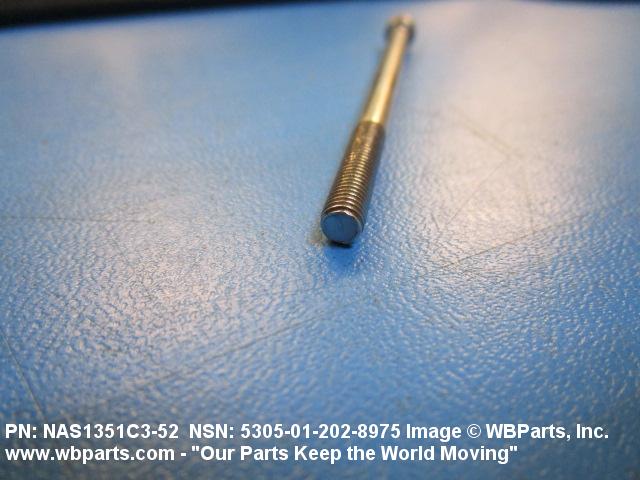

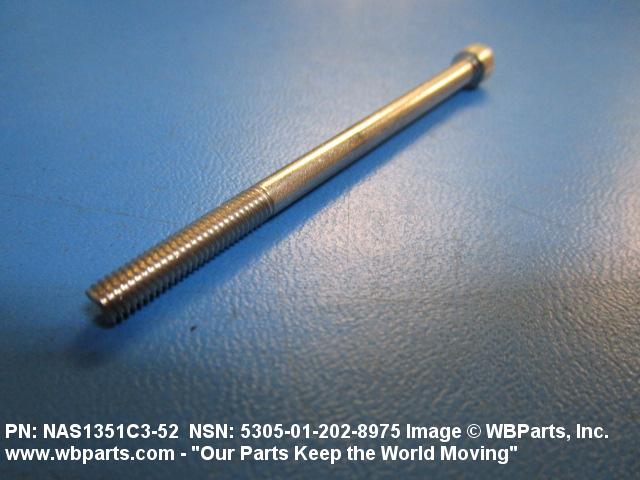

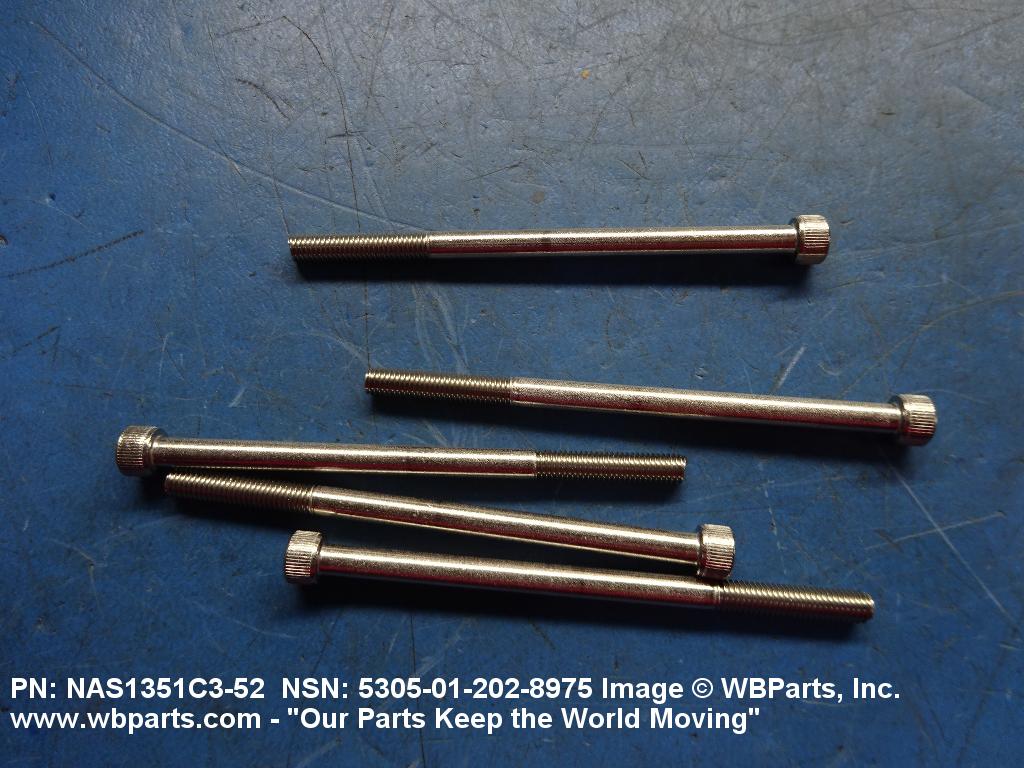

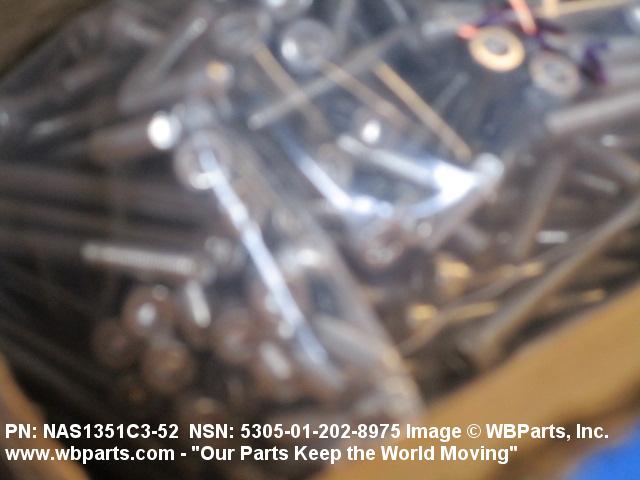

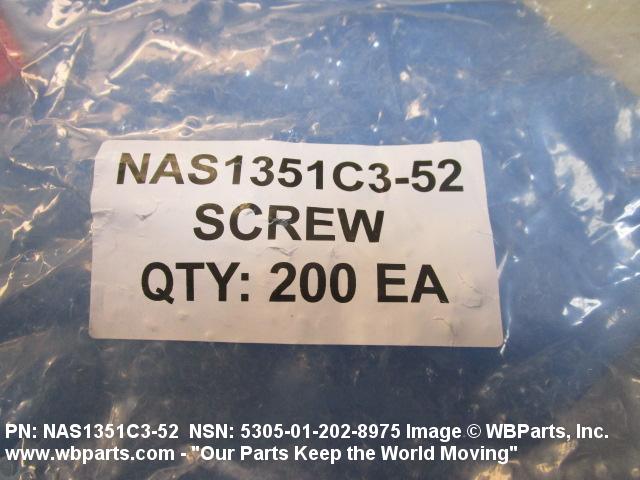

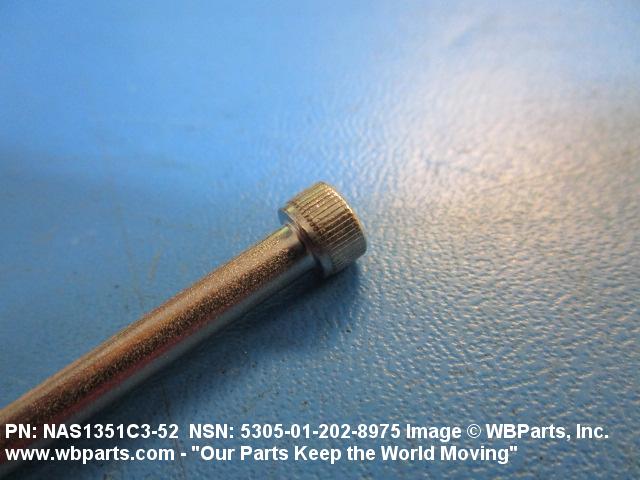

Drawings & Photos | NSN 5305-01-202-8975


Demand History | NSN 5305-01-202-8975

Part Number Request Date QTY Origin
NAS1351C352 2022-07-188 150 United States
5305-01-202-8975 2021-06-166 200 United States
5305-01-202-8975 2021-06-155 300 United States
5305-01-202-8975 2015-01-08 25 DIBBS

Cross Reference | NSN 5305-01-202-8975

Part Number Cage Code Manufacturer
NAS1351C3-52 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-202-8975

Technical Data | NSN 5305-01-202-8975

Characteristic Specifications
THREAD SERIES DESIGNATOR UNJF
NOMINAL THREAD DIAMETER 0.099 INCHES
THREAD QUANTITY PER INCH 56
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND

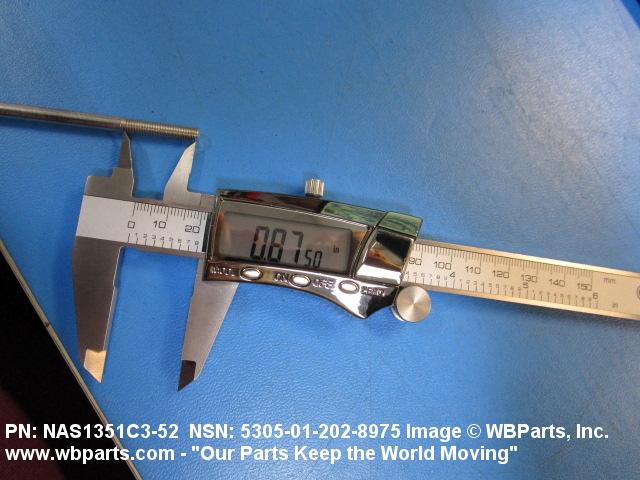

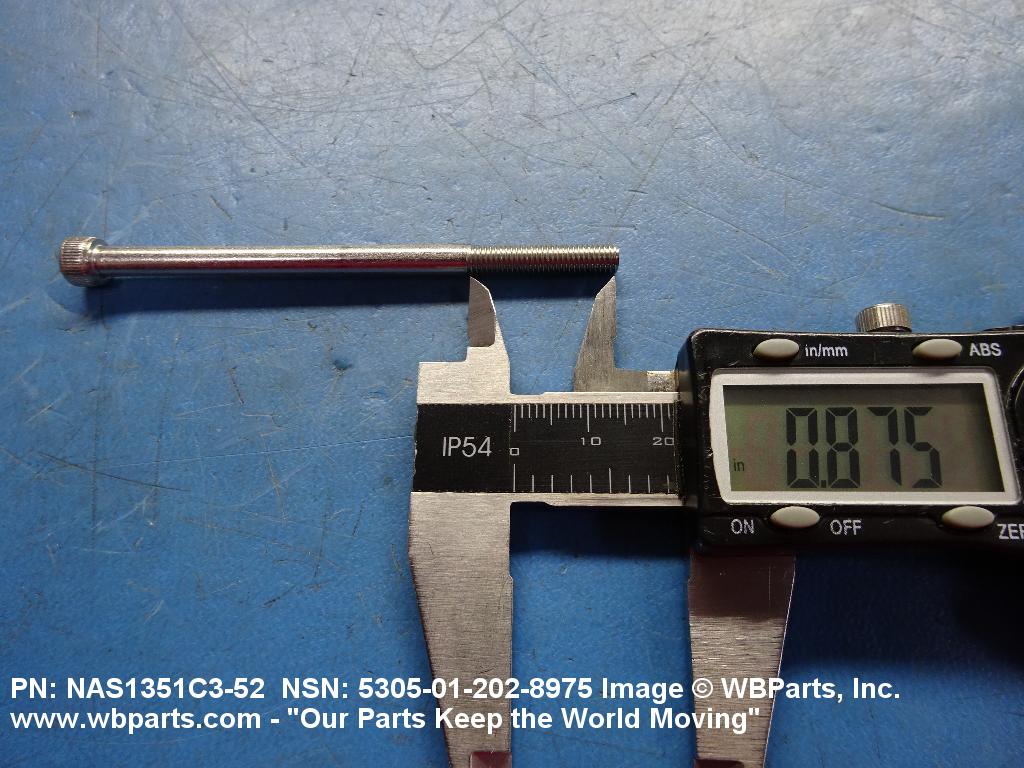

THREAD LENGTH 0.875 INCHES MINIMUM

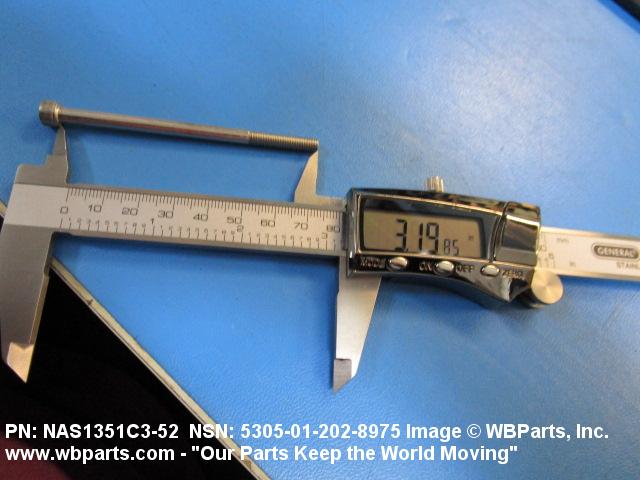

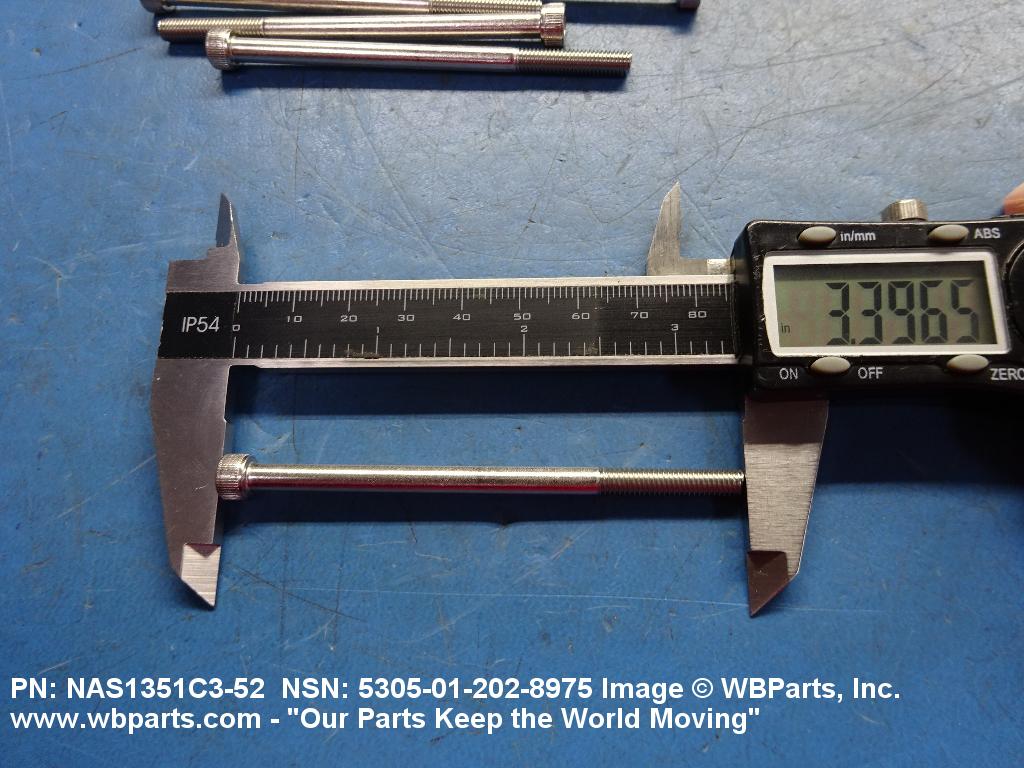

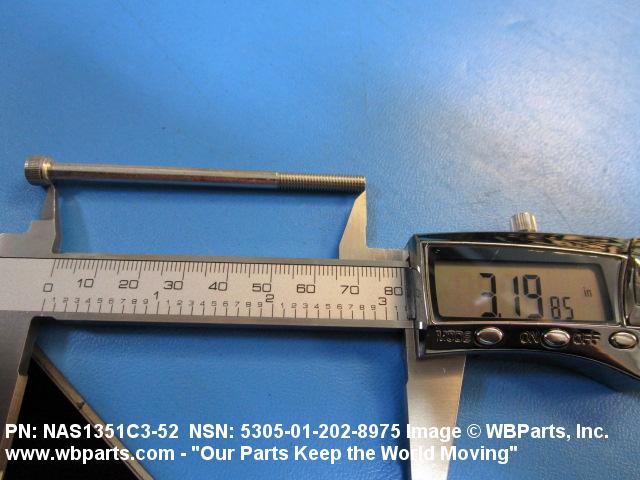

FASTENER LENGTH 3.190 INCHES MINIMUM AND 3.250 INCHES MAXIMUM
MATERIAL STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 384 OR STEEL COMP XM-7 OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING 80.0 ROCKWELL B MINIMUM OVERALL
MINIMUM TENSILE STRENGTH 80000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH 30000 POUNDS PER SQUARE INCH
HEAD STYLE C49 FLAT CHAMFER

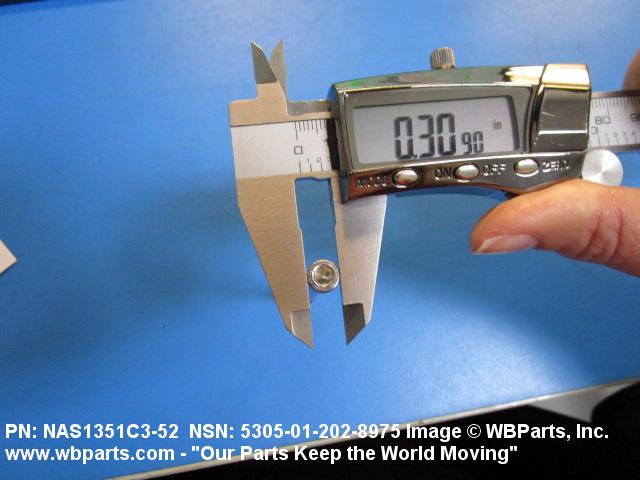

HEAD DIAMETER 0.303 INCHES MINIMUM AND 0.312 INCHES MAXIMUM

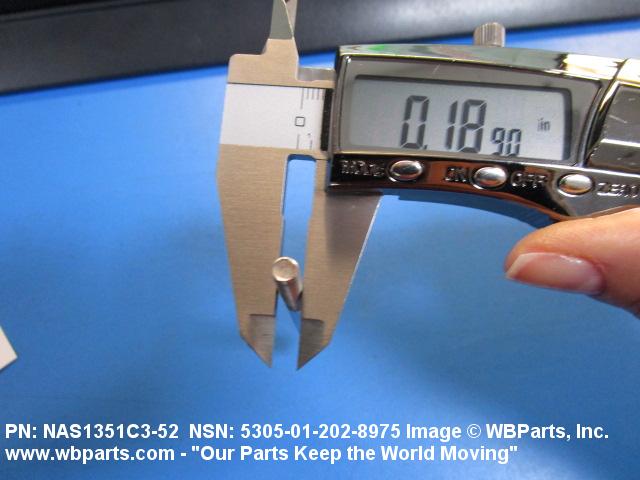

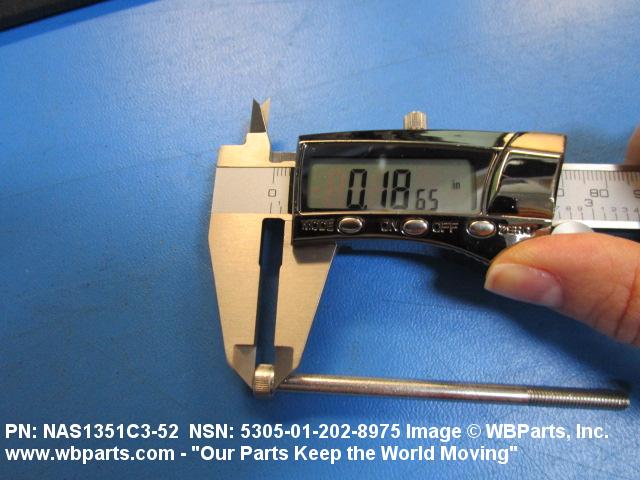

HEAD HEIGHT 0.185 INCHES MINIMUM AND 0.190 INCHES MAXIMUM

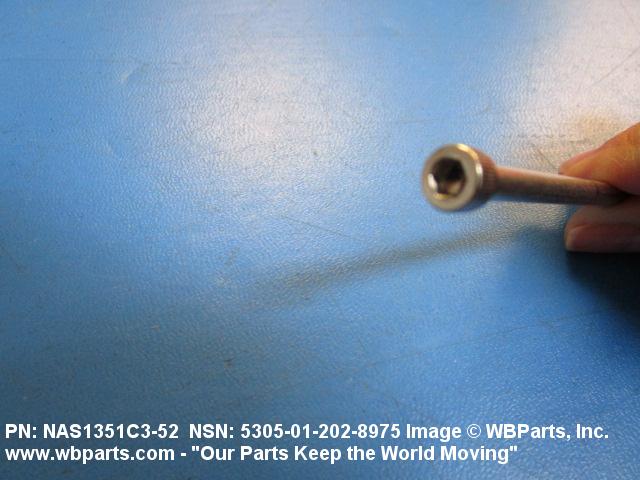

INTERNAL DRIVE STYLE D5 HEXAGON
WIDTH ACROSS FLATS 0.156 INCHES MINIMUM AND 0.159 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA 80205-NAS1351 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5305-01-202-8975

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5305-01-202-8975

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
