Product Details | MACHINE SCREW
5305-01-202-8964 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: AIC82322C, AIC823-22C, AOL582322C, AOL5823-22C, D992422C, D9924-22C, FS205122C, FS2051-22C, 101522, 1015-22, 96582322C, 965823-22C, 5305-01-202-8964, 01-202-8964, 5305012028964, 012028964
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAR 1985 | 01-202-8964 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-202-8964
Demand History | NSN 5305-01-202-8964
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-202-8964 | 2016-02-56 | 27 | DIBBS |
| 5305-01-202-8964 | 2016-01-11 | 21 | DIBBS |
| 5305-01-202-8964 | 2015-11-306 | 21 | DIBBS |
Cross Reference | NSN 5305-01-202-8964
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1015-22 | 58251 | FIRST AMERICAN SALES CO INC |
| 965823-22C | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| AIC823-22C | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| AOL5823-22C | 57472 | ALL MANUFACTURERS, INC. DBA ALLIED HARBOR AEROSPACE |
| D9924-22C | 08524 | DEUTSCH FASTENER CORP |
| D9924-22C | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| D9924-22C | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| D9924-22C | 97928 | HUCK INTL INC |
| FS2051-22C | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-202-8964
Technical Data | NSN 5305-01-202-8964
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.345 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| FASTENER LENGTH | 0.407 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| SCREW MATERIAL | IRON ALLOY 660 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS5737 ASSN STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

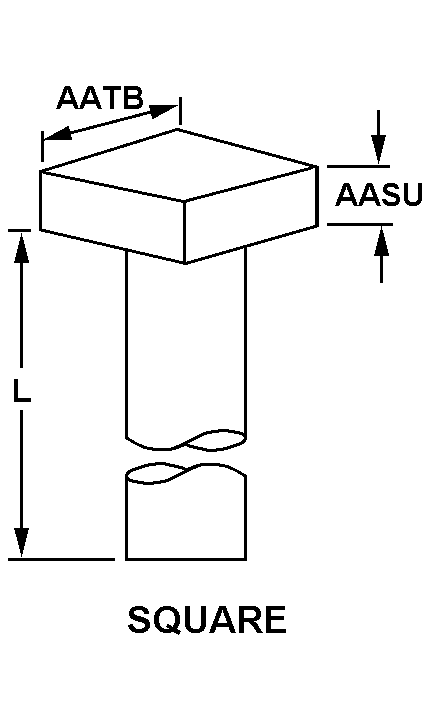

| HEAD STYLE | A11 SQUARE |
